K KASONIC PWC201

K KASONIC PWC201 24-Hour Outdoor Stake Timer

User Instruction Manual

1. Introduction

Thank you for choosing the K KASONIC PWC201 24-Hour Outdoor Stake Timer. This device is designed to automate the power supply to your outdoor electrical appliances, such as lights and decorations, providing convenience and energy efficiency. This manual provides essential information for the safe and effective use of your timer.

K KASONIC Outdoor Stake Timer with 6 outlets and 6 ft cord.

Figure 1: K KASONIC PWC201 Outdoor Stake Timer. This image displays the complete K KASONIC outdoor stake timer, featuring six grounded outlets, a mechanical timer dial with a clear weatherproof cover, and an integrated 6-foot power cord. The unit is green and designed for outdoor use.

2. Important Safety Information

Please read and understand all safety instructions before using this product. Failure to follow these instructions may result in electric shock, fire, or serious injury.

  • Outdoor Use Only: This timer is designed for outdoor use. Ensure it is placed in a location that minimizes direct exposure to heavy rain or standing water, despite its weatherproof design.
  • Electrical Rating: Do not exceed the electrical ratings of 15 Amp, 125 Volt, 1875 Watt. Overloading the timer can cause overheating and fire.
  • Grounding: This product is equipped with a 3-wire grounded plug. Always plug it into a properly grounded 3-prong outlet. Do not remove the grounding prong.
  • Water Protection: Ensure the clear weatherproof cover for the timer dial is securely closed at all times when not adjusting settings. Each outlet has an individual spring-operated cover; ensure these close automatically when a cord is unplugged.
  • Cord Care: Inspect the 6-foot extension cord for damage before each use. Do not use if the cord is frayed, cut, or damaged.
  • Circuit Breaker: The integrated circuit breaker protects against electrical overloads and short circuits. If the timer trips, disconnect all connected devices, reset the breaker, and check for overloaded circuits or faulty appliances.
  • Children and Pets: Keep the timer and connected cords out of reach of children and pets.
Diagram showing safety features of K KASONIC outdoor timer.

Figure 2: Safety Protection Design. This diagram highlights the safety features of the K KASONIC outdoor timer, including the clear weatherproof cover for the timer dial, individual spring-loaded safety flip covers for each of the six outlets, and the manual ON/OFF switch.

3. Package Contents

Please verify that all items are present in your package:

  • K KASONIC PWC201 Outdoor Stake Timer with integrated 6-foot extension cord
  • Ground Stake (may be in two parts for assembly)

4. Setup Instructions

Follow these steps to set up your outdoor stake timer:

  1. Assemble the Stake: If the ground stake is in two parts, securely screw the top part into the bottom part.
  2. Install the Stake: Attach the assembled stake to the bottom of the timer unit. Push the sharp end of the stake firmly into the ground in your desired outdoor location. Ensure the timer unit is stable and upright.
  3. Positioning: Choose a location that is easily accessible for programming and where the 6-foot cord can reach a grounded outdoor outlet without tension. Ensure the timer is not submerged in water or in a location prone to excessive splashing.
  4. Connect Appliances: Plug your outdoor lights or appliances into the six available outlets on the timer. Ensure all individual outlet covers close securely around the plugs.
  5. Plug into Power: Plug the timer's 3-prong power cord into a grounded outdoor electrical outlet.
K KASONIC outdoor timer dimensions and stake assembly.

Figure 3: Dimensions and Stake Assembly. This image shows the dimensions of the K KASONIC outdoor timer (13.6 inches tall, 2.8 inches wide) and its 12.5-inch ground stake. It also depicts the 6-foot power cord and the two-part stake assembly.

5. Operating Instructions

The K KASONIC PWC201 features a mechanical 24-hour timer with up to 48 ON/OFF settings per day, in 30-minute intervals.

  1. Open Timer Cover: Lift the clear weatherproof cover on top of the timer unit to access the dial.
  2. Reset Pins: The timer dial has small pins around its circumference. When new, these pins may be pressed down. To begin programming, pull all pins UP.
  3. Set ON Times: Press the pins DOWN for the periods you want your connected devices to be ON. Each pin represents a 30-minute interval. For example, to turn on from 6:00 PM to 10:00 PM, press down the pins corresponding to 6:00 PM, 6:30 PM, 7:00 PM, ..., 9:30 PM. Pins UP means the timer is OFF during that interval.
  4. Set Current Time: Rotate the entire timer dial clockwise until the current time aligns with the arrow indicator on the timer's face. Ensure you distinguish between AM and PM hours (the dial is marked 1-12 twice).
  5. Close Timer Cover: Securely close the clear weatherproof cover to protect the timer mechanism from the elements.
  6. Activate Power: Ensure the manual ON/OFF switch located on the side of the unit is in the 'ON' position.

Once programmed and powered, the settings will repeat daily. The timer will automatically turn your devices ON and OFF according to your set schedule.

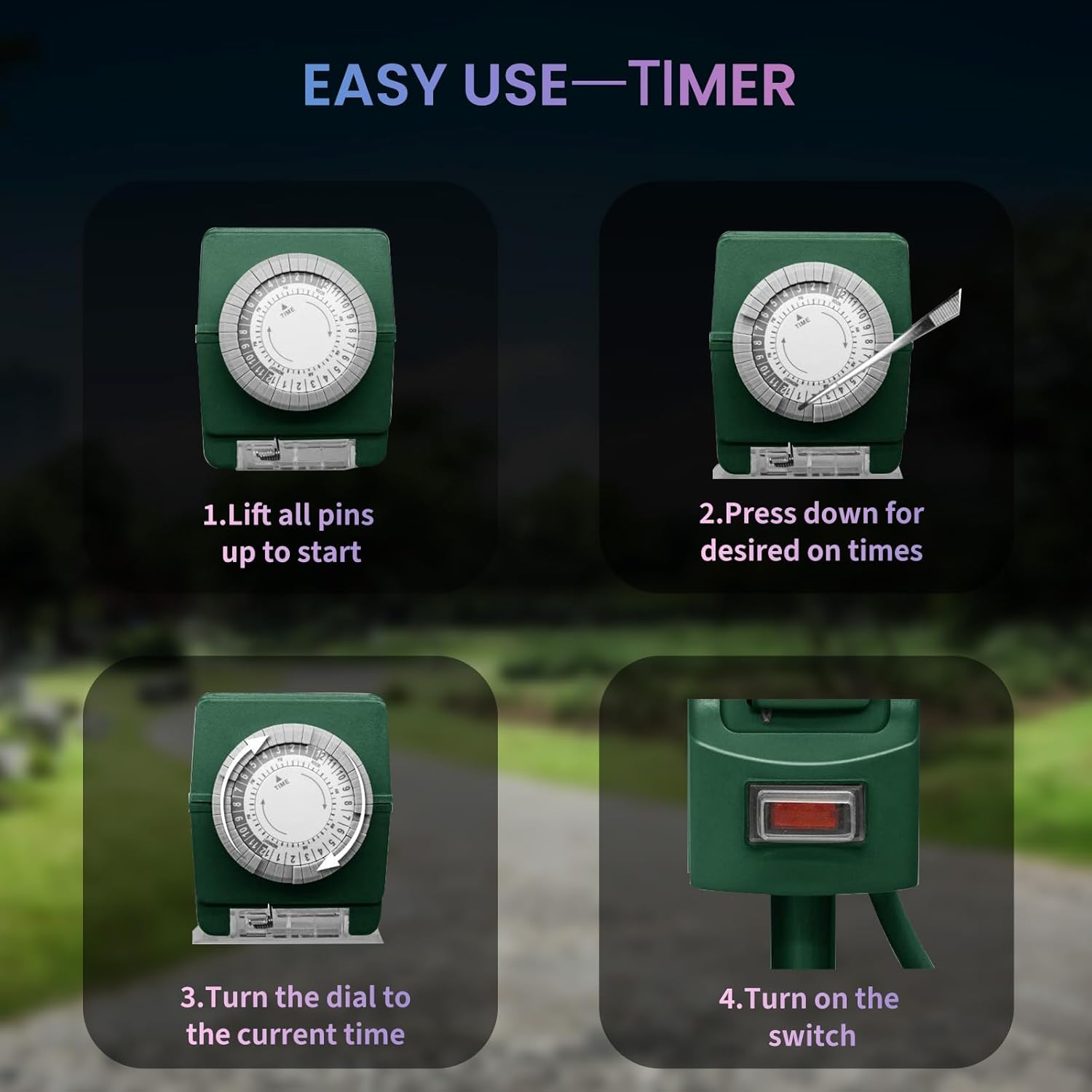

Four-step guide to setting the K KASONIC outdoor timer.

Figure 4: Easy Use Timer Steps. This image illustrates the four steps to program the mechanical timer: 1. Lift all pins up to reset. 2. Press down pins for desired ON times. 3. Turn the dial to the current time. 4. Turn on the main switch.

6. Maintenance

  • Cleaning: Disconnect the timer from the power source before cleaning. Wipe the unit with a damp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure all parts are dry before reconnecting to power.
  • Inspection: Periodically inspect the timer, cord, and plugs for any signs of wear, damage, or corrosion. Replace the unit if any damage is found.
  • Weather Protection: Always ensure the clear timer cover and individual outlet covers are securely closed when not in use to maintain weatherproof integrity.
  • Storage: When not in use for extended periods, store the timer in a cool, dry place away from direct sunlight and extreme temperatures.
Icons representing waterproof, heat-resistance, and dustproof features.

Figure 5: Weatherproof Features. This image visually represents the weatherproof capabilities of the K KASONIC outdoor timer, indicating it is waterproof, heat-resistant, and dustproof, suitable for various outdoor conditions.

7. Troubleshooting

ProblemPossible CauseSolution
Devices do not turn ON/OFF at programmed times.
  • Pins not set correctly.
  • Current time not set correctly.
  • Manual switch is OFF.
  • Ensure pins are pressed DOWN for ON times and UP for OFF times.
  • Rotate dial to align current time with the arrow indicator.
  • Verify the manual ON/OFF switch is in the 'ON' position.
No power to connected devices.
  • Timer not plugged in.
  • Circuit breaker tripped.
  • Overloaded circuit.
  • Faulty appliance.
  • Ensure the timer is securely plugged into a live, grounded outlet.
  • Check the circuit breaker on the timer; reset if tripped. Reduce the load if necessary.
  • Unplug all devices and test them individually to identify a faulty appliance.
Timer shuts off in wet weather.
  • Water ingress.
  • Circuit breaker tripped due to moisture.
  • Ensure all covers (timer dial and individual outlets) are securely closed.
  • Consider relocating the timer to a more sheltered spot to minimize direct exposure to heavy rain or splashing.
  • If the breaker tripped, allow the unit to dry completely before resetting and re-using.

8. Specifications

  • Model: PWC201
  • Brand: K KASONIC
  • Input Voltage: 125V AC
  • Max Current: 15A
  • Max Power: 1875W
  • Cord Length: 6 feet (14/3 SJTW)
  • Number of Outlets: 6 (3 on each side)
  • Timer Settings: Up to 48 ON/OFF settings per day (30-minute intervals)
  • Material: Acrylonitrile Butadiene Styrene (ABS)
  • Certifications: ETL Certified
  • Product Dimensions: 4.8"D x 10.4"W x 4"H (main unit)
  • Item Weight: 2.2 pounds
K KASONIC outdoor timer installed in grass, highlighting 6 AC outlets.

Figure 6: 6 AC-Outlets and Features. This image shows the K KASONIC outdoor timer staked into the ground, emphasizing its six AC outlets (three on the front and three on the back) and the 6-foot cord. Icons below indicate 6 feet cord, 6 AC-outlets, heavy duty, ETL certified, easy to install, and waterproof.

9. Warranty and Support

For warranty information or technical support, please contact K KASONIC customer service. Refer to your purchase documentation for specific warranty terms and contact details. You may also visit the official K KASONIC website for further assistance.
