1. Introduction
This user manual provides comprehensive instructions for the installation, operation, and maintenance of your iJDMTOY Xenon White LED Background Illumination Kit. This kit is designed to enhance the appearance of your vehicle's side fender chrome emblems with a bright, xenon white LED glow.
1.1 Product Overview
The iJDMTOY LED Background Illumination Kit is specifically engineered for 2017-2021 Ford F-250, F-350, F-450, and F-550 Super Duty trucks. It features a paper-thin 18-SMD xenon white LED PCB circuit board, treated for IP55 water resistance, ensuring durability for exterior use. The kit provides a unique and illuminated look to your truck's side emblems, enhancing visibility and style at night.
1.2 Package Contents
Upon opening the package, verify that all components are present and undamaged:
- 2 x 18-SMD LED diodes (pre-attached to water-resistant PCB circuit boards)
- Wiring (approximately 6 feet in length)
- Adhesive backing (pre-applied to LED strips)
Figure 1.1: Contents of the iJDMTOY LED Background Illumination Kit, including the LED strips, wiring, and product packaging.
Figure 1.2: Detailed view of the 18-SMD LED diodes and the water-resistant PCB, highlighting the thin design and wiring.
2. Setup and Installation
Installation of the LED illumination kit requires basic automotive wiring knowledge. It is recommended to perform this installation in a well-lit area with appropriate tools.
2.1 Pre-Installation Checklist
- Ensure the vehicle's ignition is off and the battery is disconnected to prevent electrical shorts.
- Gather necessary tools: wire strippers, electrical tape or heat shrink tubing, zip ties (optional for wire management).
- Clean the inner surface of the fender emblem where the LED strip will be adhered.
2.2 Installation Steps
- Positioning the LED Strip: Carefully line up the LED light strip so that the wire exits from the top of the emblem. Ensure the LED lights are facing inwards towards the emblem's chrome surface for optimal illumination.
- Wire Routing: Gently run the wires through the top slit or gap of the fender emblem. This allows for a clean and concealed wire path.
- Adhesion: Remove the protective film from the adhesive backing on the LED strip. Carefully press the LED strip onto the inside lip of the emblem, applying firm but gentle pressure with your thumb to ensure secure adhesion.
- Accessing Wiring: Open the vehicle's hood to gain access to the headlight wiring harness.
- Electrical Connection: The 6-foot wires from the LED strip need to be tapped into the vehicle's headlight positive and negative wires. For a 2019 Lariat model, the positive wire is typically blue and green, located at the bottom left in the harness. Identify the correct positive and negative wires for your specific vehicle model and year. Use appropriate wire tapping connectors or solder and insulate the connections securely.
- Testing: Reconnect the vehicle's battery and test the LED illumination kit by turning on the headlights.
- Wire Management: Secure any loose wiring using zip ties to prevent interference with moving parts or exposure to elements.
Figure 2.1: The LED strip positioned and adhered inside the fender emblem, ready for wiring.
3. Operating Instructions
Once properly installed and wired, the iJDMTOY LED Background Illumination Kit operates in conjunction with your vehicle's headlight system. The LEDs will illuminate when the connected headlight circuit is active.
3.1 Illumination Function
The 18-SMD xenon white LEDs provide a bright, consistent glow that backlights your Ford Super Duty side fender chrome emblems. This creates a distinctive and eye-catching effect, particularly noticeable during nighttime driving or in low-light conditions.

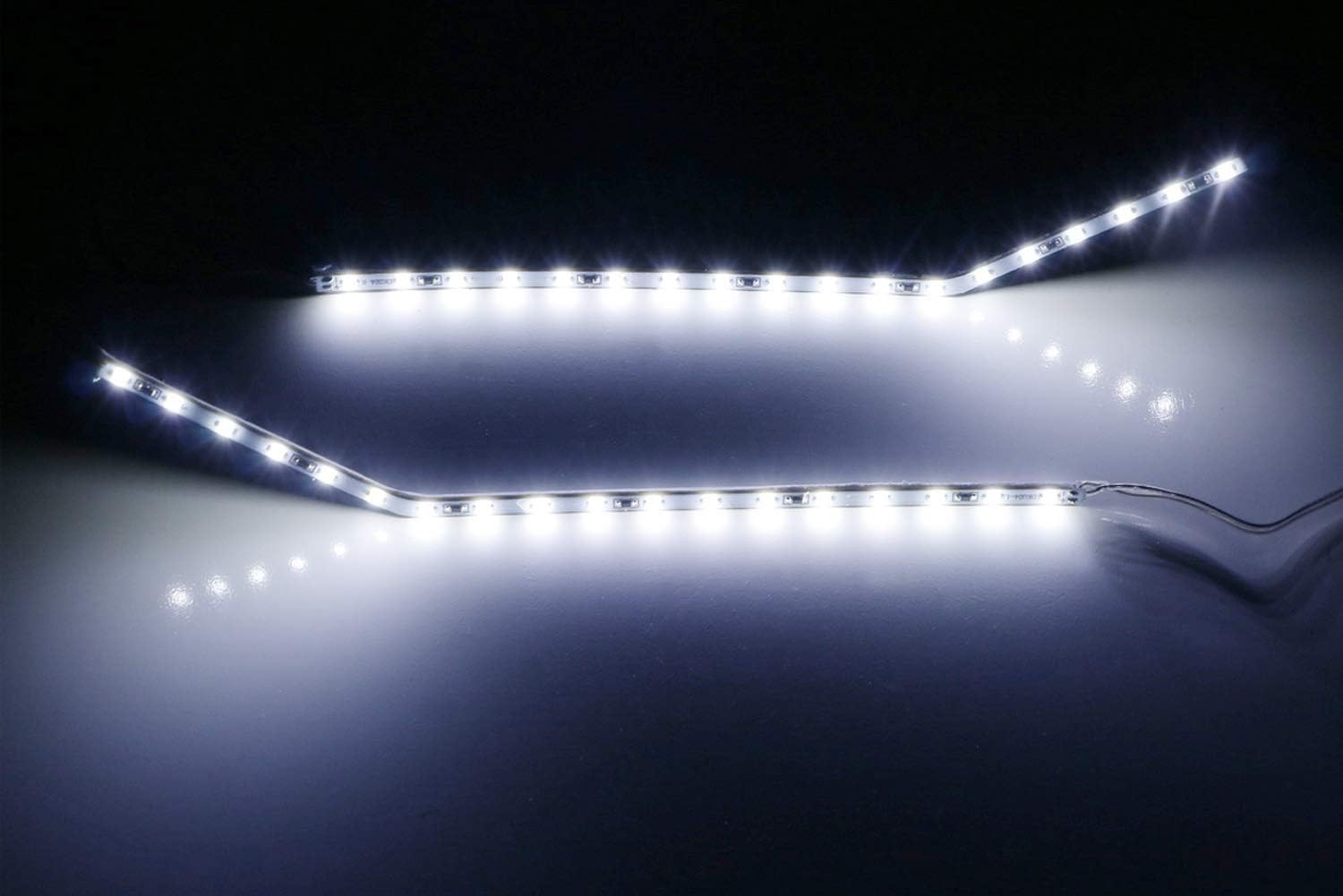

Figure 3.1: The LED strips demonstrating their bright xenon white illumination.
Figure 3.2: A close-up view of the Ford Super Duty fender emblem with the iJDMTOY LED illumination active, showcasing the bright white light.
Figure 3.3: A Ford Super Duty truck at dusk, demonstrating the visual impact of the illuminated fender emblems.
4. Maintenance and Care
The iJDMTOY LED Background Illumination Kit is designed for durability and minimal maintenance. Adhering to the following guidelines will help ensure its longevity.
4.1 General Care
- Periodically inspect the wiring connections to ensure they remain secure and free from corrosion.
- Keep the emblem area clean from excessive dirt and debris, which could potentially obscure the light output.
4.2 Important Considerations
Warning:
Although the LED board is treated to be water-resistant (IP55 rated), the individual LED diodes are exposed. To prevent damage, avoid excessively bending the LED strip or pressing on the LEDs with sharp objects during installation or maintenance. Excessive force or improper handling can compromise the integrity of the diodes and the circuit board.
5. Troubleshooting
If you encounter issues with your LED illumination kit, refer to the following common troubleshooting steps:
5.1 Common Issues and Solutions
| Problem | Possible Cause | Solution |
|---|---|---|
| LEDs do not light up. |
|
|
| Only one side illuminates. |
|
|
| Light output is dim or flickers. |
|
|
6. Specifications
Key technical specifications for the iJDMTOY Xenon White LED Background Illumination Kit:
- Model Number: Ford SuperDuty Accent Ambient Lighting
- Compatible Vehicles: 2017-2021 Ford F-250, F-350, F-450, F-550 Super Duty
- LED Type: 18-SMD per strip
- Light Color: Xenon White
- Voltage: 12 Volts
- Water Resistance: IP55 (PCB circuit board)
- Components Included: 2 x 18-SMD LED diodes, water-resistant PCB circuit board, wires, adhesive backing
- Form Factor: Strip
- Recommended Use: Vehicle Exterior (Side Fender Chrome Emblem Illumination)
7. Warranty and Support
For specific warranty information regarding your iJDMTOY Xenon White LED Background Illumination Kit, please refer to the product packaging or contact iJDMTOY customer support directly. Support contact details are typically available on the manufacturer's official website or through your point of purchase.
This product is an iJDMTOY Trademark Brand product.
