1. Introduction
The Hexgears Impulse is a hot-swap mechanical keyboard designed for durability and customization. It features PBT keycaps for resistance against shine and grease, and an on-board RGB lighting system with translucent pudding keycaps for enhanced visual effects. The keyboard is built with an IP56 water-resistant design and a rigid curved metal frame, making it resilient to spills. Equipped with Kailh Box switches, rated for 80 million presses, it offers a smooth and stable typing experience. The Impulse is a plug-and-play device with features like 2-stage angle adjustment feet and Windows key locking.

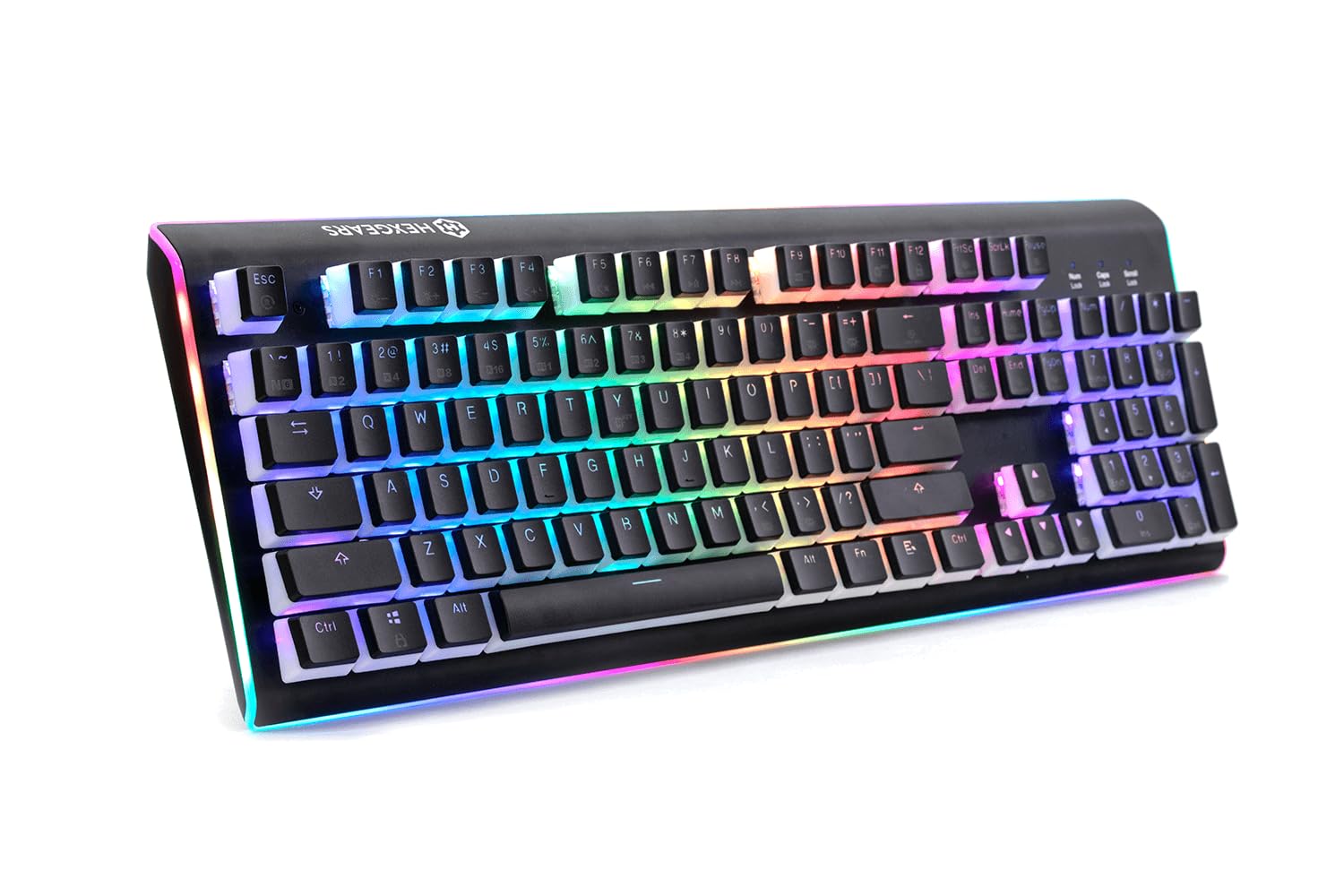

Figure 1: Hexgears Impulse Hot-swap Mechanical Keyboard. This image displays the keyboard with its RGB backlighting active, showcasing the translucent pudding keycaps and the overall design.
2. Package Contents
Ensure all items are present in the package:
- Hexgears Impulse Mechanical Keyboard
- Integrated USB-A Cable
- Hot-swap switch sockets (pre-installed)
- User Manual (this document)
3. Setup
The Hexgears Impulse keyboard is designed for simple plug-and-play operation.
- Connect the Keyboard: Locate the integrated USB-A cable attached to the keyboard. Plug the USB-A connector into an available USB port on your computer or compatible device.
- Driver Installation: The keyboard is typically recognized automatically by Windows, Linux, and other compatible operating systems. No additional drivers are usually required.
- Adjust Keyboard Angle: The keyboard features 2-stage adjustable feet on the underside. Flip these feet out to achieve your preferred typing angle.
4. Operation
4.1 RGB Backlighting and Light Ring
The Hexgears Impulse features per-key customizable RGB lighting and an RGB light ring around the keyboard's perimeter. Lighting modes and effects are controlled directly on-board, ensuring compatibility across various operating systems. Refer to the keyboard's function key combinations (often indicated by secondary legends on keycaps) for adjusting brightness, changing lighting patterns, and selecting colors.
4.2 Hot-swap Switches
The Impulse V2 design includes hot-swap switch sockets, allowing you to change mechanical switches without soldering. This feature supports MX-compatible, LED-compatible, plate-mount switches. To replace a switch:
- Gently remove the keycap using a keycap puller.
- Use a switch puller to carefully extract the switch from its socket.
- Align the pins of the new switch with the holes in the socket and press firmly until it clicks into place.
- Re-attach the keycap.
Caution: Ensure the switch pins are straight before insertion to avoid bending or damaging the sockets.
4.3 Windows Key Locking
To prevent accidental presses of the Windows key during gaming or other activities, the keyboard includes a Windows key locking function. This is typically activated via a function key combination (e.g., Fn + Win key). Refer to your keyboard's specific keycap legends for the exact combination.
5. Maintenance
5.1 Cleaning
To maintain the keyboard's appearance and functionality:
- Dust Removal: Use a can of compressed air to remove dust and debris from between the keycaps.
- Keycap Cleaning: For general cleaning, gently wipe the keycaps with a soft, damp cloth. For deeper cleaning, keycaps can be removed (using a keycap puller) and washed with mild soap and water, then thoroughly dried before re-installation.
- Surface Cleaning: Wipe the keyboard's metal frame and other surfaces with a soft, slightly damp cloth. Avoid harsh chemicals or abrasive materials.
5.2 Water Resistance
The Hexgears Impulse features an IP56 water-resistant design, meaning it can withstand water jets. While it offers protection against accidental spills, it is not designed for submersion. In case of a spill, disconnect the keyboard immediately, wipe off excess liquid, and allow it to air dry completely before reconnecting.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Keyboard is not responding. | Loose USB connection, faulty USB port, driver issue. |
|
| Keys are not registering or double-typing. | Debris under keycap/switch, faulty switch, software conflict. |
|
| RGB lighting is not working or inconsistent. | Lighting mode settings, power issue. |
|
7. Specifications
| Feature | Detail |
|---|---|
| Brand | Hexgears |
| Model Number | HX-01-02762 |
| Connectivity Technology | USB, USB-A |
| Keyboard Description | Mechanical |
| Switch Type | MX-compatible plate-mount hot-swap switches (e.g., Kailh BOX Brown, BOX White, Hako Clear) |
| Keycaps | Two-shot PBT (Pudding & 2-tone) |
| Backlighting | RGB, Per-key customizable lighting modes, RGB Light Ring |
| Water Resistance Level | IP56 Water Resistant |
| N-Key Rollover (NKRO) | Yes |
| Number of Keys | 108 |
| Compatible Operating Systems | Windows, Linux |
| Material | Metal, Polybutylene Terephthalate (PBT) |
| Special Features | Hot-swap switch sockets, 2-stage adjustable height feet, Windows key locking |
8. Warranty Information
The Hexgears Impulse keyboard comes with a one (1) year limited warranty from the date of delivery to the customer.
This warranty covers defects in material or workmanship under normal use during the warranty period. During this period, Hexgears will repair or replace products or parts of the product that are found to be defective due to improper workmanship or materials, provided they were used under normal conditions and maintenance.
This limited warranty does not cover conditions, malfunctions, or damage that do not result from defects in material or workmanship. This includes, but is not limited to, damage caused by misuse, accident, unauthorized modification, or external causes such as power surges.
9. Support
For further assistance, technical support, or warranty claims, please visit the official Hexgears website or contact their customer support.
- Online Support: Refer to the Hexgears official website for FAQs, drivers, and additional resources.
- Contact Customer Service: For direct assistance, contact Hexgears customer support through the channels provided on their website.
