Aexit FS-1 Momentary Foot Pedal Switch Instruction Manual

1. Product Overview

The Aexit FS-1 Foot Pedal Switch is a momentary action switch designed for industrial equipment and applications requiring hands-free operation. It allows users to control machinery or devices with their foot, freeing up hands for other tasks, enhancing safety and control.

Key Features:

• Momentary action type.
• Designed for easy continuous operation.
• Enables hands-free control for improved safety and efficiency.
• Constructed from durable metal and rubber materials.

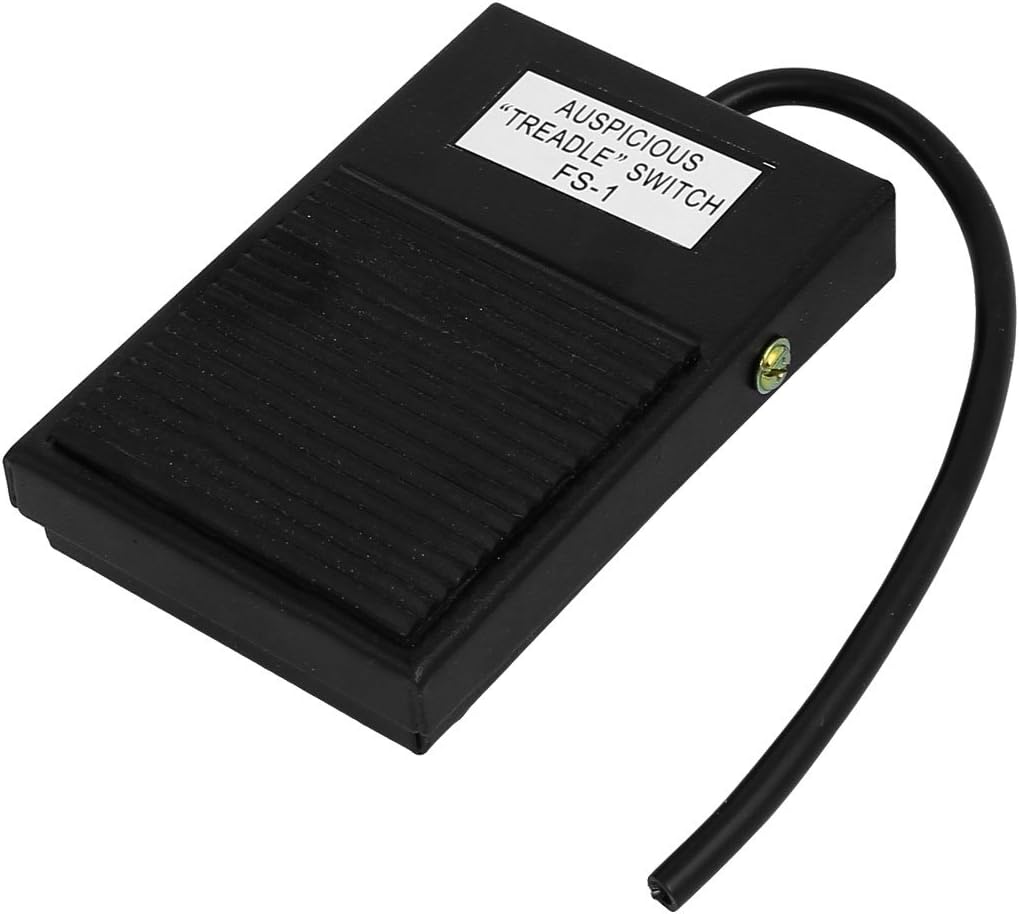

Figure 1: Top view of the Aexit FS-1 Foot Pedal Switch, showing the pedal surface and integrated cable.

2. Safety Information

WARNING:

• Do not allow children to have casual contact with the switch.
• Handle with care; do not shake forcefully.
• Avoid use in extreme temperatures such as open flames and super high temperatures.

Always ensure the switch is installed and operated by qualified personnel in accordance with local electrical codes and safety regulations. Disconnect power before installation or maintenance.

Figure 2: Multi-language warning label emphasizing safety precautions for handling and use.

3. Setup and Installation

1. Power Disconnection: Before beginning any installation, ensure that the power supply to the equipment you intend to control is completely disconnected.
2. Mounting: Position the foot pedal switch on a stable, flat surface where it can be easily accessed by the operator's foot without obstruction. The switch features four bottom pads for stability.
3. Wiring: The FS-1 switch comes with a 17cm (approximately 6.69 inches) cable. Connect this cable to your industrial equipment's control circuit. This momentary switch can be wired for either push-on (normally open) or push-off (normally closed) operation, depending on your application's requirements. Consult your equipment's wiring diagram for proper connection points.
4. Secure Connections: Ensure all electrical connections are secure and properly insulated to prevent short circuits or electrical hazards.
5. Test: Once installed, carefully restore power and test the switch's functionality in a controlled environment before full operation.

Figure 3: Bottom view of the foot pedal switch, illustrating the four stabilizing pads and mounting points.

4. Operating Instructions

The Aexit FS-1 is a momentary foot pedal switch, meaning it maintains its activated state only while the pedal is pressed. Releasing the pedal returns the switch to its original state.

1. Activation: To activate the connected equipment, firmly press down on the pedal with your foot.
2. Deactivation: Release pressure from the pedal to deactivate the equipment.
3. Hands-Free Operation: Utilize the foot switch to control your equipment while keeping both hands free for tasks that require precision or safety.

5. Maintenance

• Cleaning: Keep the switch clean and free from dust, debris, or liquids. Use a dry, soft cloth for cleaning. Do not use abrasive cleaners or solvents.
• Inspection: Periodically inspect the cable for any signs of wear, cuts, or damage. Ensure the pedal mechanism operates smoothly without sticking.
• Storage: If storing the switch, do so in a dry environment, away from extreme temperatures and direct sunlight.

6. Troubleshooting

7. Specifications

8. Warranty and Support

For warranty information or technical support, please refer to the documentation provided with your purchase or contact the manufacturer directly. Specific warranty terms may vary depending on the region and retailer.
