1. Important Safety Instructions
Please read all instructions carefully before using this projector and retain them for future reference. Improper operation may result in electric shock, fire, or other hazards.
- Power Source: Use only the power adapter supplied with the projector. Ensure the voltage matches the local power supply.
- Ventilation: Do not block any ventilation openings. Ensure adequate airflow around the projector to prevent overheating.
- Placement: Place the projector on a stable, flat surface. Avoid placing it in direct sunlight, near heat sources, or in environments with high humidity or dust.
- Water and Moisture: Do not expose the projector to rain, moisture, or immerse it in water. If liquid enters the device, disconnect power immediately and contact support.
- Cleaning: Unplug the projector from the power outlet before cleaning. Use a soft, dry cloth. Do not use liquid or aerosol cleaners.
- Servicing: Do not attempt to service this product yourself. Refer all servicing to qualified service personnel. Opening the casing may expose you to dangerous voltage or other hazards.
- Eye Protection: Do not look directly into the projector lens when the lamp is on, as the bright light can cause eye damage.
2. Package Contents
Verify that all items listed below are included in your package. If any items are missing or damaged, please contact customer support.
- DBPOWER T22 Portable Video Projector
- Remote Control
- HDMI Cable
- AV Cable
- Power Cable
- User Manual

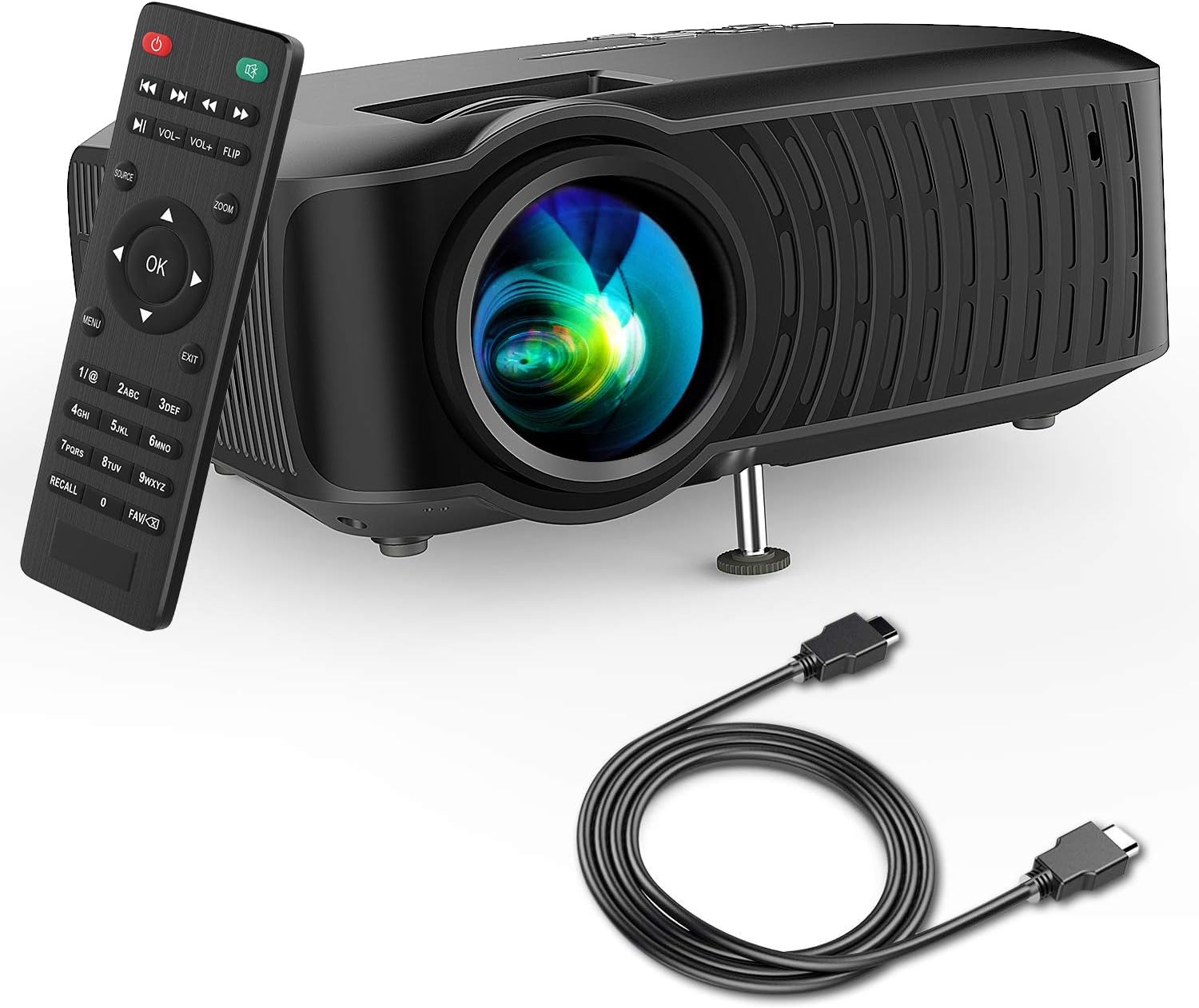

Image: The DBPOWER T22 Portable Video Projector, its remote control, and an HDMI cable, representing the typical package contents.
3. Product Overview
Familiarize yourself with the various parts of your DBPOWER T22 projector.
3.1 Front and Side View
Image: A side view of the DBPOWER T22 projector with dimensions indicating its compact and portable design (21.8cm length, 17.2cm width, 9.16cm height).
- Projection Lens: Emits the image onto the screen.
- Focus Ring: Adjusts image clarity.
- Keystone Correction Ring: Corrects trapezoidal image distortion.
- Ventilation Ports: For heat dissipation. Do not block.
- Adjustable Foot: Raises or lowers the front of the projector.
3.2 Rear Panel and Connectivity
The rear panel provides various input and output ports for connecting external devices.
- HDMI Port: Connects to devices like laptops, Blu-ray players, game consoles, and TV sticks.
- USB Port: Connects to USB flash drives for media playback.
- AV Port: Connects to older devices using the included AV cable.
- SD Card Slot: For playing media directly from an SD card.
- Audio Out (3.5mm Jack): Connects to external speakers or headphones.
- Power Input: Connects to the power adapter.
3.3 Remote Control
The remote control allows convenient operation of the projector from a distance.
- Power Button: Turns the projector on/off.
- Source Button: Selects input source (HDMI, AV, USB, SD).
- Navigation Buttons (Up/Down/Left/Right): Navigates menus.
- OK Button: Confirms selections.
- Menu Button: Accesses projector settings.
- Exit Button: Exits current menu or function.
- Volume +/-: Adjusts speaker volume.
- Flip Button: Rotates the projected image.
- Zoom Button: Adjusts image zoom (digital zoom).
4. Setup
4.1 Powering On/Off
- Connect the power cable to the projector's power input, then plug the other end into a power outlet.
- Press the power button on the projector or the remote control to turn it on. The indicator light will change.
- To turn off, press the power button again.
4.2 Adjusting Image Focus and Keystone
Achieve a clear and rectangular image by adjusting the focus and keystone correction.
Image: Diagram showing the manual keystone correction and focus rings on the side of the projector, with examples of de-focused and focused images, and trapezoidal correction.
- Focus: Rotate the Focus Ring until the projected image appears sharp and clear.
- Keystone Correction: If the image appears trapezoidal (wider at the top or bottom), rotate the Keystone Correction Ring to make the image rectangular. The projector supports ±15° manual keystone correction.
4.3 Connecting External Devices
The DBPOWER T22 supports multiple input sources.
- HDMI: Connect an HDMI cable from your device (e.g., laptop, game console, Amazon Fire TV Stick) to the projector's HDMI port.
- USB: Insert a USB flash drive into the USB port.
- AV: Use the provided AV cable to connect to devices with AV output.
- SD Card: Insert an SD card into the SD card slot.
- Smartphones: For iOS devices, an external Lightning to HDMI adapter is required. For Android devices, an external Micro USB/Type-C to HDMI adapter is required. (Adapters not included).
5. Operating the Projector
5.1 Selecting Input Source
After connecting your device, you need to select the correct input source.
- Press the Source button on the remote control or the projector.
- Use the navigation buttons to select the desired input source (e.g., HDMI, USB, AV, SD).
- Press OK to confirm.
5.2 Media Playback (USB/SD)
When a USB drive or SD card is inserted, the projector will display a media browser.
- Navigate through folders and files using the remote control's navigation buttons.
- Select a file (e.g., video, photo, music, text) and press OK to play.
5.3 Audio Output
The projector features an improved built-in speaker system. For enhanced audio, you can connect external speakers.
Image: An illustration of the DBPOWER T22 projector highlighting its stereo speakers, indicating that external speakers are not always necessary for an enjoyable audio experience.
- Built-in Speaker: The projector's internal speaker provides audio. Adjust volume using the VOL +/- buttons on the remote.
- External Speakers/Headphones: Connect a 3.5mm audio cable from your external audio device to the projector's Audio Out port.
5.4 Projector Settings (Menu)
Press the Menu button on the remote to access settings such as Picture Mode, Aspect Ratio, Sound Mode, and other system preferences.
6. Maintenance
6.1 Cleaning the Lens
Use a professional lens cleaning cloth or lens paper to clean the projector lens. Avoid touching the lens directly with your hands.
Image: An exploded view of the projector lens assembly, highlighting the tempered glass lens and the importance of a dust cover to protect it from scratches and dust.
6.2 Cleaning the Projector Body
Wipe the projector body with a soft, dry cloth. Do not use abrasive cleaners or solvents.
6.3 Heat Dispersion System
The projector features an advanced cooling system to ensure stable operation and extend lamp life. Ensure ventilation ports are clear.
Image: An internal view of the DBPOWER T22 projector, illustrating the advanced heat dispersion system with air flowing through cooling fins to maintain optimal operating temperature.
6.4 Lamp Life
The LED lamp in your DBPOWER T22 projector has an extended lifespan of over 50,000 hours, significantly reducing the need for lamp replacement.
7. Troubleshooting
If you encounter issues, refer to the following common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| No image or "No Signal" message | Incorrect input source selected; loose cable connection; device not powered on. |
|
| Blurred image | Focus not adjusted; projector too close/far from screen. |
|
| Trapezoidal image | Projector not perpendicular to the screen. |
|
| No sound or low volume | Volume too low; mute enabled; external audio device issues. |
|
| Remote control not working | Dead batteries; obstruction; remote not pointed at IR receiver. |
|
8. Specifications
Detailed technical specifications for the DBPOWER T22 Portable Video Projector.
| Feature | Detail |
|---|---|
| Brand | DBPOWER |
| Model Number | T22 |
| Brightness | 120 ANSI Lumens (80% brighter than most market projectors) |
| Contrast Ratio | 2000:1 |
| Supported Resolution | 1080P (Full HD) |
| Native Display Resolution | 800 x 480 |
| Display Type | LCD |
| Lamp Life | 50,000 hours |
| Projection Size | 32-176 inches |
| Projection Distance | 1-5.2 meters |
| Keystone Correction | Manual ±15° |
| Connectivity Technology | HDMI, USB, AV, SD Card |
| Built-in Speaker | Yes (Improved system) |
| Product Dimensions | 21.59 x 17.02 x 9.14 cm |
| Item Weight | 1.9 kg |
| Wattage | 24 watts |
9. Warranty and Support
DBPOWER products are designed and manufactured to the highest quality standards. For warranty information, technical support, or customer service inquiries, please refer to the contact information provided with your purchase or visit the official DBPOWER website.
Official Website: www.dbpower.co (Please note: URL may vary by region. Refer to product packaging for specific regional support details.)
