1. Introduction
Thank you for choosing the iggual QR Barcode Scanner. This device is designed for efficient and reliable scanning of both 1D and 2D barcodes, offering both manual and automatic scanning modes. It features an ergonomic design for comfortable use and broad compatibility with various operating systems. This manual provides essential information for setting up, operating, and maintaining your scanner.
Key Features:
- Ergonomic design with a comfortable trigger button.
- Detects all common 1D and 2D barcodes, including QR codes.
- Supports manual and automatic scanning modes.
- Wired USB connectivity for reliable data transmission.
- Compatible with Windows XP/7/8/10, macOS, Linux, and Android.
2. Package Contents
Please check the package contents to ensure all items are present:
- iggual QR Barcode Scanner (Model IGG315651)
- USB Cable (Type-A)
- Scanner Stand (Optional, depending on package)

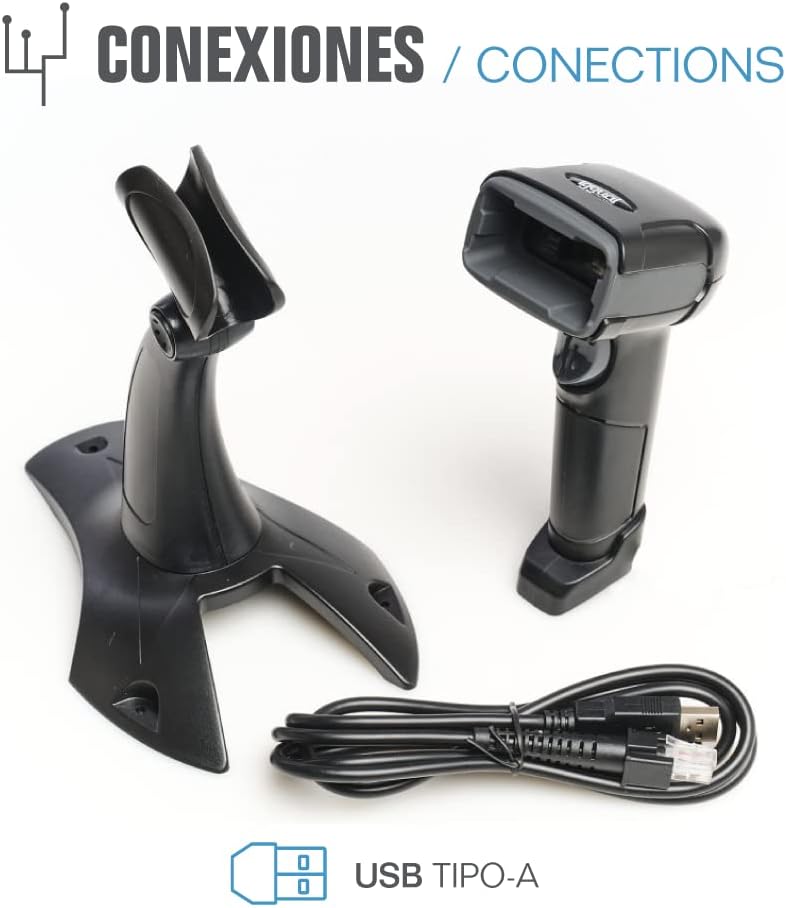

Figure 2.1: Package contents including the scanner, stand, and USB Type-A cable.
3. Product Overview
Familiarize yourself with the main components of your iggual barcode scanner:
- Scanning Window: Area where barcodes are read.
- Trigger Button: Activates scanning in manual mode.
- USB Port: For connecting the scanner to your computer.
- LED Indicator: Provides visual feedback on scanning status.
- Beeper: Provides audible feedback on scanning status.
Figure 3.1: The iggual barcode scanner with its optional stand, highlighting the LED indicator and beeper functionality.
4. Setup
4.1 Connecting the Scanner
- Connect the USB cable to the USB port on the scanner.
- Plug the other end of the USB cable into an available USB port on your computer or host device.
- The scanner will typically be recognized automatically by your operating system as a standard HID keyboard device. No special drivers are usually required.
4.2 System Compatibility
The iggual QR Barcode Scanner is compatible with a wide range of operating systems:
- Windows XP / 7 / 8 / 10
- macOS
- Linux
- Android
Figure 4.1: Operating system compatibility for the iggual barcode scanner.
5. Operating Instructions
5.1 Scanning Modes
The scanner supports two primary scanning modes:
- Manual Mode: Press the trigger button to activate the scanner and read a barcode. Release the button after a successful scan.
- Automatic Mode: The scanner continuously emits a scanning beam, reading barcodes as they are presented within its field of view without needing to press the trigger. Refer to the full product manual (if available from iggual.com) for instructions on switching between modes, usually done by scanning specific configuration barcodes.
5.2 Supported Barcode Types
This scanner is capable of reading a wide range of 1D and 2D barcode symbologies, including:
- 2D Codes: QR Code, Maxi Code, MicroPDF, PDF417
- 1D Codes: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Code 93, Interleaved 2 of 5, Codabar, MSI, RSS, etc.
Figure 5.1: Scanner capabilities including 200 scans/second, 2D scanning, and supported code types.
5.3 Scanning Procedure
- Ensure the scanner is properly connected to your host device.
- Open an application where you want the scanned data to appear (e.g., a text editor, spreadsheet, or POS software).
- Point the scanning window at the barcode you wish to read.
- If in manual mode, press and hold the trigger button. If in automatic mode, simply present the barcode.
- A successful scan will be indicated by a short beep and/or a flash of the LED indicator. The scanned data will appear in your active application.
- If the barcode is not read, adjust the distance and angle of the scanner relative to the barcode.
6. Maintenance
6.1 Cleaning
- To clean the scanner's exterior, use a soft, damp cloth.
- For the scanning window, use a lint-free cloth and a mild glass cleaner. Avoid abrasive materials or harsh chemicals that could scratch the surface.
- Ensure no liquid enters the scanner's housing.
6.2 Storage
When not in use, store the scanner in a cool, dry place, away from direct sunlight and extreme temperatures.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Scanner not recognized by computer. | Loose USB connection, faulty USB port, or cable issue. | Ensure USB cable is securely connected. Try a different USB port or cable. Restart the computer. |
| Scanner does not read barcodes. | Barcode damaged, incorrect scanning angle/distance, scanner in wrong mode, or dirty scanning window. | Check barcode integrity. Adjust scanning angle and distance. Ensure scanner is in the correct mode (manual/automatic). Clean the scanning window. |
| Scanned data appears incorrectly. | Keyboard layout mismatch or corrupted data. | Ensure your computer's keyboard layout matches the scanner's default output (usually US English). If issues persist, consult the full product manual for advanced configuration. |
8. Specifications
| Feature | Detail |
|---|---|
| Model | IGG315651 |
| Dimensions (L x W x H) | 160 x 80 x 100 mm (6.3 x 3.15 x 3.94 inches) |
| Weight | 120 g (0.26 lbs) |
| Scan Speed | 200 scans/second |
| Image Sensor | 640(H) x 480(V), 256 Grayscale |
| Connectivity | Wired USB (Type-A) |
| Power Source | Corded Electric (USB powered) |
| Operating Systems | Windows XP/7/8/10, macOS, Linux, Android |
| Supported Barcodes | 1D & 2D (QR, Maxi Code, MicroPDF, Code, PDF417, RSS, etc.) |
Figure 8.1: Physical dimensions of the iggual barcode scanner.
9. Warranty and Support
For warranty information, technical support, or to download the complete product manual with advanced configuration options, please visit the official iggual website or contact your local distributor.
Official Website: www.iggual.com
