1. Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Schellenberg Action 20223 Roller Shutter Motor. This tubular motor is designed for light roller shutters, offering a maximum pulling force of 18 kg and suitable for plastic roller shutters up to 4.0 m² in area. It is intended for installation within a 60 mm octagonal shaft, providing an effective and low-wear drive solution.
2. Safety Instructions
Please read and understand all safety instructions before installation and operation. Failure to follow these instructions may result in injury or damage to the product.
- Electrical Safety: Installation must be performed by a qualified electrician in accordance with local electrical codes and regulations. Disconnect power before performing any installation, maintenance, or repair work.
- Mechanical Safety: Ensure the roller shutter system is in good working order and free from obstructions before installing the motor. Keep hands and loose clothing clear of moving parts during operation.
- Children and Pets: Keep children and pets away from the roller shutter system during operation. Do not allow children to play with controls.
- Intended Use: This motor is designed exclusively for driving roller shutters. Do not use it for any other purpose.
3. Package Contents
Verify that all components are present before beginning installation:
- 1 x Schellenberg Action 20223 Tubular Motor
- 1 x Adapter Set (for 60 mm octagonal shaft)
- 1 x Wall Bearing with Slotted Holes
- 1 x Adjustment Tool
- 1 x Assembly Instructions (this manual)
Figure 3.1: The Schellenberg Action 20223 Roller Shutter Motor shown with its adapter set, wall bearing, and adjustment tool.
4. Setup and Installation
The Schellenberg Action 20223 Roller Shutter Motor is designed for straightforward installation into existing roller shutter systems with 60 mm octagonal shafts. It comes ready to assemble with the necessary adapter and a height-adjustable wall mount.
4.1 Preparation
- Ensure the power supply to the roller shutter area is disconnected.
- Remove the existing roller shutter strap and belt winder, if applicable.
- Carefully remove the roller shutter curtain from the shaft.
- Remove the existing octagonal shaft.
4.2 Motor Assembly
- Attach the provided adapter set to the motor head. Ensure it is securely fastened.
- Slide the motor with the adapter into the 60 mm octagonal shaft. The motor should fit snugly within the shaft.
- Mount the wall bearing with slotted holes to the roller shutter box structure, ensuring it aligns correctly with the motor's end.
- Secure the motor within the shaft and to the wall bearing.

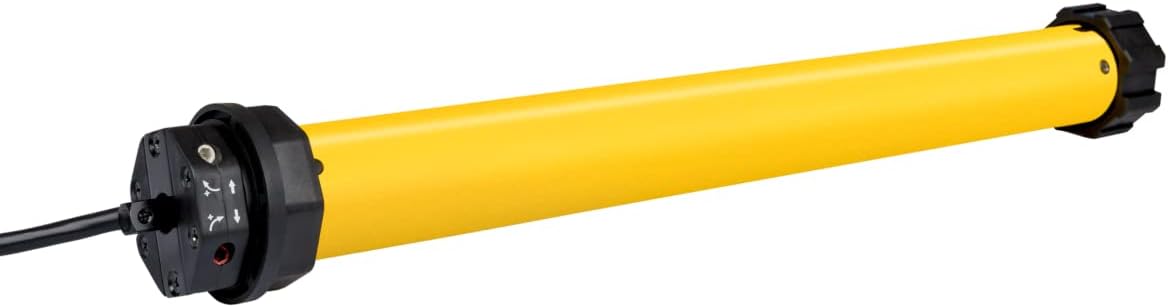

Figure 4.1: The Schellenberg Action 20223 Roller Shutter Motor, ready for installation into a 60 mm octagonal shaft.
4.3 Electrical Connection
- Connect the motor's electrical wiring to your roller shutter switch or timer (not included) according to the wiring diagram provided with your control unit.
- Ensure all connections are secure and properly insulated.
- Once wiring is complete, carefully re-install the roller shutter curtain onto the shaft.
5. Operating Instructions
The Schellenberg Action 20223 Roller Shutter Motor features mechanical end position adjustment, allowing you to precisely set the upper and lower limits of your roller shutter's travel.
5.1 Initial Power-Up
- Restore power to the roller shutter system.
- Operate the roller shutter briefly using your connected switch or timer to ensure basic functionality.
5.2 Mechanical End Position Adjustment
The adjustment tool is used to set the upper and lower end positions. The adjustment screws are located on the motor head.
- Setting the Upper End Position: Drive the roller shutter upwards until it reaches your desired upper limit. Insert the adjustment tool into the designated screw for the upper limit (refer to the motor head markings). Turn the screw clockwise to increase the travel or counter-clockwise to decrease it, fine-tuning the position.
- Setting the Lower End Position: Drive the roller shutter downwards until it reaches your desired lower limit. Insert the adjustment tool into the designated screw for the lower limit. Turn the screw clockwise or counter-clockwise to adjust the position.
- Verification: Operate the roller shutter several times between the set upper and lower limits to confirm that the positions are correctly stored and the motor stops precisely.
5.3 Daily Operation
Once the end positions are set, you can conveniently control the roller shutter using your connected roller shutter switch or timer. Follow the instructions provided with your specific control unit for daily operation.
6. Maintenance
The Schellenberg Action 20223 Roller Shutter Motor is designed to be maintenance-free. No lubrication or regular servicing of the motor unit itself is required.
- Regular Inspection: Periodically inspect the roller shutter system for any signs of wear, damage, or obstructions. Ensure the roller shutter curtain moves freely.
- Cleaning: Keep the area around the roller shutter and motor free from dust and debris. Clean the exterior of the motor and shaft with a dry or slightly damp cloth if necessary. Do not use abrasive cleaners or solvents.
7. Troubleshooting
If you encounter issues with your roller shutter motor, consider the following common solutions:
- Motor Does Not Respond:
- Check the power supply to the motor and control unit.
- Verify that the electrical connections are secure.
- Ensure the control unit (switch/timer) is functioning correctly.
- Roller Shutter Stops Prematurely or Does Not Reach End Positions:
- Re-adjust the mechanical end positions as described in Section 5.2.
- Check for any physical obstructions in the roller shutter's path.
- Unusual Noises During Operation:
- Inspect the roller shutter system for loose components or obstructions.
- If the noise persists and is unusual, discontinue use and contact a qualified technician.
For complex issues or if troubleshooting steps do not resolve the problem, it is recommended to contact a qualified electrician or the Schellenberg customer support.
8. Specifications
| Manufacturer | Schellenberg |
| Model Number | 20223 |
| Item Weight | 2 g |
| Product Dimensions | 58 x 11 x 7.5 cm |
| Shaft Diameter | 60 mm (Octagonal Steel Tube Shaft) |
| Max. Surface Area (Plastic Shutters) | 4.0 m² |
| Torque | 10 Nm |
| End Position Adjustment | Mechanical |
9. Warranty and Support
Warranty information for the Schellenberg Action 20223 Roller Shutter Motor is typically provided with your purchase documentation. Please refer to these documents for details regarding warranty coverage and terms.
For technical support, spare parts, or further assistance, please contact Schellenberg customer service. Contact details can usually be found on the manufacturer's official website or on your product packaging.
