Weather King Corsaire Furnace Ignitor Igniter L8 Instruction Manual

1. Product Overview

This manual provides essential information for the installation, operation, and maintenance of the Weather King Corsaire Furnace Ignitor Igniter L8. This aftermarket ignitor is designed as a direct replacement for Rheem/Ruud/Weather King/Corsaire part numbers 62-22868-02 and 62-22868-82. The ignitor is a critical component in your furnace's ignition system, responsible for igniting the gas to produce heat.

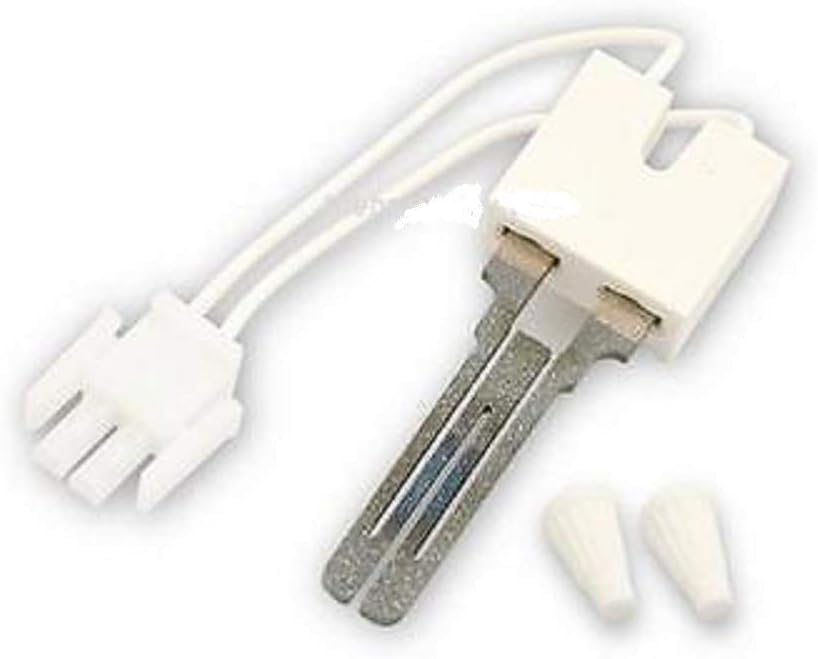

This image displays the Weather King Corsaire Furnace Ignitor Igniter L8. It features a white ceramic block housing the ignitor element, which is a grey, flat, blade-like component. Two white wires extend from the ceramic block, terminating in a white plastic connector. Two small, white, conical wire nuts are also visible, typically used for securing electrical connections.

2. Safety Information

WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause property damage, injury, or death. Read the installation, operating, and maintenance instructions thoroughly before installing or servicing this equipment.

• Always disconnect electrical power to the furnace before attempting any installation, maintenance, or repair.
• Gas supply to the furnace should also be turned off.
• Furnace ignitors are fragile. Handle with extreme care to avoid breakage. Do not touch the silicon carbide element with bare hands, as oils can shorten its lifespan.
• It is highly recommended that installation be performed by a qualified HVAC technician.
• Wear appropriate personal protective equipment (PPE), such as gloves and safety glasses.

3. Compatibility

This aftermarket ignitor is an exact replacement for the following Rheem/Ruud/Weather King/Corsaire part numbers:

• 62-22868-02
• 62-22868-82

It is compatible with a partial list of furnace models including, but not limited to:

• RGPH-10EAMER, RGPH10EAMER
• RGLE-12ERAEB, UGLE-12ERAEB, WGLE-12ERAEB, RGLE12ERAEB, UGLE12ERAEB, WGLE12ERAEB
• RGDE07ELAER, UGDE07ELAER, WGDE07ELAER, RGDE-07ELAER, UGDE-07ELAER, WGDE-07ELAER
• UGRA10EZAJS, RGRA10EZAJS, WGRA10EZAJS, UGRA-10EZAJS, RGRA-10EZAJS, WGRA-10EZAJS
• UGLE-10EQAGS, WGLE-10EQAGS, RGLE-10EQAGS, UGLE10EQAGS, WGLE10EQAGS, RGLE10EQAGS
• RGLE-10EQAEB, WGLE-10EQAEB, UGLE-10EQAEB, RGLE10EQAEB, WGLE10EQAEB, UGLE10EQAEB
• FGPJ-05EAUER, RGPJ-05EAUER, UGPJ-05EAUER, WGPJ-05EAUER, RGPJ05EAUER, UGPJ05EAUER, WGPJ05EAUER
• RGDG-075AUER, UGDG-075AUER, WGDG-075AUER, RGDG075AUER, UGDG075AUER, WGDG075AUER
• RGDE-12ERAJR, UGDE-12ERAJR, WGDE-12ERAJR, RGDE12ERAJR

Always verify the exact part number required for your specific furnace model before purchase and installation.

4. Installation/Setup

The following are general steps for replacing a furnace ignitor. Specific procedures may vary by furnace model. Consult your furnace's service manual or a qualified technician for detailed instructions.

1. Safety First: Turn off all electrical power to the furnace at the circuit breaker and turn off the gas supply.
2. Access the Ignitor: Locate the ignitor within the furnace. This usually involves removing an access panel.
3. Disconnect Old Ignitor: Carefully disconnect the wiring from the old ignitor. Note the routing of the wires.
4. Remove Old Ignitor: Unscrew or unclip the old ignitor from its mounting bracket. Handle with care as it may be brittle.
5. Install New Ignitor: Gently attach the new ignitor to the mounting bracket. Ensure it is securely fastened and positioned correctly. Avoid touching the ceramic element.
6. Connect Wiring: Connect the new ignitor's wiring. Use the provided wire nuts if necessary, ensuring a secure electrical connection.
7. Restore Power: Replace any access panels. Restore the gas supply and electrical power to the furnace.
8. Test Operation: Initiate a heating cycle to confirm the ignitor is functioning correctly and the furnace lights properly.

5. Operation

The furnace ignitor operates as part of the furnace's ignition sequence. When the thermostat calls for heat, the ignitor receives electrical current and rapidly heats up to a high temperature. This hot surface then ignites the gas flowing from the burner. Once the flame is established and detected by the flame sensor, the ignitor's circuit is typically de-energized until the next heating cycle is initiated.

6. Maintenance

Regular maintenance of your furnace is crucial for its longevity and efficient operation. While the ignitor itself is not typically a user-serviceable part for cleaning or repair, its condition should be inspected during routine furnace maintenance by a qualified technician. Signs of wear, cracks, or discoloration on the ignitor element may indicate a need for replacement.

7. Troubleshooting

If your furnace is not igniting, the ignitor may be a potential cause. Common symptoms of a faulty ignitor include:

• The furnace fan runs, but no heat is produced.
• You hear a clicking sound (from the gas valve attempting to open) but no ignition.
• The ignitor glows for a short period and then goes out without igniting the gas.
• The ignitor does not glow at all.

Before assuming the ignitor is faulty, ensure that the furnace has power, the gas supply is on, and the thermostat is set correctly. If these basic checks do not resolve the issue, it is recommended to contact a qualified HVAC technician for diagnosis and repair. Attempting to troubleshoot or repair complex furnace components without proper training can be dangerous.

8. Specifications

9. Warranty and Support

Specific warranty information for this aftermarket ignitor is not provided in the product details. For warranty claims or technical support, please contact the seller or manufacturer directly. It is advisable to retain your purchase receipt for any warranty inquiries.
