SilverStone RM21-304 2U Rackmount Server Chassis Instruction Manual

1. Introduction

The SilverStone RM21-304 is a high-performance 2U rackmount server chassis designed for professional storage environments. This manual provides detailed instructions for the proper setup, operation, and maintenance of your RM21-304 chassis to ensure optimal performance and longevity.

Key features include hard drive trays compatible with 2.5" or 3.5" drives, a fan assembly with motherboard support for up to Micro-ATX form factor, and flexible mounts for various power supply types (2U single/redundant server, PS2 ATX). The design also incorporates ergonomic, tool-less rail designs for simplified rack integration.

2. Safety Information

WARNING:

• Always disconnect power before installing or removing components.
• Wear anti-static wrist straps to prevent electrostatic discharge (ESD) damage.
• Ensure proper grounding of the chassis and all connected equipment.
• Do not operate the chassis with the cover removed in a production environment.
• Refer to component manuals for specific installation requirements.

3. Package Contents

Verify that all components are present before proceeding with installation:

• SilverStone RM21-304 Chassis
• Accessory Kit (screws, standoffs, etc.)
• Quick Start Guide (this document)
• Optional: Sliding Rail Kit (if purchased separately)

Figure 3.1: Included accessory kit with various screws for different components.

4. Setup and Installation

4.1 Preparing the Chassis

Before installing components, ensure the chassis is placed on a stable, flat surface. Remove the top cover by unscrewing the retaining screws at the rear of the chassis.

Figure 4.1: Interior view of the RM21-304 chassis, showing fan assembly and drive bays.

4.2 Motherboard Installation

1. Install the I/O shield into the chassis rear panel.
2. Align the Micro-ATX motherboard with the standoffs inside the chassis.
3. Secure the motherboard using the appropriate screws from the accessory kit.

4.3 Drive Installation (2.5" / 3.5" Drives)

The RM21-304 supports both 2.5" and 3.5" drives in its hot-swappable drive bays.

1. Open the latch on the drive tray.
2. Insert the 2.5" or 3.5" drive into the tray and secure it with screws.
3. Slide the populated drive tray into an available drive bay until it clicks into place.

Figure 4.2: Close-up of a drive tray being inserted into the chassis.

4.4 Power Supply Installation

The chassis accommodates 2U single/redundant server or PS2 (ATX) power supplies. Install the power supply according to its manufacturer's instructions, securing it to the chassis rear panel.

4.5 Connecting Cables

Connect all necessary cables, including power, SATA, and front panel connectors (USB, power/reset buttons, LED indicators) to the motherboard and drives.

4.6 Optional: Sliding Rail Installation

For easy rack integration, optional sliding rails can be installed. Follow the instructions below to attach the rails to the chassis and the server rack.

1. Separate the inner rail from the outer rail by pressing the release tab.
2. Attach the inner rails to the sides of the RM21-304 chassis using the provided screws.
3. Attach the outer rails to the server rack posts, ensuring proper alignment and spacing.
4. Slide the chassis with the inner rails into the outer rails mounted on the rack until it locks securely.

5. Operating Instructions

5.1 Powering On/Off

Press the power button on the front panel to turn the server on. To power off, perform a graceful shutdown through the operating system, then press the power button if necessary.

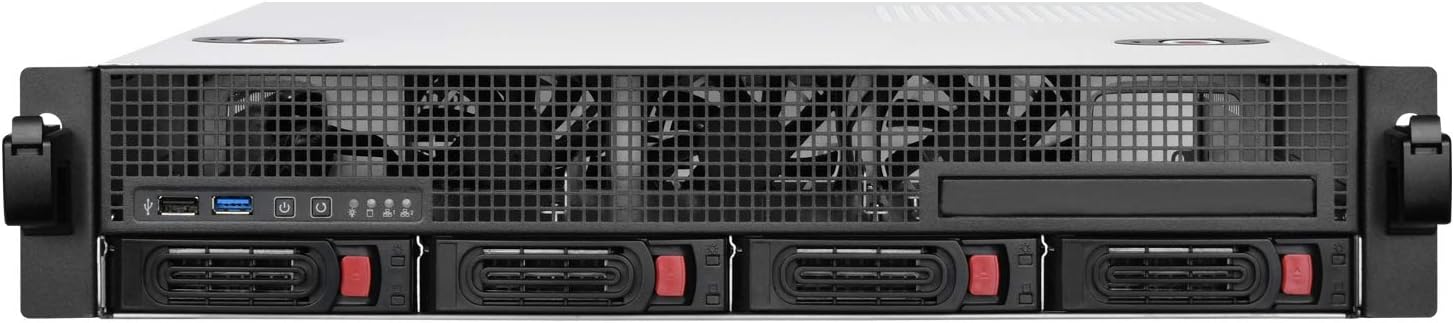

Figure 5.1: Front panel of the RM21-304, highlighting power/reset buttons and USB ports.

5.2 LED Indicators

The front panel features LED indicators for system status:

• Green LED: Power indicator.
• Blue LED: Data activity indicator for drives.
• Other LEDs may indicate network activity or system warnings, depending on motherboard configuration.

6. Maintenance

6.1 Cleaning

Regularly clean the chassis exterior with a soft, dry cloth. For internal cleaning, disconnect power and use compressed air to remove dust from fans and components. Ensure all dust filters are clean to maintain optimal airflow.

6.2 Fan Maintenance

The chassis features a fan assembly for cooling. Periodically check the fans for dust buildup and ensure they are spinning freely. Replace any noisy or malfunctioning fans promptly.

Figure 6.1: Internal view showing the fan assembly within the chassis.

7. Troubleshooting

• No Power: Check all power connections, including the power supply unit (PSU) and wall outlet. Verify the power button is functioning.
• System Not Booting: Ensure all internal components (motherboard, RAM, CPU, drives) are correctly seated and connected. Check for any POST error codes or beeps from the motherboard.
• Overheating: Verify all fans are operational and free of obstructions. Ensure proper airflow within the rack and server room. Clean dust filters.
• Drive Detection Issues: Check SATA data and power connections to the drives. Ensure drives are properly seated in their trays.

8. Specifications

9. Warranty and Support

For warranty information and technical support, please refer to the official SilverStone website or contact their customer service department. Keep your proof of purchase for warranty claims.

Online Resources:

• SilverStone Official Website: www.silverstonetek.com
• Product Page (RM21-304): Amazon Product Page
