1. Introduction
Thank you for choosing the Cecotec Grand Sommelier 800 CoolCrystal Wine Cooler. This appliance is designed to store and preserve your wine at optimal temperatures, ensuring its quality and readiness for enjoyment. Please read this manual carefully before operating the appliance to ensure safe and efficient use. Keep this manual for future reference.
2. Safety Instructions
To reduce the risk of fire, electric shock, or injury when using your wine cooler, follow these basic precautions:
- Read all instructions before using the appliance.
- Do not touch cold surfaces, especially when the appliance is operating.
- Ensure the appliance is properly grounded.
- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
- Do not damage the refrigerant circuit.
- Do not use electrical appliances inside the storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
- Unplug the wine cooler before cleaning or performing any maintenance.
- Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
3. Product Overview
The Cecotec Grand Sommelier 800 CoolCrystal is a compact and efficient wine cooler designed for optimal wine preservation. It features a sleek black design with a glass door, digital temperature control, and internal LED lighting.
Figure 3.1: Front view of the Cecotec Grand Sommelier 800 CoolCrystal wine cooler. This image shows the front of the Cecotec Grand Sommelier 800 CoolCrystal wine cooler, highlighting its sleek black design, glass door, and digital control panel at the top. Inside, several wine bottles are visible on the chrome shelves, illuminated by blue LED lighting.

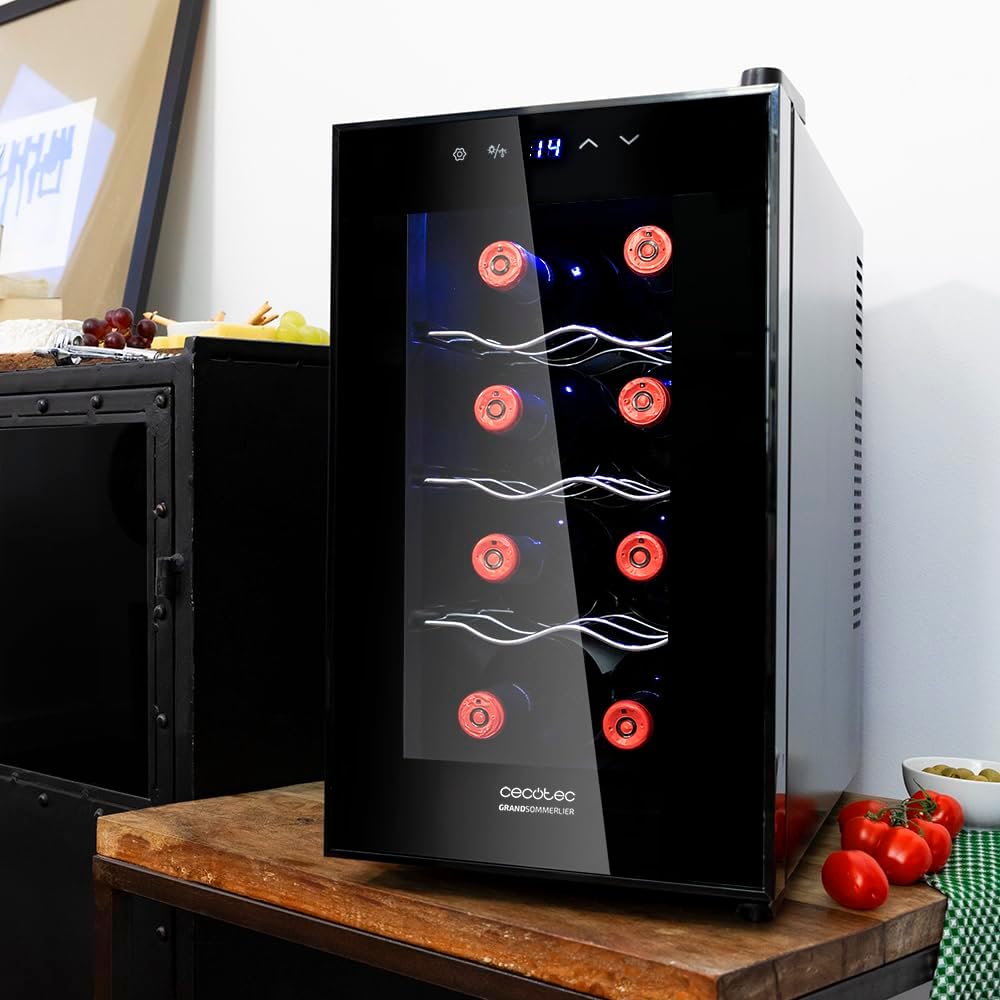

Figure 3.2: Angled view of the wine cooler. An angled perspective of the wine cooler, emphasizing its compact form factor and the ventilation grilles on the side. The digital temperature display and control buttons are clearly visible on the top front panel.
Key Components:
- Glass Door: Insulated door for visibility and temperature retention.
- Control Panel: Digital display and touch controls for temperature adjustment and light.
- Chrome Shelves: Wavy shelves designed to cradle wine bottles securely.
- Internal LED Lighting: Illuminates the interior for an attractive display.
- Ventilation Grilles: Located on the sides and rear for proper heat dissipation.
Figure 3.3: Wine cooler with door open. The wine cooler is shown with its door ajar, offering a clear view of the interior. The chrome shelves are designed to hold wine bottles securely, and the internal lighting highlights the contents, making bottle selection easy.
4. Setup
4.1 Unpacking
- Carefully remove all packaging materials.
- Check the appliance for any damage during transit. If damaged, do not operate and contact customer service.
- Remove any internal packing, such as tape or foam, securing shelves or other components.
4.2 Placement
Proper placement is crucial for the wine cooler's performance and longevity.
- Place the appliance on a firm, level surface to prevent vibrations and ensure proper door sealing.
- Allow at least 10 cm (4 inches) of space around the back and sides for adequate ventilation. Do not block the ventilation grilles.
- Avoid placing the wine cooler in direct sunlight or near heat sources (e.g., oven, radiator, fireplace) as this will affect its cooling efficiency.
- The appliance is designed for indoor use only.
Figure 4.1: Wine cooler in a living room setting. The wine cooler is depicted in a home environment, positioned on a wooden side table next to a cabinet. This illustrates its compact size and how it can blend into various interior designs, providing convenient wine storage.
Figure 4.2: Wine cooler on a counter. This image shows the wine cooler placed on a kitchen or bar counter, surrounded by a wine glass, cheese, and grapes, suggesting its use in entertaining and dining settings. It demonstrates the appliance's integration into a lifestyle context.
4.3 Initial Cleaning
Before first use, clean the interior and exterior of the wine cooler with a soft cloth and mild detergent. Rinse thoroughly and dry completely.
4.4 Power Connection
Plug the appliance into a dedicated, grounded electrical outlet. Allow the wine cooler to stand upright for at least 2-4 hours before plugging it in to allow the refrigerant to settle.
5. Operating Instructions
5.1 Control Panel
The control panel is located at the top front of the appliance and features a digital display and touch-sensitive buttons.
Figure 5.1: Close-up of the control panel. This image provides a closer look at the wine cooler's digital control panel, showing the temperature display and adjustment buttons. The interior reveals wine bottles resting on the wavy chrome shelves, with the internal blue LED lighting creating an appealing display.
- Temperature Display: Shows the current internal temperature.
- Up Arrow (∧): Increases the set temperature.
- Down Arrow (∨): Decreases the set temperature.
- Light Button (💡): Turns the internal LED light on or off.
- Celsius/Fahrenheit Button (℃/℉): Toggles between Celsius and Fahrenheit display.
5.2 Setting the Temperature
- Press the Up (∧) or Down (∨) arrow button to adjust the desired temperature.
- The display will flash the set temperature for a few seconds, then return to showing the actual internal temperature.
- The wine cooler will automatically adjust to reach and maintain the set temperature.
5.3 Loading Bottles
Arrange bottles on the shelves, ensuring they do not touch the back wall or obstruct the door from closing properly. The wavy design of the shelves helps to keep bottles stable.
Figure 5.2: Interior view with bottles. A detailed shot of the wine cooler's interior, showcasing multiple wine bottles neatly arranged on the chrome shelves. The blue LED illumination enhances the visual appeal of the stored wines.
6. Maintenance
6.1 Cleaning the Interior
- Unplug the wine cooler before cleaning.
- Remove all bottles and shelves.
- Wash the interior surfaces with a solution of warm water and baking soda (2 tablespoons of baking soda to 1 liter of water).
- Clean the shelves with a mild detergent solution.
- Rinse thoroughly and dry completely before returning shelves and bottles.
6.2 Cleaning the Exterior
Wipe the exterior surfaces with a soft cloth and mild detergent. For the glass door, use a glass cleaner. Avoid abrasive cleaners or solvents.
6.3 Power Outage
In case of a power outage, the wine cooler will generally maintain its temperature for several hours if the door remains closed. Avoid opening the door unnecessarily.
6.4 Vacation Time
For long vacations, unplug the unit, empty it, clean it, and leave the door slightly ajar to prevent odors and mold growth.
7. Troubleshooting
Before contacting customer service, please check the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Wine cooler does not operate. | Not plugged in; circuit breaker tripped; power switch off. | Ensure plug is secure; reset circuit breaker; turn power switch on. |
| Temperature is not cold enough. | Door not closed properly; excessive door openings; warm ambient temperature; ventilation blocked. | Check door seal; reduce door openings; move unit to cooler location; ensure proper ventilation. |
| Excessive vibration. | Unit not level. | Adjust leveling feet to ensure the unit is stable. |
| Noise from the unit. | Normal operation sounds (compressor, fan); loose parts. | These sounds are normal. If unusual, check for loose items inside or outside the unit. |
| Door does not close properly. | Unit not level; gasket dirty or damaged; shelves out of position. | Level the unit; clean or replace gasket; reposition shelves. |
8. Specifications
Below are the technical specifications for the Cecotec Grand Sommelier 800 CoolCrystal Wine Cooler:
- Brand: Cecotec
- Model: 02301
- Product Dimensions: 55 x 30 x 49.3 cm (approx. 47.5 cm width, 25 cm depth, 46 cm height as per image)
- Weight: 10.98 Kilograms
- Capacity: 25 Litres
- Noise Level: 33 dB
- Wattage: 65 watts
- Installation Type: Freestanding
- Special Features: Portable, Adjustable Temperature Control
Figure 8.1: Product Dimensions. A technical diagram showing the key dimensions of the Cecotec Grand Sommelier 800 wine cooler: 47.5 cm in width, 25 cm in depth, and 46 cm in height. This is crucial for planning placement.
9. Warranty and Support
For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official Cecotec website. Do not attempt to repair the appliance yourself, as this may void your warranty and pose safety risks. Always contact authorized service personnel for assistance.
