Cuckoo Tankless Countertop Water Dispenser

Product Overview

The Cuckoo Tankless Countertop Water Dispenser (Model CP-MN031W) is an innovative water purification system designed for ease of use and superior water quality. It utilizes a three-filter system (Carbon, Nano Positive, and Mineralizer) to remove harmful contaminants while infusing beneficial minerals, providing mild alkaline water. Its compact design and intuitive touch control panel make it a perfect addition to any kitchen.

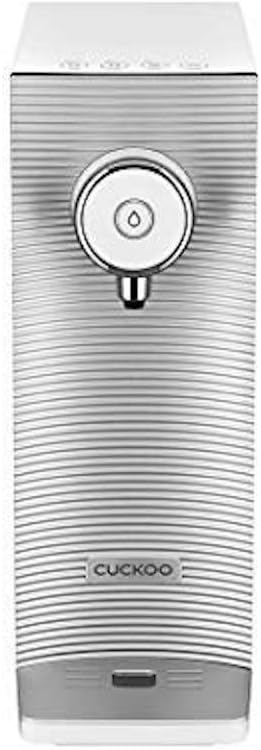

Front view of the Cuckoo Tankless Countertop Water Dispenser.

Key Features

• Powerful Filtration with Mineral Infusion: Features a three-filter system (Carbon, Nano Positive, Mineralizer) that removes bacteria, viruses, odor, lead, giardia cysts, germs, algae, fungi, organic substances, chlorine, THM, VOCs, and heavy metals, while adding essential minerals like calcium, magnesium, and potassium.
• Direct Flow Technology: Ensures you are always drinking clean water without the need for a storage tank, preventing stagnant water.
• Filter Replacement Alarm: Notifies you when each filter needs to be changed, specifying the exact filter for hassle-free maintenance.
• Easy Filter Change: Designed for simple, no-hassle filter replacement without twisting or turning.
• Elegant and Compact Design: Sleek, slim design (14.6" H x 5.25" W) fits easily under cabinets and in various living spaces.
• Touch Control Panel: Simple and clean interface for easy operation.
• Simple DIY Installation: Offers two installation types: kitchen faucet (with smart sink adapter) or under counter (with T-Valve adapter), both included. Estimated 15-minute installation.

Installation Guide

The Cuckoo Tankless Countertop Water Dispenser offers two convenient installation methods: Faucet Installation and Under the Sink Installation. Both methods are designed for DIY setup.

Installation Kit Contents

The installation kit includes a faucet mounted diverter, faucet adapters, T-valve, water tubing, L-fittings, and cable ties. The three filters are pre-installed inside the product.

Faucet Installation

This method connects the dispenser directly to your kitchen faucet.

1. Remove Aerator: Begin by removing the aerator from your faucet by loosening it.
2. Connect Diverter: Connect the provided faucet-mounted diverter to the faucet by hand. Ensure it is sealed tightly to prevent water leakage. If the diverter does not fit, use one of the other faucet adapters provided. Do not overtighten.
3. Connect Tubing: Remove the tubing end cap from the diverter and connect the water tubing. After connecting, replace and tighten the tubing end cap.
4. Connect to Dispenser: Connect the other end of the water tubing to the water input on the back of the Cuckoo dispenser. Remove the end plug by pressing the red collet and fully insert the tubing. Ensure it is fully inserted to prevent water leakage.
5. Power On: Plug in the power cord of the Cuckoo dispenser.
6. Activate Non-Stop Flow: Place the dispenser on top of the sink and remove the water tray. Activate the non-stop flow function 10 times simultaneously. This process reactivates the filters and system and will take approximately 10 minutes.
7. Check for Leaks: After activation, check for any water leakage at all connection points.

Under the Sink Installation

This method connects the dispenser to your cold water supply under the sink. Note: This product is designed for cold water supply only.

1. Turn Off Water Supply: First, cut off the water supply by closing the cold water supply valve under the sink. Verify that no cold water flows out by turning on the sink faucet.
2. Connect T-Valve: Disconnect the water supply hose from the cold water supply valve and connect the provided T-valve. Tighten to prevent any water leakage.
3. Reconnect Water Supply: Reconnect the disconnected water supply hose to the T-valve and tighten.
4. Route Tubing: Organize and place the water tubing through a hole on your countertop or sink to connect with the water supply. If no hole exists, you may need to create one for the tubing.
5. Connect to Dispenser: Connect the water tubing to the water input on the back of the Cuckoo dispenser. Remove the end plug by pressing the red collet and fully insert the tubing. Ensure it is fully inserted to prevent water leakage.
6. Open Water Supply: Open the cold water supply valve and check for any water leakage at all connection points.
7. Power On: Plug in the power cord of the Cuckoo dispenser.
8. Activate Non-Stop Flow: Activate the non-stop flow function 10 times simultaneously. This process reactivates the filters and system and will take approximately 10 minutes.

Operating Instructions

The Cuckoo Tankless Countertop Water Dispenser features a user-friendly touch control panel for easy water dispensing.

The touch control panel features options for 'One Cup' dispensing, 'Non-Stop Flow', 'Button Lock', and a 'Filter Replacement Alarm'.

• One Cup Dispense: Press the 'One Cup' button to dispense a pre-set amount of water.
• Non-Stop Flow: Press the 'Non-Stop Flow' button for continuous water dispensing. Press again to stop the flow.
• Button Lock: Use the 'Button Lock' feature to prevent accidental dispensing.

Maintenance

Filter Replacement

The Cuckoo dispenser is equipped with a filter replacement alarm system that indicates when each filter needs to be changed. Regular filter replacement is crucial for maintaining water quality and dispenser performance.

The filters are designed for easy, tool-free replacement. The system will alert you when a filter needs changing.

• Pre-Carbon 2.0 Filter: Recommended replacement every 4 months. This filter reduces heavy metals (lead), particulates, odor, color, organic substances, chlorine, THM, volatile organic compounds (VOCs), and cysts.
• Nano Positive Filter: Recommended replacement every 12 months. This filter attracts harmful charged particles, eliminating 99.99% of viruses and bacteria while allowing beneficial minerals to pass. It also removes residual heavy metals, germs, algae, and fungi.
• Mineralizer Filter: Recommended replacement every 12 months. This filter creates mineral-enriched, mild alkaline water, supplying critical nutrients such as potassium, calcium, and magnesium, and helps balance pH.

Always refer to the filter replacement alarm on your dispenser for precise timing. Use only genuine Cuckoo replacement filters.

Troubleshooting

If you encounter any issues with your Cuckoo Tankless Countertop Water Dispenser, please refer to the following common troubleshooting tips:

• Water Leakage:
  • Ensure all connections (faucet diverter/T-valve, tubing to dispenser) are securely tightened.
  • Verify that the tubing is fully inserted into the quick-connect fittings. The red collet should be pressed down when inserting the tubing.
  • Check for any cracks or damage on the tubing or fittings.
• Slow Water Flow:
  • This often indicates a clogged filter. Check the filter replacement alarm and replace any indicated filters.
  • Ensure the water supply valve is fully open.
• Unusual Taste or Odor:
  • Perform the initial 10-minute non-stop flow activation process again to flush the system.
  • Check filter replacement indicators. Old or expired filters can cause taste/odor issues.
• No Water Dispensing:
  • Ensure the power cord is securely plugged in and there is power to the outlet.
  • Check if the water supply valve is open.
  • Verify that the 'Button Lock' feature is not activated.

If the issue persists after following these steps, please contact Cuckoo customer support for further assistance.

Product Specifications

Warranty and Support

For warranty information, product registration, or technical support, please refer to the documentation included with your purchase or visit the official Cuckoo website. Cuckoo is committed to providing high-quality products and customer satisfaction.

You can also visit the CUCKOO Store on Amazon for more product information and support resources.
