Wet Sounds Sinister-SDX2500 Class D Monoblock Subwoofer Amplifier Instruction Manual

Introduction

The Wet Sounds Sinister-SDX2500 is a high-performance Class D monoblock subwoofer amplifier designed for robust audio delivery in marine and power sports environments. This amplifier is engineered for durability and efficient operation, providing significant power output while maintaining a compact form factor.

Key features include:

• Powerful Performance: Delivers up to 2500 watts RMS at 1 ohm.
• Versatile Connections: Features RCA inputs, speaker-level inputs, and remote level control.
• Efficient Operation: Class D design for high power output with reduced electrical consumption.
• Built to Last: High-quality components and robust heatsink design for optimal performance and longevity.
• Adjustable Settings: Low-pass filter, subsonic filter, and bass boost for sound customization.

Product Overview

The Sinister-SDX2500 amplifier features a durable, all-black design suitable for marine applications. Its construction includes a 4-layer thick circuit board through-bolted to the chassis, enhancing its resilience against harsh conditions. The amplifier also incorporates a unique design with raised feet, allowing for clean wire routing underneath the unit, and a rotatable badge for flexible mounting options.

Front view of the Wet Sounds Sinister-SDX2500 amplifier, showcasing its sleek black design and Wet Sounds logo.

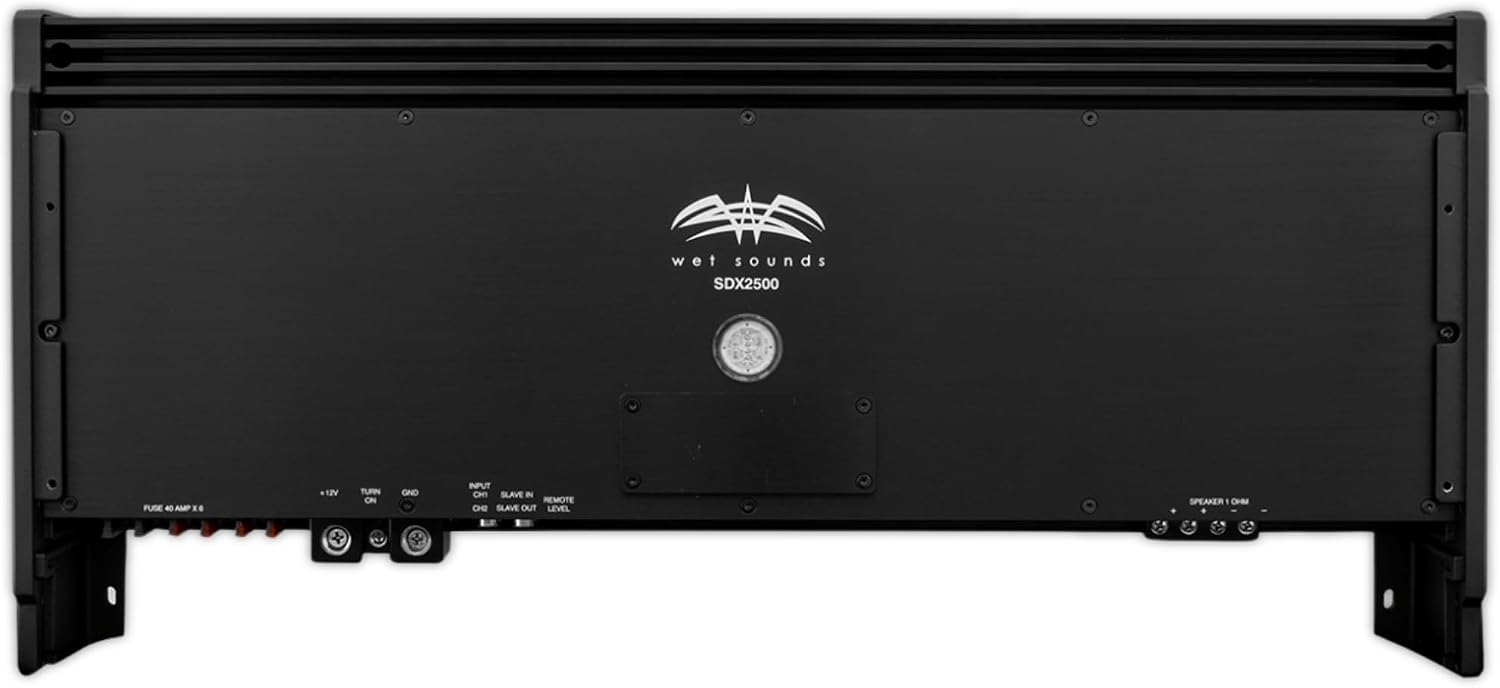

Rear view of the amplifier, showing the various input and output connections, including RCA inputs, speaker-level inputs, and remote level control.

Side view illustrating the raised feet design, which allows for organized cable management underneath the amplifier.

Internal view of the amplifier's 4-layer IC boards, bolted to the chassis for enhanced durability and vibration resistance.

Setup and Installation

Proper installation is crucial for optimal performance and longevity of your Sinister-SDX2500 amplifier. It is recommended that installation be performed by a qualified professional.

Mounting

• The amplifier features raised feet, allowing for wires to be routed underneath for a clean installation.
• The badge is rotatable, enabling vertical mounting while maintaining correct logo orientation.
• Ensure the mounting location provides adequate ventilation to prevent overheating.
• Mount the amplifier in a secure location, away from direct exposure to water spray or excessive heat sources.

Wiring Connections

• Connect the power and ground wires to the appropriate terminals. Ensure proper gauge wiring is used for the power requirements.
• Connect the remote turn-on wire to your source unit's remote output.
• Utilize RCA inputs for low-level signals or speaker-level inputs for high-level signals from your source unit.
• Connect your subwoofer(s) to the speaker output terminals. The amplifier is designed to handle low loads, including 1-ohm mono loads for the SDX2500.
• All connections should be secure and properly insulated to prevent short circuits.

Operating Instructions

The Sinister-SDX2500 amplifier is designed for high-performance audio delivery. Follow these guidelines for optimal operation:

Power Supply

• The amplifier features a MAX Power Supply, ensuring efficient and consistent power output even under varying voltage conditions.
• It is capable of driving low impedance loads, such as 1-ohm mono, allowing for flexible speaker configurations.

Adjustable Settings

The amplifier includes several adjustable settings to fine-tune your audio system:

• Low-Pass Filter (LPF): Adjust this to control the upper frequency limit of the subwoofer output.
• Subsonic Filter: Use this to filter out extremely low frequencies that are inaudible and can cause damage to subwoofers.
• Bass Boost: Provides an adjustable increase in bass output at a specific frequency. Use sparingly to avoid distortion.
• Gain Control: Match the amplifier's input sensitivity to the output of your source unit. Start with the gain at minimum and slowly increase until desired volume is achieved without distortion.

RGB Backlit Logo

The Wet Sounds logo on the amplifier is RGB backlit, offering red, white, or blue color options to match your system's aesthetics.

Maintenance

To ensure the longevity and optimal performance of your Wet Sounds Sinister-SDX2500 amplifier, follow these maintenance guidelines:

• Cleaning: Regularly wipe the exterior of the amplifier with a soft, dry cloth to remove dust and debris. Avoid using harsh chemicals or abrasive cleaners.
• Connections: Periodically check all wiring connections (power, ground, remote, input, and speaker) to ensure they are secure and free from corrosion. Loose connections can lead to performance issues or damage.
• Ventilation: Ensure that the amplifier's heatsink fins are clear of obstructions to allow for proper heat dissipation. Restricted airflow can lead to overheating and thermal shutdown.
• Environmental Protection: Although designed for marine environments, minimize direct exposure to extreme moisture or saltwater spray when possible. The conformal coating protects the internal components, but excessive exposure can still impact external connections.

Troubleshooting

If you experience issues with your Sinister-SDX2500 amplifier, refer to the following common troubleshooting steps:

If these steps do not resolve the issue, contact Wet Sounds customer support or a qualified audio technician.

Specifications

Warranty Information

Specific warranty details for the Wet Sounds Sinister-SDX2500 amplifier are provided by the manufacturer at the time of purchase. Please refer to the documentation included with your product or visit the official Wet Sounds website for the most current warranty terms and conditions.

Support

For technical support, product inquiries, or additional information regarding your Wet Sounds Sinister-SDX2500 amplifier, please visit the official Wet Sounds website:

www.wetsounds.com
