ANSMANN LED Flashlight 1500 Lumens

1. Introduction

Thank you for choosing the ANSMANN LED Flashlight, Model 1600-0257. This professional-grade flashlight is designed for various applications, offering high brightness, durability, and versatile lighting functions. Please read this manual carefully before using the product to ensure safe and optimal performance.

This flashlight features a powerful 20W CREE LED, delivering up to 1500 lumens of light with a range of 240 meters. Its robust aluminum housing is IP54 rated for dust and splash protection and is shock-resistant up to 1 meter. The optical zoom allows for continuous focusing from a precise spot beam to a wide, homogeneous floodlight. Three lighting modes (100%, 25%, and SOS) provide flexibility for different situations.

Image 1.1: The ANSMANN LED Flashlight 1600-0257.

2. Safety Instructions

• Do not look directly into the LED light. The intense light can cause temporary or permanent vision impairment.
• Keep the flashlight out of reach of children.
• Do not disassemble or modify the flashlight. This may void the warranty and pose a safety risk.
• Ensure batteries are inserted with correct polarity. Incorrect insertion can damage the device.
• Remove batteries if the flashlight will not be used for an extended period to prevent leakage.
• Do not mix old and new batteries, or different types of batteries.
• Dispose of used batteries according to local regulations.
• The flashlight is IP54 rated, meaning it is protected against dust ingress and splashing water from any direction. It is not designed for submersion.

3. Package Contents

Verify that all items are present in the package:

• 1 x ANSMANN LED Flashlight (Model 1600-0257)
• 6 x AA Alkaline Batteries
• 1 x Wrist Strap
• 1 x User Manual

Image 3.1: The flashlight and included 6 AA batteries in its packaging.

4. Setup

4.1 Battery Installation

1. Unscrew the tail cap of the flashlight by turning it counter-clockwise.
2. Insert the 6 AA alkaline batteries into the battery compartment, ensuring correct polarity (+/-) as indicated inside the compartment.
3. Screw the tail cap back on clockwise until it is securely tightened.

Image 4.1: Exploded view illustrating the battery compartment and other components.

4.2 Attaching the Wrist Strap

Thread the thin loop of the wrist strap through the small hole located on the tail cap of the flashlight. Secure the strap by passing the larger end through the loop and pulling it tight.

5. Operating Instructions

5.1 Power On/Off and Mode Selection

The flashlight features a microcontroller-controlled end switch for operation:

• To Turn On/Off: Press the end switch completely until it clicks.
• To Cycle Modes: Once the flashlight is on, lightly press the end switch (without clicking) to cycle through the three lighting modes:
  1. 100% Brightness (High Power): Provides 1500 lumens for maximum illumination.
  2. 25% Brightness (Eco Mode): Provides 350 lumens for extended battery life.
  3. SOS Function: Emits an international Morse code distress signal (three short, three long, three short flashes).

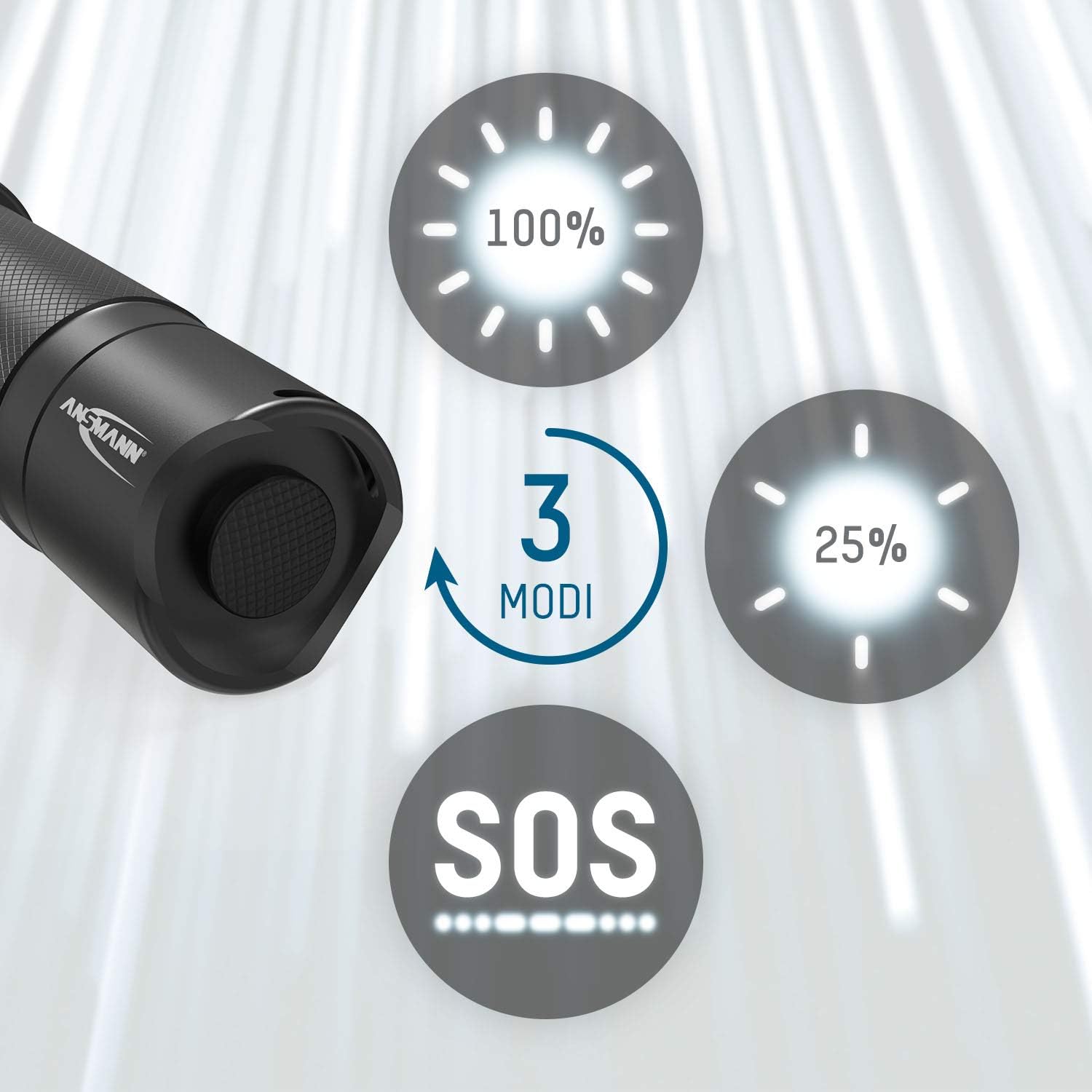

Image 5.1: Illustration of the three available lighting modes.

5.2 Optical Zoom (Focusing)

The flashlight features a continuous optical zoom function:

• To adjust the beam from a narrow spot to a wide floodlight, rotate the head of the flashlight.
• Turn clockwise for a focused spot beam.
• Turn counter-clockwise for a broad floodlight.

Image 5.2: Visual representation of the continuous focusing mechanism.

Image 5.3: The flashlight's beam illuminating a distant area, demonstrating its 240m range.

6. Maintenance

• Cleaning: Wipe the flashlight with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Battery Replacement: Replace all 6 AA batteries when the light output diminishes significantly. Always replace with new, high-quality alkaline batteries.
• Storage: Store the flashlight in a cool, dry place. Remove batteries if storing for extended periods to prevent corrosion.
• Water and Dust Protection: The IP54 rating protects against dust and splashing water. Ensure the tail cap is securely tightened to maintain this protection. Avoid prolonged exposure to heavy rain or submersion.

Image 6.1: The flashlight demonstrating its IP54 dust and splash protection.

7. Troubleshooting

8. Specifications

8.1 Energy Efficiency Information

For detailed energy efficiency information, please refer to the official EPREL database:

• EPREL Product Information Sheet (QR Code 721168)

Image 8.1: Example of an energy efficiency label.

9. Warranty and Support

ANSMANN provides a 1-year availability for spare parts for this product. For warranty claims or technical support, please contact your retailer or ANSMANN customer service directly.

Please retain your proof of purchase for any warranty claims.
