1. Introduction and Overview
Thank you for choosing the Sharp SJ-F2560E0A-EU Side-by-Side Refrigerator. This appliance is designed to provide efficient and reliable food storage with advanced features such as AdvancedNoFrost and AdaptiZone technology. This manual provides essential information for the safe and effective operation, installation, and maintenance of your new refrigerator.
Figure 1.1: Front view of the Sharp SJ-F2560E0A-EU refrigerator. This image displays the sleek dark inox finish and the four-door design, with the digital control panel visible on the upper left door.
2. Safety Information
Before operating the appliance, please read this manual thoroughly to ensure safe and proper use. Keep this manual for future reference.
2.1 General Safety Warnings
- Ensure the appliance is properly grounded.
- Do not damage the refrigerant circuit.
- Do not use electrical appliances inside the food storage compartments unless they are of the type recommended by the manufacturer.
- Keep ventilation openings clear of obstruction.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
2.2 Electrical Safety
- Connect the appliance to a properly installed and grounded power outlet.
- Do not use extension cords or ungrounded adapters.
- Always unplug the appliance before cleaning or performing maintenance.
3. Setup and Installation
Proper installation is crucial for the performance and longevity of your refrigerator.
3.1 Unpacking
Carefully remove all packaging materials. Inspect the appliance for any shipping damage. Report any damage to your retailer immediately.
3.2 Placement
Choose a location that is dry, well-ventilated, and away from direct sunlight or heat sources (e.g., oven, radiator). Ensure sufficient space around the appliance for proper air circulation (at least 10 cm at the back and sides, 30 cm above).
Figure 3.1: Angled view of the Sharp SJ-F2560E0A-EU refrigerator, illustrating its dimensions and the space required for proper ventilation. Note the side panel and top clearance for air flow.
3.3 Leveling
Use the adjustable feet at the bottom of the appliance to ensure it is perfectly level. This prevents vibrations and ensures proper door closure.
3.4 Power Connection
After placement and leveling, wait at least 4 hours before plugging the appliance into the power outlet. This allows the refrigerant to settle. Connect to a dedicated 220V, 50Hz grounded power supply.
4. Operating Instructions
Familiarize yourself with the control panel and key features of your Sharp refrigerator.
4.1 Control Panel
The digital control panel is located on the upper left door. It allows you to adjust temperatures, activate special functions, and monitor the appliance status.
4.2 Temperature Control
The refrigerator and freezer compartments can be controlled independently. Refer to the display icons for temperature adjustment. Recommended settings are typically 4°C (39°F) for the refrigerator and -18°C (0°F) for the freezer.
4.3 AdvancedNoFrost Technology
This feature prevents ice build-up in both the freezer and refrigerator compartments, eliminating the need for manual defrosting and ensuring optimal food preservation.
4.4 AdaptiZone Feature
The AdaptiZone allows you to convert a section of the freezer into a refrigerator compartment, or vice-versa, providing flexible storage options based on your needs. Consult the control panel for activation and temperature settings for this zone.

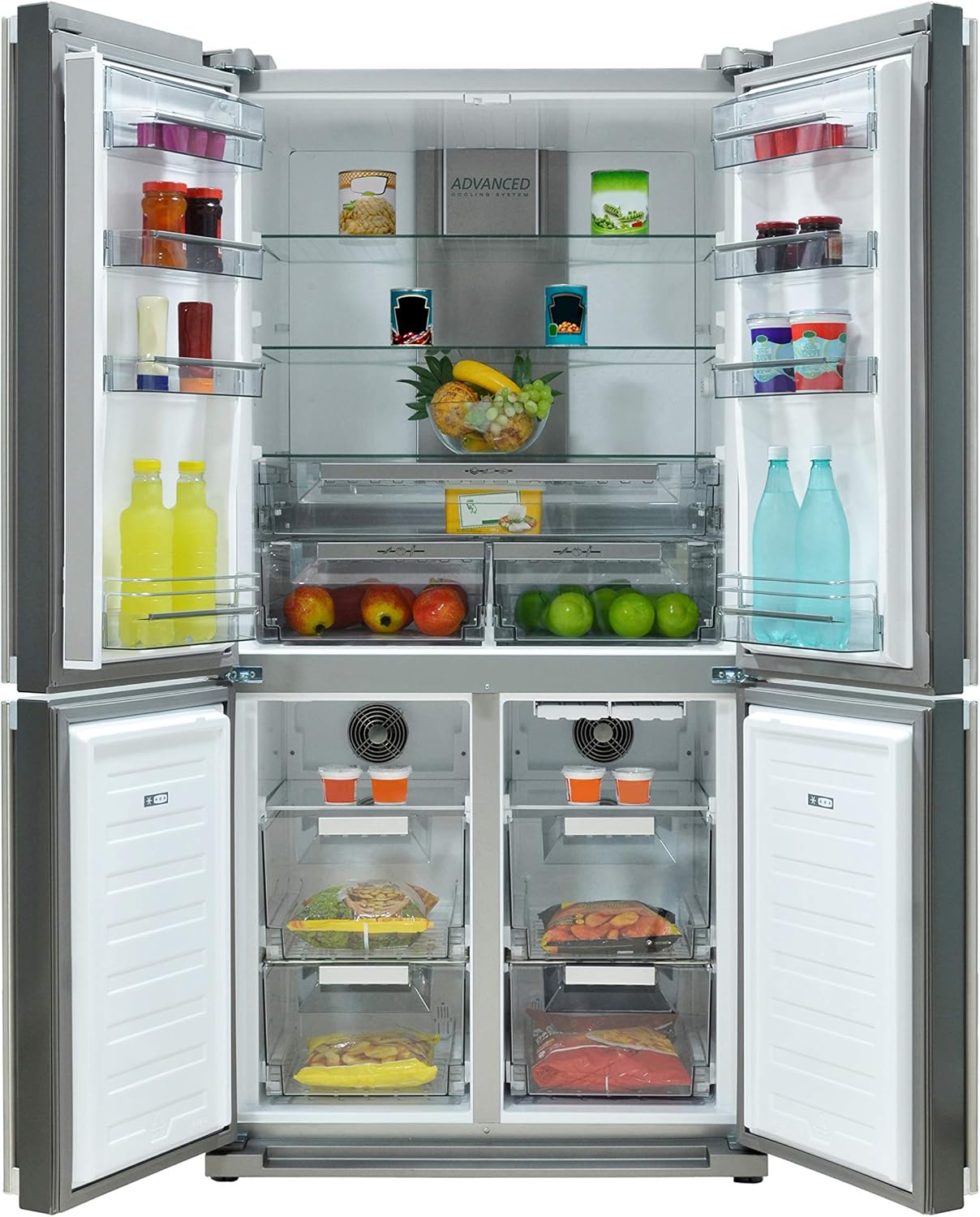

Figure 4.1: Interior view of the Sharp SJ-F2560E0A-EU refrigerator, showcasing the spacious compartments, glass shelves, and door bins. The image also highlights the crisper drawers and the freezer sections, demonstrating the appliance's capacity with various food items.
5. Maintenance and Cleaning
Regular maintenance ensures optimal performance and extends the lifespan of your appliance.
5.1 Cleaning the Interior
Unplug the refrigerator before cleaning. Use a soft cloth and a mild, non-abrasive detergent with warm water. Wipe down all surfaces, shelves, and drawers. Rinse with clean water and dry thoroughly. Do not use harsh chemicals or abrasive cleaners.
5.2 Cleaning the Exterior
Wipe the exterior surfaces with a soft cloth dampened with water and a mild detergent. For the dark inox finish, use a specialized stainless steel cleaner if necessary, wiping in the direction of the grain. Avoid spraying water directly onto the control panel.
Figure 5.1: Close-up view of the sleek, vertical door handles of the Sharp SJ-F2560E0A-EU refrigerator. This image highlights the design and material of the handles, which should be cleaned regularly.
5.3 Door Seal Maintenance
Regularly check and clean the door seals to ensure they are free from food particles and remain flexible. A tight seal is essential for energy efficiency.
5.4 Condenser Coil Cleaning
Periodically (at least once a year), clean the condenser coils located at the back or bottom of the appliance. Dust and debris can accumulate, reducing efficiency. Unplug the appliance before cleaning.
6. Troubleshooting
Before contacting service, refer to the following table for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not operate. | No power supply; plug loose; circuit breaker tripped. | Check power cord connection; check household fuse/circuit breaker. |
| Temperature is not cold enough. | Door not closed properly; excessive door opening; warm food placed inside; poor ventilation. | Ensure door is sealed; reduce door openings; allow hot food to cool before storing; ensure proper ventilation around appliance. |
| Unusual noises. | Appliance not level; objects vibrating against the back; normal operating sounds (e.g., refrigerant flow). | Level the appliance; move objects away from the back; normal sounds are expected. |
| Water on floor/inside. | Drain hole blocked; excessive humidity. | Clear the drain hole; ensure food is covered to reduce humidity. |
7. Specifications
Key technical specifications for the Sharp SJ-F2560E0A-EU refrigerator.
| Attribute | Value |
|---|---|
| Brand | Sharp |
| Model Info | SJ-F2560E0A-EU |
| Total Capacity | 560 Liters |
| Fridge Capacity | 390 Liters (approx.) |
| Freezer Capacity | 170 Liters (approx.) |
| Product Dimensions (L x W x H) | 29.53 x 35.83 x 72.83 inches |
| Item Weight | 139.5 Kilograms (307 pounds) |
| Noise Level | 44 dB |
| Voltage | 220 Volts |
| Features | AdvancedNoFrost, AdaptiZone |
8. Warranty and Support
For warranty information, please refer to the warranty card included with your appliance or visit the official Sharp website. Keep your purchase receipt as proof of purchase.
For technical support, spare parts, or service requests, please contact Sharp customer service. Contact details can typically be found on the Sharp website or in the documentation provided with your appliance.
Note: Unauthorized repairs or modifications may void your warranty.
