Sharp UA-HD50E-L Air Purifier and Humidifier User Manual

1. Introduction

This manual provides essential information for the safe and effective operation, setup, and maintenance of your Sharp UA-HD50E-L Air Purifier with Humidification Function. Please read it thoroughly before using the appliance and keep it for future reference.

The Sharp UA-HD50E-L is designed to improve indoor air quality by combining a patented Plasmacluster ion generator with a 3-stage filtration system. It effectively removes airborne particles, allergens, viruses, pollen, dust mites, and odors. Additionally, it features an automatic humidification function to maintain a comfortable and healthy indoor climate. This unit is suitable for rooms up to 38 m² for air purification and 27 m² when using the humidification function.

2. Safety Information

To ensure safe operation, always follow these basic precautions:

• Do not operate the unit with a damaged power cord or plug.
• Do not block air inlets or outlets.
• Keep the unit away from water and moisture. Do not immerse in water.
• Do not insert objects into any openings.
• Unplug the unit before cleaning or performing any maintenance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Use only genuine Sharp replacement filters.

3. Product Overview

Familiarize yourself with the main components of your Sharp UA-HD50E-L air purifier.

3.1 Front View

Figure 3.1: The front of the Sharp UA-HD50E-L air purifier, showcasing its sleek, light grey design and the Sharp logo.

3.2 Rear View and Air Intake

Figure 3.2: The rear of the air purifier, showing the large air intake grille and the power cord connection point. This is where air is drawn into the unit for filtration.

3.3 Water Tank Access

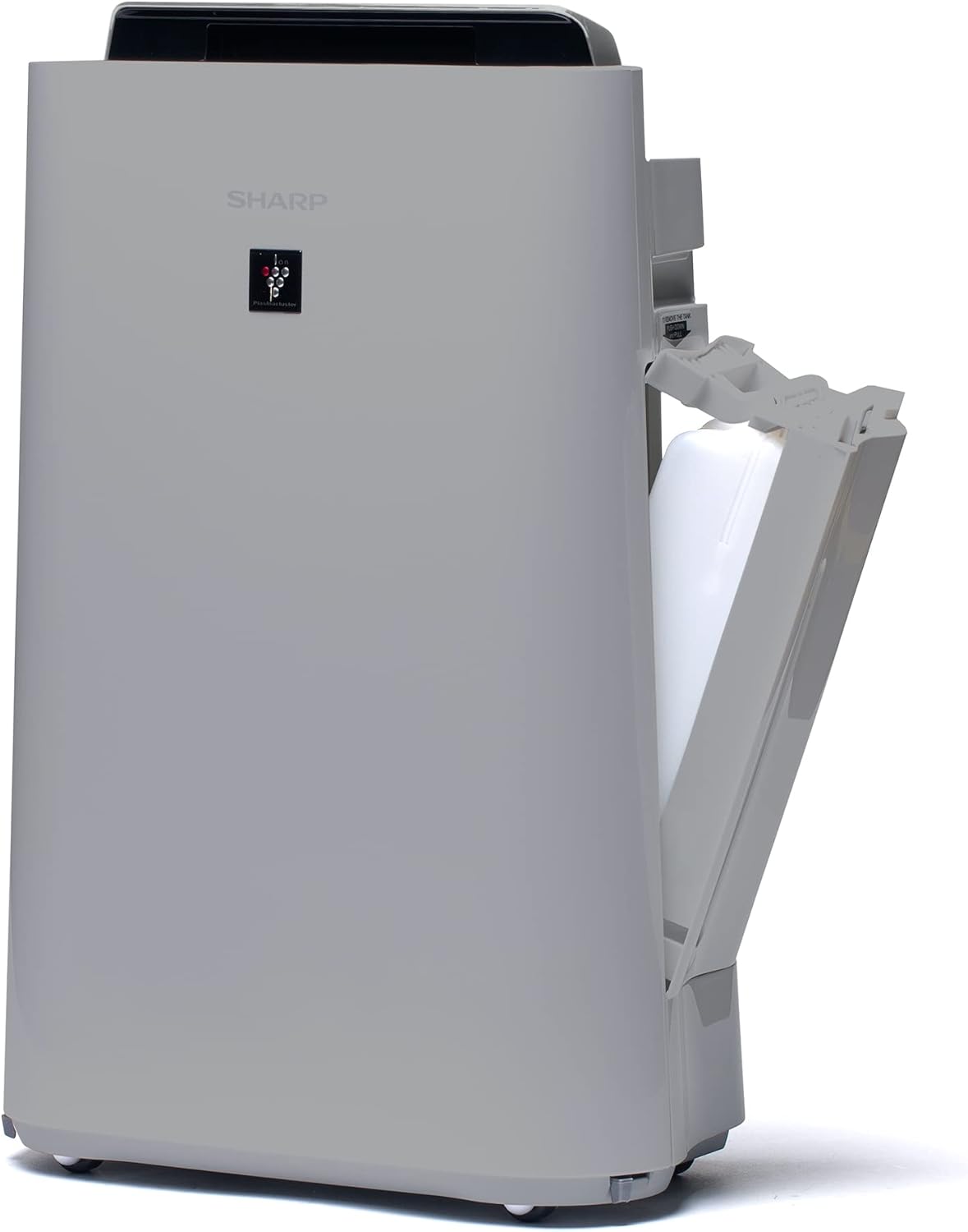

Figure 3.3: A side view of the unit with the water tank compartment door open, revealing the removable water tank for humidification.

3.4 Control Panel and Air Outlet

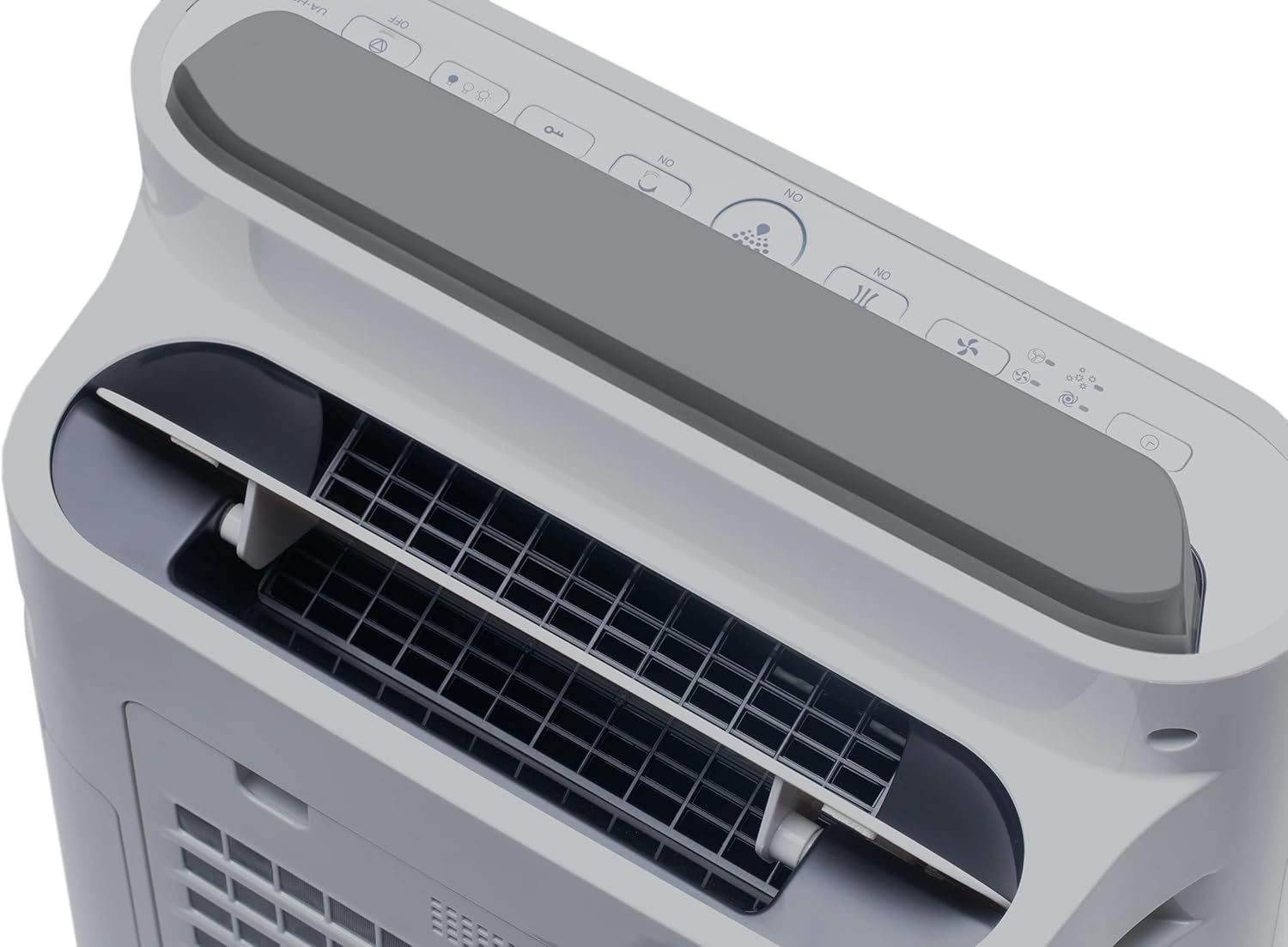

Figure 3.4: A top-down view highlighting the intuitive control panel with various function buttons and the primary air outlet where purified and humidified air is released.

3.5 Filter System

The Sharp UA-HD50E-L utilizes a multi-stage filtration system for comprehensive air purification:

• Pre-filter: Captures large particles like dust and pet hair.
• Deodorization Filter (UZ-HD4DF): Absorbs various odors, including cigarette smoke and household smells.
• HEPA Filter (UZ-HD4HF): Traps microscopic particles such as pollen, mold spores, and fine dust.
• Humidification Filter (UZ-HD6MF): Used for the humidification function.

Figure 3.5: An exploded view illustrating the sequence of the pre-filter, deodorization filter, and HEPA filter within the unit's rear compartment.

4. Setup

Follow these steps to set up your air purifier for the first time.

1. Unpack the Unit: Carefully remove the air purifier and all its components from the packaging. Retain packaging for future transport or storage.
2. Remove Filter Packaging: Open the rear panel of the unit. Remove all plastic packaging from the HEPA filter, deodorization filter, and humidification filter.
3. Install Filters: Insert the filters back into the unit in the correct order: deodorization filter, then HEPA filter, followed by the pre-filter. Ensure they are securely seated. Close the rear panel.

   Figure 4.1: Illustration of a filter being inserted into the side compartment of the air purifier.

4. Fill Water Tank (for Humidification): Open the water tank compartment on the side of the unit. Remove the water tank, fill it with clean tap water, and securely close the cap. Reinsert the water tank into the unit.

   Figure 4.2: The water tank being removed from its compartment for refilling.
5. Placement: Place the air purifier on a flat, stable surface, ensuring adequate clearance (at least 20 cm) from walls and furniture for optimal air circulation.
6. Connect Power: Plug the power cord into a suitable electrical outlet (220V).

5. Operating Instructions

The control panel on the top of the unit allows you to manage all functions.

Figure 5.1: Close-up of the control panel with various buttons and indicators, including sensors for dust, odor, temperature, humidity, light, movement, and PM2.5.

5.1 Power ON/OFF

• Press the POWER button to turn the unit ON or OFF.

5.2 Operating Modes

• Auto Mode: The unit automatically adjusts fan speed and humidification based on sensor readings (dust, odor, temperature, humidity, light, movement, PM2.5). This mode ensures optimal air quality and comfort.
• Manual Fan Speed: Select desired fan speed (Low, Medium, High) for continuous operation.
• Humidification Mode: Activates the humidification function. The unit will maintain a comfortable humidity level. Ensure the water tank is filled.
• Air Purification Only: Disables the humidification function, focusing solely on air purification.

5.3 Plasmacluster Ion Function

• Press the PLASMACLUSTER button to activate or deactivate the Plasmacluster ion generator.
• Ion Spot Mode: This mode provides a 10-fold more intensive airflow of Plasmacluster ions to target specific areas or strong odors. Activate it by pressing the dedicated button on the control panel.

  Figure 5.2: Visual representation of Plasmacluster ions being dispersed into the room, indicating the Ion Spot Mode's enhanced air circulation.

5.4 Air Circulation

The unit features 20° back air outlets to ensure perfect air circulation throughout the room, effectively distributing purified and humidified air.

Figure 5.3: A diagram showing the optimal air circulation pattern created by the unit's design, ensuring even distribution of clean air.

6. Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your air purifier.

6.1 Cleaning the Pre-filter

• The pre-filter should be cleaned approximately once a month, or more frequently if used in dusty environments.
• Remove the rear panel and carefully detach the pre-filter.
• Use a vacuum cleaner to remove dust and debris. For stubborn dirt, wash with mild soap and water, then air dry completely before reinstallation.

Figure 6.1: The pre-filter being removed from the unit, with icons indicating its function against dust and pet hair.

6.2 Deodorization and HEPA Filters (UZ-HD4DF, UZ-HD4HF)

• These filters are not washable and should not be cleaned with water.
• Periodically check for excessive dust accumulation. A vacuum cleaner can be used gently on the surface of the HEPA filter to remove loose dust.
• Replace these filters approximately every 2-5 years, depending on usage and air quality. Refer to the indicator light on the control panel for replacement reminders.

Figure 6.2: The deodorization filter, designed to combat odors such as cigarette smoke and general household smells.

6.3 Humidification Filter (UZ-HD6MF) and Water Tank

• Clean the water tank daily or every few days to prevent mold and bacterial growth. Wash with mild detergent and rinse thoroughly.
• The humidification filter should be cleaned regularly (e.g., weekly) by rinsing under running water. If mineral deposits accumulate, soak the filter in a descaling solution (e.g., citric acid solution) as per product instructions.
• Replace the humidification filter approximately once a year, or when it becomes stiff or discolored.

6.4 Exterior Cleaning

• Wipe the exterior of the unit with a soft, damp cloth. Do not use abrasive cleaners or solvents.

7. Troubleshooting

If you encounter any issues, refer to the following common problems and solutions.

If the problem persists after trying these solutions, please contact customer support.

8. Specifications

9. Warranty and Support

Sharp provides a warranty for this product in accordance with local regulations. Please retain your proof of purchase for warranty claims.

• Spare Parts Availability: Spare parts for this model are available for a period of 2 years from the date of purchase.
• For technical support, service, or to purchase replacement filters, please contact your local Sharp authorized dealer or visit the official Sharp website.
