OEDRO Front Bumper Instruction Manual

1. Introduction and Overview

The OEDRO Front Bumper is engineered for 2007-2018 Jeep Wrangler JK & Unlimited, Sahara & Rubicon models, providing enhanced durability and functionality. Constructed from robust 5/32" steel sheets and 2"X0.120" steel tubing, it offers superior protection against collisions. The bumper features a high-quality textured black powder coat for rust prevention and includes built-in high-power LED lights and D-rings for off-road adventures.

This manual will guide you through the installation process, operational features, and essential maintenance to ensure the longevity and optimal performance of your OEDRO Front Bumper.

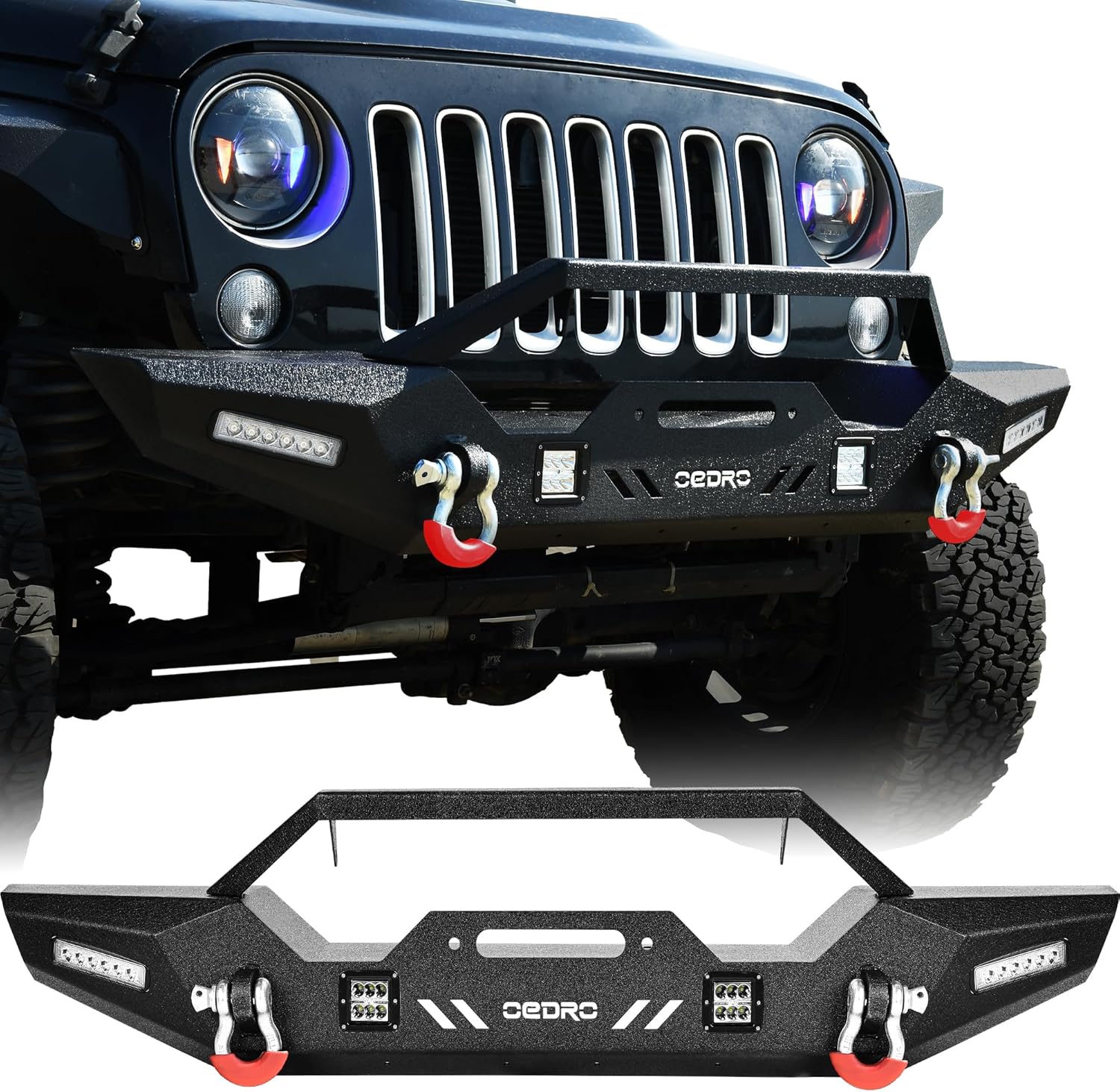

Figure 1: OEDRO Front Bumper installed on a Jeep Wrangler.

2. Setup and Installation

For a detailed step-by-step installation guide, please refer to the official Installation Manual (PDF) available at: Installation Manual (PDF).

The bumper is designed for high accuracy laser measuring and cutting, ensuring a correct 360° fit. It bolts directly onto factory holes, requiring no additional drilling or cutting. Ensure all components are present before beginning installation.

2.1. Pre-Installation Steps

• Park the vehicle on a level surface and engage the parking brake.
• Open the hood to access the grille and wiring.
• Disconnect any existing fog lights or auxiliary lights from the factory bumper.
• Remove the six tabs securing the grille to the vehicle.

2.2. Bumper Removal

• Locate and remove the four bolts securing the factory bumper to the vehicle frame. These are typically 18mm bolts located behind the bumper.
• Carefully remove the factory bumper.

2.3. New Bumper Assembly and Installation

• Attach the bull bar (if applicable) to the new OEDRO bumper using the provided small bolts, lock nuts, and washers.
• Carefully position the new OEDRO bumper onto the vehicle frame, aligning the mounting holes.
• Secure the bumper using the provided large bolts, lock nut washers, and regular washers. Ensure all six bolts are tightened securely (19mm socket recommended).
• Before fully tightening the bumper, re-install the grille by aligning its tabs and pressing firmly until it clicks into place.

2.4. Wiring the LED Lights

The OEDRO bumper includes built-in LED lights. You will need to wire these lights to your vehicle's electrical system. This may involve cutting and splicing wires to connect to your existing fog light harness or a new switch panel. Ensure proper polarity and secure all connections with electrical tape or heat shrink tubing.

Figure 2: Integrated LED Lights for enhanced visibility.

• Connect the wires from the bumper's LED lights to your vehicle's fog light wiring.
• Test the lights to ensure they function correctly.
• Secure any loose wiring using zip ties to prevent damage or entanglement.

3. Operating the Bumper Features

The OEDRO Front Bumper is equipped with several features designed to enhance your off-road experience and vehicle utility.

3.1. LED Lights

The bumper includes built-in high-power 36W (2pcs) & 40W (2pcs) flood beam fog lights. These lights are designed to brighten up the road, making them ideal for night-time driving and off-road conditions. Operate them using your vehicle's existing fog light switch or a dedicated auxiliary light switch if wired separately.

3.2. D-Rings

Two D-rings are included with the bumper, providing secure attachment points for recovery straps or chains. Always ensure D-rings are properly secured before use in recovery situations.

3.3. Winch Plate Mounting

The bumper features a pre-drilled winch plate mounting area, allowing for easy installation of a compatible winch. Refer to your winch's instruction manual for specific installation procedures.

4. Maintenance

To ensure the longevity and appearance of your OEDRO Front Bumper, regular maintenance is recommended:

• Cleaning: Regularly wash the bumper with mild soap and water to remove dirt, mud, and road grime. Avoid harsh chemicals or abrasive cleaners that could damage the textured powder coat.
• Inspection: Periodically inspect all bolts and nuts for tightness, especially after off-road use. Tighten any loose fasteners to prevent rattling or damage.
• Rust Prevention: The bumper features a high-quality textured black powder coat for rust resistance. If any scratches or chips occur, touch up the affected areas promptly to prevent rust from forming.
• Electrical Connections: Check the wiring connections for the LED lights periodically to ensure they are secure and free from corrosion.

Figure 3: Rust Resistance features of the OEDRO Bumper.

5. Troubleshooting

If you encounter any issues with your OEDRO Front Bumper, consider the following:

• Lights Not Working: Check all electrical connections for looseness or corrosion. Ensure the vehicle's fog light switch or auxiliary switch is functioning correctly. Verify that the wiring is properly connected to the vehicle's power source.
• Loose Bumper: Re-check the tightness of all mounting bolts (18mm and 19mm) securing the bumper to the vehicle frame.
• Unusual Noises: Inspect the bumper and all attached components for any loose parts or obstructions that might be causing noise.

If problems persist, please contact OEDRO customer support for assistance.

6. Specifications

7. What's in the Box

Your OEDRO Front Bumper package includes:

• 1 x Front Bumper
• 2 x D-ring Shackles
• 1 x Set of Mounting Hardware
• 1 x Instruction Manual (PDF available online)

8. Warranty and Support

OEDRO products typically come with a manufacturer's warranty. Please refer to the product packaging or the official OEDRO website for specific warranty details and terms.

For any questions, problems, or support needs, please contact OEDRO customer service. Information regarding customer support and return policies (e.g., 30-day easy returns) can often be found on the retailer's product page or the official brand store.
