Introduction
Welcome to the user manual for your new Hauck E-Batmobile 6V Electric Ride-On. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your vehicle. Please read it thoroughly before first use and retain it for future reference.
The Hauck E-Batmobile is designed for children aged 3 to 8 years (36 to 96 months) and features a 6-volt rechargeable battery, electronic sound effects, and LED lights for an immersive play experience.
Image: Front view of the Hauck E-Batmobile 6V Electric Ride-On.
Setup
While the main unit of the E-Batmobile requires no complex assembly, proper battery connection and initial charging are crucial before first use.
Battery Connection and Initial Charge
- Connect the Battery: Locate the battery compartment, typically under the seat. Ensure the rechargeable 6V battery is securely connected according to the polarity markings.
- Initial Charging: Before the very first use, the battery must be charged for 8-10 hours. Use only the charger provided with your E-Batmobile. Do not overcharge the battery.
- Secure Compartment: After connecting and charging, ensure the battery compartment is securely closed.
Image: Interior view of the E-Batmobile, showing the seat and safety harness, where the battery compartment is typically located.
Operating Instructions
Follow these instructions for safe and enjoyable operation of your Hauck E-Batmobile.
Basic Operation
- Power On/Off: Locate the power switch, usually on the dashboard. Turn it to the "ON" position to activate the vehicle.
- Driving: The E-Batmobile features a drivetrain with both forward and reverse gears. Use the designated controls (e.g., foot pedal for acceleration, gear shifter for direction) to move the vehicle.
- Speed: The vehicle can reach a maximum speed of approximately 2.5 mph (4 km/h).
- Sound Effects & Lights: Activate the electronic sound effects and LED lights using the buttons or switches on the dashboard for an enhanced experience.
Safety Guidelines
- Supervision: Always supervise children when operating the E-Batmobile.
- Safety Gear: Ensure the child wears appropriate safety gear, such as a helmet, during operation.
- Operating Environment: Use the vehicle on flat, dry surfaces away from traffic, pools, or steep inclines.
- Weight Limit: Do not exceed the maximum weight capacity of 56 pounds (25.4 kg).
Image: Close-up of the E-Batmobile's dashboard and steering wheel, showing controls for driving, sound effects, and lights.

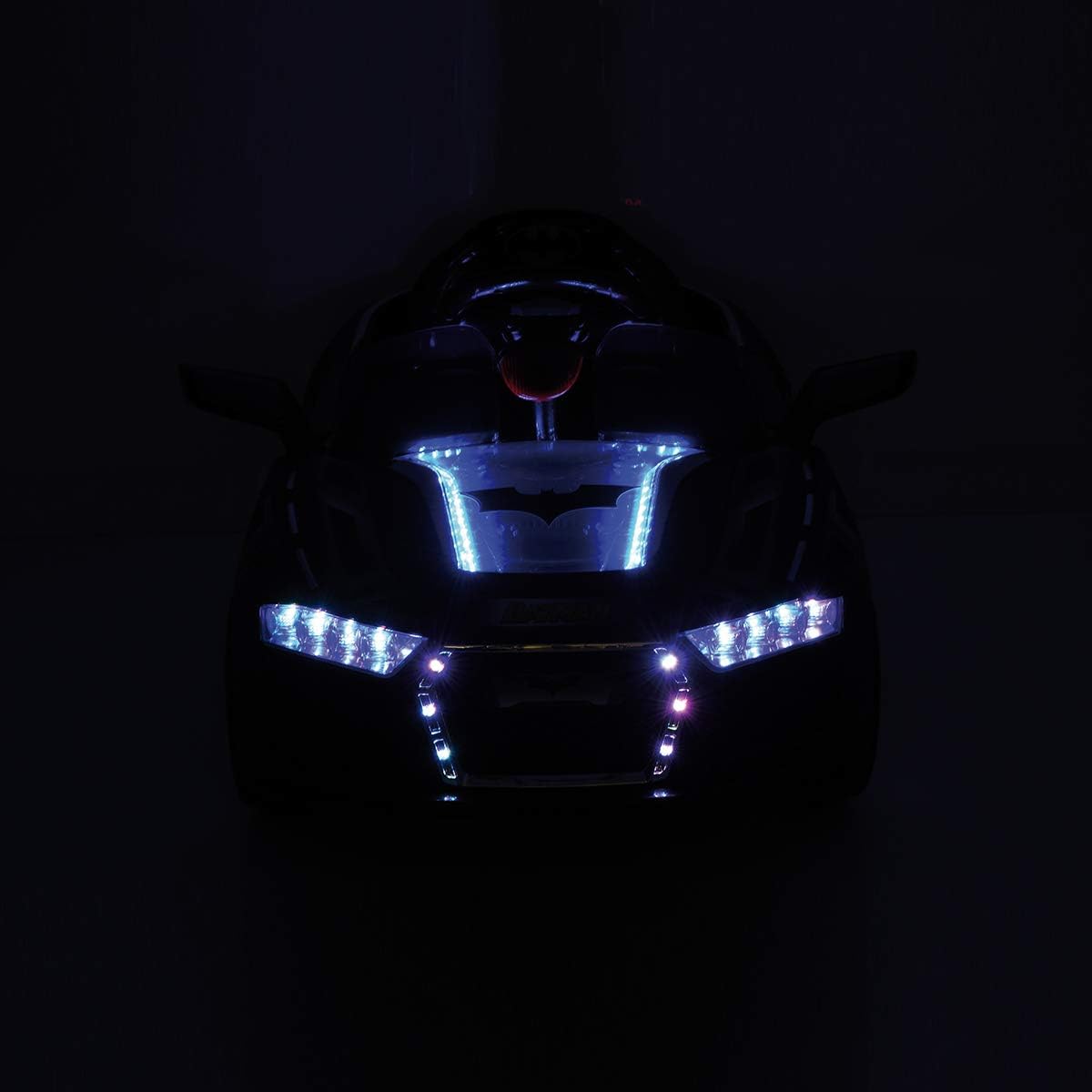

Image: Front view of the E-Batmobile with its LED lights illuminated, showcasing the vehicle's lighting features.
Maintenance
Proper maintenance will extend the life and ensure the safe operation of your E-Batmobile.
Battery Care
- Recharging: Recharge the 6V battery after each use.
- Storage: If the vehicle will not be used for an extended period, charge the battery every 3 months to prevent deep discharge and maintain battery health.
- Charger: Always use the original charger supplied with the product.
Cleaning and Storage
- Cleaning: Wipe the vehicle's surfaces with a soft, damp cloth. Avoid using abrasive cleaners, solvents, or harsh chemicals that could damage the plastic or electronic components.
- Storage: Store the E-Batmobile in a dry, cool place, away from direct sunlight and moisture.
General Inspection
- Periodically check all screws, nuts, and fasteners to ensure they are tight.
- Inspect the wheels and tires for wear or damage.
- Check the electrical wiring and connections for any signs of fraying or damage.
Troubleshooting
If you encounter issues with your E-Batmobile, refer to the following common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Vehicle does not move. | Battery is not charged or not connected. | Ensure the battery is fully charged (8-10 hours initial charge) and securely connected. |
| Lights or sound effects are not working. | Low battery or loose connection. | Charge the battery. Check all wiring connections for the lights and sound module. |
| Vehicle moves slowly or intermittently. | Low battery charge or overloaded. | Recharge the battery. Ensure the child's weight does not exceed the maximum capacity (56 lbs). |
If the problem persists after attempting these solutions, please contact customer support.
Specifications
| Brand | Hauck |
| Model Number | T97240 |
| Power Source | 6V Rechargeable Battery |
| Maximum Speed | 2.5 mph (4 km/h) |
| Product Dimensions (L x W x H) | 39" x 21" x 18" (99 cm x 53 cm x 46 cm) |
| Item Weight | 22.1 Pounds (10 kg) |
| Maximum Weight Capacity | 56 Pounds (25.4 kg) |
| Recommended Age | 36 to 96 Months (3 to 8 Years) |
| Material Type | Plastic or synthetic material |
| Included Components | Ride-on vehicle, 6V rechargeable battery, charger |
Image: Dimensional diagram of the E-Batmobile, indicating its length, width, and height.
Warranty Information
Specific warranty details for the Hauck E-Batmobile 6V Electric Ride-On are typically provided with the product packaging or available on the manufacturer's official website.
Recommendation: Please retain your original purchase receipt and any warranty cards. These documents are essential for processing any warranty claims. For the most current and detailed warranty terms, visit the Hauck official website.
Customer Support
For further assistance, technical support, or inquiries regarding your Hauck E-Batmobile, please contact Hauck customer service.
- Online Support: Visit the official Hauck website for FAQs, support resources, and contact forms.
- Contact Information: Refer to the product packaging or the Hauck website for specific phone numbers or email addresses for customer service in your region.
- When contacting support, please have your product model number (T97240) and purchase details readily available.
