MAAX Halo Return Panel Frameless Shower Door User Manual

Product Overview

This manual provides essential information for the installation, operation, and maintenance of your MAAX Halo Return Panel Frameless Shower Door. This return panel is designed to complement a MAAX Halo sliding alcove door, enabling the creation of a corner shower unit.

The panel features 5/16-inch (8 mm) thick tempered glass and a chrome finish, ensuring durability and a modern aesthetic.

Image: A complete MAAX Halo shower enclosure, demonstrating how the return panel integrates with a sliding door to form a corner unit. The enclosure features clear glass panels and chrome hardware, set within a modern bathroom.

Key Features

• Dimensions: 3-inch L x 28.75-inch W x 78.75-inch H return panel.
• Glass Thickness: 5/16-inch (8 mm) thick tempered glass for enhanced safety and durability.
• Compatibility: Designed to be added to a MAAX Halo sliding alcove door to create a corner shower unit.
• Finish: Elegant chrome finish on all hardware components.

Image: A standalone view of the MAAX Halo Return Panel, showcasing its clear tempered glass and the sleek chrome edge profile. This image highlights the panel's design before installation.

Setup and Installation

The MAAX Halo Return Panel is intended for professional installation or by individuals with experience in shower door assembly. This panel is an add-on component to a MAAX Halo sliding alcove door system, forming a complete corner shower enclosure.

Pre-Installation Checklist:

• Verify all components are present and undamaged according to the packing list.
• Ensure the shower base or curb is level and properly sealed.
• Confirm wall studs are present and adequately reinforced for mounting.
• Have necessary tools ready, including a drill, level, measuring tape, silicone sealant, and safety glasses.

General Installation Steps:

1. Carefully unpack all glass panels and hardware.
2. Position the wall profiles and secure them to the wall, ensuring they are plumb.
3. Install the fixed glass panel (main alcove door component) if not already in place.
4. Attach the return panel to the fixed panel and wall profile, following the specific instructions provided with the complete MAAX Halo system.
5. Apply silicone sealant to all exterior joints to ensure a watertight seal.
6. Allow sealant to cure completely before using the shower.

Note: Detailed, step-by-step installation instructions are provided with the full MAAX Halo sliding alcove door system. Refer to that specific manual for precise measurements and procedures.

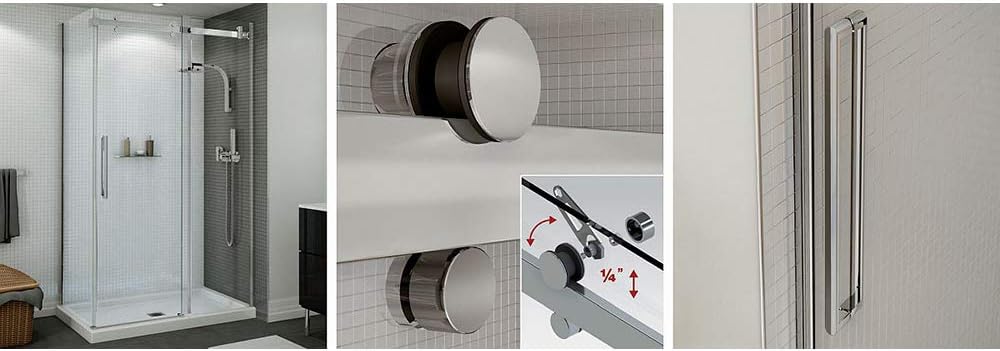

Image: A composite image showing close-ups of various MAAX Halo shower door components, including the roller mechanism, handle, and a detailed view of how the glass is secured. This illustrates the quality and design of the hardware.

Operating Instructions

Once installed, the MAAX Halo Return Panel functions as a stationary glass wall, completing the shower enclosure. Its operation is passive, providing a fixed barrier for water containment.

Proper Use:

• Ensure the sliding door component of your MAAX Halo system is properly closed before showering to prevent water leakage.
• Avoid hanging heavy objects on the glass panel or applying excessive force, as this can compromise its integrity.

Maintenance and Care

Regular cleaning and proper maintenance will preserve the appearance and functionality of your MAAX Halo Return Panel.

Glass Cleaning:

• Use a soft cloth or sponge with a mild, non-abrasive glass cleaner.
• Avoid cleaners containing harsh chemicals, abrasive powders, or scouring pads, as these can scratch the glass or damage the finish.
• For best results, squeegee the glass after each use to prevent water spots and mineral buildup.

Hardware Cleaning:

• Clean chrome finishes with a soft, damp cloth and mild soap.
• Do not use abrasive cleaners, steel wool, or strong chemical solutions on metal parts, as they can corrode or scratch the finish.
• Rinse thoroughly and dry with a soft cloth to prevent water spots.

Seal Maintenance:

• Periodically inspect silicone seals for signs of wear, cracking, or mildew.
• Reapply silicone sealant as needed to maintain a watertight enclosure.

Troubleshooting

This section addresses common concerns related to the MAAX Halo Return Panel. For issues related to the sliding door mechanism, refer to the main MAAX Halo sliding alcove door manual.

Water Leakage:

• Issue: Water escaping from the fixed panel area.
• Solution: Inspect all silicone seals along the wall and where the return panel meets the main fixed panel. Reapply sealant if any gaps or deterioration are observed. Ensure the shower head spray is not directly aimed at the panel's edges.

Glass Stains/Spots:

• Issue: Mineral deposits or water spots on the glass.
• Solution: Use a specialized glass cleaner designed for shower doors. For stubborn spots, a mixture of white vinegar and water can be effective. Always rinse thoroughly. Regular squeegeeing after each use is the best preventative measure.

Loose Panel:

• Issue: The return panel feels loose or wobbly.
• Solution: Check all mounting screws and hardware connections. Tighten any loose fasteners. If the issue persists, professional assistance may be required to ensure structural integrity.

Specifications

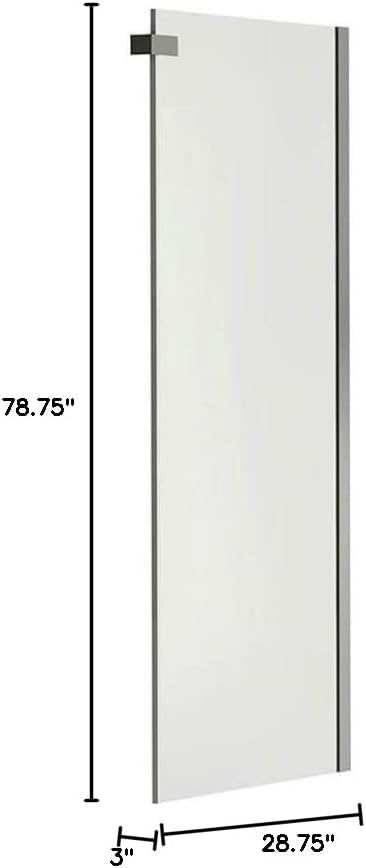

Image: A technical drawing illustrating the dimensions of the MAAX Halo Return Panel, showing its length, width, and height measurements (3" L x 28.75" W x 78.75" H).

Warranty and Support

For specific warranty information regarding your MAAX Halo Return Panel, please refer to the warranty documentation included with your complete MAAX Halo shower door system or visit the official MAAX website. MAAX products are typically covered by a limited warranty against manufacturing defects.

For technical support, replacement parts, or further assistance, please contact MAAX customer service directly. Contact information can usually be found on the MAAX official website or in the main product manual.

Manufacturer: MAAX

Website: www.maax.com (Please verify the official website for the most current information.)
