NutriChef PKSMKR25 Portable Handheld Mini Food Smoker Instruction Manual

Introduction

The NutriChef PKSMKR25 Portable Handheld Mini Food Smoker is designed to infuse a natural smoky flavor into various foods and beverages. This device uses wood chips, teas, herbs, or spices to generate cool smoke, enhancing the taste of meat, fish, fruits, vegetables, desserts, and cocktails. Its compact and portable design allows for use in the kitchen or outdoors.

Important Safety Instructions

Read all instructions before using the appliance.
Keep the device away from children.
Use only in a well-ventilated area.
Do not immerse the device in water or other liquids.
Do not touch hot surfaces. Allow the device to cool before cleaning or storing.
Use only the recommended wood chips, teas, herbs, or spices. Do not use resins or other substances that may produce harmful fumes.
Ensure the filter is clean and properly installed before each use.
Do not operate the device if it has been damaged in any way.
Requires 4 'AA' batteries (not included). Ensure correct battery polarity.

Product Components

The NutriChef PKSMKR25 includes the following components:

Food Smoke Infuser Unit
Removable Smoking Chamber with Built-in Filter
10-inch Hose Extender
Battery Compartment (requires 4 'AA' batteries, not included)

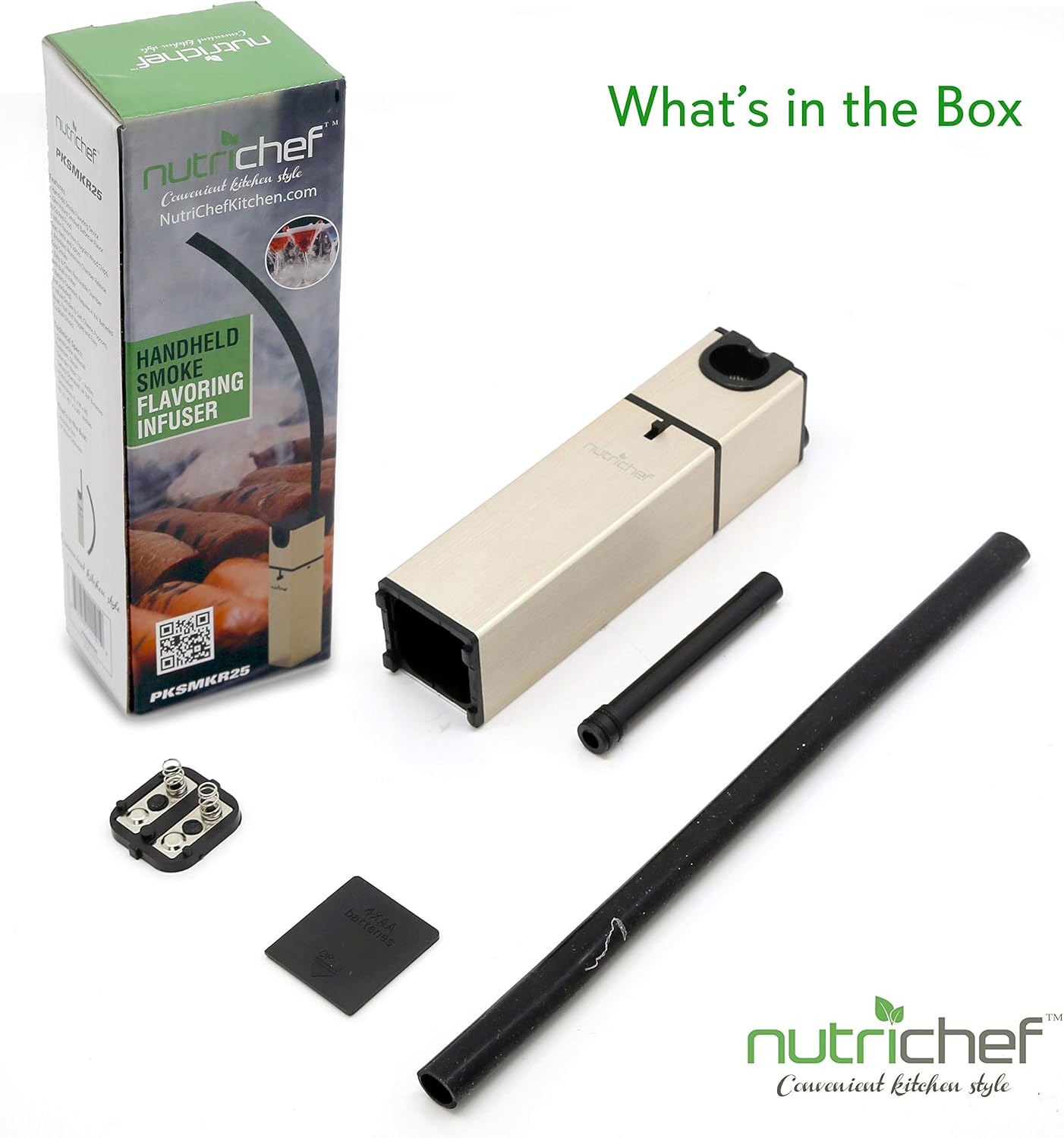

Contents of the NutriChef PKSMKR25 box, including the main smoker unit, a hose, and a battery compartment cover.

Figure 1: What's in the Box. This image displays the NutriChef PKSMKR25 unit, the 10-inch hose extender, and the battery compartment cover, illustrating all included components.

Close-up view of the NutriChef PKSMKR25 showing the removable smoking chamber with filter and the connection point for the removable injection hose.

Figure 2: Removable Chamber and Hose. This image highlights the removable smoking chamber with its built-in filter and the connection for the injection hose, demonstrating how these parts are assembled.

Setup

Install Batteries: Open the battery compartment at the bottom of the unit. Insert 4 'AA' batteries, ensuring correct polarity (+/-). Close the compartment securely.

Step-by-step illustration of installing 4 'AA' batteries into the NutriChef PKSMKR25 portable food smoker.

Figure 3: Battery Installation. This image shows the process of opening the battery compartment and inserting four 'AA' batteries into the device.

Attach Hose: Connect the 10-inch hose extender to the outlet port on the side of the smoker unit. Ensure it is firmly attached to prevent smoke leakage.
Prepare Smoking Material: Ensure the removable smoking chamber is clean and the filter is in place.

Operating Instructions

Load Smoking Material: Place a small amount of wood chips, tea leaves, herbs, or spices into the removable smoking chamber. Do not overfill.
Position Hose: Place the free end of the hose into a sealed container (e.g., a ziplock bag, covered bowl, or food processor) with the food or drink you wish to infuse. Ensure the container is as airtight as possible to retain smoke.
Activate Smoker: Press the power button on the unit to turn it on.
Ignite Material: Using a match or lighter, carefully ignite the smoking material in the chamber. Smoke will begin to generate and be expelled through the hose.

A hand holding the NutriChef PKSMKR25 food smoker, showing smoke being generated from the chamber and directed towards a pot in the background.

Figure 4: Simple Operation. This image demonstrates the smoker in use, with smoke emanating from the chamber, illustrating the ease of operation.

Infuse Flavor: Allow the smoke to infuse for a desired amount of time, typically a few minutes, depending on the intensity of flavor required.

The NutriChef PKSMKR25 infusing smoke into a container, surrounded by various smoking materials like wood chips, teas, herbs, and spices.

Figure 5: Infusing Natural Flavors. This image shows the smoker actively infusing smoke, with examples of different materials that can be used for flavor, such as wood chips, teas, herbs, and spices.

Turn Off: Once sufficient smoke has been generated, press the power button again to turn off the unit. Remove the hose from the container and allow the smoke to settle before opening.

Maintenance & Cleaning

Regular cleaning ensures optimal performance and longevity of your NutriChef PKSMKR25.

Disassemble: Ensure the unit is turned off and completely cool. Remove the smoking chamber and the hose.
Clean Smoking Chamber: The removable smoking chamber and its built-in stainless steel mesh filter can be cleaned with a small brush and warm, soapy water. Rinse thoroughly and dry completely before reassembly.
Clean Hose: The hose can be cleaned with warm, soapy water. Ensure it is dry before storage.
Wipe Main Unit: Wipe the main unit with a damp cloth. Do not immerse the main unit in water.
Storage: Store the smoker in a clean, dry place when not in use.

Troubleshooting

Problem	Possible Cause	Solution
No smoke produced.	Batteries are dead or incorrectly installed. Smoking material not ignited. Smoking chamber is clogged.	Replace batteries or check polarity. Ensure material is properly ignited with a flame. Clean the smoking chamber and filter.
Weak smoke output.	Low battery power. Insufficient smoking material. Clogged filter.	Replace batteries. Add more smoking material (do not overfill). Clean the filter.
Unit does not turn on.	Batteries are dead or incorrectly installed. Unit malfunction.	Replace batteries or check polarity. Contact customer support if problem persists.

Specifications

Model: PKSMKR25
Construction Material: Aluminum Alloy, Silicon
Power Source: 4 x 'AA' Batteries (not included)
Hose Extender Length: 10 inches
Dimensions (L x W x H): 1.45'' x 1.45'' x 5.90'' inches
Weight: 0.49 lbs

Warranty and Support

For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official NutriChef website. Keep your purchase receipt for warranty claims.

For more information, you can visit: NutriChef Support
