WEN Handyman Q-W0009 Washer Lid Switch Instruction Manual

Introduction

This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of the WEN Handyman Q-W0009 Washer Lid Switch. This replacement part is designed to restore proper functionality to your washing machine's lid safety mechanism. Please read all instructions carefully before proceeding with installation.

The WEN Handyman Q-W0009 Washer Lid Switch is compatible with a variety of washing machine brands, including Whirlpool, KitchenAid, Kenmore, and Roper. It replaces OEM part numbers such as 3949239, 3949240, and 3949247.

Safety Information

Always prioritize safety when performing appliance repairs. Failure to follow these safety guidelines may result in personal injury or damage to the appliance.

• Disconnect Power: Before beginning any repair, always unplug the washing machine from its power source or turn off the circuit breaker supplying power to the appliance.
• Water Supply: Turn off the water supply to the washing machine to prevent leaks.
• Wear Protective Gear: Wear appropriate personal protective equipment, such as gloves, to protect your hands.
• Consult a Professional: If you are unsure about any step or uncomfortable performing the repair, consult a qualified appliance technician.
• Sharp Edges: Be aware of sharp edges or components inside the washing machine.

Parts Included

The WEN Handyman Q-W0009 package includes:

• One (1) Washer Lid Switch assembly with wiring harness.

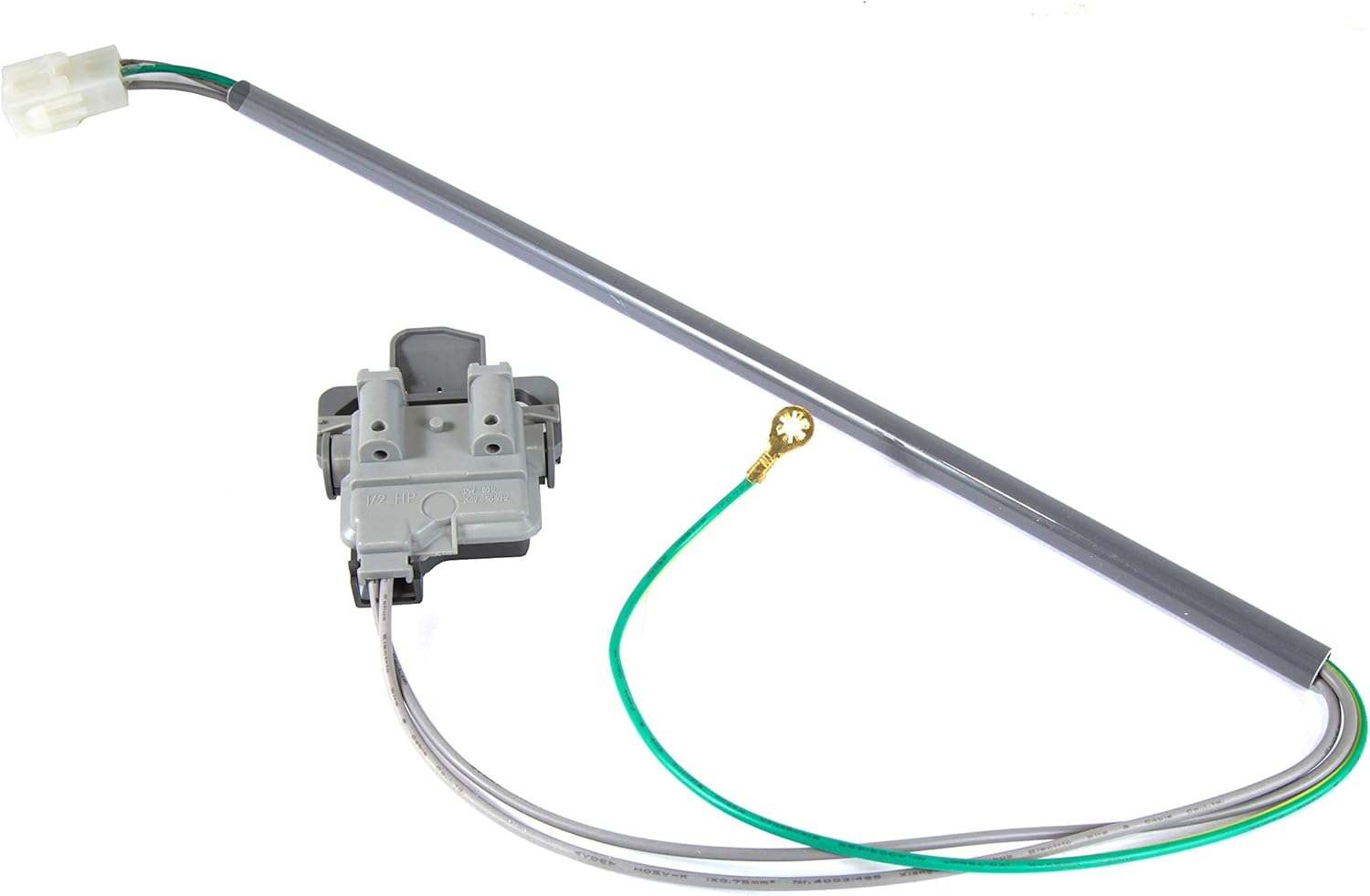

Image: The complete WEN Handyman Q-W0009 Washer Lid Switch assembly, showing the switch mechanism, wiring, and connector.

Installation Instructions

Follow these steps carefully to replace the washer lid switch. Specific steps may vary slightly depending on your washing machine model.

Tools Required:

• Screwdriver (Phillips and/or Flathead)
• Nut Driver or Socket Wrench (if applicable)
• Pliers (optional)

Step-by-Step Replacement:

1. Prepare the Washer:
   • Unplug the washing machine from the electrical outlet.
   • Turn off the water supply valves to the washer.
   • Move the washer away from the wall to access the rear if necessary.
2. Access the Lid Switch:
   • Depending on your washer model, you may need to remove the control panel or the top panel of the washer. Typically, the control panel is held by screws at the back or clips under the front edge.
   • Carefully lift or tilt the control panel back to expose the internal components.
   • Locate the lid switch, which is usually mounted near the front of the washer opening, often on the top frame.
3. Remove the Old Lid Switch:
   • Disconnect the electrical connector(s) from the old lid switch. Note the orientation of the wires if there are multiple connectors.
   • Unscrew or unclip the old lid switch from its mounting bracket. Some models may require releasing tabs.
   • Carefully pull the old switch and its wiring harness out of the washer.


   Image: A close-up view of the lid switch mechanism, showing the engagement points.

4. Install the New Lid Switch:
   • Position the new WEN Handyman Q-W0009 lid switch into the mounting bracket. Ensure it snaps or screws securely into place.
   • Connect the electrical connector(s) to the new lid switch. Ensure a firm connection.
   • Route the wiring harness neatly, ensuring it does not interfere with moving parts or get pinched.

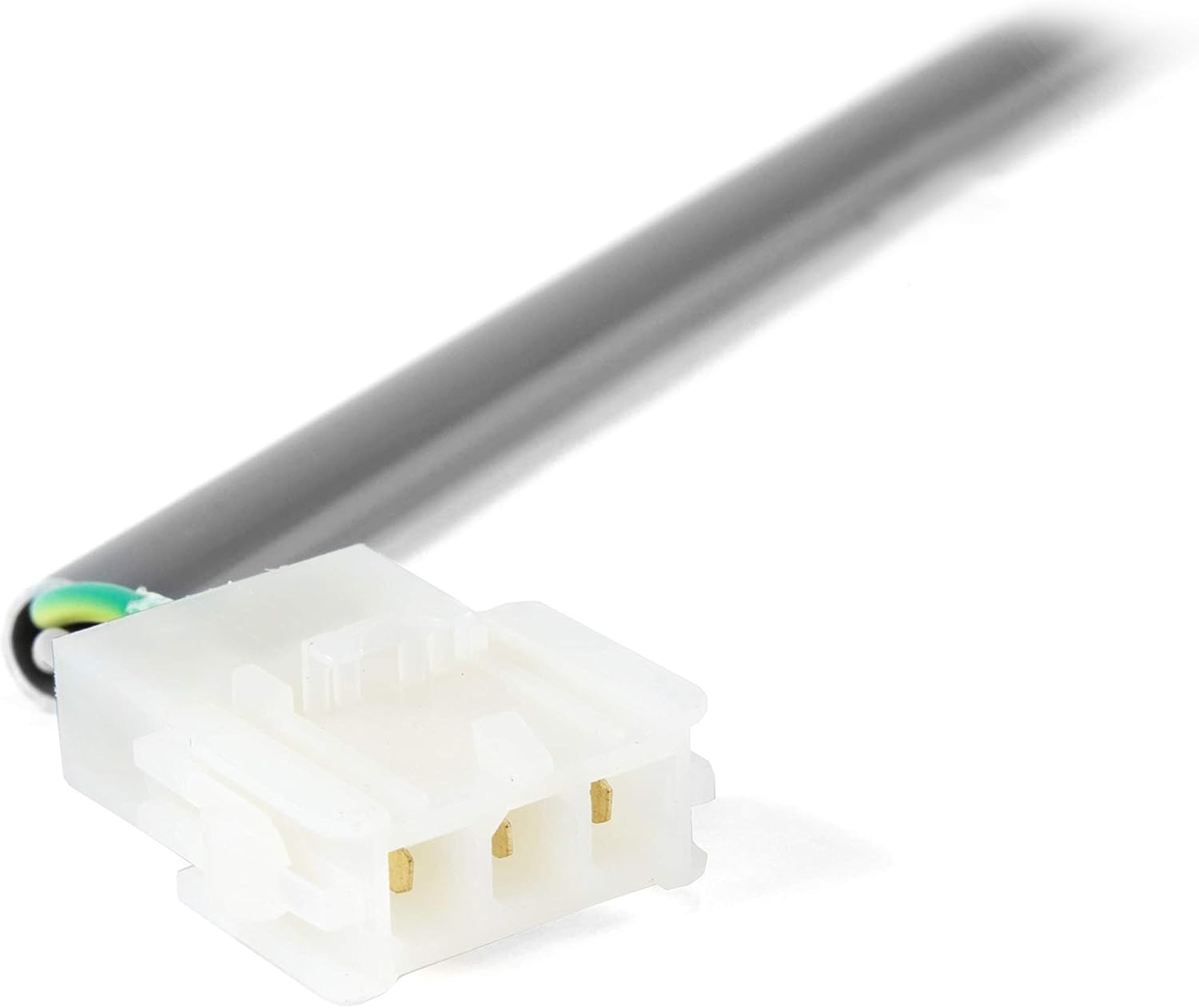

   Image: A detailed view of the electrical connector on the lid switch, highlighting the pin configuration.
5. Reassemble the Washer:
   • Carefully lower or reattach the control panel and secure it with screws or clips.
   • Ensure all panels are properly aligned and secured.
6. Test the Washer:
   • Plug the washing machine back into the electrical outlet.
   • Turn on the water supply valves.
   • Start a short wash cycle. The washer should fill with water and agitate only when the lid is closed. If the washer attempts to agitate with the lid open, or if it does not start at all, recheck your connections and installation steps.

Operating (Post-Installation)

After successful installation, the washing machine should operate as intended, with the lid switch correctly detecting the lid's position. The washer will only proceed with agitation and spin cycles when the lid is fully closed, ensuring user safety.

• Ensure the lid closes completely and latches securely for the switch to engage.
• If the washer pauses or stops during a cycle, verify the lid is fully closed.

Maintenance

The WEN Handyman Q-W0009 Washer Lid Switch is designed for durability and typically requires no specific maintenance. However, general care for your washing machine can help prolong the life of all its components, including the lid switch.

• Keep Lid Area Clean: Periodically clean the area around the washer lid and the lid switch to prevent debris buildup that could interfere with its operation.
• Gentle Lid Closure: Avoid slamming the washer lid, as this can put undue stress on the lid switch mechanism over time.
• Regular Inspections: If you notice any unusual behavior from your washer, such as not starting or stopping mid-cycle, inspect the lid switch area for visible damage or loose connections.

Troubleshooting

If your washing machine is not functioning correctly after installing the WEN Handyman Q-W0009 Washer Lid Switch, refer to the following troubleshooting guide:

If troubleshooting steps do not resolve the issue, it is recommended to contact a qualified appliance repair technician.

Specifications

Warranty and Support

For information regarding warranty coverage or technical support for your WEN Handyman Q-W0009 Washer Lid Switch, please refer to the official WEN website or contact WEN customer service directly. Keep your purchase receipt as proof of purchase.

WEN Customer Service: Please visit the WEN official website for contact details and support resources.
