ECHO PB-2620 25.4 cc Gas 2-Stroke X Series Handheld Leaf Blower Instruction Manual

1. Introduction

This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your ECHO PB-2620 25.4 cc Gas 2-Stroke X Series Handheld Leaf Blower. Please read this manual thoroughly before operating the equipment to ensure proper usage and to prevent injury or damage.

The ECHO PB-2620 is designed for efficient clearing of leaves, grass clippings, and other debris from various surfaces. Its powerful 2-stroke engine and ergonomic design make it suitable for both residential and professional use.

2. Safety Information

WARNING: Failure to follow these safety instructions could result in serious injury or death.

• Always wear appropriate personal protective equipment (PPE), including eye protection, hearing protection, long pants, and sturdy footwear.
• Never operate the blower without proper guards or covers in place.
• Keep children, bystanders, and pets at least 50 feet (15 meters) away from the operating area.
• Do not operate the blower when you are tired, ill, or under the influence of alcohol or drugs.
• Handle fuel with extreme care. Fuel is highly flammable.
• Always stop the engine before refueling.
• Do not smoke while handling fuel or operating the blower.
• Inspect the equipment before each use for loose fasteners, damaged parts, or fuel leaks.
• Operate the blower in well-ventilated areas. Avoid inhaling exhaust fumes.
• Be aware of the blower's powerful air stream; it can propel objects at high speeds.

Refer to the full safety section in your printed manual for complete details.

3. Package Contents

Your ECHO PB-2620 Handheld Leaf Blower package typically includes:

• ECHO PB-2620 Leaf Blower Unit
• Blower Tube(s) (may include round-end and flared-end tubes)
• Operator's Manual
• Basic Tools (e.g., spark plug wrench, screwdriver - Note: Some packages may not include all tools as per user reviews.)

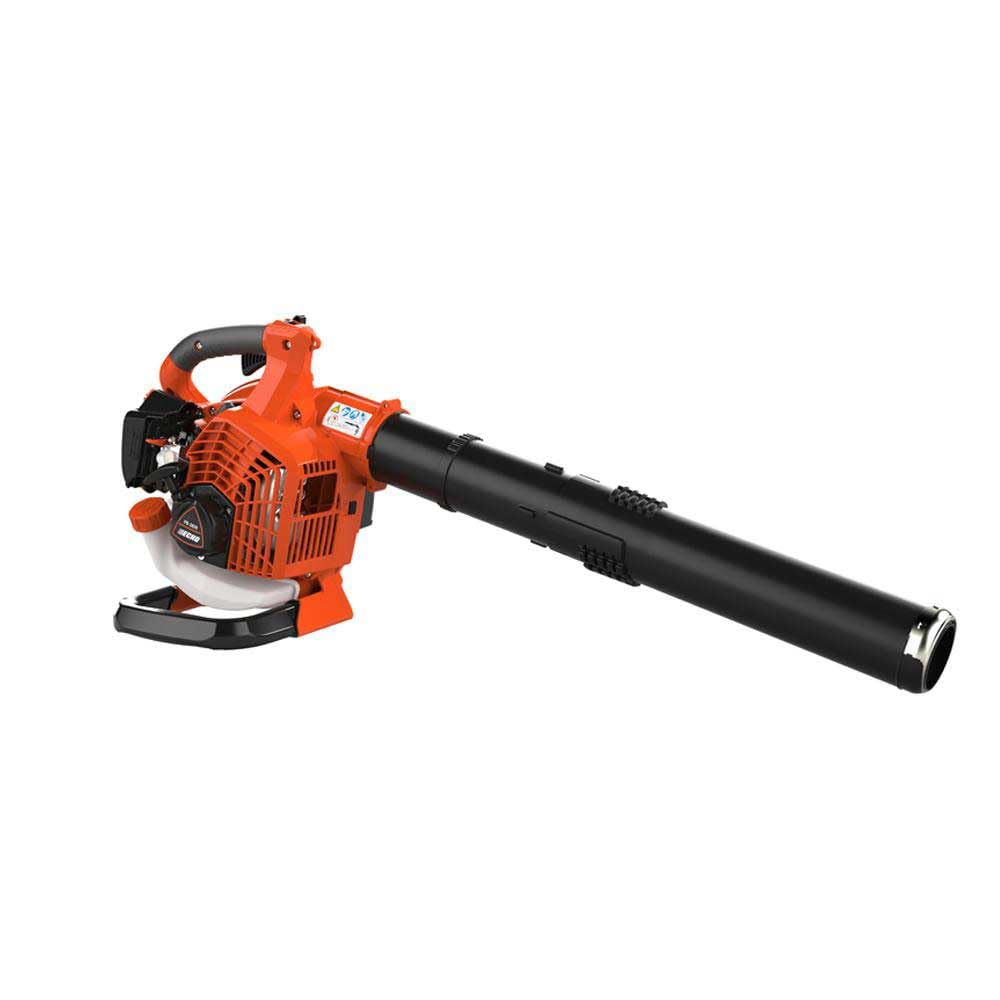

Figure 1: ECHO PB-2620 Handheld Leaf Blower with tube attached.

4. Setup

4.1. Assembly

1. Attach Blower Tube: Align the blower tube with the outlet on the main unit and twist or secure it according to the specific design until it locks firmly in place. The PB-2620 typically includes both round-end and flared-end tubes for various conditions.
2. Fuel Mixture: The ECHO PB-2620 uses a 2-stroke engine. It requires a specific mixture of unleaded gasoline and 2-stroke engine oil. Refer to your operator's manual for the exact mixing ratio (e.g., 50:1). Use fresh, high-quality fuel and oil.
3. Fill Fuel Tank: Carefully fill the fuel tank with the prepared fuel mixture. Ensure the fuel cap is securely tightened after filling.

Figure 2: Detailed view of the ECHO PB-2620 engine and tube attachment point.

5. Operation

5.1. Starting the Engine (Cold Start)

1. Place the blower on a flat, stable surface.
2. Move the ignition switch to the "ON" position.
3. Push the primer bulb 7-10 times until fuel is visible in the return line.
4. Move the choke lever to the "FULL CHOKE" position.
5. Pull the starter rope firmly and quickly until the engine "pops" or attempts to start (usually 1-3 pulls). Do not pull the rope to its full extension.
6. Once the engine "pops," move the choke lever to the "HALF CHOKE" position.
7. Pull the starter rope again until the engine starts.
8. Allow the engine to warm up for 30-60 seconds at idle.
9. Move the choke lever to the "RUN" position.

5.2. Operating the Blower

• Hold the blower firmly with both hands. The PB-2620 features a secondary handle for improved maneuverability and comfort.
• Direct the blower tube towards the debris you wish to clear.
• Use a sweeping motion to move debris. Start at the outer edges of the area and work inwards.
• Adjust the throttle as needed for different types of debris and surfaces. The cruise control feature can be set to maintain a desired engine speed.
• Be mindful of dust and small objects that may be propelled by the air stream.

Figure 3: Proper technique for operating the ECHO PB-2620 leaf blower.

5.3. Stopping the Engine

• Release the throttle trigger and allow the engine to idle for a few moments.
• Move the ignition switch to the "OFF" position.

5.4. Product Videos

6. Maintenance

Regular maintenance is crucial for the longevity and optimal performance of your ECHO PB-2620. Always ensure the engine is off and cool before performing any maintenance.

• Air Filter: Clean or replace the air filter regularly, especially in dusty conditions. The PB-2620 features a pleated paper main filter plus foam prefilter.
• Spark Plug: Inspect and clean the spark plug periodically. Replace if worn or fouled.
• Fuel Filter: Check and replace the fuel filter as needed to prevent fuel system contamination.
• Cooling Fins: Keep the engine's cooling fins clean to prevent overheating.
• General Cleaning: Clean the exterior of the blower after each use to remove debris and prevent buildup.

Figure 4: Key maintenance points on the ECHO PB-2620 engine.

7. Troubleshooting

For more detailed troubleshooting, consult the complete operator's manual or contact ECHO customer support.

8. Specifications

• Model: PB-2620
• Engine Displacement: 25.4 cc
• Engine Type: 2-Stroke, Professional-Grade
• Air Speed: Up to 172 MPH
• Air Volume: Up to 456 CFM
• Product Dimensions: 17 x 13 x 17 inches
• Item Weight: Approximately 0.01 ounces (Note: This weight seems incorrect and likely refers to packaging. Actual weight is typically around 8-10 lbs for handheld blowers of this class.)
• Manufacturer: ECHO

Figure 5: Key features of the ECHO PB-2620, including engine size and handle design.

9. Warranty and Support

ECHO products are known for their durability and reliability. For specific warranty information, please refer to the warranty card included with your product or visit the official ECHO website. Keep your proof of purchase for warranty claims.

For technical support, parts, or service, please contact an authorized ECHO dealer or visit the ECHO customer support portal online. You can find a dealer near you through the official ECHO website.
