1. Product Overview
The DEWALT N486031 Rotary Hammer Cordset is a genuine OEM replacement part designed for specific DEWALT rotary hammer models. This cordset provides the necessary electrical connection for your tool, ensuring reliable power delivery and safe operation. It includes one complete cordset, ready for installation.

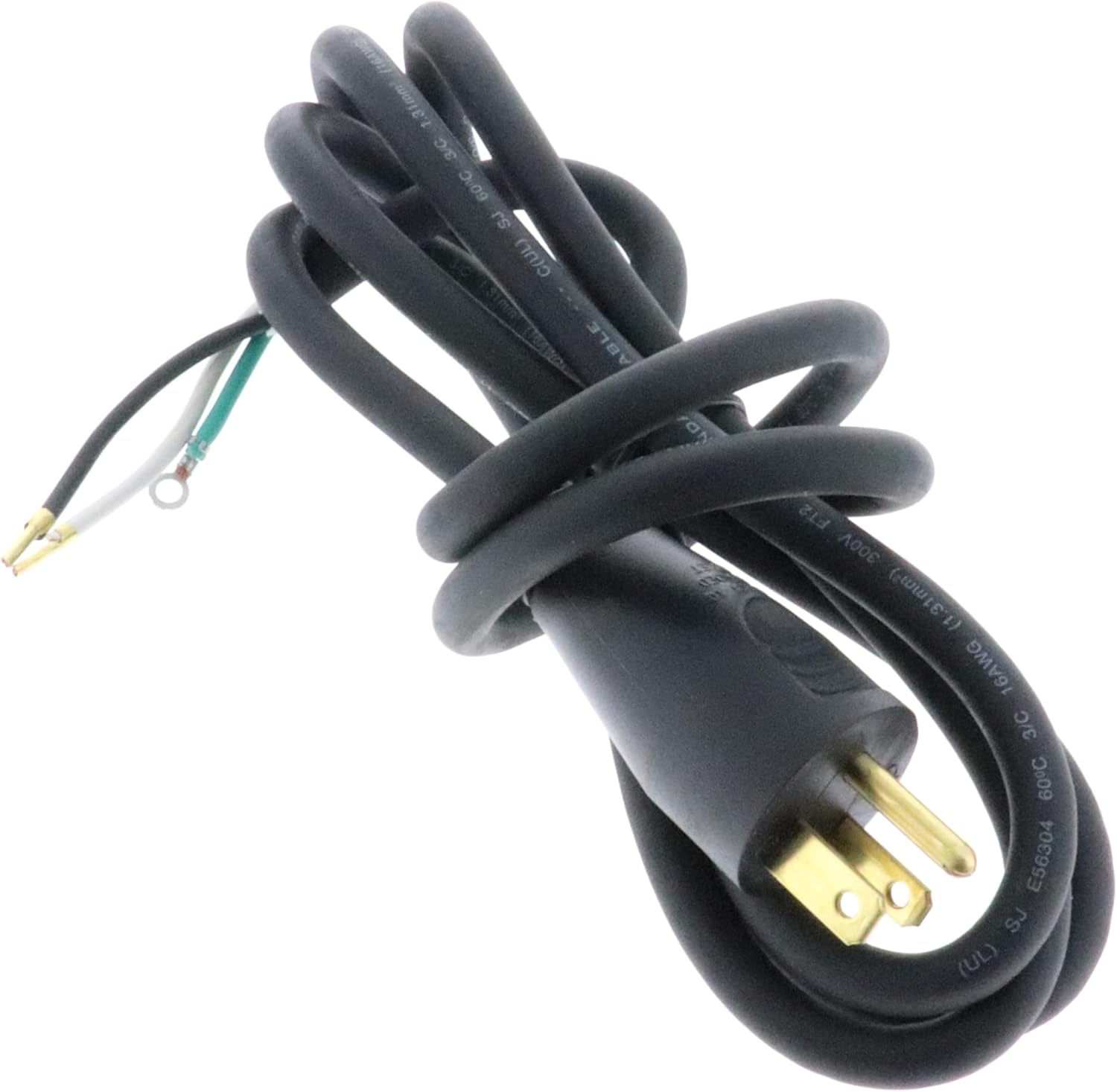

This image displays the DEWALT N486031 Rotary Hammer Cordset. It features a black, coiled electrical cord with a standard three-prong grounded plug on one end and three exposed, color-coded wires (black, white, green) with crimped terminals on the other end, ready for connection.
2. Compatibility
This DEWALT N486031 Cordset is compatible with the following DEWALT Rotary Hammer models:
- D25481K Type 1
- D25810K
Always consult your tool's owner's manual to confirm the correct part number for your specific model before installation.
3. Safety Information
WARNING: Always disconnect the tool from the power source before performing any assembly, adjustments, or parts replacement. Failure to do so can result in serious personal injury.
- Ensure the replacement cordset matches the specifications of the original cordset.
- Inspect the cordset for any damage before installation. Do not use if damaged.
- All electrical work should be performed by a qualified technician or in accordance with local electrical codes.
- Ensure proper grounding. The cordset features a three-prong grounded plug.
- Keep children and bystanders away during installation and operation.
4. Setup and Installation
This cordset is intended as a direct replacement part. Refer to your specific DEWALT rotary hammer's owner's manual for detailed, model-specific installation instructions. The following are general guidelines:
- Disconnect Power: Ensure the rotary hammer is unplugged from the power source.
- Access Cord Connection: Open the tool's housing to access the internal cord connections. This may require removing screws and covers.
- Note Wire Connections: Carefully observe and note the existing wire connections (color-coding: typically black for live, white for neutral, green for ground) before disconnecting the old cordset.
- Remove Old Cordset: Disconnect the old cordset wires from their terminals and remove any strain relief mechanisms.
- Install New Cordset: Route the new N486031 cordset through the tool's housing. Connect the new cordset wires to the corresponding terminals, ensuring a secure and correct connection (black to black, white to white, green to ground).
- Secure Strain Relief: Install any necessary strain relief components to prevent the cord from being pulled out of the tool.
- Reassemble Tool: Carefully reassemble the tool's housing, ensuring no wires are pinched.
- Test: Before full use, plug the tool into a grounded outlet and perform a brief functional test to ensure proper operation.
5. Operating Instructions
Once the DEWALT N486031 Cordset is correctly installed on your rotary hammer, its operation is integrated with the tool's normal function. Ensure the cordset is fully plugged into a compatible, grounded electrical outlet before operating the tool. Always ensure the cord is free from kinks, cuts, or damage during use.
6. Maintenance
Regular inspection of the cordset is crucial for safe operation and longevity.
- Visual Inspection: Before each use, visually inspect the entire length of the cordset for any signs of damage, such as cuts, abrasions, exposed wires, or discolored insulation. Check the plug for bent prongs or cracks.
- Strain Relief: Ensure the cord's strain relief where it enters the tool and the plug is intact and functioning correctly.
- Cleaning: Keep the cordset clean and free of grease, oil, and chemicals that can degrade the insulation. Wipe with a damp cloth if necessary, ensuring it is unplugged and dry before use.
- Storage: Store the cordset in a clean, dry place, away from sharp objects or extreme temperatures. Avoid tightly coiling the cord, which can lead to internal wire damage.
If any damage is observed, replace the cordset immediately with a genuine DEWALT N486031 replacement part.
7. Troubleshooting
As a passive electrical component, troubleshooting for the cordset is straightforward.
- Tool Not Receiving Power:
- Check if the cordset is securely plugged into a live, grounded outlet.
- Inspect the cordset for visible damage (cuts, frayed wires, bent prongs).
- Verify the internal connections of the cordset to the tool are secure and correct.
- Test the outlet with another device to ensure it is functioning.
- Intermittent Power:
- This often indicates a loose connection or internal damage to the cordset. Discontinue use immediately.
- Inspect all connections and the cordset for damage.
If the cordset is suspected to be faulty, it must be replaced. Do not attempt to repair damaged cordsets.
8. Specifications
| Part Number | N486031 |
| Brand | DEWALT |
| Type | Rotary Hammer Cordset |
| Gauge | 16 AWG (1.31mm²) |
| Number of Conductors | 3 (Grounded) |
| Length | 6 Feet |
| Voltage Rating | 300V |
| Temperature Rating | 60°C |
| Certifications | UL, C(UL) SJ E56304 FT2 |
| Product Dimensions | 3 x 3 x 7.5 inches (packaged) |
| Item Weight | 9.9 ounces (0.62 lbs) |
9. Warranty Information
Specific warranty details for replacement parts like the N486031 Cordset are typically covered under DEWALT's general warranty policy for parts or accessories. Please refer to the warranty documentation provided with your original DEWALT rotary hammer tool or visit the official DEWALT website for the most current and detailed warranty information.
10. Customer Support
For technical assistance, questions regarding installation, or to locate authorized service centers, please contact DEWALT Customer Service. You can find contact information on the official DEWALT website or through your product's original documentation.
DEWALT Official Website: www.dewalt.com
