1. Introduction
Thank you for choosing the Hudson Valley Lighting MDS750-AGB Sphere No.2-2 Light Pendant. This manual provides detailed instructions for the safe installation, operation, and maintenance of your new lighting fixture. Please read this manual thoroughly before beginning installation and retain it for future reference.

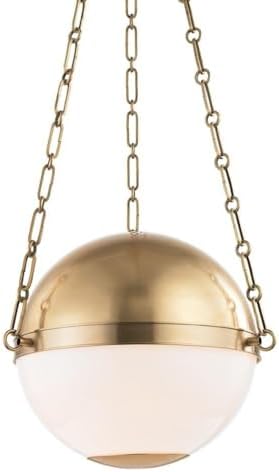

The MDS750-AGB is a transitional two-light pendant featuring an aged brass finish and a distinctive sphere design. It is designed for indoor use and is suitable for various room types, including living rooms.
2. Safety Information
WARNING: RISK OF ELECTRIC SHOCK. Turn off power at the circuit breaker or fuse box before installation or servicing. Consult a qualified electrician if you are unsure about the installation process.
- Always disconnect power before installing, cleaning, or replacing bulbs.
- Ensure all electrical connections comply with local codes and ordinances, as well as the National Electric Code (NEC).
- Do not install this fixture in wet or damp locations. It is designed for indoor use only.
- Use only the specified bulb type and wattage to avoid overheating and potential fire hazards.
- Handle glass components with care to prevent breakage.
- This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.
3. Package Contents
Carefully unpack your fixture and check that all parts are included. If any parts are missing or damaged, do not attempt to assemble or install the fixture. Contact customer service for assistance.
- Pendant Fixture Assembly
- Mounting Hardware (Canopy, Mounting Plate, Screws, Wire Nuts)
- Chain Links
- Glass Shade
- Instruction Manual
4. Setup and Installation
Assembly is required for this fixture. Professional installation is recommended for safety and proper function.
4.1 Pre-Installation
- Turn off power: Locate the circuit breaker or fuse box and turn off the power to the junction box where the fixture will be installed.
- Prepare the area: Clear the work area and ensure you have all necessary tools (screwdriver, wire strippers, electrical tape, ladder).
- Inspect components: Carefully remove all parts from the packaging and inspect for any damage.
4.2 Mounting the Fixture
- Attach mounting plate: Secure the mounting plate to the ceiling junction box using the provided screws. Ensure it is firmly attached.
- Adjust chain length: Determine the desired hanging height for your pendant. Open the chain links as needed to adjust the length, then re-secure.
- Wire connections:
- Connect the fixture's ground wire (usually bare copper or green) to the house's ground wire.
- Connect the fixture's neutral wire (usually white) to the house's neutral wire (white).
- Connect the fixture's hot wire (usually black) to the house's hot wire (black).
- Secure all connections with wire nuts and wrap with electrical tape for added safety.
- Secure canopy: Carefully push the wired connections into the junction box. Raise the canopy to the ceiling and secure it to the mounting plate using the provided screws.
- Install glass shade: Carefully attach the opal glass shade to the fixture according to the specific design.
- Install bulbs: Screw in two incandescent bulbs (E26 Medium base, up to 75 watts each, 150 watts total) into the sockets. Do not exceed the maximum wattage.
4.3 Post-Installation
- Restore power: Once installation is complete and all components are securely in place, turn the power back on at the circuit breaker.
- Test fixture: Turn on the light switch to ensure the fixture is functioning correctly.
5. Operating Instructions
The Hudson Valley Lighting MDS750-AGB pendant operates via a standard wall switch (Push Button Controller Type). Simply toggle the wall switch to turn the light fixture on or off.
6. Maintenance
6.1 Cleaning
- Always turn off power and allow the fixture to cool before cleaning.
- Metal parts: Wipe with a soft, dry cloth. Do not use abrasive cleaners, polishes, or solvents, as these may damage the aged brass finish.
- Glass shade: Gently wipe with a soft, damp cloth. A mild glass cleaner can be used if necessary, applied to the cloth first, not directly to the fixture.
6.2 Bulb Replacement
- Turn off power at the circuit breaker before replacing bulbs.
- Allow bulbs to cool completely before touching.
- Unscrew the old bulb and screw in a new E26 Medium base incandescent bulb, ensuring it does not exceed 75 watts per socket (150 watts total for two bulbs).
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. |
|
|
| Light flickers. |
|
|
8. Specifications
| Brand | Hudson Valley Lighting |
| Model Name | MDS750-AGB |
| Product Dimensions | 16.5"L x 16.5"W x 12.75"H |
| Item Weight | 6 pounds |
| Finish Color | Aged Brass |
| Material | Metal (Fixture), Glass (Shade) |
| Shade Color | Opal |
| Light Source Type | Incandescent |
| Number of Light Sources | 2 |
| Bulb Base | E26 Medium |
| Max Wattage | 150 watts (75 watts per bulb) |
| Voltage | 120.62 Volts |
| Installation Type | Ceiling Mount |
| Indoor/Outdoor Usage | Indoor |
| Assembly Required | Yes |
| Certification | UL Listed |
9. Warranty and Support
9.1 Warranty Information
This Hudson Valley Lighting fixture is covered by a 1-year manufacturer's limited warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, accident, misuse, abuse, or unauthorized modifications.
9.2 Customer Support
For technical assistance, missing parts, or warranty claims, please contact Hudson Valley Lighting customer service. Refer to your purchase documentation or the official Hudson Valley Lighting website for current contact information.
Website: www.hudsonvalleylighting.com
