SinLoon T5 T8 LED Tube Connector (3-Pin, 20.5mm) - Instruction Manual

Introduction

This manual provides instructions for the safe and effective use of the SinLoon T5 T8 LED Tube Connectors. These 3-pin, 20.5mm double-end adapters are designed to connect T5 and T8 LED fluorescent tubes, facilitating easy installation in various lighting applications.

Safety Information

• Always disconnect power before installation or maintenance to prevent electric shock.
• Ensure connectors are compatible with your LED tubes (T5/T8, 3-pin).
• Do not exceed the electrical ratings of the connected LED tubes.
• Keep out of reach of children.
• If you are unsure about any part of the installation, consult a qualified electrician.

Product Overview

The SinLoon T5 T8 LED Tube Connector is a compact, 3-pin adapter designed for seamless connection of compatible LED fluorescent tubes. Each package contains 20 double-end connectors.

Figure 1: SinLoon T5 T8 LED Tube Connectors. These white plastic connectors feature three brass pins for electrical connection.

Specifications

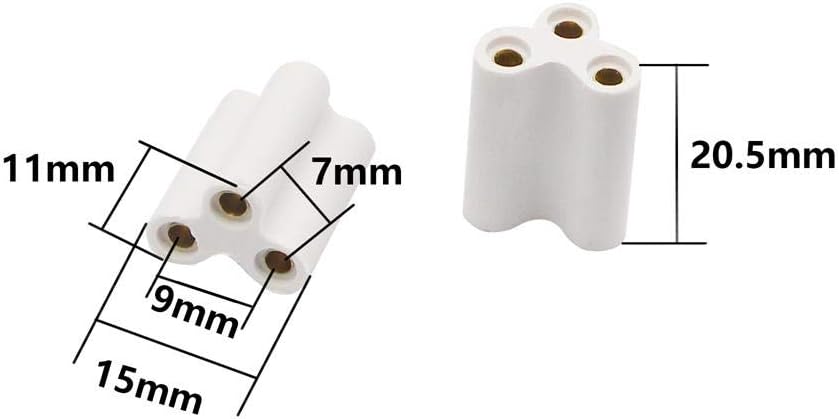

Figure 2: Connector dimensions. The image illustrates the key measurements of the 3-pin connector, including its 20.5mm length.

Setup and Installation

These connectors are designed for straightforward installation to link compatible T5 and T8 LED tubes.

1. Ensure Power is Off: Before beginning, always turn off the main power supply to the lighting circuit to prevent electrical hazards.
2. Identify Tube Ends: Locate the 3-pin receptacles on the ends of your T5 or T8 LED tubes.
3. Insert Connector: Align one end of the SinLoon 3-pin connector with the receptacle on the first LED tube. Gently push the connector firmly into place until it is securely seated.
4. Connect Second Tube: Take the second LED tube and align its receptacle with the other end of the connector. Push the second tube onto the connector until it is also securely seated.
5. Verify Connection: Ensure both tubes are firmly connected to the adapter and there are no loose connections.
6. Restore Power: Once all connections are secure, restore power to the lighting circuit.

Figure 3: Connector in use, linking two LED tubes.

Figure 4: Series connection of LED tubes with connectors and a detailed view of the connection point.

Operating Instructions

Once the SinLoon T5 T8 LED Tube Connectors are securely installed and power is restored, the connected LED tubes will operate as designed by their manufacturer. These connectors are passive components and do not require any specific operational steps beyond proper installation.

Maintenance

• Cleaning: If necessary, gently wipe the connectors with a dry, soft cloth. Do not use liquid cleaners or abrasive materials.
• Inspection: Periodically inspect connections for any signs of looseness, damage, or discoloration. If any issues are found, disconnect power and replace the affected connector.
• Storage: Store unused connectors in a dry, cool place away from direct sunlight and moisture.

Troubleshooting

Warranty and Support

For warranty information or technical support regarding your SinLoon T5 T8 LED Tube Connectors, please refer to the product packaging or contact your retailer.

Manufacturer: SinLoon
