Introduction
This manual provides essential information for the safe and effective use of your TUXING 4500Psi Pcp Compressor High Pressure Pump Piston and Pushing Rods Sliver. These components are designed for replacement in piston-type air compressors, offering stable performance, long service life, and ease of installation. Made from high-quality Aluminum and Brass, they are corrosion-resistant and anti-aging. Please read this manual thoroughly before installation and operation to ensure proper function and safety.
Product Overview and Key Features
Figure 1: TUXING 4500Psi Pcp Compressor Piston and Pushing Rods. This image shows the main components of the piston and pushing rods, highlighting their metallic construction and compact design.
Figure 2: Three piston rings, essential for maintaining proper compression within the air compressor cylinder.
Figure 3: The pushing rod component, showing its metallic shaft and textured end for secure connection.

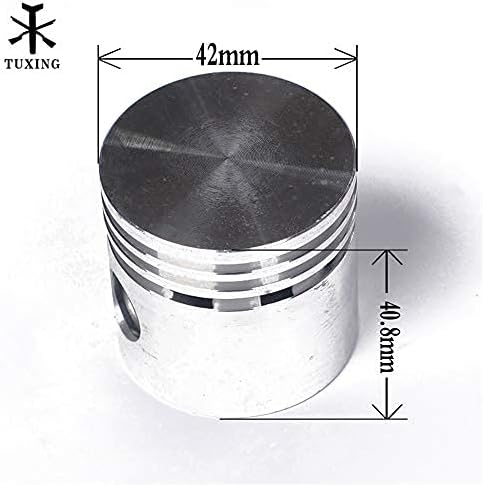

Figure 4: Detailed view of the piston with key dimensions (42mm diameter, 40.8mm height) for compatibility verification.
Figure 5: The piston and its corresponding rings, shown separately to illustrate their individual components.
Figure 6: The pushing rod with its dimensions (63.5mm length, 21.6mm and 9.6mm diameters) for precise fitment.
Key Features:
- Function: Specifically designed to fit TUXING Air compressor piston and rods.
- High Quality: Ensures stable performance and extended service life.
- Material: Constructed from high-quality Brass and Aluminum, offering excellent corrosion resistance and anti-aging properties.
- Ease of Use: Features a compact structure, making installation and use straightforward.
- Application: Compatible with most piston-type air compressors. Users should verify size for proper application.
Setup and Installation
These components are designed for replacement within existing TUXING air compressors. Ensure the compressor is powered off and depressurized before beginning any installation.
- Preparation: Gather necessary tools, including wrenches, screwdrivers, and a clean cloth. Ensure a clean workspace to prevent contamination.
- Disassembly: Carefully remove the existing piston and pushing rod assembly from your TUXING air compressor. Refer to your compressor's specific manual for detailed disassembly steps.
- Inspection: Inspect the new piston and pushing rod for any manufacturing defects or damage. Verify that the dimensions match the original parts.
- Lubrication: Apply a thin layer of appropriate compressor oil to the new piston rings and the piston itself before installation. This aids in smooth operation and sealing.
- Installation: Carefully insert the new piston and pushing rod assembly into the compressor cylinder. Ensure proper alignment and avoid forcing components.
- Reassembly: Reassemble the compressor according to the manufacturer's instructions. Double-check all connections and fasteners for tightness.
- Initial Test: After reassembly, perform a low-pressure test to ensure proper function and no air leaks before full operation.
Note: It is crucial to ensure that you pick up the right size and use it properly. No complicated installation steps are required, but precision is key for optimal performance.
Operating Considerations
Once the piston and pushing rods are correctly installed, the compressor can be operated as per its original design. These components are internal parts and do not alter the compressor's operational procedure.
- Always operate the air compressor in a well-ventilated area.
- Monitor pressure gauges during operation to ensure they remain within safe limits.
- Do not exceed the maximum operating pressure of 300 Bars (4500 Psi) for which these components are designed.
- Regularly check for unusual noises or vibrations, which may indicate an issue.
Maintenance
Proper maintenance of your compressor, including these replacement parts, is vital for longevity and performance.
- Regular Inspection: Periodically inspect the piston and pushing rod for signs of wear, corrosion, or damage.
- Lubrication: Ensure the compressor's lubrication system is functioning correctly and that oil levels are maintained as per the compressor's manual.
- Cleaning: Keep the compressor and its components clean from dust and debris.
- Part Replacement: Replace worn or damaged piston rings and other seals promptly to maintain efficiency and prevent leaks.
Troubleshooting
If you encounter issues after replacing the piston and pushing rods, consider the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Reduced Air Pressure Output | Improperly seated piston rings; Worn piston rings; Leaks in the system. | Re-check piston ring installation; Replace piston rings; Inspect all connections for leaks. |
| Unusual Noise from Compressor | Incorrectly installed pushing rod; Loose components; Lack of lubrication. | Verify pushing rod alignment; Tighten all fasteners; Check and replenish compressor oil. |
| Overheating | Excessive friction due to improper lubrication; Incorrect part fitment. | Ensure adequate lubrication; Re-verify part dimensions and installation. |
If troubleshooting steps do not resolve the issue, contact TUXING customer support for further assistance.
Specifications
| Attribute | Detail |
|---|---|
| Brand | TUXING |
| Model Name | TXES |
| Part Number | CPSC002 |
| Material | Aluminum, Brass |
| Color | Sliver |
| Item Weight | 4.6 ounces |
| Product Dimensions | 3.94 x 3.94 x 3.94 inches |
| Maximum Operating Pressure | 300 Bars (4500 Psi) |
| Application | Piston type air compressors |
Warranty and Support
For warranty information or technical support regarding your TUXING product, please contact the manufacturer directly. Keep your purchase receipt as proof of purchase.
- Manufacturer: Xiamen Subang Technology Co.,Ltd.
- TUXING Official Store: Visit TUXING Store on Amazon
- For specific product support, refer to the contact information provided with your original compressor purchase or on the TUXING official website.
