TUXING 4500Psi PCP Air Compressor TXES023 User Manual

1. Introduction

This manual provides essential instructions for the safe and efficient operation, setup, and maintenance of your TUXING 4500Psi PCP Air Compressor, Model TXES023. Please read this manual thoroughly before using the compressor to ensure proper function and to prevent injury or damage.

The TUXING TXES023 is a compact, high-pressure air compressor designed for filling PCP air guns, paintball tanks, and similar high-pressure air systems. It features an adjustable auto-stop function, dual water and fan cooling systems, and an auto-purge mechanism for enhanced performance and longevity.

2. Safety Information

WARNING: Failure to follow these safety instructions may result in serious injury or property damage.

• Always operate the compressor in a well-ventilated area to prevent overheating and ensure proper air quality.
• Ensure the compressor is placed on a stable, level surface during operation.
• Do not exceed the maximum operating pressure of 300 Bar (4500 PSI / 30 MPa). The compressor features an auto-stop function, but manual monitoring is always recommended.
• The compressor temperature should not exceed 85℃ (185℉). If the temperature rises above this limit, stop operation immediately and allow the unit to cool down.
• Do not operate the compressor for more than 45 minutes continuously. Allow for a cooling period between cycles.
• Always wear appropriate personal protective equipment (PPE), including eye protection, when operating the compressor.
• Keep children and unauthorized personnel away from the compressor during operation.
• Before connecting or disconnecting hoses, ensure the system is depressurized.
• Use only clean, dry air for compression. Ensure the filter system is properly installed and maintained.
• Never attempt to modify the compressor or its components. Use only genuine TUXING replacement parts.
• Ensure the power supply matches the compressor's requirements (110V).

3. Product Overview

The TUXING TXES023 compressor is designed for high-pressure air delivery with integrated cooling and safety features.

Key Features:

• Quick Filling Performance: Fills a 6.8L tank to 300 BAR in approximately 30 minutes.
• Adjustable Auto-Stop: Set desired pressure, and the compressor will automatically stop.
• Auto Purge Function: Automatically drains excess oil and water to prevent moisture buildup and protect internal components.
• Dual Cooling System: Features both water and fan cooling for efficient heat dissipation and extended operational life.
• Durable Construction: Made with an alloy air cylinder and high-quality components.
• Oil-Water Separator: Integrated system to ensure clean, dry air output.

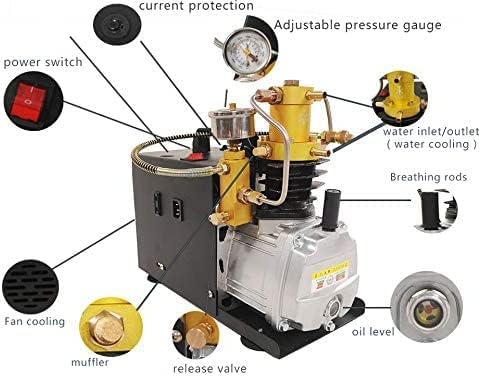

Component Identification:

Refer to the diagram below for key components of the TUXING TXES023 compressor.

• Power Switch: Controls the main power to the unit.
• Adjustable Pressure Gauge: Displays current pressure and allows setting of the auto-stop pressure.
• Water Inlet/Outlet: Connections for the external water cooling system.
• Breathing Rods: Essential for proper ventilation during operation; replace oil cap with these before use.
• Oil Level Indicator: Shows the current oil level; ensure it is at the red dot.
• Fan Cooling: Integrated fan for air cooling.
• Muffler: Reduces operational noise.
• Release Valve: Used to depressurize the system.
• Current Protection: Safety feature to prevent electrical overload.

4. Setup

Proper setup is crucial for safe and effective operation.

4.1 Unpacking and Inspection

• Carefully remove the compressor and all accessories from the packaging.
• Inspect the unit for any visible damage that may have occurred during transit. Contact customer support immediately if damage is found.
• Ensure all components listed in the packing list are present.

4.2 Adding Oil

• Before first use, ensure the compressor is filled with silicone oil. Due to transportation restrictions, silicone oil is not included and must be purchased separately.
• Locate the oil cap and remove it.
• Carefully pour silicone oil into the oil reservoir until the level reaches the red dot on the oil level indicator.
• Replace the oil cap with the provided breathing rods. Do not operate the compressor with the solid oil cap in place.

4.3 Connecting the Cooling System

The TXES023 utilizes a dual cooling system: an internal fan and an external water cooling system.

• Connect the provided water pump to the water inlet/outlet ports on the compressor using the supplied hoses.
• Place the water pump into a container of clean water (e.g., a bucket). Ensure the water pump is fully submerged.
• Verify all water connections are secure to prevent leaks.

4.4 Connecting the Air Filter and Filling Hose

• Attach the blue air filter to the compressor's air outlet.
• Connect the filling hose to the air filter.
• Ensure all connections are tight and secure to prevent air leakage.
• Connect the other end of the filling hose to the air tank or device you intend to fill.

5. Operating Instructions

Follow these steps for safe and effective operation of your TUXING TXES023 compressor.

5.1 Pre-Operation Checklist

• Ensure the compressor is on a stable surface.
• Verify oil level is at the red dot and breathing rods are installed.
• Confirm water cooling system is properly connected and the pump is submerged.
• Check all air connections (filter, hose, tank) for tightness.
• Ensure the release valve is closed.
• Connect the power cord to a suitable 110V outlet.

5.2 Setting Desired Pressure

• Turn on the compressor's power switch.
• Use the adjustable pressure gauge to set your desired shut-off pressure. The compressor will automatically stop once this pressure is reached.
• Note: Never set the pressure above 300 Bar (4500 PSI).

5.3 Starting Compression

• Once the desired pressure is set, turn on the water pump for the cooling system.
• Start the compressor by flipping the main power switch.
• Monitor the pressure gauge and the compressor's temperature during operation.
• If the temperature approaches 85℃, stop the compressor immediately and allow it to cool.
• The compressor will automatically stop when the preset pressure is reached.

5.4 Post-Operation

• After the compressor stops, turn off the main power switch and the water pump.
• Slowly open the release valve to depressurize the system.
• Disconnect the filling hose from your air tank/device.
• Allow the compressor to cool down completely before storing.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your compressor.

6.1 Auto Purge Function

The TXES023 features an auto-purge function that drains excess oil and water. This helps prevent moisture buildup and corrosion within the system. While automatic, it is good practice to periodically check for any residual moisture or oil and manually drain if necessary.

6.2 Oil Level Check and Replenishment

• Regularly check the oil level before each use.
• If the oil level is below the red dot, replenish with appropriate silicone oil.
• Change the oil periodically based on usage, typically every 50-100 hours of operation, or if the oil appears discolored.

6.3 Air Filter Replacement

• The air filter helps maintain air quality. Inspect the filter regularly for dirt and moisture.
• Replace the filter element as needed, or every 10-20 hours of operation, depending on environmental conditions.

6.4 Cooling System Maintenance

• Ensure the water used for cooling is clean. Replace the water frequently to prevent algae growth or sediment buildup in the pump and hoses.
• Keep the fan cooling vents clear of dust and debris to ensure efficient airflow.

7. Troubleshooting

This section addresses common issues you might encounter with your TUXING TXES023 compressor.

7.1 Compressor Not Starting

• Check Power Connection: Ensure the power cord is securely plugged into a live 110V outlet.
• Power Switch: Verify the main power switch is in the 'ON' position.
• Current Protection: Check if the current protection button has tripped. Reset if necessary.
• Overheat Protection: If the compressor was recently used, it might be in overheat protection mode. Allow it to cool down.

7.2 Slow Filling or Low Pressure

• Air Leaks: Inspect all hose connections for leaks. Tighten any loose fittings.
• Air Filter: A clogged air filter can restrict airflow. Replace the filter element if it appears dirty or saturated.
• Oil Level: Insufficient oil can affect performance. Check and replenish oil if needed.
• Breathing Rods: Ensure the breathing rods are installed, not the solid oil cap.

7.3 Excessive Noise or Vibration

• Loose Components: Check for any loose screws or fittings and tighten them.
• Unstable Surface: Ensure the compressor is on a flat, stable surface.
• Internal Issue: If noise persists and is unusual, discontinue use and contact customer support.

7.4 Overheating

• Cooling System: Verify the water cooling pump is operating and the water reservoir has sufficient, clean water. Ensure water hoses are not kinked.
• Fan Vents: Check that the fan cooling vents are not obstructed.
• Continuous Operation: Avoid operating the compressor for more than 45 minutes continuously. Allow adequate cooling time between cycles.
• Ambient Temperature: Operating in excessively hot environments can contribute to overheating.

8. Specifications

9. Warranty Information

The TUXING TXES023 PCP Air Compressor comes with a 1-year warranty on the main parts. Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects under normal use conditions. It does not cover damage resulting from misuse, neglect, unauthorized modifications, or failure to follow the instructions in this manual.

10. Customer Support

For any questions regarding the purchase, setup, operation, or maintenance of your TUXING TXES023 Air Compressor, please contact our customer support team.

• Online Service: We offer 24/7 online support.
• Contact Method: Please reach out to us via email. Refer to your purchase documentation or the TUXING official store for specific contact details.
