Introduction
This instruction manual provides detailed guidance for the installation, operation, and maintenance of the GROHE Mounting Kit, Model 49529000. This kit is specifically designed for securing Bau Ceramic toilet seats and lids (models 39493000, 39492000). Please read these instructions carefully before beginning installation to ensure proper function and longevity of your product.
Safety Information
- Always wear appropriate personal protective equipment, such as safety glasses, during installation.
- Ensure all components are present and undamaged before starting installation.
- Do not overtighten screws, as this may damage the toilet ceramic or the mounting kit components.
- Keep small parts out of reach of children to prevent choking hazards.
- If you are unsure about any step, consult a qualified professional.
Package Contents
The GROHE Mounting Kit 49529000 includes the following components:
- 2x Mounting Posts with integrated expanding rubber fixings
- 2x Decorative Chrome Covers
- Associated screws and washers for assembly

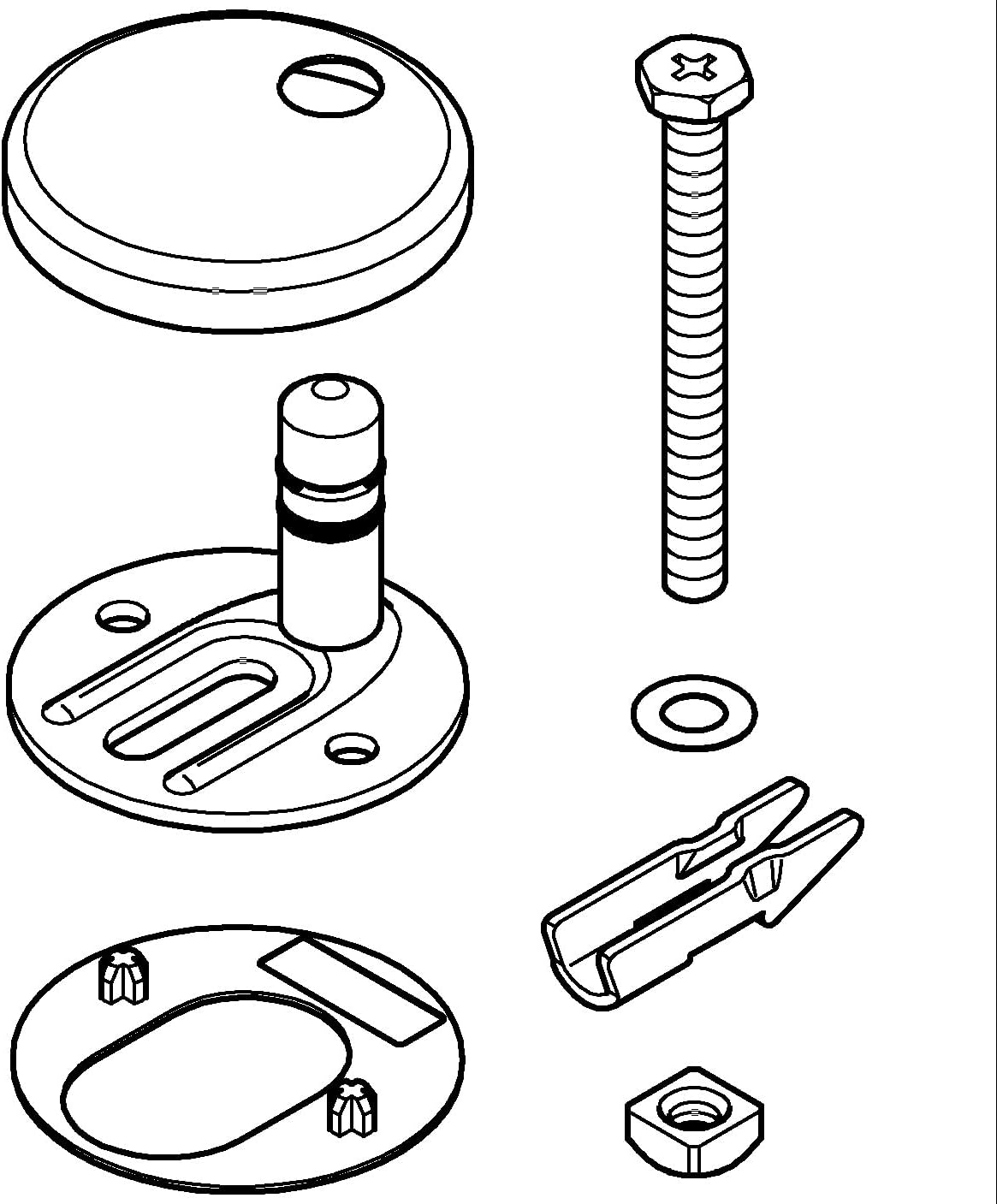

Figure 1: Exploded view of the GROHE Mounting Kit components. This image shows all individual parts included in the kit, such as the mounting posts, screws, washers, and decorative covers, laid out separately.
Installation
Tools Required:
- Screwdriver (Phillips head recommended)
- Soft cloth for cleaning
Installation Steps:
- Prepare the Toilet Bowl: Ensure the mounting holes on the ceramic toilet bowl are clean and free from debris.
- Assemble Mounting Posts: Take one mounting post. Insert the screw through the top plate and into the expanding rubber fixing. Do not tighten fully yet.
- Insert into Toilet Holes: Place the assembled mounting post into one of the toilet bowl's mounting holes. The expanding rubber fixing should be inserted into the hole.
- Position and Tighten: Adjust the position of the mounting post to align with the hinge points of your toilet seat. Once aligned, use a screwdriver to tighten the screw. This will expand the rubber fixing, securing the post firmly in the toilet hole. Repeat for the second mounting post.
- Attach Toilet Seat: Align the toilet seat hinges with the installed mounting posts. Secure the toilet seat according to its specific instructions, typically by pushing it onto the posts or tightening a separate mechanism.
- Install Decorative Covers: Once the toilet seat is securely attached, place the decorative chrome covers over the mounting posts to conceal the hardware.
- Test Stability: Gently test the toilet seat to ensure it is stable and does not wobble. Adjust tightness if necessary.
Figure 2: Assembled GROHE Mounting Kit components. This image displays the two mounting posts with their screws and decorative caps, ready for installation or showing their final appearance.
Operation
Once correctly installed, the GROHE Mounting Kit 49529000 functions by providing a stable and secure anchor for your Bau Ceramic toilet seat and lid. The expanding rubber fixings ensure a tight fit within the toilet bowl's mounting holes, preventing movement and ensuring the toilet seat remains firmly in place during use.
Maintenance
- Cleaning: Clean the decorative chrome covers with a soft, damp cloth and mild soap. Avoid abrasive cleaners or harsh chemicals, as these can damage the finish.
- Periodic Check: Periodically check the tightness of the mounting screws. If the toilet seat feels loose, gently retighten the screws to ensure the expanding rubber fixings maintain a secure grip.
- Inspection: Inspect the components for any signs of wear or damage. Replace the kit if any parts are compromised.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Toilet seat is loose or wobbles. | Mounting screws are not sufficiently tightened. | Retighten the mounting screws until the seat is secure. Do not overtighten. |
| Difficulty inserting mounting posts. | Debris in toilet bowl holes or incorrect alignment. | Clean the toilet bowl holes thoroughly. Ensure the expanding rubber fixing is correctly aligned before insertion. |
| Decorative covers do not fit. | Incorrect orientation or obstruction. | Ensure the covers are oriented correctly and there are no obstructions preventing them from seating properly. |
Specifications
| Model Number | 49529000 |
| Brand | GROHE |
| Material | Metal (Mounting Posts) |
| Color | Chrome |
| Product Dimensions (L x W x H) | 1.77 x 3.74 x 5.91 inches |
| Item Weight | 6.2 ounces |
| Number of Pieces | 2 (double pack mounting kit) |
| Special Features | Easy to Install |
| Compatible Toilet Seat Material | Ceramic (for Bau Ceramic toilet seats) |
Warranty Information
The GROHE Mounting Kit 49529000 comes with a manufacturer's warranty of 5 years. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. Your statutory warranty rights remain unaffected by this manufacturer's warranty. For detailed warranty conditions, please refer to the official GROHE website or contact customer support.
Support
For further assistance, technical support, or to inquire about replacement parts, please contact GROHE customer service. You can typically find contact information on the official GROHE website or through the retailer where the product was purchased.
Website: www.grohe.com
