Introduction
Thank you for choosing the PURPLE LEAF 10ft Square Cantilever Patio Umbrella. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your new outdoor umbrella. Please read these instructions carefully before use and retain them for future reference.

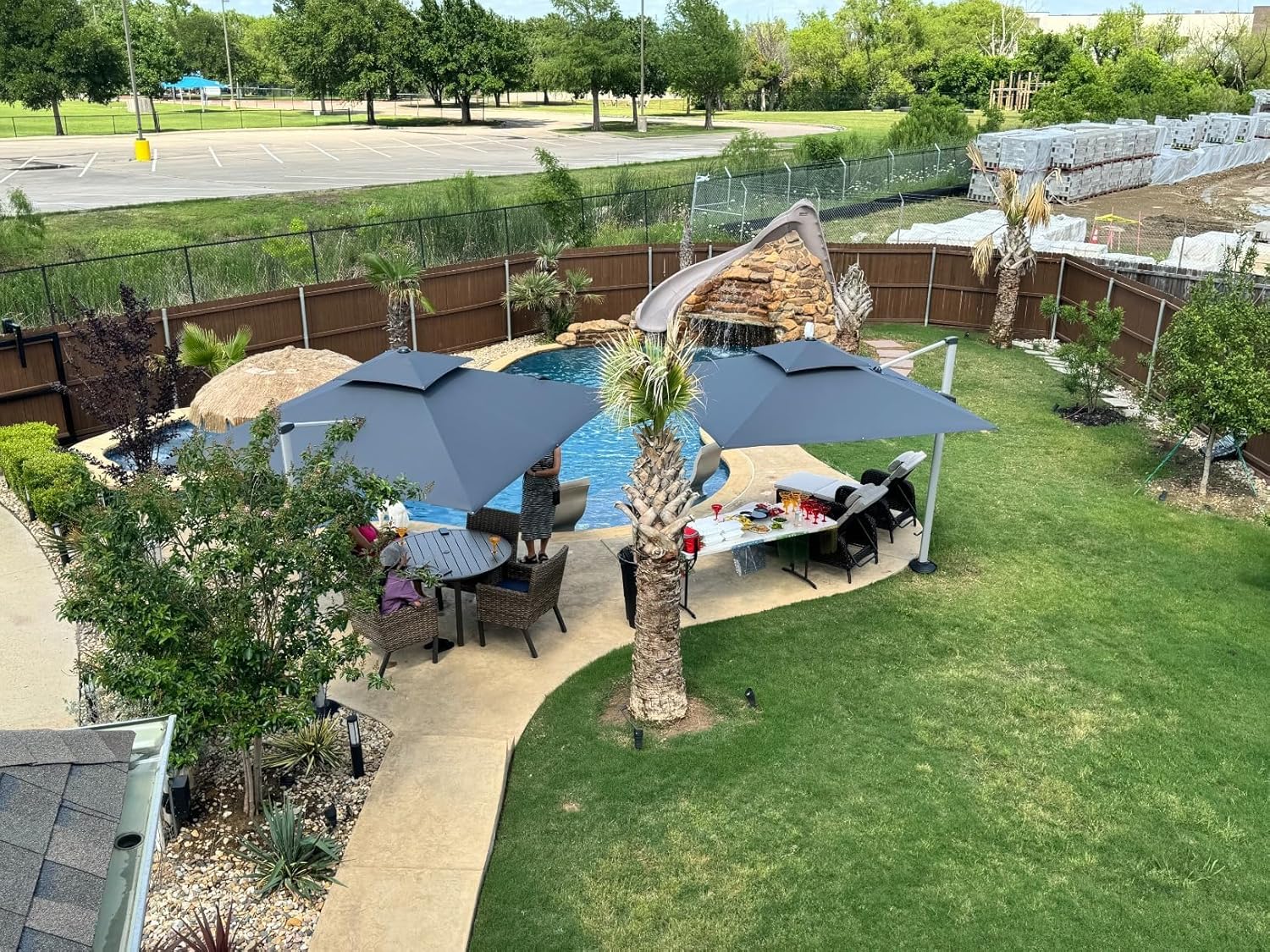

Image: The PURPLE LEAF 10ft Square Cantilever Patio Umbrella in Grey, fully extended in an outdoor setting.
Setup and Assembly
Your PURPLE LEAF Cantilever Umbrella comes in two main packages. Assembly typically takes about 45 minutes and may require assistance for lifting the main pole into the base.
Package Contents
Ensure all components are present before beginning assembly. The umbrella includes the main pole, canopy, and a base designed to be filled for stability. Note that the umbrella base is not included in the main package and must be purchased separately (e.g., PURPLE LEAF DY1100 water tank base, anchor base, or wheel base).
Image: Two large cardboard boxes, labeled 'PURPLE LEAF', containing the umbrella components, indicating separate packaging for the base.
Base Preparation
The base must be filled with a stabilizing agent to prevent tipping. It is recommended to fill the base halfway with sand and then top it off with water for maximum stability. This ensures the heavy-duty aluminum frame remains secure.
Image: A close-up view of the square umbrella base, showing the fill caps for sand and water, ensuring stability.
Main Pole Installation
Carefully insert the main pole into the prepared base. Secure all connections as per the detailed instructions provided in the separate assembly guide (not included in this general manual). Ensure the pole is firmly seated and locked into place.
Operating Instructions
The PURPLE LEAF Cantilever Umbrella features an ergonomic handle and foot pedal for easy operation.
Opening the Umbrella
- Release Straps: Unfasten any securing straps around the folded canopy.
- Raise Canopy: Use the aluminum crank handle located on the main pole to slowly extend the canopy upwards. Continue cranking until the canopy is fully open and taut.
- Adjust Tilt: The umbrella offers 6-position adjustment for height and angle. Use the handle to adjust the canopy to your desired tilt, providing optimal shade throughout the day.
Image: A close-up of the patented ergonomic aluminum crank handle, used for effortless opening, closing, and adjusting the umbrella's tilt.
360° Rotation
For comprehensive shade coverage, the umbrella features a hands-free 360° foot pedal rotation. Simply step on the pedal at the base to unlock the rotation mechanism, then gently rotate the entire umbrella to the desired position. Release the pedal to lock it in place.
Closing and Securing the Umbrella
- Retract Canopy: Use the aluminum crank handle to retract the canopy until it is fully closed against the main pole.
- Secure Straps: Fasten the securing straps around the folded canopy to keep it compact and protected when not in use.
Official Product Video
Video: An official product video from PURPLE LEAF demonstrating the features and operation of the outdoor patio umbrella, including setup and adjustments.
Maintenance
Proper maintenance will extend the life and appearance of your PURPLE LEAF umbrella.
Canopy Care
The high-density 240 GSM yarn-dyed polyester canopy is UV-resistant, water-repellent, and fade-resistant for up to 3 years. To clean, gently wipe with a damp cloth and mild soap. Avoid harsh chemicals. Ensure the canopy is completely dry before folding and storing to prevent mildew.
Image: A close-up of the 240 GSM yarn-dyed polyester fabric, emphasizing its tear-resistant, water-repellent, and UV 50+ rated qualities.
Frame Care
The superior wind-resistant aluminum frame and heavy-duty aluminum ribs feature a durable powder coating for rust resistance and scratch protection. Regularly inspect the frame for any signs of wear or damage. Clean with a soft cloth and mild detergent. Lubricate moving parts as needed.
Image: A detailed view of the umbrella's shockproof design, showing an embedded spring within a rib to protect against damage during closing.
Storage
When not in use, especially during strong winds or off-season, close the umbrella and secure it with the provided straps. Consider purchasing a dedicated umbrella cover for additional protection against elements. (Note: Patio umbrella cover is NOT INCLUDED. Please search PURPLE LEAF Cover to purchase.)
Troubleshooting
If you encounter any issues with your umbrella, please refer to the following common solutions:
- Umbrella Instability: Ensure the base is fully filled with sand and water as recommended. Check that all connections between the pole and base are secure.
- Difficulty Opening/Closing: Inspect the crank mechanism for any obstructions. Ensure the canopy fabric is not caught in the ribs or pole. Apply a silicone-based lubricant to moving parts if resistance persists.
- Wind Damage: Always close and secure the umbrella in windy conditions. While designed to withstand winds up to 35 MPH, extreme gusts can cause damage.
Specifications
| Feature | Detail |
|---|---|
| Brand | PURPLE LEAF |
| Model Number | B07K3692J4 |
| Size | 10' X 10' (Square) |
| Color | Grey |
| Canopy Material | High-Density 240 GSM Yarn-Dyed Polyester |
| Frame Material | Aluminum, Alloy Steel |
| Special Features | Fade Resistant, Heavy Duty Fabric, UV Resistant, Vented, Waterproof, Windproof, Water Repellent |
| Opening Mechanism | Crank Lift |
| Umbrella Tilt Mechanism | Manual Tilt (6-Position) |
| Rotation | 360° Foot Pedal Rotation |
Image: A diagram illustrating the key dimensions of the 10ft x 10ft square patio umbrella, including its height and canopy spread.
Warranty
The PURPLE LEAF 10ft Square Cantilever Patio Umbrella comes with a comprehensive warranty:
- Fabric: 3 Years
- Components: 1 Year
Please retain your proof of purchase for any warranty claims.
Support
For further assistance, product inquiries, or warranty claims, please contact the manufacturer, PURPLE LEAF, directly. Refer to the product packaging or the official PURPLE LEAF website for contact information.
