Introduction
This manual provides instructions for the installation, operation, and maintenance of your Monoprice Alpha Series 10-inch Carbon Fiber In-Wall Subwoofer. This subwoofer is designed to deliver powerful, room-filling bass for home theater and audio systems while integrating seamlessly into your living space.
The Alpha Series subwoofer features a durable carbon fiber driver, engineered for high volume bass extension with minimal distortion. Its design allows for discreet installation, enhancing your audio experience without occupying floor space.
Safety Information
- Read all instructions before installation and use.
- Retain this manual for future reference.
- Do not expose the subwoofer to water or excessive moisture.
- Ensure proper ventilation around the installation area to prevent overheating.
- Disconnect power to the amplifier before making any connections.
- Installation should be performed by qualified personnel if you are unsure about electrical wiring or structural integrity.
Package Contents
Please verify that your package contains the following items:
- 1x Monoprice Alpha Series 10-inch Carbon Fiber In-Wall Subwoofer
- 1x Paintable Magnetic Grill
Setup and Installation
The Monoprice Alpha Series In-Wall Subwoofer is designed for easy installation in standard wall constructions. Proper placement and wiring are crucial for optimal performance.
Tools Required (Not Included)
- Stud finder
- Carpenter's level
- Marking pen or pencil
- Drywall cutter or utility knife
- Phillips head screwdriver
- 14AWG CL2 in-wall rated speaker wire (or appropriate gauge for your setup)
Figure 1: Common tools required for in-wall speaker installation.
Placement Considerations
- Location: Subwoofers are less directional than full-range speakers, offering more flexibility in placement. Experiment with different wall locations to find the best bass response for your room.
- Studs: Use a stud finder to locate wall studs. The subwoofer requires a clear opening between studs. Ensure the chosen location avoids electrical wiring, plumbing, or other obstructions.
- Depth: Verify that the wall cavity depth is sufficient for the subwoofer (5.5 inches / 140 mm).
Installation Steps
- Mark the Opening: Use the provided template (if included, or measure the speaker dimensions) to trace the cutout area on the wall. Ensure the outline is level.
- Cut the Opening: Carefully cut along the traced line using a drywall cutter or utility knife.
- Run Speaker Wire: Route CL2-rated speaker wire from your amplifier to the wall opening. Leave enough slack for easy connection.
- Prepare Mounting Ears: Before inserting the speaker, it is recommended to tighten and then loosen each mounting screw on the speaker's frame. This ensures the mounting ears are free to engage properly.
- Connect Speaker Wire: Connect the speaker wires to the subwoofer's binding posts. Ensure correct polarity (+ to + and - to -). The subwoofer features push-type binding posts.
- Insert Subwoofer: Carefully insert the subwoofer into the wall opening.
- Secure Subwoofer: Tighten the mounting screws on the front baffle. This will rotate the mounting ears behind the drywall and secure the speaker in place. Do not overtighten.
- Attach Grill: The subwoofer comes with a paintable magnetic grill. Align the grill with the speaker frame; the magnets will hold it in place. You may paint the grill to match your wall color if desired.
Figure 2: Speaker wire terminals and crossover components.
Figure 3: Subwoofer without grill, revealing the carbon fiber driver.
Figure 4: Subwoofer installed in a wall.

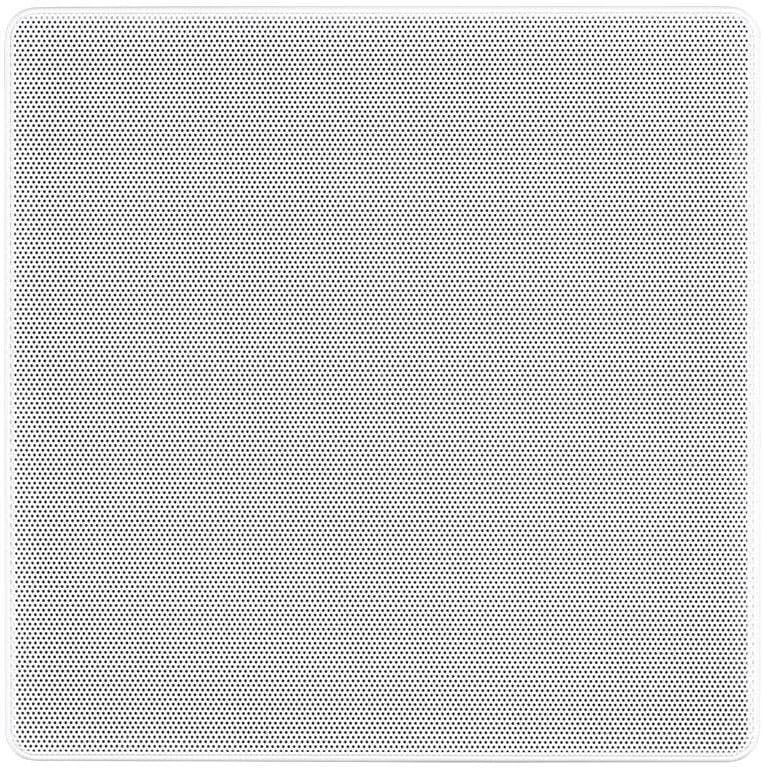

Figure 5: Subwoofer with magnetic grill attached.
Operating Instructions
Once installed and connected to a suitable amplifier, your Monoprice Alpha Series In-Wall Subwoofer is ready for operation.
- Amplifier Connection: Connect the subwoofer to a dedicated subwoofer output on your AV receiver or amplifier. Ensure the amplifier can provide sufficient power (up to 300 watts peak).
- Crossover Settings: Most AV receivers allow you to set a crossover frequency for your subwoofer. A common starting point is 80-120 Hz, but this can be adjusted based on your main speakers and room acoustics.
- Volume Level: Adjust the subwoofer's volume level on your amplifier to blend seamlessly with your main speakers. The goal is to enhance bass without overpowering the rest of the audio.
- Phase Control: Some amplifiers offer a phase control (0° or 180°). Experiment with this setting to achieve the most coherent bass response with your main speakers.
Maintenance
Your Monoprice In-Wall Subwoofer requires minimal maintenance to ensure long-lasting performance.
- Cleaning: Use a soft, dry cloth to gently wipe the grill and visible surfaces. Avoid using harsh chemicals or abrasive cleaners.
- Grill Care: If you have painted the grill, handle it carefully to avoid chipping the paint.
- Inspection: Periodically check the mounting screws to ensure they remain snug. Do not overtighten.
Troubleshooting
If you encounter issues with your subwoofer, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No sound from subwoofer | Incorrect wiring Amplifier not powered on Incorrect amplifier settings | Check speaker wire connections for correct polarity and secure fit. Ensure amplifier is powered on and selected input is correct. Verify subwoofer output is enabled and volume is not muted on your amplifier. |
| Weak or distorted bass | Incorrect amplifier settings Improper placement Loose connections | Adjust subwoofer volume, crossover frequency, and phase settings on your amplifier. Experiment with subwoofer placement in the room. Check all speaker wire connections. |
| Rattling or buzzing sound | Loose mounting Vibrating objects nearby | Ensure mounting screws are tightened securely (do not overtighten). Check for any objects in the wall cavity or on nearby shelves that may be vibrating. |
Specifications
Technical specifications for the Monoprice Alpha Series 10-inch Carbon Fiber In-Wall Subwoofer:
| Feature | Specification |
|---|---|
| Model Name | 130487 |
| Speaker Type | Subwoofer |
| Subwoofer Diameter | 10 Inches |
| Material | Carbon Fiber |
| Speaker Maximum Output Power | 300 Watts (Peak) |
| Connectivity Technology | Wired |
| Audio Output Mode | Surround |
| Mounting Type | Wall Mount |
| Product Dimensions | 14.7 x 14.8 x 5.5 inches |
| Item Weight | 9.3 Pounds |
| Color | Black, Off-White |
| UPC | 889028071830 |
Warranty and Support
Monoprice stands behind its products. This subwoofer comes with a 1-year warranty against defects in materials and workmanship. Additionally, a 30-day money-back guarantee is offered for your peace of mind.
For technical support, warranty claims, or further assistance, please visit the official Monoprice website or contact their customer service department. Contact information can typically be found on the Monoprice website or product packaging.
