Introduction
The Trophy Ridge Alpha Slide bow sight is designed to enhance your target visibility and shooting range. Its inverted V-shaped .019" single pin naturally guides your eye to the target while maintaining an unobstructed view. The extended slider mechanism allows for maximizing your shooting range, starting effectively from 20 yards.
Setup and Installation
Proper installation and setup are crucial for optimal performance of your Trophy Ridge Alpha Slide bow sight. The sight is designed for easy mounting and adjustment.
Mounting the Sight
The Alpha Slide sight comes with quiver mounting hardware for secure attachment to your compound bow. Ensure all screws are tightened appropriately to prevent movement during use.
Image: The Trophy Ridge Alpha Slide bow sight securely mounted on the riser of a compound bow, demonstrating its position for use.

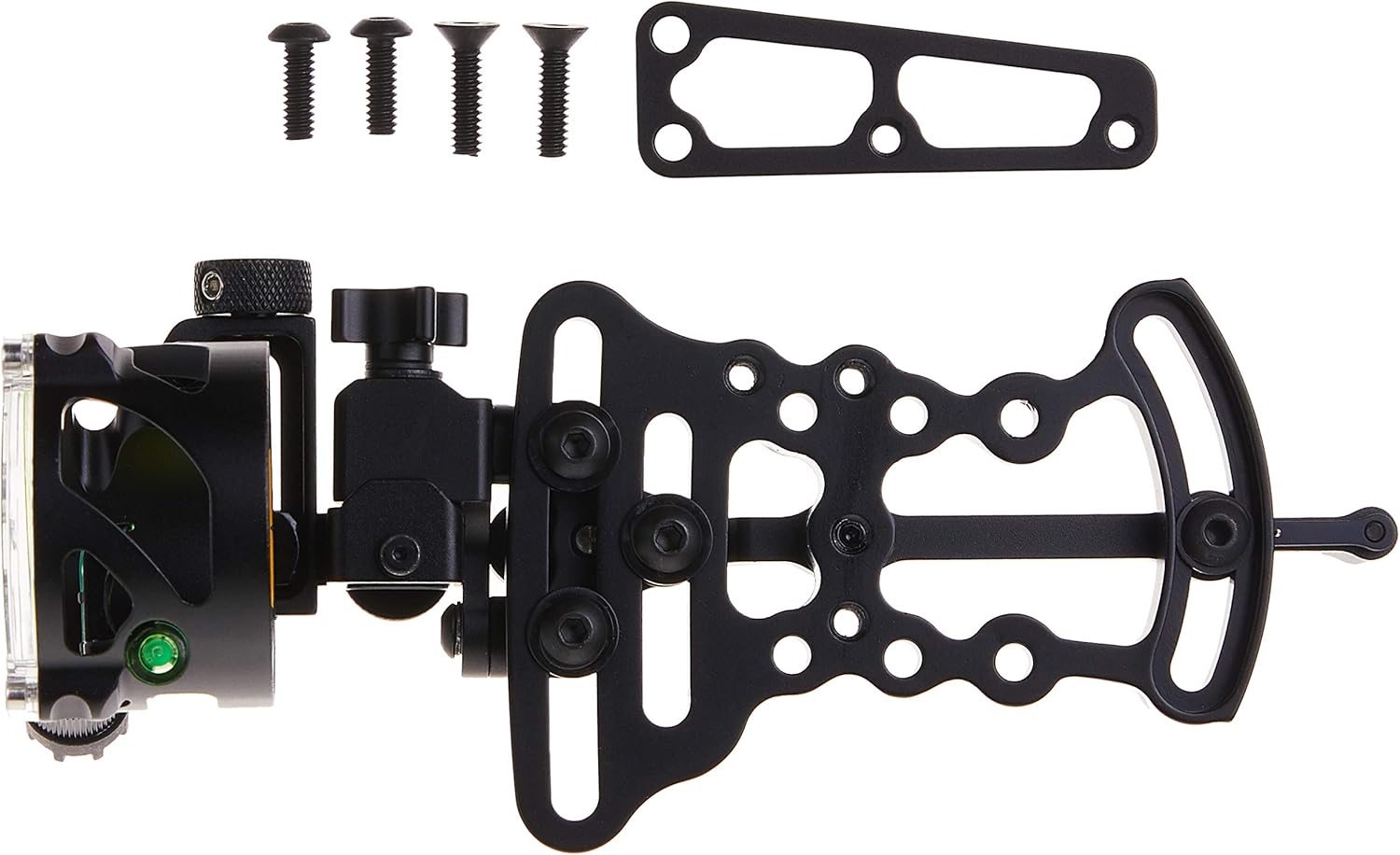

Image: All components of the Trophy Ridge Alpha Slide bow sight laid out, including the main sight body, mounting bracket, and four mounting screws.
Adjusting the Sight
The Alpha Slide features micro-adjustments for both windage (left/right) and elevation (up/down). These adjustments allow for precise tuning to match your shooting style and arrow ballistics. Delrin bushings ensure smooth, quiet movement without metal-to-metal contact.
After initial mounting, you will need to sight in your bow. This typically involves shooting at various distances (e.g., 20, 30, 40 yards) and making small adjustments until your arrows consistently hit the target center. Sight tapes are provided to mark your specific yardage settings on the slider.
Image: A rear view of the Trophy Ridge Alpha Slide bow sight, highlighting the adjustment knobs for windage and elevation, and the slider mechanism.
Image: A front view of the Trophy Ridge Alpha Slide bow sight, showcasing the inverted V-shaped single pin and the integrated bubble level within the sight housing.
Video Guide: Installation and Adjustment
For a visual guide on installing and adjusting your Trophy Ridge Alpha Slide sight, please refer to the video below. This video demonstrates the process of mounting the sight, making adjustments, and utilizing the slider mechanism.
Video: A detailed demonstration of how to install the Trophy Ridge Alpha Slide bow sight on a bow and perform necessary adjustments for accurate shooting. The video highlights the single pin, level, and slider functionality.
Operation
The Trophy Ridge Alpha Slide is a 1-pin sliding bow sight designed for precision and versatility across various distances.
Single Pin Advantage
The inverted V-shaped .019" single pin provides an uncluttered sight picture, allowing you to focus solely on your target without distractions from multiple pins. This design naturally draws your eye to the center, promoting accuracy.
Image: A close-up view of the sight housing, clearly showing the inverted V-shaped single pin and the integrated green bubble level for maintaining proper bow alignment.
Sliding Mechanism
The extended slider allows you to adjust your pin's elevation for different shooting distances. Once your sight is calibrated with the provided sight tapes, you can quickly move the pin to the desired yardage setting. This feature is particularly useful for longer shots, extending your effective shooting range.
Illuminated Pin
The sight includes an illuminated pin, which is beneficial in low-light conditions. The illumination helps maintain visibility of your aiming point, ensuring precision even at dawn or dusk. The battery for the illuminated pin is located at the bottom of the sight housing.
Maintenance
To ensure the longevity and optimal performance of your Trophy Ridge Alpha Slide bow sight, regular maintenance is recommended.
- Cleaning: Periodically clean the sight housing and pin with a soft, dry cloth. Avoid abrasive materials or harsh chemicals that could damage the finish or optical components.
- Check Fasteners: Before each use, inspect all mounting screws and adjustment knobs to ensure they are secure. Loose components can affect accuracy.
- Lubrication: The Delrin bushings are designed for smooth movement. Avoid applying lubricants unless specifically recommended by Trophy Ridge, as this could attract dirt or interfere with performance.
- Storage: Store your bow and sight in a dry, protected environment to prevent corrosion and damage from extreme temperatures or humidity.
- Battery Replacement: If the illuminated pin dims or stops working, replace the battery located at the bottom of the sight housing. Refer to the battery type specified in the product specifications.
Troubleshooting
If you encounter issues with your Trophy Ridge Alpha Slide bow sight, consider the following common troubleshooting steps:
- Inaccurate Shots:
- Ensure the sight is securely mounted and all screws are tight.
- Verify your sight is properly sighted in for the target distance. Re-calibrate if necessary.
- Check your shooting form and consistency.
- Pin Not Illuminating:
- Check if the illumination switch is turned on.
- Replace the battery for the illuminated pin.
- Slider Movement Issues:
- Ensure no debris is obstructing the slider track.
- Check if the locking mechanisms for the slider are disengaged when attempting to move it.
- Excessive Noise/Vibration:
- Confirm all mounting hardware is tight.
- Inspect for any loose components on the sight or bow.
If these steps do not resolve the issue, please contact Trophy Ridge customer support for further assistance.
Specifications
| Brand | Trophy Ridge |
| Model | Alpha Slide |
| Color | Black |
| Style | .019 P |
| Sport | Archery |
| Item Weight | 13.16 ounces |
| Material | Aluminum |
| Magnification Minimum | 1 x |
| Compatible Devices | Compound Bow |
| Mounting Type | Bow Mount |
| Night Vision | No |
| Reticle Type | Single Pin |
| UPC | 754806295695 |
| ASIN | B07JZFVPC4 |
What's in the Box
Your Trophy Ridge Alpha Slide package includes the following items:
- Trophy Ridge Alpha Slide Bow Sight (Non-React)
- Quiver Mounting Hardware
- Sight Tape

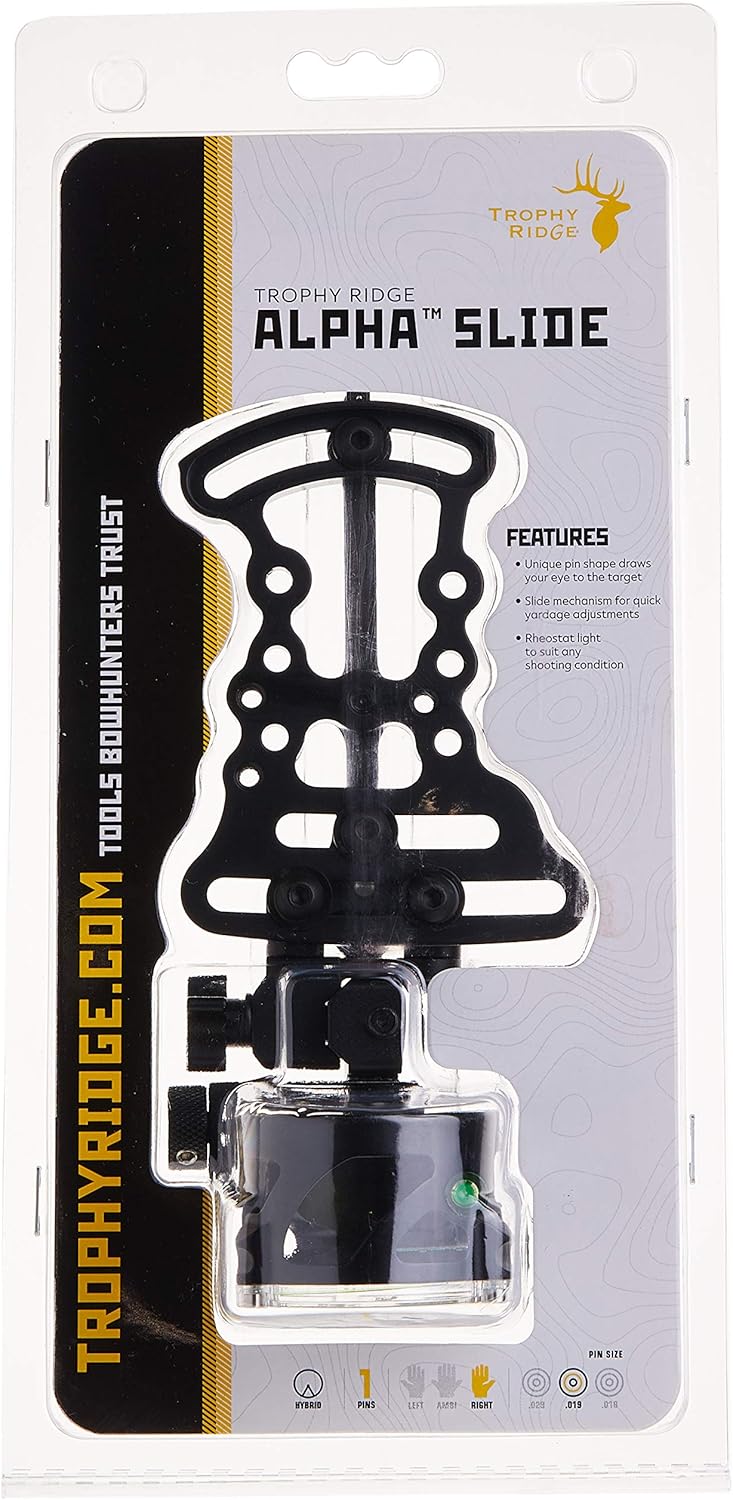

Image: The Trophy Ridge Alpha Slide bow sight displayed in its retail packaging, showing the front of the package with product features.
Image: The Trophy Ridge Alpha Slide bow sight displayed in its retail packaging, showing the back of the package with additional product information and contents.
Warranty Information
The Trophy Ridge Alpha Slide bow sight is covered by a Limited Lifetime Warranty. This warranty covers manufacturing defects in materials and workmanship under normal use. For specific details regarding warranty claims and coverage, please refer to the official Trophy Ridge website or contact their customer service.
Customer Support
For any questions, technical assistance, or support regarding your Trophy Ridge Alpha Slide bow sight, please visit the official Trophy Ridge website or contact their customer service department. You can often find FAQs, additional resources, and contact information on their website.
Official Website: www.trophyridge.com
