1. Product Overview
The Intex 13 Ft x 32 In Easy Set Above Ground Inflatable Outdoor Swimming Pool is designed for recreational water activities in home backyards. This set includes a 530 GPH Krystal Clear Filter Pump and a secure vinyl pool cover to maintain water quality.
Key Features:
- Dimensions: 13 feet diameter, 32 inches height.
- Material: Constructed with durable 3-ply PVC material designed to resist punctures.
- Filter System: Includes a 530 GPH Krystal Clear Cartridge Filter Pump with HydroAeration Technology for improved circulation, filtration, and water clarity.
- Pool Cover: A 13-foot round vinyl pool cover with drainage holes and a tightening rope for a secure fit.

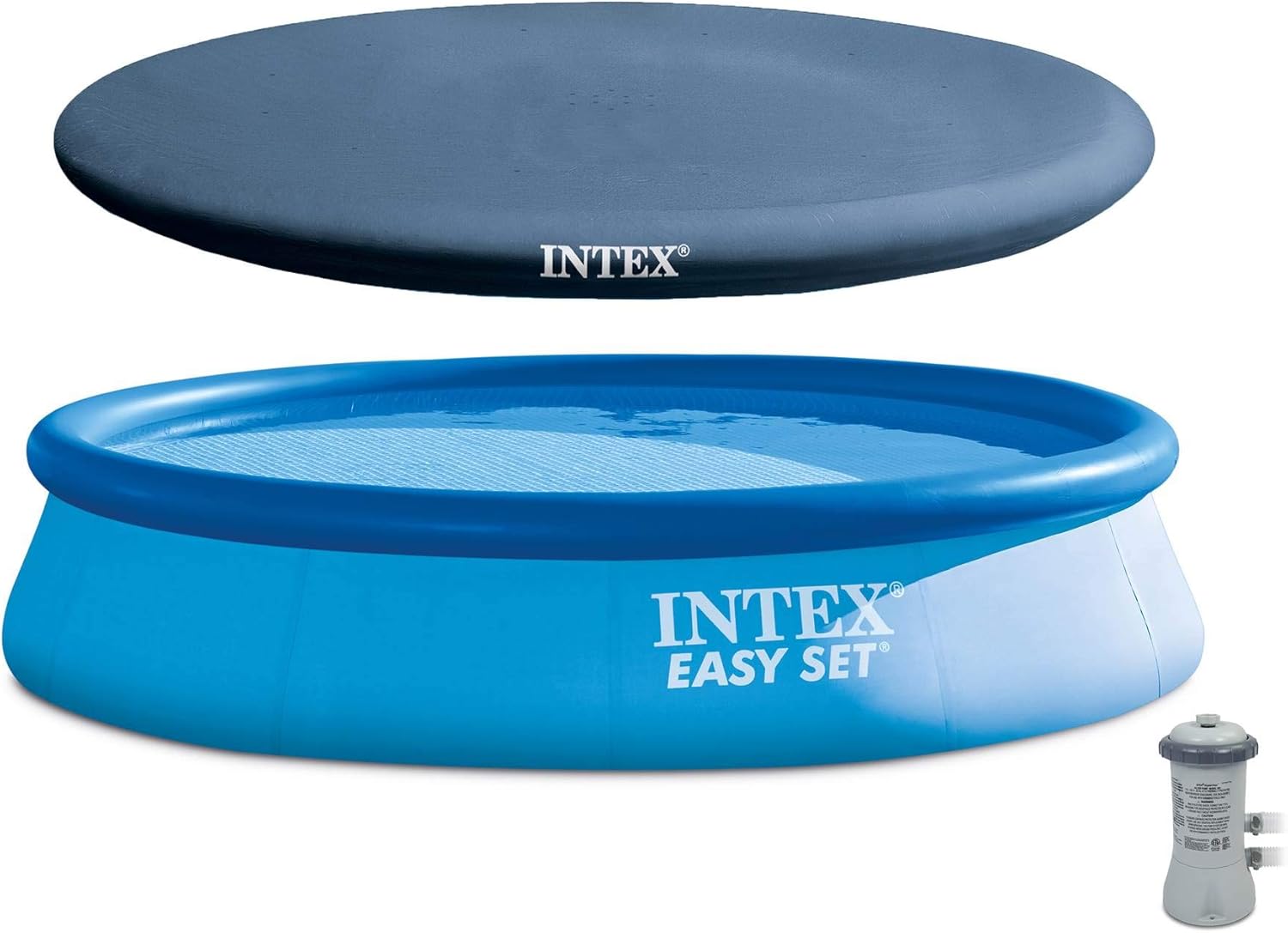

Figure 1: Intex 13 Ft Easy Set Pool with included cover and filter pump.
2. Setup Instructions
Proper site preparation and careful assembly are crucial for the longevity and safe operation of your pool. Ensure the chosen location is level and free of debris.
2.1 Site Preparation
- Select a flat, level area in your backyard. Uneven ground can cause the pool to deform or collapse.
- Clear the area of any sharp objects, rocks, or debris that could puncture the pool liner.
- Consider placing a ground cloth or old yoga mats beneath the pool for added cushioning and protection against punctures.
2.2 Pool Assembly
The Easy Set pool is designed for straightforward assembly, primarily involving inflating the top ring and filling with water.
- Lay Out Pool: Spread the pool liner on the prepared, level ground. Allow it to warm in the sun for easier handling.
- Inflate Top Ring: Inflate the top ring using an air pump (not included). Ensure it is firm but not over-inflated.
- Fill with Water: Begin filling the pool with water. As the water level rises, the pool walls will expand and take shape. Smooth out any wrinkles in the bottom liner as the first few inches of water fill.
Figure 2: Visual guide for the three main setup steps.
Important Note: It is essential to continuously monitor the pool as it fills to ensure the walls are rising evenly and the liner is properly positioned. Do not simply turn on the hose and walk away.
3. Operating the Filter Pump
The included Krystal Clear Cartridge Filter Pump is vital for maintaining clean and clear pool water. It features HydroAeration Technology to enhance water quality.
3.1 Connecting the Pump
- Connect the pump hoses to the designated inlet and outlet fittings on the pool wall. Ensure all connections are secure to prevent leaks.
- Place the filter pump on a stable, level surface near the pool, ensuring it is within reach of a grounded electrical outlet.

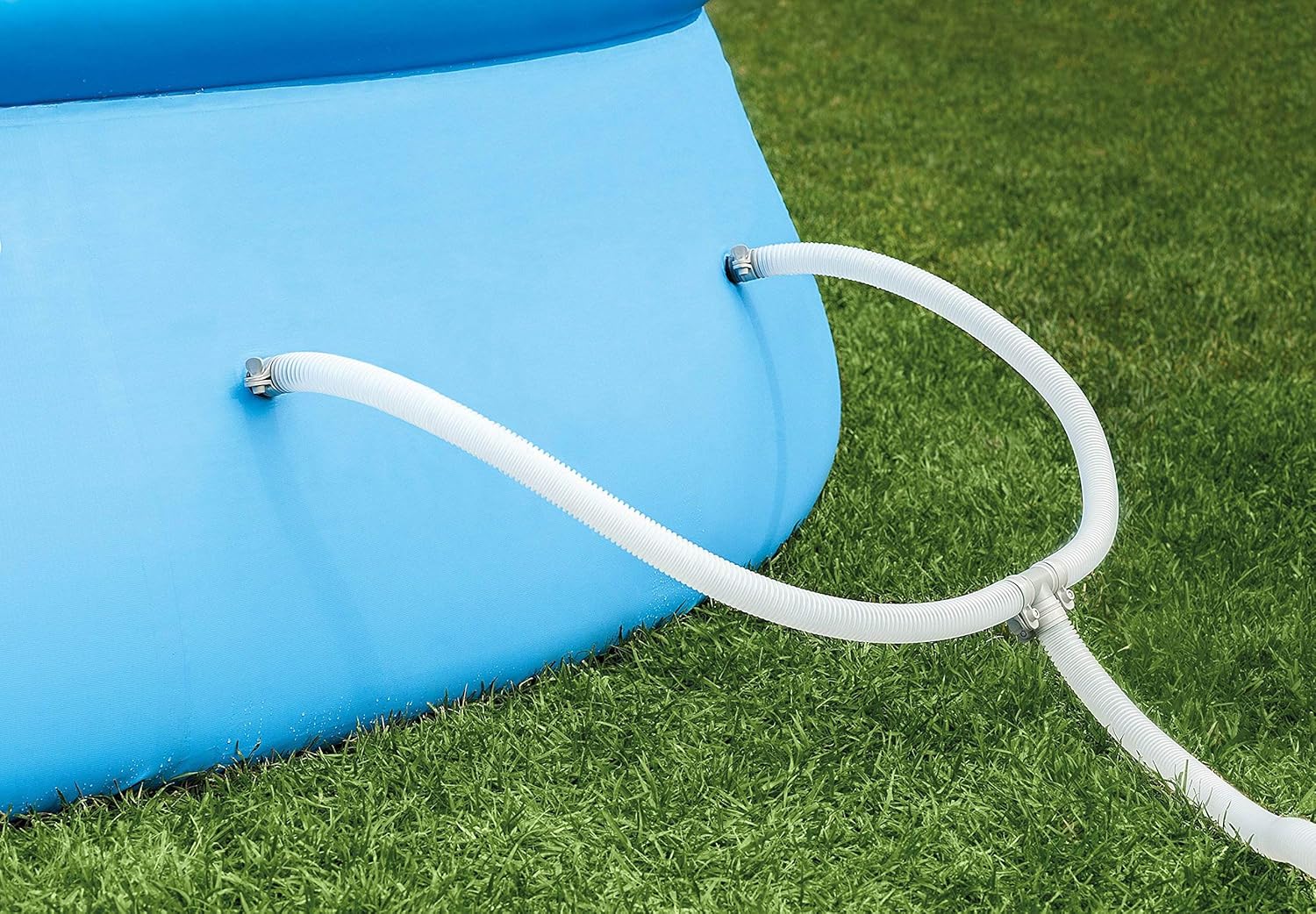

Figure 3: Proper connection of the filter pump to the pool.
3.2 HydroAeration Technology
This technology injects air into the water, accelerating circulation and joining fine particles into larger clusters that can be filtered more effectively. This process also removes minerals through oxidation for ultimate water clarity and increases negative ions for improved air quality around the pool.
Figure 4: The Krystal Clear Cartridge Filter Pump C530, highlighting HydroAeration Technology.
4. Maintenance
Regular maintenance is essential to keep your pool water clean and safe for use.
4.1 Filter Pump Maintenance
- The filter pump requires daily operation for 2-10 hour cycles, depending on usage and water conditions.
- Regularly clean or replace the filter cartridge to ensure optimal filtration. A dirty filter will reduce pump efficiency.
4.2 Water Chemistry
- Test pool water regularly for pH and chlorine levels. Adjust as necessary using appropriate pool chemicals (e.g., shock, chlorine tablets, algaecide).
- Proper chemical balance prevents algae growth and keeps water clear.
4.3 Pool Cover Usage
Use the included vinyl pool cover when the pool is not in use to prevent debris from entering the water and reduce evaporation.
- The cover features drainage holes to prevent water accumulation on top.
- Utilize the tightening rope for a secure fit, especially during windy conditions.
5. Troubleshooting
Addressing common issues promptly can extend the life of your pool.
5.1 Water Leaks
- Initial Filling: Small amounts of moisture around the base during initial filling may be condensation. Monitor closely to distinguish from actual leaks.
- Punctures: The 3-ply PVC material is puncture-resistant but not puncture-proof. Inspect the liner for any holes or tears. Use the included repair kit for minor damages.
- Seasonal Storage: Improper storage over winter can lead to damage. Ensure the pool is thoroughly cleaned, dried, and stored in a protected area to prevent material degradation and potential leaks in subsequent seasons.
5.2 Cloudy Water
- Check filter cartridge cleanliness and replace if necessary.
- Verify proper pump operation and run time.
- Test and adjust water chemistry (pH, chlorine). Shock treatment may be required.
6. Specifications
| Attribute | Value |
|---|---|
| Brand | Intex |
| Model | Easy Set 13 Ft x 32 In |
| Shape | Round |
| Product Dimensions | 156"L x 156"W x 33"H (13 ft diameter x 33 in height) |
| Water Depth | 26 inches |
| Capacity | 1926 Gallons (7,290.7 L) |
| Material | 3-ply PVC (liner), Alloy Steel (frame - if applicable, though Easy Set is inflatable ring) |
| Included Components | Filter Pump, Pool Cover |
| Filter Pump Flow Rate | 530 GPH |
| Assembly Required | No (referring to complex frame assembly, but setup is required) |
| UPC | 078257397303 |
Figure 5: Visual representation of pool dimensions and capacity.
7. Warranty and Support
For warranty information, product support, or to order replacement parts, please refer to the documentation included with your product or visit the official Intex website. Do not return the product to the store without first contacting customer service.
Customer Service: 1-800-234-6839 (USA & CAN Only)
Website: www.intexcorp.com
8. Safety Information
Disclaimer: Always review your Homeowners Association (HOA) rules and restrictions before purchasing and setting up this product. Not all housing agencies permit private above-ground pools.
Adult Supervision: Constant adult supervision is required for children using the pool. Never leave children unattended in or near the pool.
No Diving: This pool is not designed for diving or jumping. Serious injury can result from diving into shallow water.
