1. Introduction
Thank you for choosing the Cornat Aspio Hand Shower Head. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new shower head. Please read these instructions carefully before use and retain them for future reference.
2. Product Overview
The Cornat Aspio hand shower head (Model TECB3405) is designed to enhance your daily showering experience with its combination of comfort, design, and functionality. It features a chrome finish and offers five distinct spray types, along with an integrated water-saving function and anti-limescale nozzles for easy maintenance.
Figure 2.1: Overview of the Cornat Aspio Hand Shower Head.
3. Specifications
| Feature | Detail |
|---|---|
| Model Number | TECB3405 |
| Head Diameter | 97.5 mm |
| Connection Thread | 1/2 inch |
| Number of Spray Types | 5 |
| Flow Rate (without water-saving insert) | 10.1 l/min (at 3 bar) |
| Flow Rate (with water-saving insert) | 5.5 l/min (at 3 bar) |
| Water Saving Potential | Up to 45% |
| Material | Chromed |
| Color | Chrome |
| Included Components | Hand shower, Water-saving insert |

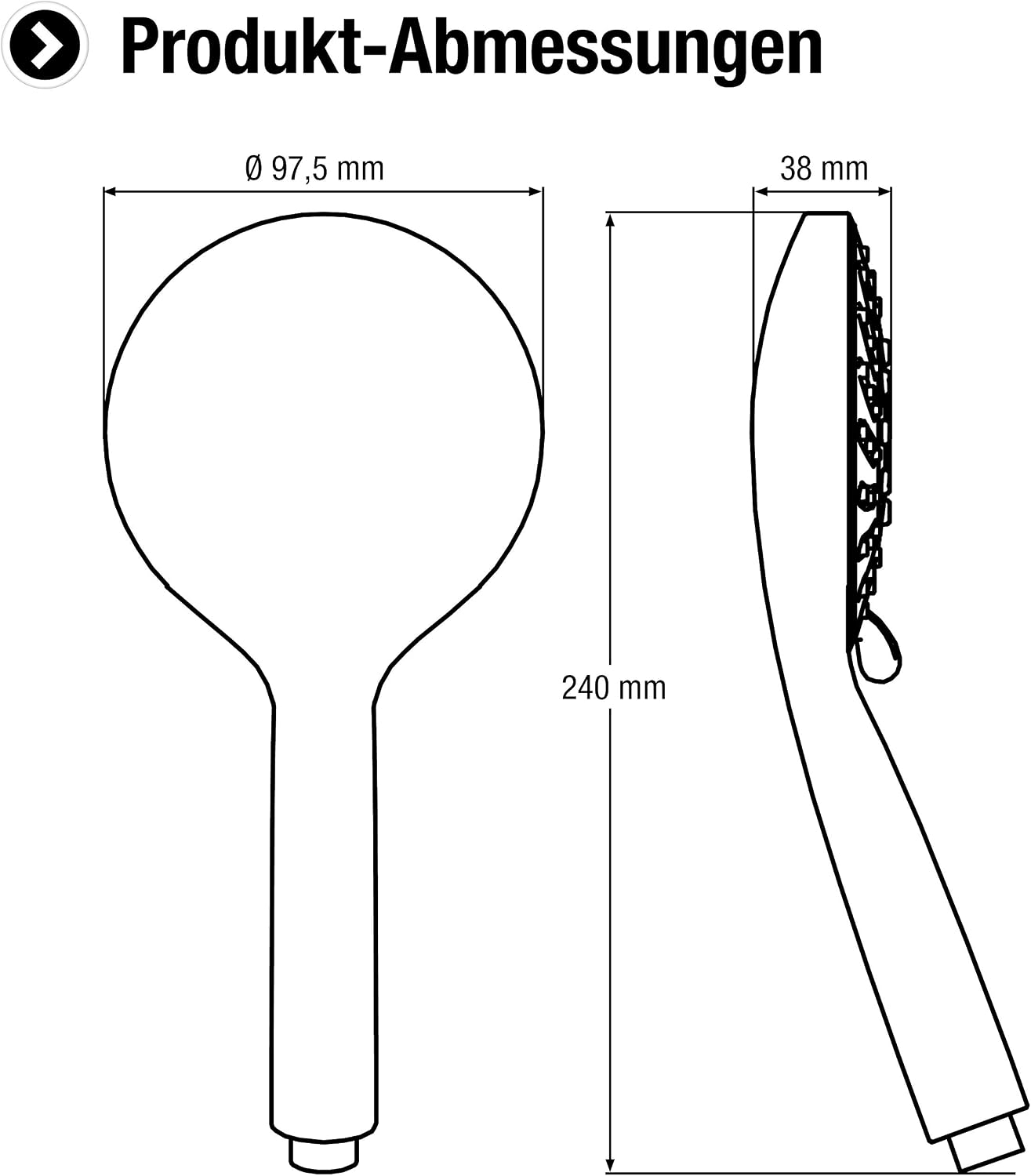

Figure 3.1: Detailed product dimensions of the Cornat Aspio Hand Shower Head. The head diameter is 97.5 mm, and the total length is 240 mm. The thickness is 38 mm.
4. Setup and Installation
The Cornat Aspio Hand Shower Head is designed for easy installation on all standard shower hoses. No special tools are typically required.
4.1. Before Installation
- Ensure your existing shower hose has a standard 1/2 inch connection thread.
- Turn off the water supply to your shower or bathtub before beginning installation.
4.2. Installation Steps
- Unscrew your old shower head from the shower hose by turning it counter-clockwise.
- Ensure the rubber washer (gasket) is correctly seated in the connection of the new Cornat Aspio shower head. This prevents leaks.
- Screw the new Cornat Aspio shower head onto the shower hose by turning it clockwise until it is hand-tight. Do not overtighten, as this can damage the threads or washer.
- Turn on the water supply and check for any leaks. If leaks occur, gently tighten the connection further or re-seat the rubber washer.
5. Operating Instructions
Your Cornat Aspio Hand Shower Head offers 5 adjustable spray types for a personalized showering experience. To change the spray type, rotate the spray plate on the shower head.
5.1. Spray Types
- Normal Spray: Provides a consistent and even water flow for everyday showering.
- Soft Spray: An air-enriched, gentle spray for a noticeably soft and delicate water sensation.
- Massage Spray: A powerful, concentrated water jet designed to promote physical regeneration and relaxation.
- Additional spray types are combinations or variations of the above, accessible by rotating the spray plate.
Figure 5.1: Visual representation of the various spray patterns available on the shower head.
5.2. Water-Saving Function
The included water-saving insert can be installed to reduce water consumption by up to 45% without significantly compromising comfort. To install the insert, unscrew the shower head from the hose, place the insert into the shower head's connection point (before the rubber washer), and then reattach the shower head to the hose.
Figure 5.2: Bar chart illustrating water flow rates with and without the water-saving insert. Without the insert, flow is 10.1 l/min; with the insert, it is 5.5 l/min, demonstrating a 45% reduction.
6. Maintenance and Cleaning
Regular cleaning will ensure the longevity and optimal performance of your shower head.
6.1. Anti-Limescale Cleaning
The Cornat Aspio features anti-limescale silicone nozzles. To remove limescale deposits, simply rub the nozzles with your fingers. This should be done regularly, especially in areas with hard water, to maintain a consistent spray pattern.
Figure 6.1: Close-up view of the anti-limescale silicone nozzles, designed for easy cleaning.
6.2. General Cleaning
- Clean the chrome surface with a soft cloth and a mild, non-abrasive cleaning agent.
- Avoid using harsh chemicals, abrasive sponges, or cleaners containing acids or chlorine, as these can damage the chrome finish.
- Rinse thoroughly with clean water after cleaning and dry with a soft cloth to prevent water spots.
7. Troubleshooting
If you encounter issues with your Cornat Aspio Hand Shower Head, refer to the following common problems and solutions:
- Low Water Pressure:
- Check if the anti-limescale nozzles are clogged. Clean them as described in Section 6.1.
- Ensure the water-saving insert is not causing excessive restriction if you prefer higher flow.
- Verify that your main water supply pressure is adequate.
- Leaking at Connection:
- Ensure the shower head is securely tightened to the hose (hand-tight only).
- Check that the rubber washer (gasket) is properly seated and not damaged. Replace if necessary.
- Uneven Spray Pattern:
- Clean the anti-limescale nozzles thoroughly to remove any blockages.
If the problem persists after attempting these solutions, please contact Cornat customer support or your retailer for further assistance.
8. Warranty and Support
For warranty information and customer support, please refer to the documentation provided with your purchase or visit the official Cornat website. Keep your proof of purchase for any warranty claims.
For direct inquiries, you may contact Cornat customer service through their official channels.
