1. Introduction
This manual provides instructions for the installation, operation, and maintenance of your GROHE Minta Single-Lever Kitchen Sink Mixer with Pull-Out Spray, Model 32321002. This kitchen mixer features a high C-shaped spout, 360° swivel range, a pull-out comfort shower head with two spray options, GROHE EasyDock system, SpeedClean silicone nozzles, and a GROHE SilkMove ceramic cartridge for precise control. The lustrous GROHE StarLight chrome finish ensures durability and easy cleaning.
Image 1.1: Front view of the GROHE Minta kitchen faucet in chrome finish.
2. Safety Information
Please read all instructions carefully before installation and use. Retain this manual for future reference.
- Ensure all water supply lines are turned off before beginning installation.
- If you are unsure about any part of the installation process, consult a qualified plumber.
- Do not use abrasive cleaners or harsh chemicals on the faucet finish, as this may damage the chrome.
- Check for leaks after installation and periodically thereafter.
3. Package Contents
Verify that all components are present before beginning installation. Refer to the diagram below for identification.

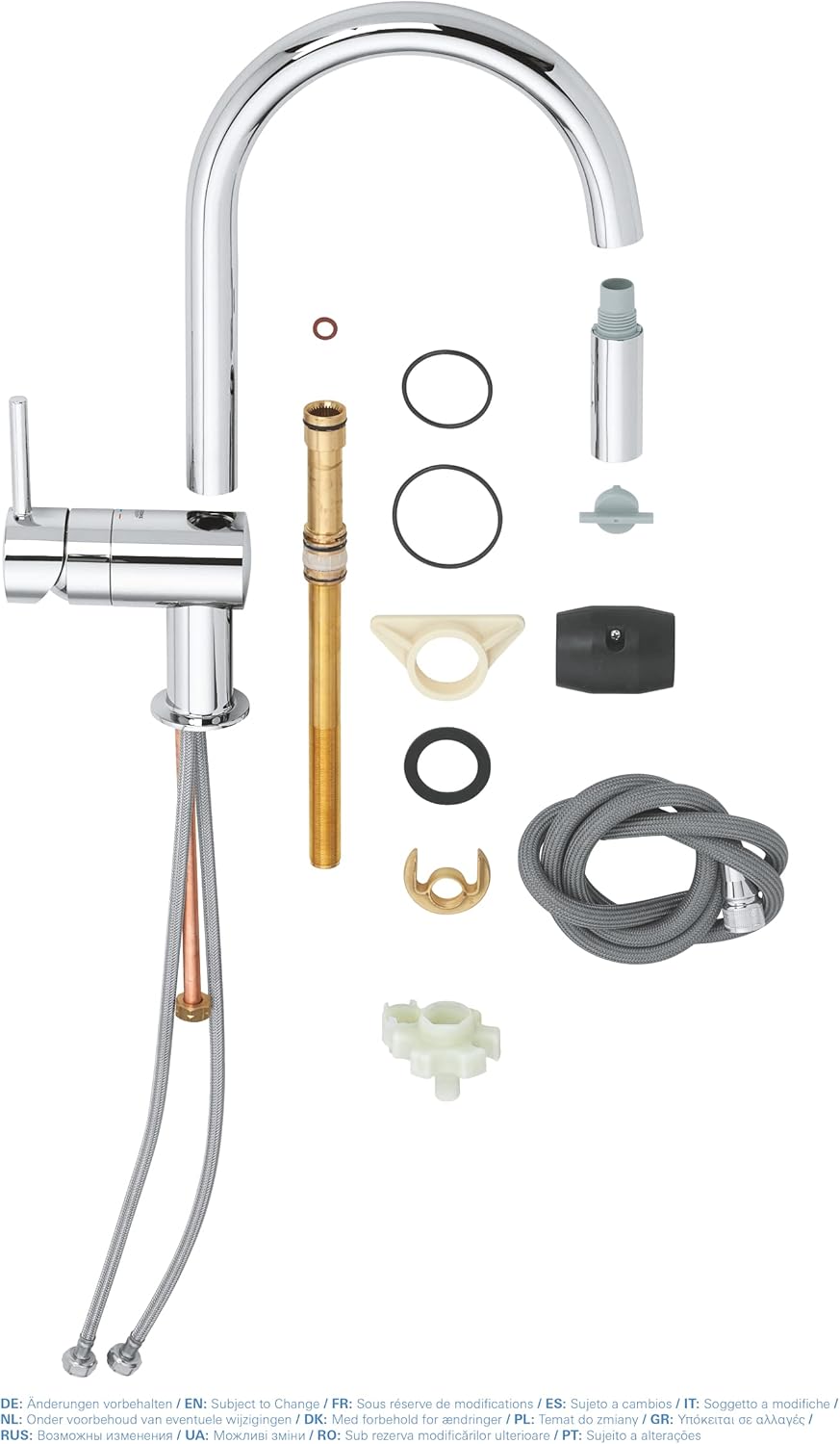

Image 3.1: Exploded view showing all components included in the GROHE Minta faucet package.
- Single-lever kitchen mixer body
- Pull-out spray head
- Flexible connection hoses
- Mounting hardware (washers, nuts, counterweight)
- Seals and O-rings
- Installation instructions
4. Installation Instructions
The GROHE Minta faucet features an Easy Installation System with flexible connection hoses for quick and hassle-free fitting. A single hole installation is required.
4.1. Preparation
- Turn off the main water supply to your kitchen sink.
- Remove your old faucet, if applicable. Clean the sink area thoroughly.
- Ensure the mounting hole on your sink or countertop is compatible (minimum Ø34mm).
4.2. Faucet Mounting
- Insert the flexible connection hoses and the threaded rod into the faucet body.
- Place the faucet base seal onto the bottom of the faucet.
- Insert the faucet into the mounting hole on the sink/countertop.
- From underneath the sink, slide the rubber washer, metal washer, and mounting nut onto the threaded rod. Tighten the nut securely using the provided tool, ensuring the faucet is aligned correctly.
4.3. Water Connections
- Connect the hot and cold flexible hoses to the corresponding water supply valves. Ensure a tight seal.
- Attach the pull-out spray hose to the designated connection point on the faucet body.
- Install the counterweight onto the pull-out spray hose, ensuring it allows for smooth retraction and extension of the spray head.
4.4. Final Steps
- Slowly turn on the main water supply.
- Check all connections for leaks.
- Remove the spray head and flush the lines for a few minutes to clear any debris before reattaching the spray head.
Image 4.1: Technical drawing illustrating key dimensions and installation points for the GROHE Minta faucet.
5. Operation
Your GROHE Minta faucet is designed for intuitive and efficient use.
5.1. Water Flow and Temperature Control
- The single-lever handle controls both water flow and temperature.
- Lift the handle to increase water flow.
- Move the handle left for hot water and right for cold water.
- The GROHE SilkMove ceramic cartridge ensures smooth and precise control.
5.2. Pull-Out Spray Head
- Gently pull the spray head from the spout to extend it.
- The spray head offers two spray options: a powerful jet and a fine spray. Press the button on the spray head to switch between these modes.
- After use, the GROHE EasyDock system ensures the spray head retracts smoothly and effortlessly back into the spout.
5.3. Swivel Spout
- The high C-shaped spout has a 360° swivel range, allowing for flexible use across single or double sinks.

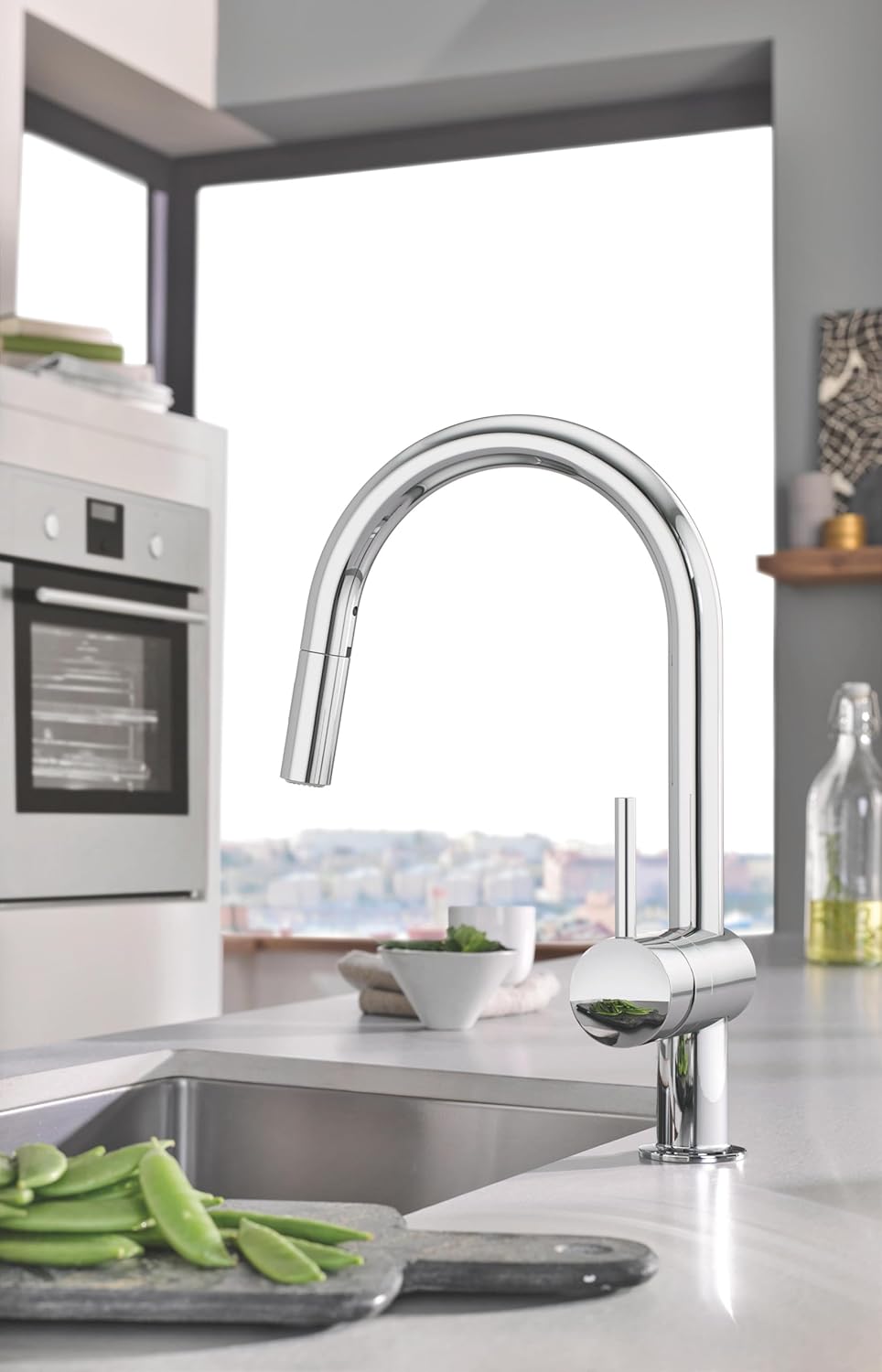

Image 5.1: The GROHE Minta faucet installed in a kitchen, demonstrating its high spout and design.
6. Maintenance and Care
Proper care will ensure the longevity and appearance of your GROHE Minta faucet.
6.1. Cleaning the Finish
- The GROHE StarLight chrome finish is designed for easy maintenance.
- Simply wipe the faucet down with a soft, dry cloth after each use to prevent water spots and maintain its luster.
- For deeper cleaning, use a mild soap solution and a soft cloth. Rinse thoroughly and dry immediately.
- Do not use abrasive cleaners, scouring pads, ammonia-based cleaners, or any harsh chemicals, as these can damage the chrome finish.
6.2. SpeedClean Nozzles
- The pull-out spray head features SpeedClean silicone nozzles.
- To remove limescale build-up, simply wipe the silicone nozzles with your finger or a soft cloth. This flexible material allows for easy removal of mineral deposits.
7. Troubleshooting
If you encounter issues with your faucet, refer to the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Low water flow | Partially closed supply valves; clogged aerator/spray nozzles; debris in water lines. | Ensure supply valves are fully open. Clean spray head nozzles (SpeedClean). Flush water lines. |
| Leaks at connections | Loose connections; damaged seals. | Tighten connections. Inspect and replace seals if damaged. |
| Spray head does not retract fully | Counterweight improperly positioned; hose obstructed. | Adjust counterweight position. Check for obstructions under the sink that might impede hose movement. |
| Difficulty changing spray patterns | Limescale build-up in spray head. | Clean SpeedClean nozzles by wiping them. |
If the problem persists after attempting these solutions, please contact GROHE customer support or a qualified plumber.
8. Specifications
Key technical details for the GROHE Minta Single-Lever Kitchen Sink Mixer (Model 32321002):
| Feature | Detail |
|---|---|
| Brand | GROHE |
| Model Name | Minta |
| Model Number | 32321002 |
| Mounting Type | Deck Mount |
| Installation Type | Single Hole |
| Finish Type | Chrome (StarLight) |
| Material | Metal / Ceramic (Cartridge) |
| Number of Handles | 1 (Single-Lever) |
| Special Feature | Pull Out Sprayer, 2 Spray Options, 360° Swivel Spout, EasyDock, SpeedClean |
| Cartridge Type | GROHE SilkMove Ceramic Cartridge (46mm) |
| Spout Height | 185 mm |
| Hose Length | 445 mm (Pull-out hose) |
| Maximum Flow Rate | 9 Liters Per Minute |
| Product Dimensions | 3.35"D x 8.27"W x 22.05"H (approx.) |
| Item Weight | 2.2 pounds (approx.) |
Image 8.1: The GROHE Minta faucet positioned between two sinks, highlighting its versatility.
9. Warranty and Support
The GROHE Minta Single-Lever Kitchen Sink Mixer (Model 32321002) is backed by a 5-year manufacturer's warranty.
For warranty claims, technical assistance, or further product information, please visit the official GROHE website or contact their customer support directly. You can also find more information on the GROHE Store on Amazon.
