Pica 55010 Master-Set Carpenter's Marking Tools Instruction Manual

Introduction

This instruction manual provides essential information for the proper use, maintenance, and care of your Pica 55010 Master-Set Carpenter's Marking Tools. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.

Product Overview

The Pica 55010 Master-Set is a comprehensive collection of professional marking tools designed for carpenters and craftsmen. It includes various pencils and markers suitable for precise marking on a wide range of materials such as wood, metal, ceramic, glass, and plastic.

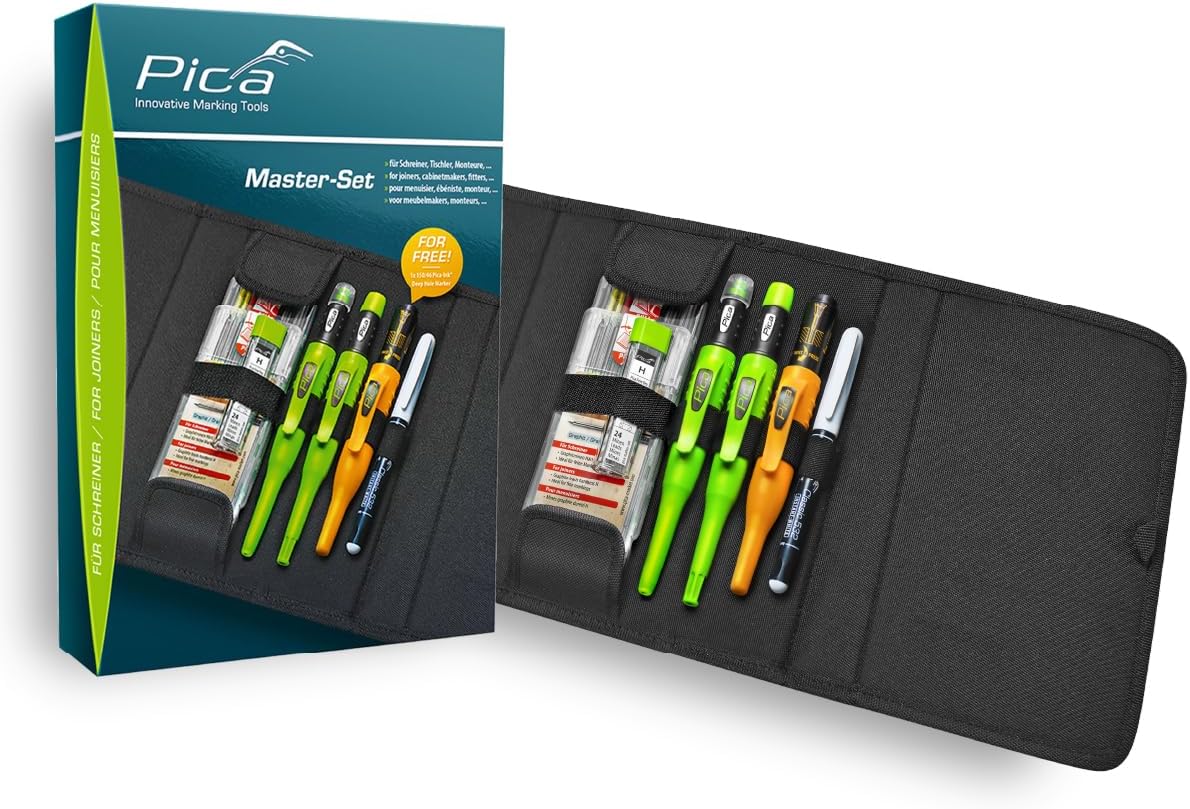

Image: The Pica 55010 Master-Set, showcasing the product packaging and the tools neatly arranged in their storage bag.

Included Components

Your Pica 55010 Master-Set includes the following items:

• 1 x Storage Bag: A durable bag for organizing and protecting your marking tools.
• 2 x Pica-Dry Longlife Automatic Pencils (Model 3030): Versatile mechanical pencils for various surfaces.
• 1 x Pica-Dry Graphite Refills H (Model 4050): Hard graphite leads for fine and precise marking, ideal for woodworking.
• 1 x Pica-Dry Multi-Use Refills (Model 4020): Water-soluble leads suitable for smooth surfaces, easily wipeable.
• 1 x Pica-Ink Deep Hole Marker (Model 150/46): Designed for marking in deep or hard-to-reach areas.
• 1 x Pica Classic Permanent Marker (Model 532/52): For permanent marking on most surfaces.
• 1 x Product Flyer: Additional informational leaflet.

Image: A close-up view of the Pica-Dry Longlife Automatic Pencils and the various refill packs (Graphite H and Multi-Use) included in the set.

Image: The Pica Master-Set tools, including pencils, markers, and refills, organized within the open storage bag.

Setup

Pica-Dry Longlife Automatic Pencil (Model 3030)

1. Loading Leads:
   • Unscrew the cap at the top of the pencil.
   • Insert a Pica-Dry refill lead (Graphite 4050 or Multi-Use 4020) into the opening.
   • Screw the cap back on securely.
2. Using the Integrated Sharpener:
   • The cap of the Pica-Dry pencil features an integrated sharpener.
   • To sharpen the lead, remove the cap, insert the lead into the sharpening hole, and gently twist the pencil.
   • Ensure the lead is extended slightly before sharpening for best results.

Pica-Ink Deep Hole Marker (Model 150/46) & Pica Classic Permanent Marker (Model 532/52)

These markers are ready for use. Simply remove the cap to begin marking. Always replace the cap securely after use to prevent drying out.

Operating Instructions

Pica-Dry Longlife Automatic Pencil (Model 3030)

• Lead Extension: Press the button at the top of the pencil to extend the lead. Release to lock the lead in place.
• Marking Surfaces:
  • Graphite Leads (4050): Ideal for dry surfaces like wood, concrete, stone, and paper. Provides clear, precise lines.
  • Multi-Use Leads (4020): Suitable for smooth, glossy surfaces such as metal, ceramic, glass, and plastic. Marks can be wiped clean with a damp cloth from non-porous surfaces.
• Precision Marking: Use the extended, sharpened lead for accurate marking in tight spaces or for fine lines.

Pica-Ink Deep Hole Marker (Model 150/46)

• Deep Hole Access: The extended, fine tip allows marking through drill holes or in recessed areas where standard markers cannot reach.
• Application: Press the tip firmly onto the surface to initiate ink flow. Suitable for various materials.

Pica Classic Permanent Marker (Model 532/52)

• Permanent Marking: Provides durable, permanent marks on most surfaces.
• Quick Drying: The ink is designed to dry quickly to prevent smudging.

Maintenance

• Refill Replacement (Pica-Dry): When the lead is too short or depleted, follow the "Loading Leads" steps in the Setup section to replace it.
• Cleaning:
  • For Pica-Dry Multi-Use leads, marks on non-porous surfaces can be wiped clean with a damp cloth.
  • For Pica-Ink and Pica Classic markers, avoid cleaning the tips with solvents as this may damage them. If the tip becomes clogged, gently press it on a scrap piece of material to encourage ink flow.
• Storage:
  • Always replace caps securely on all markers and pencils after use to prevent drying out and lead breakage.
  • Store the entire set in the provided storage bag to protect the tools from dust, dirt, and damage.
  • Avoid storing in direct sunlight or extreme temperatures, which can affect lead and ink performance.

Troubleshooting

• Lead Breaks Frequently (Pica-Dry):
  • Ensure the lead is not extended too far when marking.
  • Apply gentle pressure.
  • Check if the lead is properly seated in the mechanism.
• Faint Marks or No Ink Flow (Markers):
  • Ensure the cap was securely replaced after previous use.
  • Gently press the tip onto a scrap surface for a few seconds to re-prime the ink flow.
  • If the marker is old or has been left uncapped, it may have dried out and require replacement.
• Marks Not Wiping Clean (Pica-Dry Multi-Use):
  • Ensure the surface is non-porous. Multi-Use leads are not designed to be easily removed from porous materials like unfinished wood.
  • Use a damp cloth, not a dry one.

Specifications

Image: An aerial view of the Pica Germany manufacturing facility, highlighting the origin of the product.

Warranty Information

This Pica product is covered by a Manufacturer Guarantee. For specific details regarding the terms and conditions of your warranty, please refer to the product flyer included in your set or visit the official Pica website.

Support & Contact

For further assistance, technical support, or inquiries regarding your Pica 55010 Master-Set, please contact Pica customer service through their official website or the contact information provided in the product flyer.
