Introduction
This manual provides instructions for the safe installation, operation, and maintenance of your Kichler 338629MWH Arkwet Climates 1-Light LED Kit. This integrated LED light kit is designed for use with compatible ceiling fans, featuring a matte white finish and an etched cased opal glass shade. It is rated for wet locations, making it suitable for various indoor and outdoor environments.

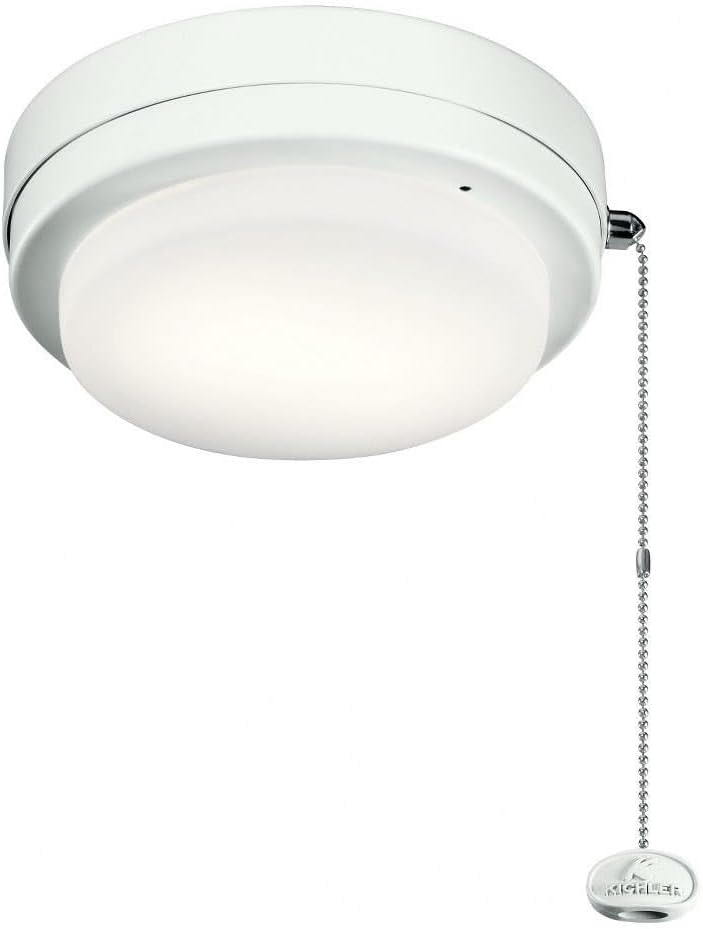

Figure 1: Kichler 338629MWH Arkwet Climates LED Light Kit. This image shows the matte white light kit with its etched cased opal glass shade and a visible pull chain for operation.
Safety Information
Read all instructions carefully before beginning installation. Failure to do so may result in electric shock, fire, or other injuries. Keep this manual for future reference.
- Electrical Safety: Always disconnect power at the main circuit breaker or fuse box before installation or servicing. Ensure all electrical connections comply with local codes and ordinances. If you are unsure about wiring, consult a qualified electrician.
- Product Rating: This fixture is UL, CUL, and CSA rated for wet locations. Ensure the installation environment is appropriate for this rating.
- Non-Dimmable: This integrated LED fixture is not capable of being dimmed. Do not connect to a dimmer switch, as this may damage the unit.
- Secure Mounting: Ensure the light kit is securely attached to the ceiling fan according to the fan's instructions and local building codes.
- Legal Disclaimer: Please check your local laws before purchasing and installing this product.
Package Contents
Verify that all components are present before beginning installation. If any parts are missing or damaged, do not attempt to install the product. Contact Kichler customer service for assistance.
- Kichler 338629MWH Arkwet Climates LED Light Kit (Integrated LED fixture with etched cased opal glass shade)
- Installation Hardware (typically included with ceiling fan or light kit for attachment)
- Instruction Manual
Setup and Installation
Professional installation is recommended for electrical products. Ensure power is OFF at the circuit breaker before proceeding.
- Prepare the Ceiling Fan: Ensure the ceiling fan is securely mounted and all power is disconnected. Refer to your ceiling fan's instruction manual for specific light kit attachment points and wiring.
- Connect Wiring: Carefully connect the electrical wires from the light kit to the corresponding wires in the ceiling fan. Typically, this involves connecting the black wire from the light kit to the black (hot) wire from the fan, the white wire from the light kit to the white (neutral) wire from the fan, and the ground wire to the ground wire. Use UL-listed wire connectors.
- Attach Light Kit: Secure the light kit to the ceiling fan housing using the provided screws or mounting hardware. Ensure it is firmly attached and there are no loose connections.
- Install Glass Shade: Carefully attach the etched cased opal glass shade to the light kit housing. Ensure it is seated properly and secured according to the design of the fixture.
- Restore Power: Once installation is complete and all connections are secure, restore power at the main circuit breaker.
Operating Instructions
The Kichler 338629MWH Arkwet Climates LED Light Kit is designed for simple operation.
- Power On/Off: The light kit is typically operated via a pull chain located on the fixture or a wall switch connected to the ceiling fan's light circuit.
- Pull Chain: Gently pull the chain to cycle the light on and off.
- Wall Switch: If wired to a wall switch, use the switch to control the light.
- Non-Dimmable: As an integrated LED fixture, it is not dimmable. It will operate at full brightness when turned on.
Maintenance
Proper care ensures the longevity and appearance of your light kit. Always disconnect power before cleaning.
- Cleaning: To clean the fixture, wipe with a soft, dry or slightly damp cloth. Do not use abrasive cleaners, solvents, or polishes as they may damage the finish or electrical components.
- Integrated LED: The LED light source is integrated and not user-replaceable. If the LED fails, the entire light kit may need to be replaced. Contact Kichler support for warranty information.
- Glass Shade: The etched cased opal glass shade can be removed for cleaning if necessary. Wash with mild soap and water, rinse thoroughly, and dry completely before reattaching.
Troubleshooting
If your light kit is not functioning correctly, refer to the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power to the fixture. Loose wire connection. Integrated LED failure. | Check circuit breaker and wall switch. Ensure all wire connections are secure (with power off). Contact Kichler support if LED failure is suspected. |
| Light flickers. | Loose wire connection. Incompatible dimmer switch (if mistakenly installed). | Check all wire connections (with power off). Ensure the light kit is not connected to a dimmer switch. |
| Light is dim. | Not designed for dimming. | This fixture is not dimmable and operates at full brightness. If it appears dim, check power supply. |
If troubleshooting steps do not resolve the issue, contact Kichler customer support.
Specifications
| Brand | Kichler |
| Model Number | 338629MWH |
| Collection | Arkwet Climates |
| Color | Matte White |
| Material | Aluminum, Glass (Shade) |
| Light Source Type | Integrated LED |
| Wattage | 17 Watts |
| Lumens | 1600 Lumens |
| Color Temperature | 3000K |
| Color Rendering Index (CRI) | 80 CRI |
| Voltage | 120 Volts |
| Dimensions (Product) | 7.5" W x 3.25" H |
| Product Weight | 2.33 Pounds |
| Fixture Type | Non-Removable (Integrated LED) |
| Controller Type | Push Button (or Pull Chain) |
| Environmental Rating | UL, CUL, CSA Listed for Wet Locations |
Warranty
This Kichler product comes with a Limited Warranty. For specific details regarding warranty coverage, terms, and conditions, please refer to the warranty documentation included with your purchase or visit the official Kichler website. Keep your proof of purchase for warranty claims.
Support
For technical assistance, replacement parts, or further information, please contact Kichler customer service or visit their official website.
