Foseal Portable Air Compressor Pump User Manual

1. Introduction

Thank you for choosing the Foseal Portable Air Compressor Pump. This device is designed for convenient and efficient inflation of various items, including car tires, motorcycle tires, bicycle tires, sports balls, and other inflatables. Featuring a 12V DC power input, digital pressure display, and auto shut-off function, it provides reliable performance for your inflation needs. Please read this manual thoroughly before operation to ensure safe and correct usage.

The Foseal Portable Air Compressor Pump is versatile, suitable for inflating car tires, air cushions, kayaks, bicycles, and various types of balls.

2. Safety Information

• This device operates on 12V DC power only. Do not connect to other power sources.
• Do not leave the inflator unattended during operation.
• Allow the device to cool down after 10-15 minutes of continuous use to prevent overheating.
• Keep out of reach of children.
• Ensure the tire valve is clean and free of debris before attaching the air hose.
• Always check the recommended pressure for the item being inflated to avoid over-inflation.
• Do not use the inflator if the power cord or air hose is damaged.
• This product is not intended for use with large truck tires (LT, HT) or heavy-duty vehicles.

3. Package Contents

The Foseal Portable Air Compressor Pump package includes the following items:

• Foseal Portable Air Compressor Pump
• 12V DC Power Cable (approximately 11 feet long)
• Air Hose with Quick Snap-On Connector
• Multiple Nozzle Adapters (for bicycles, balls, etc.)
• Spare Fuse
• Storage Bag
• User Manual (this document)

The package includes the Foseal air compressor, various nozzle adapters, a spare fuse, and a convenient carrying bag.

4. Product Overview

Familiarize yourself with the components of your Foseal Portable Air Compressor Pump:

Key components of the Foseal Portable Air Compressor Pump include the handle, power switch, unit switch button, pressure valve, 12V lighter plug, backlight digital display, and pressure adjustment buttons.

• Handle: For easy carrying and portability.
• Power Switch: Turns the compressor on/off.
• Unit Switch Button (R): Cycles through pressure units (PSI, BAR, KPA, KG/CM²).
• Pressure Value Adjustment Buttons (+/-): Used to set the desired target pressure.
• Backlight Digital Display: Shows current and target pressure readings.
• Press Valve: Connects to the item being inflated.
• 12V Lighter Plug: Connects to your vehicle's 12V DC power outlet.
• LED Light: Provides illumination for night use (located on the front).

5. Specifications

The compact design of the Foseal air compressor, with dimensions of 10.6 inches in height, 2.4 inches in width, and 6.3 inches in depth, features a larger radiator for efficient cooling.

6. Setup

Before using your Foseal Portable Air Compressor Pump, follow these setup steps:

1. Prepare the Vehicle/Item: Park your vehicle on a flat, safe surface. Ensure the engine is running to provide stable power to the 12V outlet. For other inflatables, ensure they are positioned stably.
2. Connect Power: Insert the 12V lighter plug firmly into your vehicle's cigarette lighter socket.
3. Attach Air Hose: Remove the valve cap from the tire or inflatable. Securely screw or snap the air hose's connector onto the valve stem. Ensure a tight seal to prevent air leakage.

The 11-foot long cable allows easy access to all tires, and the quick snap-on connector ensures a secure attachment to the tire valve.

7. Operating Instructions

Follow these steps to inflate your tires or other items:

1. Power On: Once connected to the 12V power source and the valve, press the Power Switch to turn on the compressor. The digital display will illuminate and show the current pressure.
2. Select Unit: Press the 'R' (Unit Switch) button repeatedly to cycle through the available pressure units (PSI, BAR, KPA, KG/CM²) until your desired unit is displayed.
3. Set Target Pressure: Use the '+' and '-' buttons to set your desired target pressure. The display will flash while setting and then show the current pressure again.
4. Start Inflation: Press the Power Switch again to start the inflation process. The compressor will begin to pump air, and the display will show the increasing pressure.
5. Auto Shut-off: The compressor will automatically shut off once the preset target pressure is reached.
6. Disconnect: Turn off the compressor, then quickly detach the air hose connector from the valve stem. Replace the valve cap.
7. Use LED Light: To activate the integrated LED light for night use, press the dedicated light button (if available, often integrated with the power switch or a separate button).

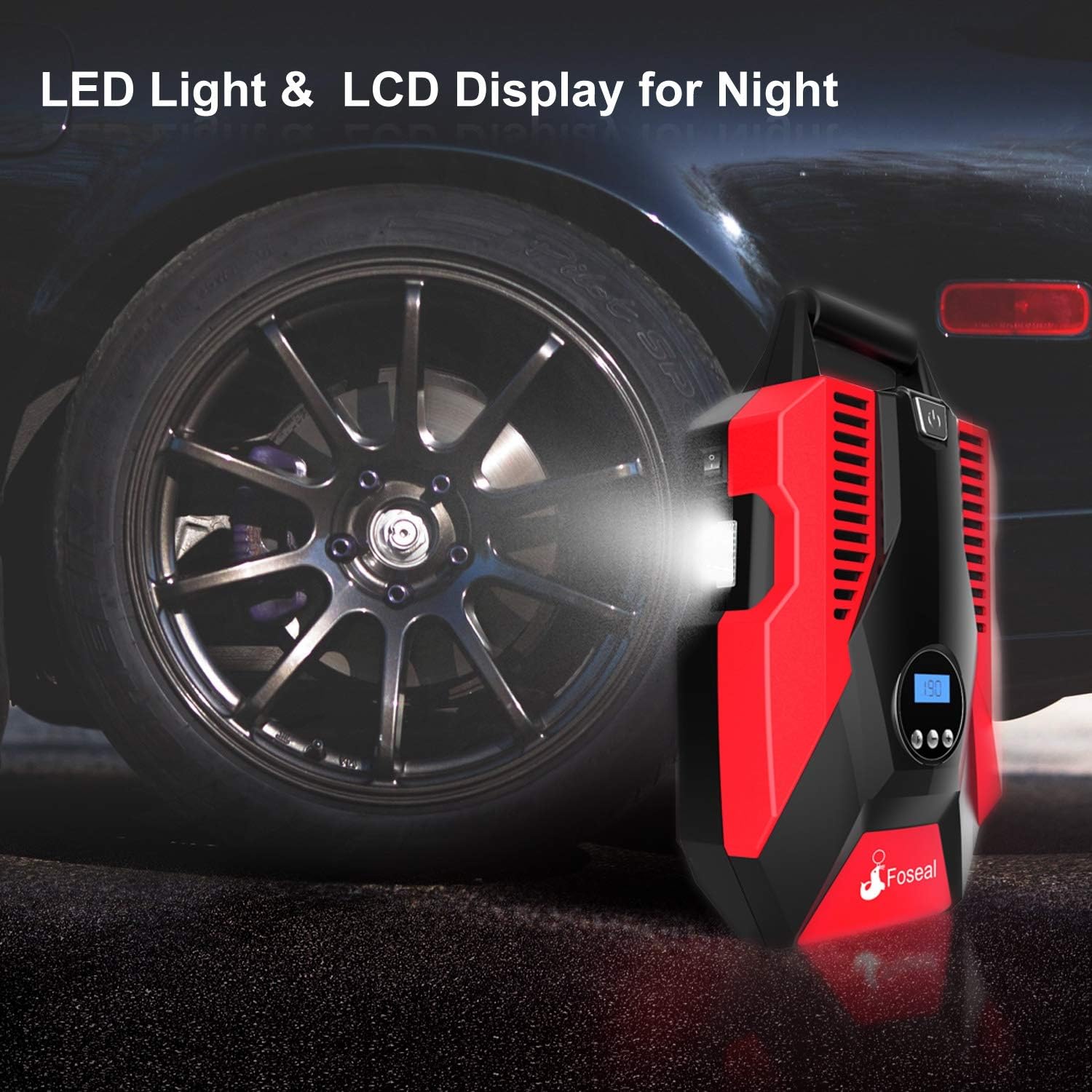

The integrated LED light and backlit LCD display ensure visibility and ease of use even in low-light conditions or at night.

8. Maintenance

Proper maintenance ensures the longevity and optimal performance of your air compressor:

• Cleaning: Wipe the exterior of the compressor with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
• Storage: Store the compressor in its carrying bag in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure the air hose is neatly coiled and not kinked.
• Check Air Hose: Regularly inspect the air hose for any signs of cracks, wear, or damage. A damaged hose can lead to air leaks and reduced efficiency.
• Fuse Replacement: If the compressor stops working, check the fuse located in the 12V lighter plug. Replace it with the provided spare fuse if necessary.
• Cooling: Allow the compressor to cool down completely after each use, especially after prolonged operation, to prevent internal damage.

9. Troubleshooting

If you encounter issues with your Foseal Portable Air Compressor Pump, refer to the following common problems and solutions:

10. Warranty and Support

For warranty information or technical support regarding your Foseal Portable Air Compressor Pump, please refer to the product packaging or contact Foseal customer service directly. Contact details can typically be found on the manufacturer's official website or through your purchase platform.
