Infanti Bambino Portable Co-Sleeper Bassinet with Mosquito Net - User Manual

1. Introduction

Thank you for choosing the Infanti Bambino Portable Co-Sleeper Bassinet. This bassinet is designed to provide a safe and comfortable sleeping environment for your baby, allowing for shared sleep with parents. It features adjustable height, an anti-reflux inclination option, a soft mattress, and a convenient zippered side opening. Please read this manual carefully before assembly and use to ensure proper operation and safety.

Figure 1: Fully assembled Infanti Bambino Portable Co-Sleeper Bassinet.

2. Safety Information

WARNING: Failure to follow these warnings and instructions could result in serious injury or death.

• Always use the bassinet on a firm, horizontal surface.
• Do not use this product if any parts are missing, damaged, or broken. Contact Infanti for replacement parts and instructional literature if needed. Do not substitute parts.
• The bassinet is suitable for infants from 0 to 9 kg (approximately 6 months or until the infant can push up on hands and knees, whichever comes first).
• Never leave an infant unattended in the bassinet.
• Ensure all assembly fasteners are tightened securely before use.
• Keep small parts away from children during assembly.
• Do not place the bassinet near windows where cords from blinds or drapes could strangle a child.
• Do not use additional padding or mattresses inside the bassinet. Use only the mattress provided by the manufacturer.
• When used as a co-sleeper, ensure the bassinet is securely attached to the adult bed using the provided safety straps. There should be no gap between the bassinet and the adult mattress.
• Regularly check the bassinet for signs of wear or damage.

3. Package Contents

Verify that all components are present before beginning assembly:

• 1 x Bassinet Frame and Fabric Assembly
• 1 x Soft Mattress Pad
• 1 x Mosquito Net
• 2 x Safety Straps for Co-Sleeping
• 1 x Transport Bag
• 1 x User Manual (this document)

4. Setup and Assembly

Follow these steps to assemble your Infanti Bambino Bassinet:

1. Unpack Components: Remove all parts from the transport bag and packaging.
2. Unfold Frame: Place the main bassinet frame on a flat surface. Extend the legs until they lock into place.
3. Attach Bassinet Body: Ensure the fabric bassinet body is securely attached to the frame. The zippers should be fully closed.
4. Insert Mattress: Place the soft mattress pad inside the bassinet.
5. Install Mosquito Net: Attach the mosquito net to the designated points on the bassinet frame, ensuring it covers the entire sleeping area.

Figure 2: Bassinet fully assembled and ready for use.

5. Operating Instructions

5.1. Height Adjustment

The bassinet offers 5 height positions to match the height of your adult bed. To adjust the height:

1. Locate the height adjustment buttons on each side of the bassinet frame.
2. Press the buttons simultaneously and slide the bassinet body up or down to the desired height.
3. Ensure both sides are adjusted to the same height and click securely into place.

Figure 3: Adjusting the bassinet height using the side buttons.

Figure 4: Side view illustrating the height adjustment mechanism with numbered positions.

5.2. Anti-Reflux Inclination

For newborns, the bassinet can be inclined to help with reflux. To activate the anti-reflux inclination:

1. Adjust one side of the bassinet to a higher position than the other. For example, set one side to position 3 and the other to position 1.
2. Ensure the difference in height is not excessive and that the bassinet remains stable.

Figure 5: Bassinet in an inclined position for anti-reflux.

5.3. Co-Sleeping Mode

To use the bassinet as a co-sleeper, attached to your adult bed:

1. Adjust the bassinet height to match your adult mattress.
2. Unzip and lower the side panel of the bassinet facing your bed.
3. Position the bassinet flush against your adult bed.
4. Use the provided safety straps to securely attach the bassinet frame to your adult bed frame. Ensure there is no gap between the bassinet and the adult mattress.

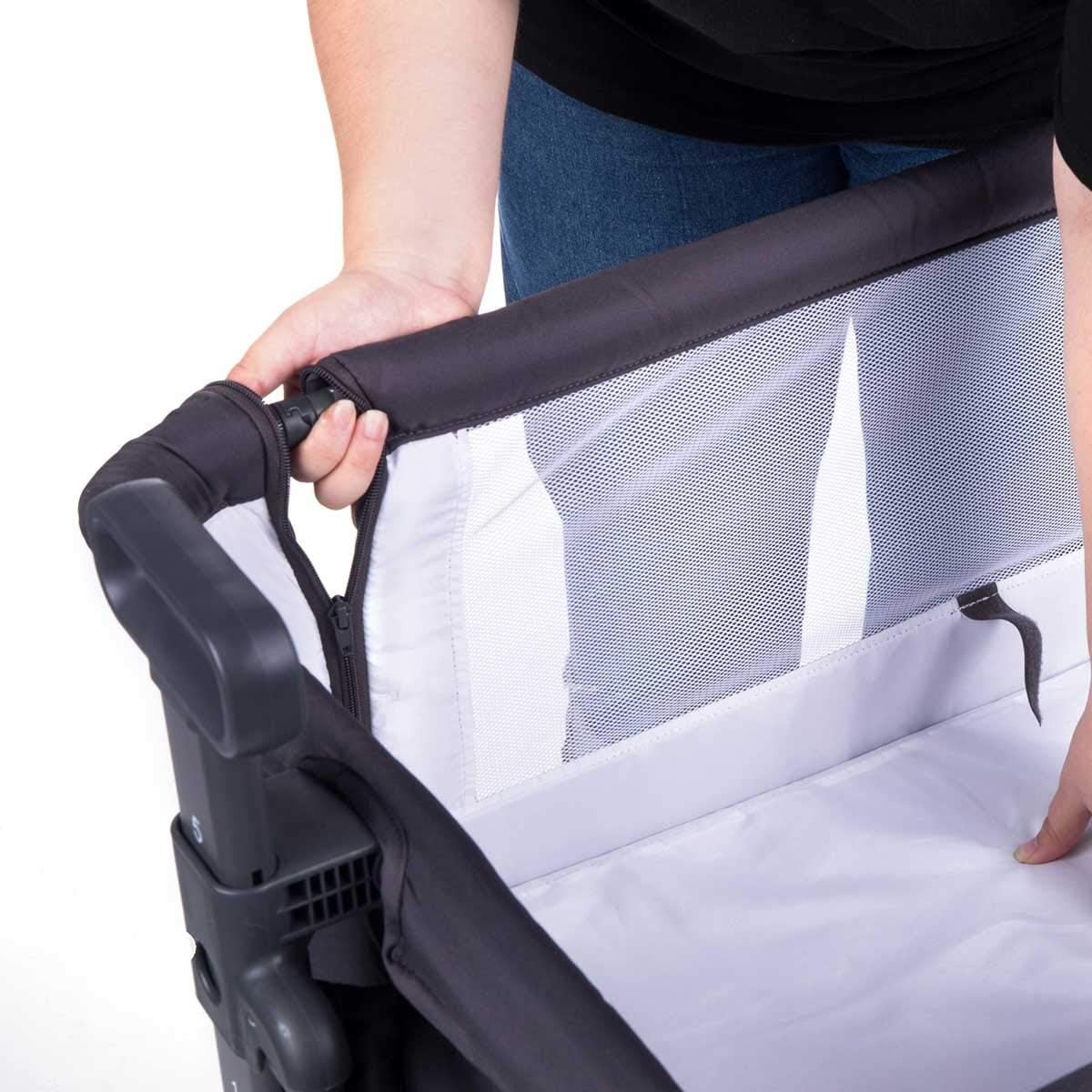

Figure 6: Unzipping the side panel for co-sleeping mode.

Figure 7: Safety straps used to secure the bassinet to the adult bed.

5.4. Portable Use

When not used as a co-sleeper, ensure the side panel is zipped up and secured. The bassinet can be easily moved thanks to its lightweight design. For transport, disassemble and store in the provided transport bag.

6. Maintenance and Care

• Cleaning Fabric: The fabric parts can be spot cleaned with a damp cloth and mild soap. Do not use harsh detergents or bleach. Allow to air dry completely.
• Cleaning Frame: Wipe the metal and plastic parts of the frame with a damp cloth.
• Mattress Care: The mattress pad can be wiped clean. Refer to the mattress label for specific cleaning instructions.
• Storage: When not in use, store the bassinet in its transport bag in a clean, dry place, away from direct sunlight and extreme temperatures.
• Regular Checks: Periodically check all screws, fasteners, and fabric for wear, damage, or loose connections. Tighten or replace as necessary.

7. Troubleshooting

8. Specifications

• Model: Bambino IMP91320
• Brand: Infanti
• Recommended Age/Weight: 0 months to 9 kg
• Materials: Polyester, Aluminum, Steel, Plastic
• Product Dimensions (LxWxH): 102 x 69 x 85 cm (40.1 x 27.2 x 33.5 inches)
• Item Weight: 9.2 kg (20.3 lbs)
• Color: Gray
• EAN: 7898509477637

9. Warranty

This Infanti Bambino Portable Co-Sleeper Bassinet comes with a 12-month warranty against manufacturing defects from the date of purchase. This warranty does not cover damage caused by misuse, accident, normal wear and tear, or unauthorized modifications. Please retain your proof of purchase for warranty claims.
