Emerald Electric Single Burner User Manual

Introduction

Thank you for purchasing the Emerald Electric Single Burner, Model SM-STV-2600. This manual provides important information regarding the safe operation, installation, maintenance, and troubleshooting of your appliance. Please read this manual thoroughly before use and retain it for future reference.

Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

• Read all instructions before operating the appliance.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse cord, plugs, or the appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• A short power-supply cord is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
• Extension cords may be used if care is exercised in their use. If an extension cord is used, the marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance. The longer cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over.
• CAUTION: The surface of the burner becomes very hot during operation. Avoid direct contact. Refer to the "CAUTION DO NOT TOUCH" label on the appliance.

Product Overview

The Emerald Electric Single Burner is a compact and portable cooking appliance designed for convenience. It features a single heating element with adjustable temperature control.

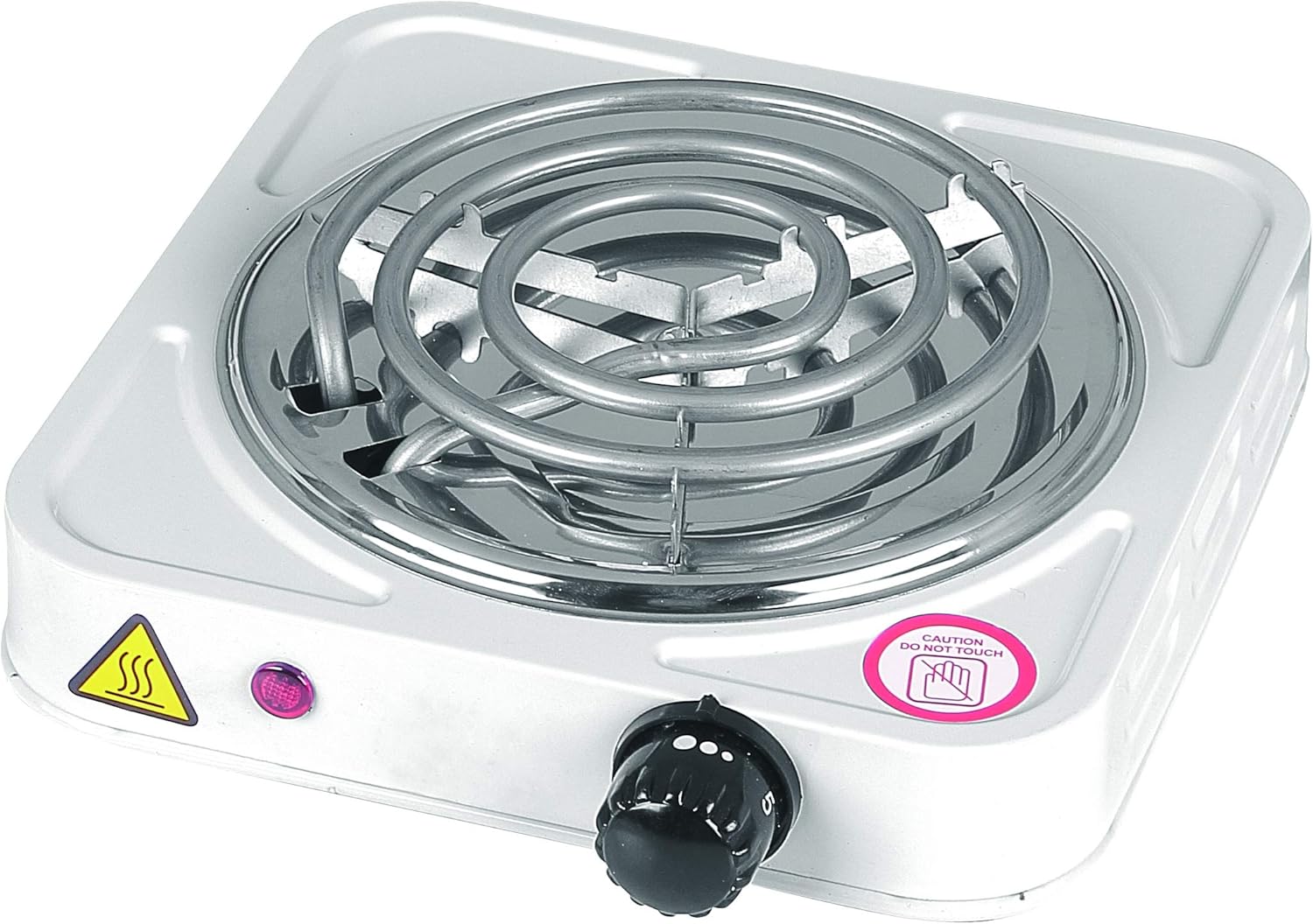

Figure 1: Front view of the Emerald Electric Single Burner (White), showing the heating coil, temperature control knob, power indicator light, and safety labels. The unit is compact and designed for portability.

Components:

• Heating Coil: The primary cooking surface where heat is generated.
• Temperature Control Knob: Used to adjust the heat level from minimum to maximum.
• Power Indicator Light: Illuminates when the burner is active and heating.
• Housing: The main body of the burner, made of metal.

Setup

1. Unpack: Carefully remove the burner from its packaging. Retain packaging for storage or future transport.
2. Placement: Place the burner on a stable, heat-resistant, and level surface. Ensure there is adequate clearance around the unit for ventilation. Do not place on or near flammable materials.
3. Initial Cleaning: Before first use, wipe the heating plate and exterior with a damp cloth. Ensure the unit is completely dry before plugging it in.
4. Power Connection: Ensure the temperature control knob is in the "OFF" position. Plug the power cord into a standard 120V AC electrical outlet.

Operating Instructions

1. Preparation: Place your cookware (pot or pan) securely on the heating coil. Ensure the cookware is flat-bottomed and of appropriate size for the 5.5-inch (140mm) heating plate.
2. Power On: Turn the temperature control knob clockwise from the "OFF" position to your desired heat setting. The power indicator light will illuminate, indicating the burner is active and heating.
3. Adjust Temperature: The knob allows for adjustable heating settings. Turn the knob to a lower number for gentle heat or a higher number for more intense heat. The burner will cycle on and off to maintain the selected temperature.
4. Cooking: Monitor your food as it cooks. Adjust the temperature as needed.
5. Power Off: Once cooking is complete, turn the temperature control knob counter-clockwise back to the "OFF" position. The power indicator light will turn off.
6. Cool Down: Allow the burner to cool completely before handling or cleaning. The heating coil will remain hot for some time after being turned off.

Cleaning and Maintenance

Regular cleaning and maintenance will ensure the longevity and optimal performance of your Emerald Electric Single Burner.

• Always unplug the burner from the power outlet and allow it to cool completely before cleaning.
• Exterior: Wipe the exterior housing with a soft, damp cloth. For stubborn stains, a mild detergent can be used. Ensure no water or cleaning solution enters the internal components.
• Heating Coil: For light spills, wipe with a damp cloth once cooled. For baked-on food, gently scrape with a non-abrasive tool. Do not use harsh abrasive cleaners or metallic scouring pads, as these can damage the surface.
• Drip Pan (if applicable): If your model includes a removable drip pan, remove it and wash with warm, soapy water. Rinse thoroughly and dry completely before replacing.
• Do not immerse the burner unit, cord, or plug in water or any other liquid.
• Storage: When not in use, store the burner in a dry place, away from moisture and extreme temperatures.

Troubleshooting

Specifications

Warranty and Support

For warranty information or technical support, please refer to the documentation included with your purchase or contact Emerald customer service. Keep your purchase receipt as proof of purchase.

Customer Service: Please visit the official Emerald website or contact your retailer for support.
