1. Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your BAKAJI Adjustable Height Bar Stool. Please read this manual carefully before use to ensure proper function and longevity of your product. Keep this manual for future reference.
Image 1.1: Two red BAKAJI bar stools positioned at a kitchen island.
2. Product Overview
2.1 Features
- Adjustable Height: Features a pneumatic mechanism for easy seat height adjustment.
- 360-Degree Swivel: Allows for full rotation, enhancing versatility and user interaction.
- Comfortable Footrest: Integrated footrest on the central rod provides additional comfort and support.
- Durable Construction: Seat made from ABS plastic, with a chromed steel base and stainless steel rod for stability and longevity.
- Modern Design: Minimalist aesthetic suitable for various home and commercial environments.
Image 2.1: Detailed view of the red ABS seat, highlighting its ergonomic shape.

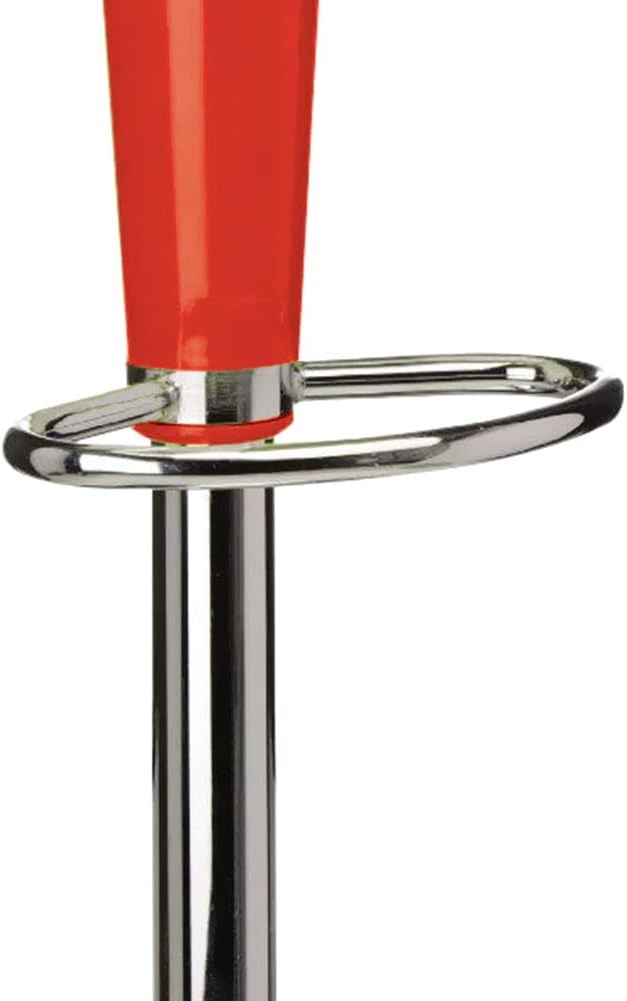

Image 2.2: View of the footrest and the lever for height adjustment.
2.2 Specifications
| Attribute | Value |
|---|---|
| Brand | BAKAJI |
| Model | B07J5L72N8 |
| Color | Red |
| Overall Height | 66 - 86 cm (adjustable) |
| Seat Height | 57 - 77 cm (adjustable) |
| Chair Width | 43.5 cm |
| Chair Depth | 41 cm |
| Materials | ABS Plastic (Seat), Chromed Steel (Base), Stainless Steel (Rod) |
| Item Weight | 6 kg |
Image 2.3: Dimensional diagram of the BAKAJI bar stool.
3. Setup and Assembly
The BAKAJI bar stool requires minimal assembly. Please follow these steps carefully:
- Unpack Components: Carefully remove all parts from the packaging. Ensure all components are present: seat, gas lift cylinder, footrest, base, and screws/tools if provided.
- Attach Gas Lift to Base: Insert the wider end of the gas lift cylinder into the central hole of the chromed steel base. Ensure it is seated firmly.
- Install Footrest: Slide the footrest ring over the gas lift cylinder. It should rest on the designated support on the cylinder.
- Attach Seat to Gas Lift: Place the seat assembly onto the narrower end of the gas lift cylinder. Apply gentle pressure to secure it. The seat mechanism should align with the top of the gas lift.
- Test Stability: Once assembled, gently sit on the stool to ensure all parts are securely connected and the stool is stable.
Caution: Do not stand on the stool during assembly. Ensure all connections are tight before use.
Image 3.1: Detail of the chromed steel base, showing the central hole for the gas lift.
4. Operating Instructions
4.1 Adjusting Seat Height
To adjust the seat height:
- To Raise: While standing, pull the lever located under the seat upwards. The seat will automatically rise. Release the lever when the desired height is reached.
- To Lower: While seated, pull the lever located under the seat upwards. The seat will lower under your body weight. Release the lever when the desired height is reached.
4.2 Swivel Function
The seat can swivel 360 degrees. Simply rotate the seat in any direction while seated or standing. No lever or button is required for this function.
5. Maintenance
Regular maintenance will help preserve the appearance and functionality of your bar stool.
- Cleaning the Seat: Wipe the ABS plastic seat with a soft, damp cloth and a mild, non-abrasive cleaner. Avoid harsh chemicals or abrasive materials that could scratch the surface.
- Cleaning Metal Parts: Clean the chromed steel base and rod with a soft cloth. For stubborn marks, use a chrome-specific cleaner and polish. Ensure to dry thoroughly to prevent water spots.
- Checking Connections: Periodically check all screws and connections to ensure they remain tight. Re-tighten if necessary.
- Gas Lift Care: Do not attempt to disassemble the gas lift cylinder. If the height adjustment mechanism malfunctions, contact customer support.
- Weight Limit: Do not exceed the recommended weight limit for the stool to prevent damage to the gas lift and other components.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Stool is wobbly or unstable. | Loose connections or uneven floor. | Ensure all assembly screws are tightened. Place the stool on a flat, even surface. |
| Height adjustment not working. | Gas lift malfunction or lever not engaged. | Check if the lever is fully pulled. If the gas lift is faulty, it may need replacement. Contact customer support. |
| Seat does not swivel smoothly. | Debris in the swivel mechanism or lack of lubrication. | Clean any visible debris from the swivel area. A small amount of silicone-based lubricant may be applied if accessible. |
| Scratches on the base. | Abrasion from floor or objects. | Use a soft cloth for cleaning. Consider placing a protective mat under the stool if used on sensitive flooring. |
7. Warranty Information
Specific warranty details for this product are not provided in the available information. Please refer to your purchase documentation or contact the retailer for warranty terms and conditions.
8. Customer Support
For further assistance, parts replacement, or inquiries not covered in this manual, please contact BAKAJI customer support through the retailer where the product was purchased. Have your model number (B07J5L72N8) and purchase date ready when contacting support.
