1. Introduction
Thank you for choosing the PHI VILLA 5-Piece Outdoor Dining Set. This manual provides essential information for the safe assembly, operation, maintenance, and care of your new patio furniture. Please read these instructions thoroughly before assembly and retain them for future reference.

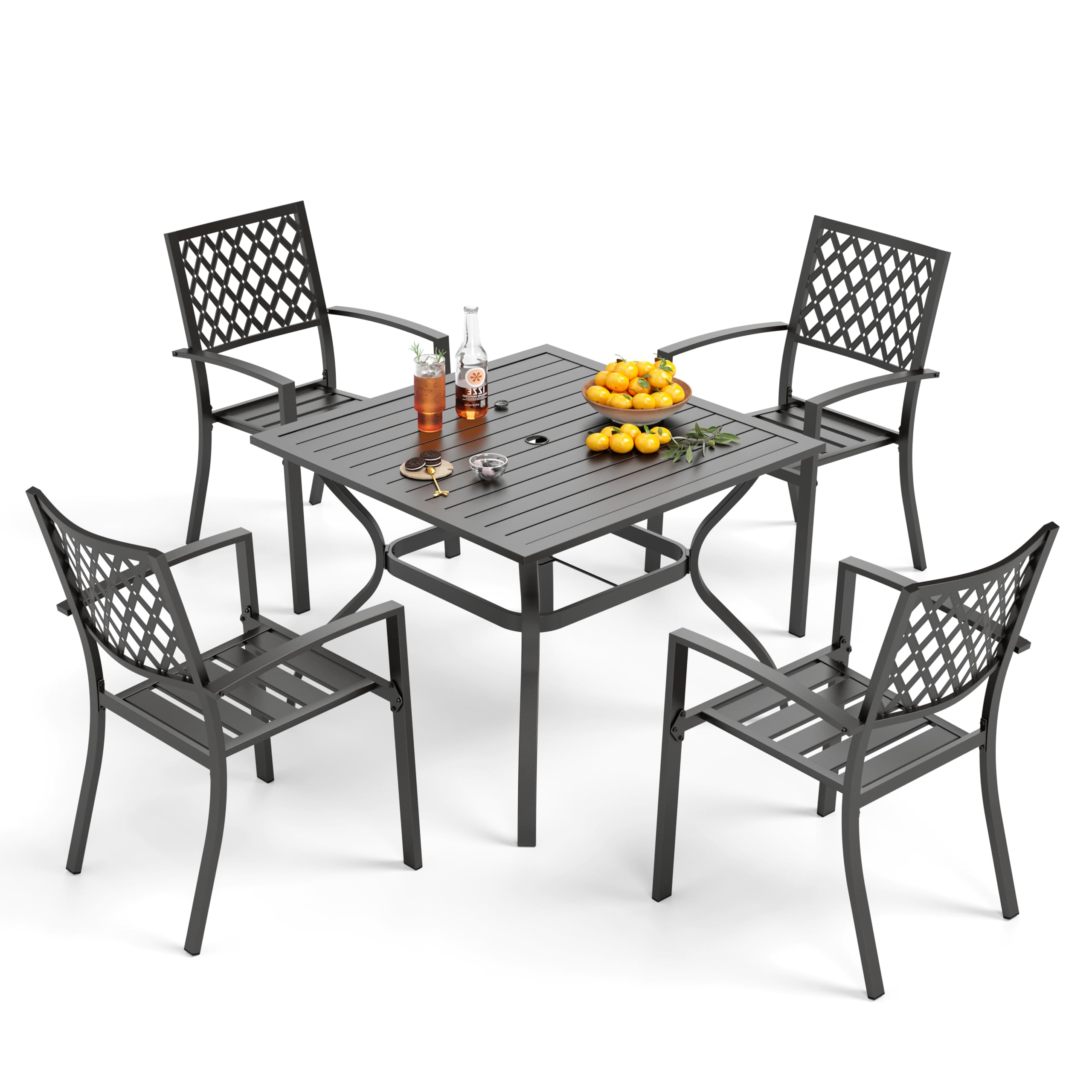

Figure 1: The PHI VILLA 5-Piece Outdoor Dining Set, featuring a square table and four chairs.
2. Safety Information
Please observe the following safety precautions during assembly and use:
- Exercise caution during assembly, especially around sharp edges and small parts.
- Always assemble the product strictly according to the provided instructions.
- Be cautious when stacking chairs to prevent tip-over risks. Ensure they are stacked securely.
- Ensure the product is properly maintained and used in accordance with the manufacturer's guidelines to prevent any potential hazards, especially when used outdoors.
- Do not exceed the chair's weight capacity of 300 lbs.
3. Package Contents
Your PHI VILLA 5-Piece Outdoor Dining Set includes:
- 1 x 37-inch Square Metal Dining Table
- 4 x Wrought Iron Chairs
Note: You may receive the components in up to 3 separate packages on different days.
4. Specifications
| Feature | Detail |
|---|---|
| Brand | PHI VILLA |
| Model | 5PCS-37 Steel Table Net Back Chair |
| Table Dimensions (L x W x H) | 37" x 37" x 28" |
| Umbrella Hole Diameter | 1.57" |
| Chair Dimensions (L x W x H) | 25" x 22.5" x 35" |
| Chair Seat Height | 17" |
| Chair Weight Capacity | 300 lbs |
| Material | Metal (Wrought Iron) |
| Coating | E-coating and Powder-coating |
| Assembly Required | Yes |
| Style | Traditional |
| UPC / GTIN | 720355881405 |
Figure 2: Detailed dimensions of the dining table and chairs.
5. Setup (Assembly Instructions)
Assembly is required for this dining set. Please follow the instructions provided in your product packaging for detailed, step-by-step guidance. General tips for assembly include:
- Unpack Components: Carefully remove all parts from the packaging. Lay them out on a soft, clean surface to prevent scratches.
- Identify Hardware: Ensure all screws, bolts, and tools (e.g., Allen wrench) are present as per the parts list.
- Initial Fastening: When attaching components, start all fasteners (screws/bolts) by hand before fully tightening any of them. This allows for slight adjustments and proper alignment of holes. Fully tighten all fasteners only after all parts are correctly aligned.
- Table Assembly: Assemble the table frame and attach the tabletop. Ensure the umbrella hole is correctly oriented if you plan to use an umbrella.
- Chair Assembly: Assemble each chair individually. Pay attention to the orientation of the seat and backrest.
- Final Tightening: Once all components are in place and aligned, securely tighten all screws and bolts using the provided tools. Do not overtighten.
Figure 3: Illustration of stackable chairs and assembly requirement.
Video 1: A seller's overview of the outdoor dining set, including assembly and features.
6. Operating (Usage)
Your PHI VILLA Outdoor Dining Set is designed for comfortable outdoor dining and relaxation.
- Seating: The set comfortably accommodates 4 people.
- Umbrella Use: The table features a 1.57-inch umbrella hole, allowing you to insert a standard patio umbrella for shade and sun protection. Ensure the umbrella base is stable and secure.
- Chair Functionality: The chairs are designed for stability and comfort. Some variants may feature a smooth 360-degree swivel and a gentle 15-degree rocking motion for enhanced relaxation.
- Storage: The chairs are stackable, allowing for convenient and space-saving storage when not in use.
Figure 4: The dining set in use with a patio umbrella.
Video 2: A seller's demonstration of the 5-piece dining set, highlighting swivel chairs and overall quality.
7. Maintenance
Proper maintenance will extend the life and appearance of your outdoor dining set.
- Cleaning: Wipe with a dry cloth regularly. For deeper cleaning, use mild soap and water. Rinse thoroughly and dry completely to prevent water spots.
- Rust Prevention: The wrought iron frame is treated with E-coating and powder-coating for rust resistance. However, regular inspection for any chips or scratches in the coating is recommended. Touch up any damaged areas promptly to prevent rust.
- Weather Protection: While designed for outdoor use, covering the set during harsh weather conditions (heavy rain, snow, extreme sun) or prolonged periods of non-use will help preserve its condition.
- Cushion Care (if applicable): If your chairs include cushions, follow their specific care instructions. Typically, they are removable for cleaning and should be stored in a dry place when not in use or during inclement weather.
Figure 5: Explanation of the E-coating and powder-coating process for durability.
Video 3: A seller's video detailing the special electro-coating technology used for durability.
8. Troubleshooting
If you encounter any issues with your dining set, refer to the following common solutions:
- Wobbly Table/Chair: Ensure all bolts and screws are fully tightened. If one leg is slightly off, try loosening all fasteners slightly, placing the item on a flat surface, applying even pressure, and then re-tightening.
- Rust Spots: Although the set is rust-resistant, prolonged exposure to moisture or damage to the coating can lead to rust. Clean any rust spots with a wire brush, sand lightly, and apply a rust-inhibiting primer and paint.
- Fading: While the set has a UV rating, extreme prolonged sun exposure can cause slight fading over time. Consider using an umbrella or covers during peak sun hours to minimize this.
- Difficulty Stacking Chairs: Ensure chairs are correctly aligned before attempting to stack them. Do not force them.
9. Warranty & Support
Your PHI VILLA Outdoor Dining Set comes with a 1-year warranty for both outdoor and indoor use.
For any questions, concerns, or warranty claims, please do not hesitate to contact PHI VILLA customer support. Refer to your purchase documentation or the PHI VILLA website for contact information.
