1. Introduction
Thank you for choosing the 70mai Midrive-TP03 Air Compressor Lite. This portable air compressor is designed for convenient and efficient inflation of various items, including car tires, motorcycle tires, bicycle tires, and sports balls. Featuring a digital screen for real-time pressure display and automatic shut-off, it ensures precise and safe inflation. Please read this manual thoroughly before use to ensure proper operation and maintenance.
Image 1.1: Front view of the 70mai Midrive-TP03 Air Compressor Lite.
2. Safety Information
To prevent injury or damage, observe the following safety precautions:
- Do not leave the compressor unattended during operation.
- Keep out of reach of children.
- Ensure the power source matches the compressor's voltage requirements (12V).
- Avoid operating the compressor in wet conditions or near flammable liquids/gases.
- Do not touch the air hose or nozzle immediately after prolonged use, as they may become hot.
- Always check the recommended pressure for the item being inflated to avoid over-inflation.
- If the compressor makes unusual noises or becomes excessively hot, turn it off immediately and disconnect from power.
3. Package Contents
Verify that all items are present in the package:
- 70mai Midrive-TP03 Air Compressor Lite
- Inflation hose
- Various nozzle adapters (e.g., for balls, bicycles)
- User Manual (this document)

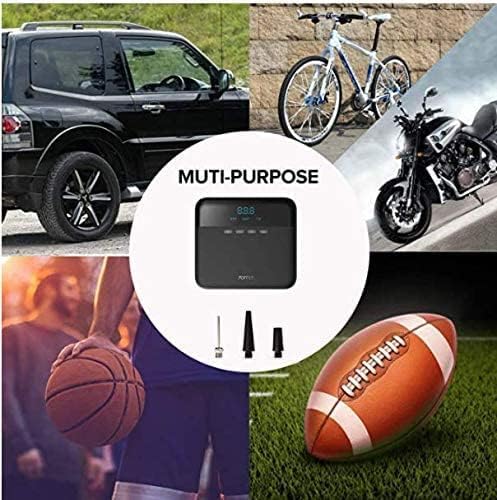

Image 3.1: The air compressor shown with its multi-purpose adapters for various inflation needs, including car tires, bicycles, motorcycles, basketballs, and footballs.
4. Product Overview
Familiarize yourself with the components of your 70mai Midrive-TP03 Air Compressor Lite.

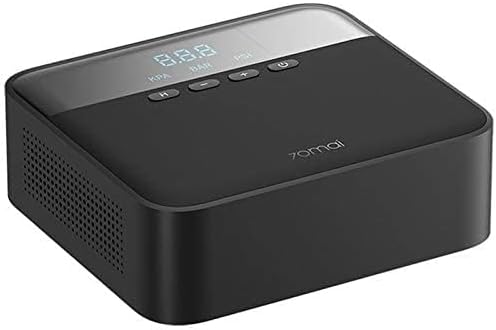

Image 4.1: Top view of the compressor, highlighting the digital display (KPA, BAR, PSI) and control buttons (Mode, Minus, Plus, Power).
- Digital Display: Shows real-time pressure and target pressure.
- Unit Button (H): Toggles between KPA, BAR, and PSI pressure units.
- Minus (-) Button: Decreases the target inflation pressure.
- Plus (+) Button: Increases the target inflation pressure.
- Power Button: Turns the compressor on/off and starts/stops inflation.
- Inflation Port: Where the inflation hose connects.
- Power Cable: Connects to a 12V power source (e.g., car cigarette lighter).
5. Setup
Follow these steps to prepare your air compressor for use:
- Connect Power: Plug the compressor's power cable into a 12V DC power outlet (e.g., car cigarette lighter socket). Ensure your vehicle's engine is running to provide stable power.
- Attach Inflation Hose: Screw the inflation hose securely onto the inflation port of the compressor.
- Select Adapter (if needed): For items other than standard car tires, select the appropriate nozzle adapter and attach it to the end of the inflation hose.
Image 5.1: The compressor connected to a tire valve for inflation, demonstrating its compact size and ease of use. Also shows how it can be stored in a car compartment.

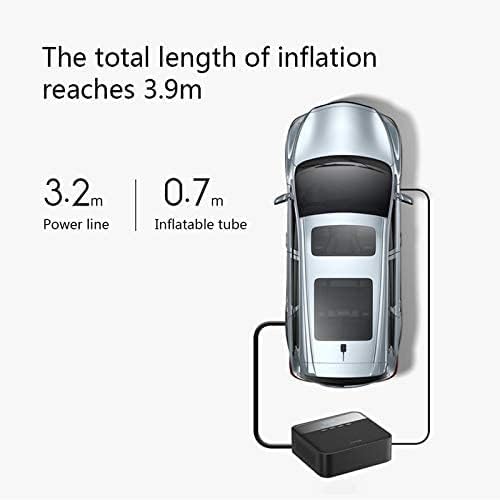

Image 5.2: Diagram illustrating the total reach of the compressor, with a 3.2m power line and 0.7m inflatable tube, totaling 3.9m for convenient access to all tires.
6. Operating Instructions
Inflating an item with your 70mai Air Compressor Lite:
- Connect to Item: Screw the inflation hose nozzle onto the valve stem of the item you wish to inflate. For car tires, ensure it's tightly secured to prevent air leakage.
- Power On: Press the Power button to turn on the compressor. The digital display will show the current pressure of the connected item.
- Select Unit: Press the "H" (Unit) button to cycle through KPA, BAR, and PSI until your desired pressure unit is displayed.
- Set Target Pressure: Use the "+" and "-" buttons to set the desired target inflation pressure. Refer to the item's manufacturer recommendations for correct pressure.
- Start Inflation: Press the Power button again to start the inflation process. The compressor will automatically stop once the preset target pressure is reached.
- Disconnect: Once inflation is complete, unscrew the nozzle from the valve stem and disconnect the power cable from the 12V outlet.

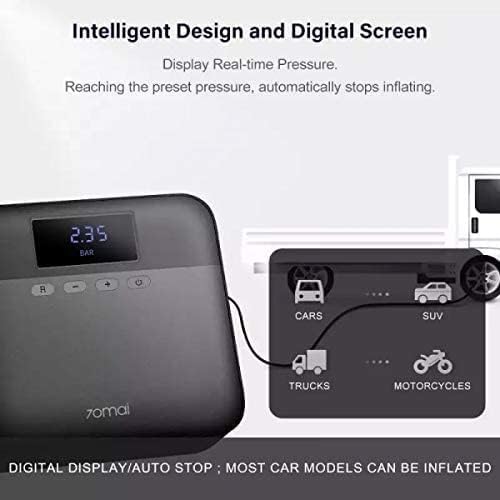

Image 6.1: The digital screen showing real-time pressure (e.g., 2.35 BAR). The compressor features an intelligent design that automatically stops inflation upon reaching the preset pressure.
Image 6.2: This image highlights the compressor's broad compatibility with trucks, cars, SUVs, and motorcycles, along with features like durable material, powerful inflation, smart chip, digital display, all-in-one design, and long runtime.
7. Maintenance
Proper maintenance ensures the longevity and optimal performance of your air compressor:
- Cleaning: Wipe the exterior of the compressor with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure no water enters the internal components.
- Storage: Store the compressor in a dry, cool place, away from direct sunlight and extreme temperatures. Ensure the hose and power cable are neatly coiled to prevent damage.
- Inspection: Periodically inspect the power cable, inflation hose, and nozzle adapters for any signs of wear, cracks, or damage. Replace damaged parts if necessary.
8. Troubleshooting
If you encounter issues with your air compressor, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Compressor does not turn on. | No power from 12V outlet; Blown fuse in vehicle or compressor. | Check 12V outlet for power; Inspect and replace vehicle's cigarette lighter fuse or compressor's internal fuse (if accessible and user-serviceable). Ensure vehicle engine is running. |
| Compressor runs but does not inflate. | Hose not securely attached; Leak in hose or nozzle; Valve stem issue. | Ensure hose is tightly screwed onto compressor and valve stem; Check hose and nozzle for damage; Inspect valve stem for blockages or damage. |
| Compressor inflates too slowly. | Low power supply; Compressor overheating. | Ensure vehicle engine is running for optimal power; Allow compressor to cool down if it has been running for an extended period. |
| Inaccurate pressure reading. | Loose connection; Sensor malfunction. | Ensure the hose is tightly connected to the valve stem. If the issue persists, contact customer support. |
If the problem persists after attempting these solutions, please contact 70mai customer support.
9. Specifications
Technical details for the 70mai Midrive-TP03 Air Compressor Lite:
- Model Number: Midrive-TP03
- Voltage: 12V
- Current: 10A
- Inflation Pressure Range: 0.1~11 BAR / 1~160 PSI
- Product Dimensions: 16.4 x 14.8 x 5.4 cm
- Item Weight: 860 g
- Power Line Length: 3.2 m
- Inflatable Tube Length: 0.7 m
- Total Inflation Length: 3.9 m
- Runtime: Up to 30 minutes (continuous)
- Material: Mixed
- Color: Black
Image 9.1: Key features of the compressor, including its 0.78kg weight (approx. 860g), portable design, and 30-minute long runtime.
10. Warranty and Support
The 70mai Midrive-TP03 Air Compressor Lite comes with a standard manufacturer's warranty. For detailed warranty terms and conditions, please refer to the warranty card included with your product or visit the official 70mai website.
For technical support, troubleshooting assistance beyond this manual, or inquiries regarding parts and service, please contact 70mai customer support through their official channels. Keep your purchase receipt and product model number handy when contacting support.
