Hurom H-AI-LBB20 H-AI Slow Juicer Instruction Manual

Introduction

Welcome to the Hurom H-AI-LBB20 H-AI Slow Juicer user manual. This document provides essential information for the safe and efficient operation, assembly, maintenance, and troubleshooting of your new juicer. The H-AI Slow Juicer is designed to extract juice from various fruits and vegetables using its advanced Alpha Technology, featuring a self-feeding hopper for convenience and optimized juicing performance.

Image: The Hurom H-AI-LBB20 H-AI Slow Juicer in Slate Blue, showcasing its sleek design and main components.

Important Safety Information

Please read all instructions carefully before using the appliance. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Always unplug the juicer from the power outlet before cleaning, assembling, or disassembling parts.
• Do not immerse the motor base in water or other liquids.
• Keep hands and utensils away from moving parts during operation to prevent injury.
• Ensure all parts are correctly assembled before operating the juicer.
• Do not operate the juicer with a damaged cord or plug. Contact customer service for repair.
• This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
• Children should be supervised to ensure they do not play with the appliance.
• Use only attachments and accessories recommended by the manufacturer.

Product Overview

Components

The Hurom H-AI-LBB20 H-AI Slow Juicer includes the following main components:

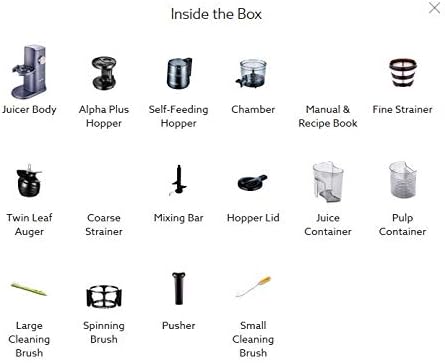

Image: Diagram illustrating the various components included with the Hurom H-AI-LBB20 H-AI Slow Juicer, such as the juicer body, hoppers, chamber, auger, strainers, containers, and cleaning tools.

• Juicer Body (Motor Base)
• Alpha Plus Hopper
• Self-Feeding Hopper
• Chamber
• Twin Leaf Auger
• Fine Strainer
• Coarse Strainer
• Mixing Bar
• Hopper Lid
• Juice Container
• Pulp Container
• Large Cleaning Brush
• Spinning Brush
• Pusher
• Small Cleaning Brush

Key Features

• Self-Feeding Hopper: An automatic blade inside the self-feeding hopper chops and guides ingredients into the juicing chamber. For nut milks or manual feeding, the regular Alpha hopper can be used.
• Tilted Chamber & Juice Outlet: The juicing chamber features a 3-degree tilt, facilitating easier juice pouring and minimizing residue inside the juicer.
• Pulp Outlet: Pulp is discharged vertically into the pulp container positioned directly beneath the chamber, optimizing counter space.
• Slow Squeeze Technology: The H-AI operates at 60 revolutions per minute, mimicking hand-squeezing to preserve the freshness and natural state of the juice.
• Taste & Pulp Control: A control lever, along with fine and coarse strainers, allows users to adjust the pulp level in their juice according to preference.

Image: An animated diagram illustrating the juicing process within the Hurom H-AI, showing ingredients being fed into the hopper, processed by the auger, and juice being extracted.

Image: A detailed diagram of the mixing bar component, highlighting its C-Wing (Combing Wing) and T-Wing (Trimming Wing) for efficient ingredient processing.

Setup and Assembly

Follow these steps to assemble your Hurom H-AI-LBB20 H-AI Slow Juicer:

1. Place the juicer body on a stable, flat surface.
2. Insert the spinning brush into the chamber.
3. Place either the fine or coarse strainer inside the spinning brush, ensuring it is seated correctly.
4. Insert the twin leaf auger into the center of the strainer.
5. Attach the chamber assembly onto the juicer body, aligning the red dots and rotating until it locks into place.
6. Place the self-feeding hopper or the Alpha Plus hopper onto the chamber, aligning the arrows and rotating to secure.
7. Place the hopper lid on top of the hopper.
8. Position the juice container and pulp container under their respective outlets.

Image: The fully assembled Hurom H-AI-LBB20 H-AI Slow Juicer, ready for operation.

Operating Instructions

Preparation

• Wash all fruits and vegetables thoroughly.
• Remove any hard seeds, pits, or thick skins (e.g., pineapple, citrus).
• Cut ingredients into pieces small enough to fit into the hopper opening. For the self-feeding hopper, ensure pieces are suitable for the internal blade.

Juicing Process

1. Ensure the juicer is properly assembled and the juice and pulp containers are in place.
2. Plug the power cord into a grounded electrical outlet.
3. Turn the power switch to the 'ON' position.
4. Using the Self-Feeding Hopper: Place prepared ingredients into the self-feeding hopper. The internal blade will automatically chop and feed them into the juicing chamber.
5. Using the Alpha Plus Hopper: For ingredients like leafy greens or when you prefer manual feeding, use the Alpha Plus hopper and gently push ingredients down with the provided pusher.
6. Juice will flow from the juice outlet into the juice container, and pulp will be discharged into the pulp container.
7. If ingredients become jammed, switch the power to 'REV' (reverse) for a few seconds to clear the blockage, then switch back to 'ON'.
8. Once juicing is complete, turn the power switch to 'OFF' and unplug the appliance.

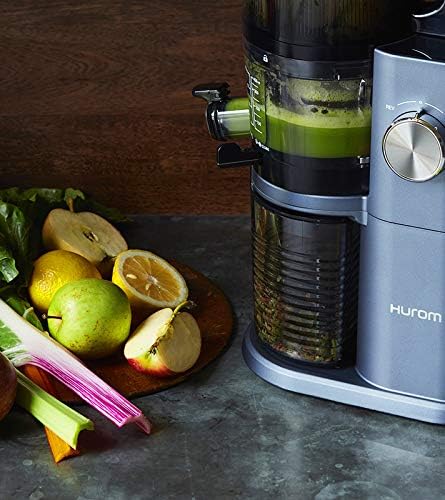

Image: The Hurom H-AI-LBB20 H-AI Slow Juicer in operation, extracting green juice from various fruits and vegetables.

Image: The Hurom H-AI-LBB20 H-AI Slow Juicer actively producing green juice, which flows into the collection container.

Cleaning and Maintenance

Regular cleaning ensures optimal performance and longevity of your juicer. The Hurom H-AI-LBB20 H-AI Slow Juicer is not dishwasher safe; all removable parts must be hand washed.

1. Disassembly: After unplugging the juicer, disassemble the hopper, chamber, auger, strainer, and spinning brush in reverse order of assembly.
2. Rinsing: Rinse all disassembled parts under running water to remove large pulp residues.
3. Brushing: Use the provided large and small cleaning brushes to thoroughly clean the strainer, auger, and other components. Pay special attention to the fine mesh of the strainer to prevent clogging.
4. Washing: Wash all removable parts with warm, soapy water. Rinse thoroughly to remove all soap residue.
5. Drying: Allow all parts to air dry completely before reassembling or storing.
6. Motor Base: Wipe the motor base with a damp cloth. Never immerse the motor base in water.
7. Storage: Store the clean and dry juicer in a safe place, away from direct sunlight and moisture.

Troubleshooting

If you encounter issues with your Hurom H-AI-LBB20 H-AI Slow Juicer, refer to the following common problems and solutions:

• Juicer does not start:
  • Ensure the power cord is securely plugged into a working outlet.
  • Check that all parts are correctly assembled and locked into place. The juicer has safety features that prevent operation if not assembled properly.
• Ingredients are jammed or juicer stops during operation:
  • Turn the power switch to 'OFF', then to 'REV' (reverse) for a few seconds to dislodge the ingredients. Repeat if necessary.
  • If the jam persists, turn off and unplug the juicer, then disassemble and clear the blockage manually.
  • Ensure ingredients are cut into appropriate sizes and not overfeeding the juicer.
• Low juice yield or excessive wet pulp:
  • Ensure the strainer is clean and free of clogs.
  • Some softer fruits or very fibrous vegetables naturally produce more pulp.
  • Adjust the pulp control lever if available on your model.
• Loud noise or vibration:
  • Check that all parts are correctly assembled and securely locked.
  • Ensure the juicer is on a stable, flat surface.
  • Excessively hard ingredients or large pieces can cause increased noise.

If problems persist after attempting these solutions, please contact Hurom customer support.

Specifications

Warranty and Support

For detailed warranty information, please refer to the warranty card included with your product or visit the official Hurom website. Warranty terms and conditions may vary by region and product model.

If you require technical assistance, replacement parts, or have questions regarding your Hurom H-AI-LBB20 H-AI Slow Juicer, please contact Hurom customer support. Contact details can typically be found on the manufacturer's website or in the product packaging.

Manufacturer: Hurom

Place of Business: LONG ISLAND CITY, NY, 11101 US
