Bella Depot 42" Retractable Ceiling Fan with Lights and Remote - Instruction Manual

Model: Bella Depot01

1. Product Overview

This manual provides detailed instructions for the installation, operation, and maintenance of your Bella Depot 42-inch Retractable Ceiling Fan with Lights and Remote. Please read this manual thoroughly before installation and retain it for future reference.

Bella Depot 42-inch retractable ceiling fan with lights

Image: Bella Depot 42-inch retractable ceiling fan in a modern room setting.

2. Safety Information

Always follow basic safety precautions when installing and operating electrical appliances to reduce the risk of fire, electric shock, and personal injury.

  • Ensure power is OFF at the circuit breaker before installation or servicing.
  • All wiring must be in accordance with national and local electrical codes.
  • Consult a qualified electrician if you are unsure about wiring procedures.
  • Mounting structure must be capable of supporting the fan's weight (approximately 19.8 pounds).
  • Keep hands clear of fan blades during operation.

3. Package Contents

Verify that all components are present before beginning installation:

  • Ceiling Fan Motor Assembly
  • Retractable Blades (pre-attached or separate, depending on model)
  • LED Light Kit
  • Remote Control
  • Downrods (5" or 10" included)
  • Mounting Bracket
  • Hardware Pack (screws, wire nuts, etc.)
  • Instruction Manual

For a visual guide on installation, please refer to the installation video below.

Video: Installation guide for a similar ceiling fan model, demonstrating component assembly and wiring. This video is provided by the seller.

4. Product Features

  • Modern Design: Features a brushed nickel body and transparent retractable blades for a contemporary appearance.
  • Reversible Airflow: Provides over 5000 CFM airflow. Forward mode cools in summer, while reverse mode circulates warm air in winter.
  • Quiet DC Motor: Durable motor delivers powerful airflow with minimal noise and high energy efficiency.
  • Dimmable LED Light: Integrated 36W LED light with high transparency PC cover. Offers flicker-free, evenly distributed light with three adjustable color temperatures.
  • Remote Control: Adjust fan speed, LED light (on/off, dimming, color temperature), and set timing options with ease.
Ceiling fan light showing three color temperature options

Image: The fan's LED light displaying warm, warm white, and white light color temperatures.

Ceiling fan showing forward and reverse airflow directions

Image: Illustration of the fan's forward (downward airflow for summer) and reverse (upward airflow for winter) functions.

5. Specifications

BrandBella Depot
Model NameBella Depot01
Size42 inches
ColorWhite
MaterialAcrylic, Plastic
Product Dimensions42"L x 41.98"W x 8"H
Power SourceDC
Voltage110 Volts
Wattage65 watts
Light Source TypeLED
Control MethodRemote Control
Installation TypeSemi Flush Mount
Item Weight19.8 pounds (9 Kilograms)

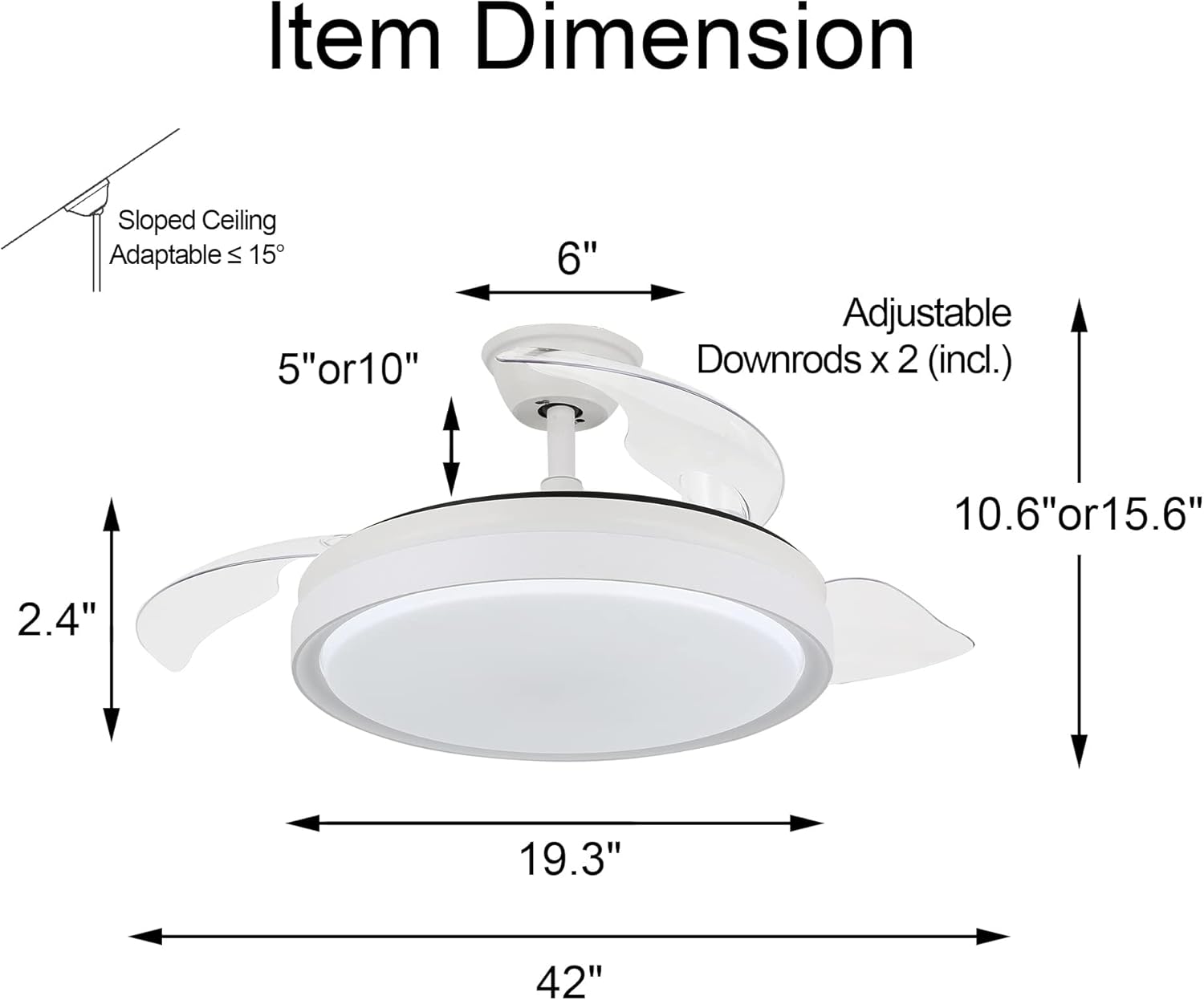

Detailed dimensions of the 42-inch ceiling fan

Image: Diagram showing the dimensions of the 42-inch ceiling fan, including downrod options and blade details.

6. Setup and Installation

Professional installation is recommended for electrical products. Ensure all power is disconnected at the main circuit breaker before proceeding.

  1. Mounting Bracket Installation: Secure the mounting bracket to the ceiling junction box using appropriate screws and anchors. Ensure it is firmly attached and can support the fan's weight.
  2. Wiring: Connect the fan's electrical wires to the household wiring according to the provided wiring diagram. Typically, this involves connecting live, neutral, and ground wires.
  3. Downrod Assembly: Attach the chosen downrod (5" or 10") to the fan motor assembly. Feed the electrical wires through the downrod.
  4. Fan Body Attachment: Carefully lift the fan assembly and hang it from the mounting bracket. Connect the remaining electrical connectors.
  5. Light Kit Installation: Attach the LED light kit to the bottom of the fan assembly. Ensure all connections are secure.
  6. Final Checks: Restore power and test all fan and light functions using the remote control.

Video: Detailed installation steps for a similar ceiling fan model, covering assembly and wiring. This video is provided by the seller.

7. Operating Instructions

Your Bella Depot ceiling fan is operated via the included remote control.

Remote Control Functions:

  • Fan On/Off: Press the fan power button to turn the fan on or off.
  • Fan Speed: Select from 6 adjustable fan speeds (1-6) to control airflow intensity.
  • Light On/Off: Press the light power button to turn the LED light on or off.
  • Light Dimming: Use the brightness adjustment buttons to increase or decrease light intensity.
  • Color Temperature: Cycle through three color temperatures (warm, neutral, white) to set the desired ambiance.
  • Timer Function: Set the fan to automatically turn off after 1, 2, 4, or 8 hours.
  • Forward/Reverse Mode: Switch between summer (downward airflow) and winter (upward airflow) modes.

Video: Demonstration of the Bella Depot retractable ceiling fan, showing the blades extending and retracting, and the light changing color and brightness via remote control. This video is provided by the seller.

8. Maintenance

Regular maintenance ensures optimal performance and longevity of your ceiling fan.

  • Cleaning: Use a soft, damp cloth to clean the fan blades and light fixture. Do not use abrasive cleaners or solvents.
  • Tighten Fasteners: Periodically check all screws and fasteners on the fan and mounting bracket to ensure they are secure.
  • Blade Balance: If the fan wobbles, check that all blades are securely attached and balanced. A balancing kit (not included) may be used if necessary.

9. Troubleshooting

If you encounter issues, refer to the following common problems and solutions:

ProblemPossible CauseSolution
Fan does not startNo power to the fan; loose wiring; remote control battery low.Check circuit breaker; ensure all wiring connections are secure; replace remote control battery.
Light does not workLoose wiring in light kit; LED driver issue.Check light kit wiring connections; contact customer support if LED driver is suspected.
Fan wobblesLoose mounting bracket; unbalanced blades.Tighten mounting bracket screws; ensure blades are securely attached and consider using a blade balancing kit.
Remote control not workingBattery low or incorrectly installed; remote not paired.Replace battery (23A 12V); refer to remote pairing instructions (if applicable, not detailed in provided data).

10. Warranty and Support

This Bella Depot ceiling fan comes with a 1-year warranty from the date of purchase.

For any after-sales issues, technical support, or warranty claims, please contact Bella Depot customer service. You can typically find contact information on the product packaging or by visiting the Bella Depot store online.

Instructions on how to contact Bella Depot customer service for after-sales issues

Image: Visual guide on how to contact Bella Depot for customer service inquiries.
