1. Introduction
Thank you for choosing the Dripex Tower Computer Desk with 4 Tier Shelves. This manual provides detailed instructions for the safe assembly, proper use, and maintenance of your new desk. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
Safety Information:
- Always assemble the desk according to the provided instructions.
- Ensure all adjustable feet are properly secured to maintain stability.
- Do not use the desk until it is fully assembled and stable.
- Do not exceed the maximum weight recommendation of 100 pounds for the desktop.
2. Parts List
Before assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, please contact customer support.
- Desktop Panel (1)
- Shelf Panels (4)
- Main Frame Legs (4)
- Shelf Support Frames (2)
- X-Shape Crossbars (2)
- Adjustable Foot Pads (4)
- Assembly Hardware (screws, bolts, Allen wrench)

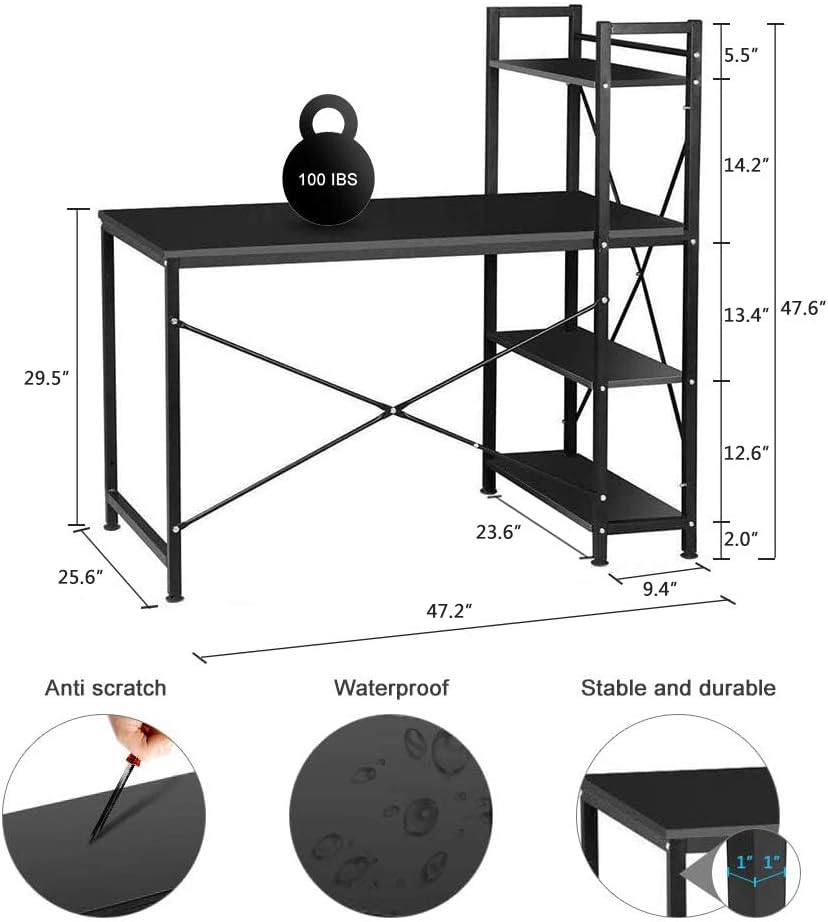

Figure 2.1: Desk dimensions and key features. Note the 100 lbs weight capacity indicated on the desktop.
3. Assembly Instructions
Follow these steps carefully to assemble your Dripex Tower Computer Desk. It is recommended to have a second person assist with assembly for easier handling.
- Step 1: Attach Main Frame Legs. Secure the four main frame legs to the desktop panel using the provided screws. Ensure they are firmly tightened.
- Step 2: Install X-Shape Crossbars. Attach the X-shape crossbars to the rear of the main frame legs. These provide additional stability.
- Step 3: Assemble Shelf Support Frames. Connect the two shelf support frames. These will form the structure for your 4-tier shelving unit.
- Step 4: Attach Shelf Panels. Insert the four shelf panels into the assembled shelf support frames. Ensure each panel is securely seated.
- Step 5: Connect Shelving Unit to Desk. Attach the complete shelving unit to either the left or right side of the main desk frame, as desired. Secure with screws. This flexible design allows for customization.
- Step 6: Install Adjustable Foot Pads. Screw the adjustable foot pads into the bottom of all desk and shelf legs. Adjust them to ensure the desk is level and stable on uneven surfaces.
Figure 3.1: Flexible design allows the 4-tier shelving unit to be installed on either the left or right side of the desk.
4. Operating Instructions
Your Dripex Tower Computer Desk is designed for versatile use in various settings, including home offices, study rooms, dormitories, living rooms, or bedrooms.
- Desktop Use: The spacious desktop (47.2''L x 25.6''W) is suitable for computers, laptops, and other work essentials. It has a maximum weight capacity of 100 pounds.
- Shelving Unit: The 4-tier shelving unit provides convenient storage for books, files, office supplies, or decorative items, keeping them within easy reach.
- Stability: The solid steel tubing frame and X-shape connection ensure stability. Use the adjustable foot pads to compensate for uneven flooring.
Figure 4.1: The desk provides ample space for a computer setup and organized storage.
5. Maintenance
To ensure the longevity and appearance of your desk, follow these maintenance guidelines:
- Cleaning: Wipe the desktop and steel frame with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners, which can damage the finish. The surface is designed to be easy to clean and waterproof.
- Tighten Fasteners: Periodically check and tighten all screws and bolts to maintain structural integrity and prevent wobbling.
- Floor Protection: The adjustable foot pads protect your floor from scratches. Ensure they are always in place.
Figure 5.1: Detailed view of the desk's skin-friendly, easy-to-clean surface, steel frame, X-shape structure, and floor protectors.
6. Troubleshooting
If you encounter any issues with your desk, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Desk is wobbly | Loose fasteners; uneven floor | Tighten all screws and bolts. Adjust the foot pads to level the desk. |
| Parts do not align during assembly | Incorrect orientation of parts; screws overtightened prematurely | Review assembly steps and ensure parts are oriented correctly. Loosen screws slightly, align parts, then tighten gradually. |
| Missing parts | Packaging error | Contact Dripex customer support with your purchase details. |
7. Specifications
- Model: desk0817-2
- Brand: Dripex
- Dimensions (L x W x H): 47"D x 24"W x 47.6"H (approx. 119.4 cm D x 61 cm W x 120.9 cm H)
- Desktop Material: Wood
- Frame Material: Alloy Steel
- Color: Black
- Number of Shelves: 4
- Maximum Weight Recommendation (Desktop): 100 Pounds (approx. 45.3 kg)
- Item Weight: 40 Pounds (approx. 18.1 kg)
8. Warranty and Support
This Dripex Tower Computer Desk comes with a Limited Warranty. For specific warranty terms and conditions, please refer to the documentation included with your purchase or contact Dripex customer support.
For any questions, assistance, or to report missing/damaged parts, please contact Dripex customer service through your retailer or the official Dripex website.
