1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your ELCO Lighting ELST66BZ 120V LED Mini Step Light. This product is designed to provide efficient and reliable illumination for steps, pathways, and other outdoor areas. Please read this manual thoroughly before installation and retain it for future reference.
2. Safety Information
To ensure safe installation and operation, please observe the following precautions:
- WARNING: Risk of electric shock. Disconnect power at the fuse or circuit breaker before installing or servicing.
- All electrical connections must be in accordance with local codes, ordinances, or the National Electric Code (NEC). Consult a qualified electrician if you are unfamiliar with proper electrical wiring connections.
- This product is intended for outdoor use and is UL listed for wet locations.
- Do not install near combustible materials.
- Ensure the fixture is securely mounted to a standard single-gang receptacle box.
- Do not attempt to modify the fixture or its components.
3. Package Contents
Verify that all components are present before beginning installation:

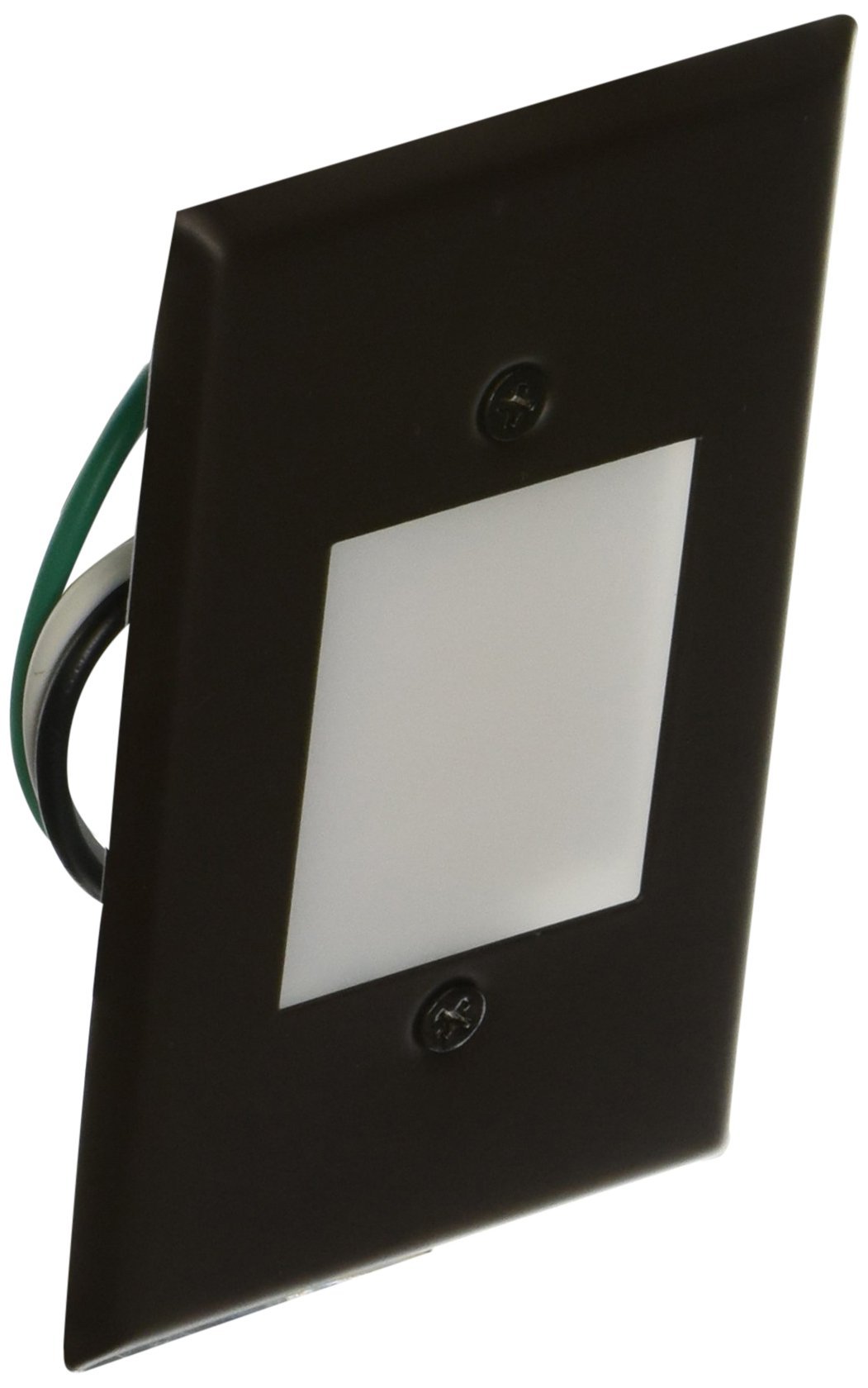

- ELCO Lighting ELST66BZ LED Mini Step Light Fixture (1)
- Mounting Hardware (screws, wire nuts)
- Installation Bracket
4. Specifications
| Feature | Specification |
|---|---|
| Model Number | ELST66BZ |
| Input Voltage | 120V |
| Power Consumption | 0.8W |
| Light Source | Integrated LED |
| Color Temperature | 3000K (Warm White) |
| Color Rendering Index (CRI) | 90+ |
| Lens Material | Smooth White Acrylic |
| Faceplate Dimensions | 4 1/2" W x 2 3/4" H |
| Mounting | Horizontal or Vertical, Single-Gang Box |
| Housing Material | Galvanized Stamped Steel |
| Finish | Black (Powder-Coated) |
| Lifespan | 35,000 hours (L70) |
| Certifications | UL Listed for Wet Locations |
5. Installation Instructions
Follow these steps to install your ELCO Lighting ELST66BZ LED Mini Step Light:
- Prepare for Installation:
- Turn off power at the circuit breaker or fuse box to avoid electrical shock.
- Ensure the mounting location is a standard single-gang receptacle box.
- Mount the Bracket:
- Attach the provided installation bracket to the single-gang box using the screws.
- Make Electrical Connections:
- Connect the black wire from the fixture to the black (hot) wire from the electrical box.
- Connect the white wire from the fixture to the white (neutral) wire from the electrical box.
- Connect the green (ground) wire from the fixture to the bare copper or green ground wire from the electrical box.
- Secure all connections with wire nuts and ensure they are tight. Carefully tuck wires into the electrical box.
- Install the Fixture:
- Align the step light fixture with the mounting bracket.
- Secure the fixture to the bracket using the provided screws. Ensure the faceplate sits flush against the mounting surface.
- Restore Power:
- Turn the power back on at the circuit breaker or fuse box.
- Test the light to ensure proper operation.
6. Operation
The ELCO Lighting ELST66BZ LED Mini Step Light operates directly from a 120V power supply. Once properly installed and connected to a switched power source, the light will illuminate when the switch is activated. The integrated LED provides a warm white light (3000K) with high color accuracy (90+ CRI), designed for consistent and long-lasting performance.
7. Maintenance
The ELCO Lighting ELST66BZ LED Mini Step Light requires minimal maintenance:
- Cleaning: Periodically wipe the fixture with a soft, damp cloth to remove dust and debris. Do not use abrasive cleaners or solvents, as these may damage the finish or lens.
- LED Longevity: The integrated LED is designed for a long lifespan (35,000 hours L70) and does not require bulb replacement.
- Inspection: Occasionally inspect the fixture for any signs of damage or loose connections. If any issues are found, disconnect power and address them promptly.
8. Troubleshooting
If your ELCO Lighting ELST66BZ LED Mini Step Light is not functioning as expected, refer to the following table:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on | No power to the fixture | Check circuit breaker or fuse. Ensure wall switch is ON. |
| Loose or incorrect wiring | Turn off power. Verify all wire connections are secure and correct according to Section 5. | |
| Light flickers | Loose wiring connection | Turn off power. Check and tighten all wire connections. |
| Incompatible dimmer switch (if applicable) | This fixture is not designed for use with dimmer switches. Ensure it is connected to a standard ON/OFF switch. | |
| Reduced light output | Dirt or debris on lens | Clean the lens with a soft, damp cloth. |
If the problem persists after attempting these solutions, contact ELCO Lighting customer support.
9. Warranty and Support
ELCO Lighting products are manufactured to high standards and are backed by a limited warranty. For specific warranty details, please refer to the warranty information provided with your purchase or visit the official ELCO Lighting website. For technical assistance, replacement parts, or any other inquiries, please contact ELCO Lighting customer support through their official channels.
ELCO Lighting Contact Information:
Please refer to the ELCO Lighting official website or product packaging for the most current contact details.
