ABCCANOPY 2.5x2.5m Black Pop-Up Canopy Instruction Manual

Introduction

Thank you for choosing the ABCCANOPY 2.5x2.5m Pop-Up Canopy. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your canopy. Please read these instructions carefully before use and retain them for future reference.

Safety Warnings

• Use the canopy only in appropriate weather conditions. Avoid use during strong winds, heavy rain, or lightning.
• Ensure secure fastening of the canopy according to the instructions provided. Failure to do so may result in damage or injury.
• Protect the canopy against excessive UV exposure when not in use to prolong its lifespan.
• Keep children and pets away from the canopy during assembly and disassembly.

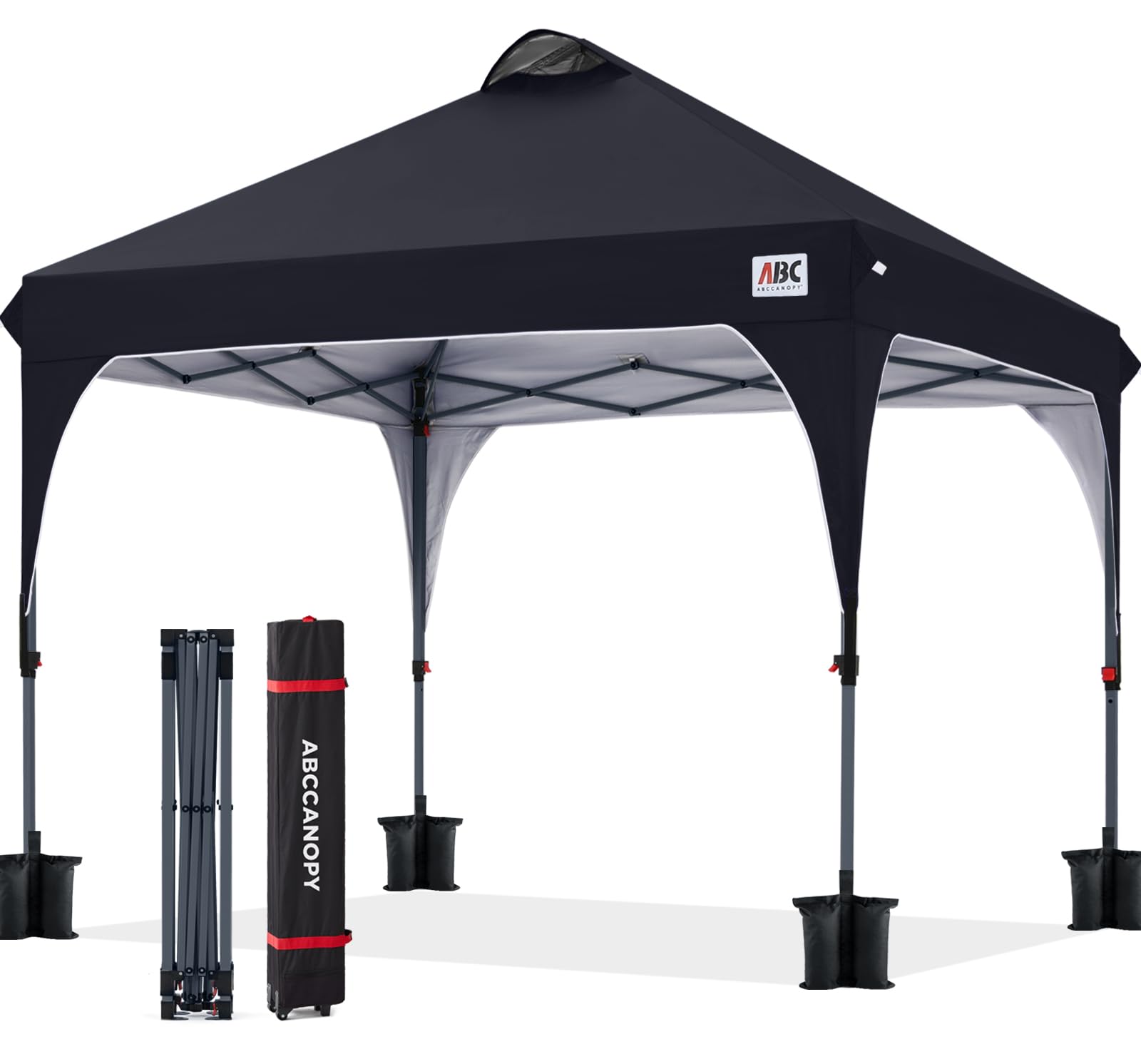

Image: The ABCCANOPY 2.5x2.5m Black Pop-Up Canopy providing shade in an outdoor setting.

Package Contents

Before beginning assembly, verify that all components listed below are present in your package:

• 1 x Canopy Top (Black)
• 1 x Steel Frame (Pre-assembled)
• 1 x Wheeled Carry Bag
• 4 x Ropes
• 8 x Stakes
• 4 x Sand Bags (empty, for weight)

Image: Visual representation of all included components.

Setup Instructions

The ABCCANOPY Pop-Up Canopy is designed for quick and easy assembly, typically within 1 minute, without the need for additional tools.

1. Step 1: Unpack and Partially Open Frame
   Remove the pre-assembled steel frame with the canopy top from the wheeled carry bag. With two people, pull the outer legs of the frame outwards to partially open it.
2. Step 2: Attach Canopy Top and Fully Extend Frame
   If the canopy top is not already attached, place it over the partially opened frame, ensuring it is correctly aligned. Continue pulling the outer legs until the frame is fully extended and locked into place.
3. Step 3: Adjust Height and Secure
   Press the thumb-press buttons on each leg to adjust the canopy to your desired height (175 cm or 200 cm from the ground to the bottom of the eaves). Once the desired height is set, ensure the buttons are fully engaged to lock the legs.
4. Step 4: Secure the Canopy
   Fill the four sandbags with sand or other suitable weight material and attach them to the canopy legs. Use the provided ropes and stakes to anchor the canopy firmly to the ground, especially in windy conditions.

Image: Step-by-step visual guide for canopy setup.

Operating Your Canopy

Your ABCCANOPY Pop-Up Canopy is designed for versatility and protection in various outdoor settings.

Key Features and Usage

• Spacious Coverage: The 2.5 x 2.5m footprint provides 6.25 square meters of shade, comfortably accommodating approximately 10 people.
• Adjustable Height: Utilize the thumb-press buttons on the legs to select between two height settings (175 cm and 200 cm) to suit your needs.
• Weather Protection: The canopy features 300 denier polyester with a polyurethane lining, offering 100% waterproofing and UPF 50+ UV protection.
• Enhanced Stability: The robust steel frame, combined with the included sandbags, ropes, and stakes, provides stability against wind.
• Air Circulation: Two special roof vents are integrated to ensure proper airflow within the canopy, enhancing comfort and stability.

Image: Detailed view of canopy features including fabric, ventilation, and leg adjustments.

Maintenance

Proper maintenance ensures the longevity and performance of your ABCCANOPY Pop-Up Canopy.

Cleaning and Storage

• Cleaning the Fabric: Clean the canopy fabric with mild soap and water. Do not use harsh detergents, bleach, or abrasive cleaners, as these can damage the material and its protective coatings. Rinse thoroughly and allow to air dry completely.
• Drying Before Storage: It is crucial that the canopy fabric is completely dry before folding and storing. Storing a damp canopy can lead to mold, mildew, and fabric degradation.
• Frame Care: Wipe down the steel frame with a damp cloth to remove dirt and debris. Ensure the frame is dry before storage to prevent rust.
• Storage: Fold the canopy neatly and place it back into the wheeled carry bag. Store the bag in a cool, dry place, away from direct sunlight and extreme temperatures.

Troubleshooting

Here are solutions to common issues you might encounter with your canopy:

• Canopy not opening or closing smoothly:
  Check for any obstructions in the frame's moving parts. Ensure that the thumb-press buttons are fully disengaged when collapsing and fully engaged when extending. Lubricate moving joints if necessary.
• Canopy unstable in windy conditions:
  Ensure all four sandbags are filled with sufficient weight (sand or rocks) and securely attached to the canopy legs. Verify that all ropes are taut and stakes are firmly driven into the ground. Always use all anchoring accessories provided.
• Water pooling on the canopy top:
  Ensure the canopy fabric is stretched tightly over the frame and secured at all attachment points. Adjust the leg height to ensure proper tension and allow water to run off.
• Fabric tears or holes:
  For minor damage, repair kits (not included) can be used. For significant damage, contact customer support for replacement parts.

Specifications

Image: Dimensional specifications and packed size of the canopy.

Warranty and Support

Warranty Information

Your ABCCANOPY Pop-Up Canopy comes with a 1-year warranty from the date of purchase. This warranty covers manufacturing defects under normal use. Please retain your proof of purchase for warranty claims.

Customer Support

ABCCANOPY is committed to providing lifetime support for accessories and parts for the products we sell. If you have any questions, concerns, or require assistance with your canopy, please do not hesitate to contact our customer support team. We are ready to help you.

For support, please visit the official ABCCANOPY website or refer to the contact information provided with your purchase documentation.
