CCLIFE LED E27 Height-Adjustable Arc Lamp

Product Overview

The CCLIFE LED E27 Arc Lamp is a versatile and elegant lighting solution designed for various indoor settings. It features an adjustable height, a stable marble base, and a movable lampshade, allowing for flexible illumination. This manual provides essential information for safe setup, operation, maintenance, and troubleshooting of your arc lamp.

Figure 1: Overall view of the CCLIFE LED E27 Arc Lamp with white shade and marble base.

Safety Instructions

Please read these safety instructions carefully before assembling, installing, or using the lamp. Keep this manual for future reference.

• Ensure the power supply is disconnected before assembly, maintenance, or bulb replacement.
• Use only E27 light bulbs with a maximum wattage of 60W. LED bulbs are recommended to prevent excessive heat buildup, especially with the plastic lampshade.
• Do not exceed the specified wattage to avoid overheating and potential damage to the lamp or fire hazard.
• Place the lamp on a stable, level surface. The heavy marble base provides stability, but ensure it is not placed where it can be easily tripped over.
• Keep the power cord away from heat sources, sharp edges, and wet areas.
• Do not attempt to modify the lamp's electrical components. All repairs should be performed by qualified personnel.
• The lampshade is made of plastic. Avoid using incandescent bulbs that generate high heat, as this may cause deformation or discoloration over time.

Components and Assembly

Before assembly, verify that all components are present and undamaged. The package includes the main lamp body, the arc arm, the lampshade, and the marble base.

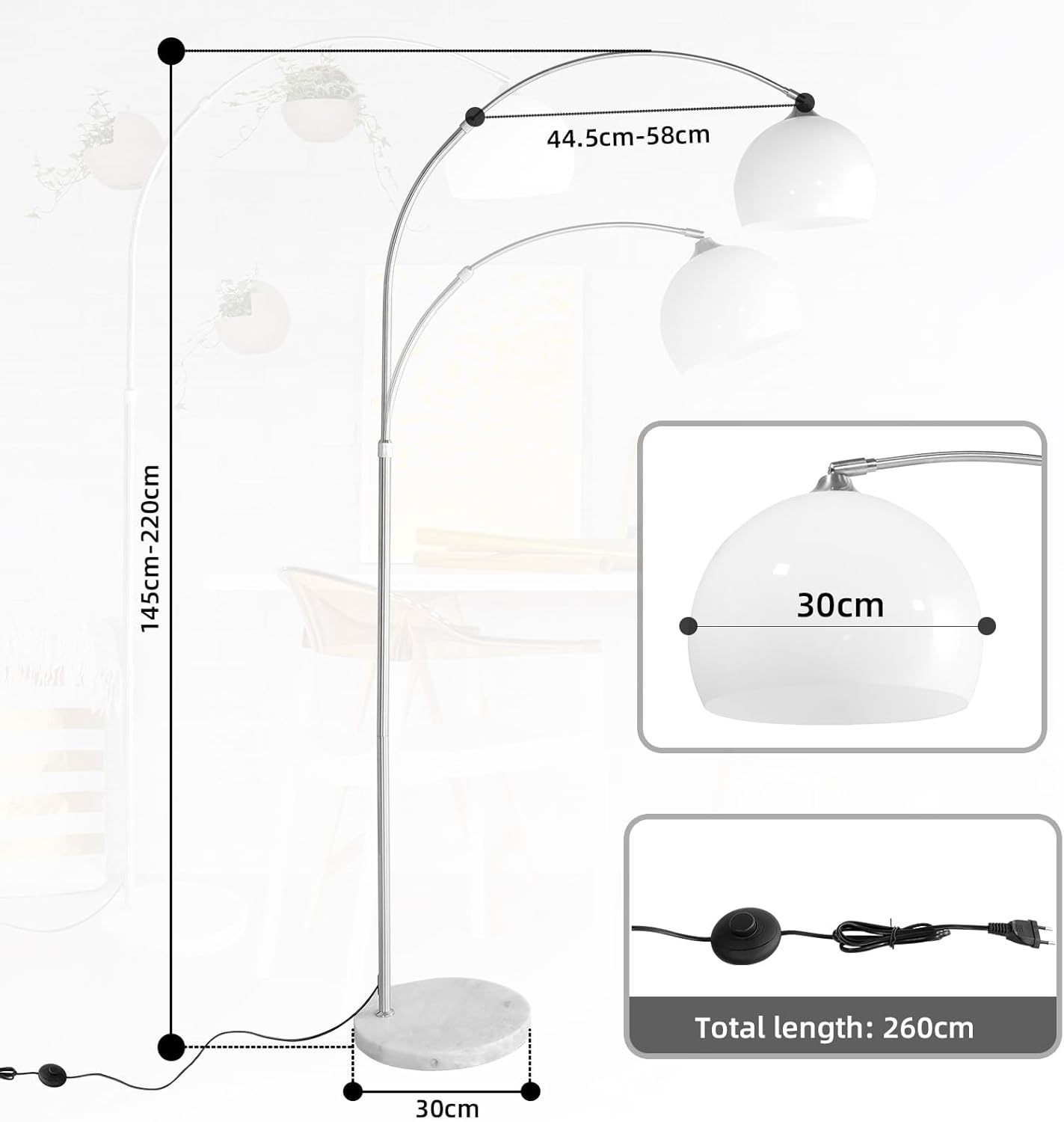

Figure 2: Diagram illustrating key dimensions and components such as the lampshade, base, and cable length.

Assembly Steps:

1. Carefully unpack all parts and lay them out on a clean, soft surface to prevent scratches.
2. Attach the main vertical pole to the marble base. Ensure the threaded connection is secure. The marble base is heavy (approx. 7-8 KG depending on model), so handle with care.
3. Connect the arc arm to the top of the vertical pole. Ensure the connection is firm and stable.
4. Screw the lampshade onto the E27 lamp holder at the end of the arc arm. Do not overtighten.
5. Insert an E27 light bulb (not included) into the lamp holder.
6. Route the power cable as desired, ensuring it is not pinched or under tension.

Operating Instructions

Your CCLIFE Arc Lamp is designed for ease of use with adjustable features to suit your lighting needs.

Figure 3: Operational features including telescopic height adjustment, light head rotation, and foot switch.

Power On/Off:

The lamp is equipped with a convenient foot switch located on the power cable. Simply press the switch with your foot to turn the lamp ON or OFF.

Height Adjustment:

The lamp features a telescopic adjustment mechanism on the vertical pole. Loosen the locking mechanism (if present, typically a collar or screw) to extend or retract the pole, then secure it firmly at your desired height. Model A is adjustable from 145-220 cm, and Model B from 130-180 cm.

Lampshade Adjustment:

The lampshade is designed to be movable, allowing you to direct the light as needed. It can rotate up to 270 degrees and adjust vertically by 180 degrees. Gently pivot the lampshade to achieve the desired lighting angle.

Maintenance

Regular maintenance will help prolong the life and appearance of your lamp.

• Cleaning: Disconnect the lamp from the power supply before cleaning. Use a soft, dry cloth to wipe down the stainless steel arc and plastic lampshade. For the marble base, use a slightly damp cloth and dry immediately. Avoid abrasive cleaners or solvents, as they can damage the finishes.
• Bulb Replacement: Ensure the lamp is unplugged and the bulb has cooled down before attempting to replace it. Unscrew the old E27 bulb and screw in a new one, ensuring it does not exceed 60W.
• Inspection: Periodically check the power cord for any signs of damage or fraying. Ensure all connections remain secure.

Troubleshooting

If you encounter any issues with your CCLIFE Arc Lamp, refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact customer support.

Specifications

• Light Source Compatibility: 1 x E27 bulb (max. 60W, bulb not included)
• Materials: Lampshade - Plastic; Arc - Stainless Steel; Base - Marble (approx. 35mm height)
• Adjustable Height (Model A): 145-220 cm
• Adjustable Height (Model B): 130-180 cm
• Base Diameter: 30 cm (Model A), 25 cm (Model B)
• Lampshade Diameter: 30 cm (Model A), 25 cm (Model B)
• Weight: Approx. 8 KG (Model A, 145-220 cm) / Approx. 7 KG (Model B, 130-180 cm). Product weight listed as 4.7 Kilograms in some specifications.
• Cable Length: 2.5 - 3 meters adjustable
• Product Dimensions (Model DBGLT001A0030wes): 30 x 30 x 220 cm
• Model Number: DBGLT001A0030wes
• Finish Type: Lacquered
• Assembly Required: Minimal (No complex electrical assembly required, but mechanical assembly of components is needed).
• Components Included: LED E27 Arc Lamp (main unit, bulb not included)

Warranty and Support

CCLIFE products are manufactured to high quality standards. For information regarding warranty coverage, please refer to the terms and conditions provided at the point of purchase or contact the seller directly.

For technical support, troubleshooting assistance, or inquiries about replacement parts, please contact CCLIFE customer service or the authorized seller, CCLIFE Technic GmbH, through the platform where the product was purchased. Please have your model number (DBGLT001A0030wes) and purchase details ready when contacting support.

You can often find contact information on the seller's page or your order details on Amazon.de.
