Smoby 7600750700 Wooden Fun Scooter Instruction Manual

1. Important Safety Information

Please read all safety instructions carefully before assembly and use. Failure to follow these instructions may result in serious injury.

• Recommended Age: This scooter is suitable for children aged 5 years and older.
• Maximum Weight Limit: Do not exceed a maximum user weight of 50 kg (110 lbs).
• Protective Equipment: Always wear appropriate protective equipment, including a helmet, knee pads, and elbow pads, when operating the scooter.
• Usage Environment: Do not use the scooter on public roads, near motor vehicles, or in areas with heavy pedestrian traffic. Use only in safe, open spaces.
• Choking Hazard: This product contains small parts and is not suitable for children under 3 years due to a potential choking hazard.
• Adult Supervision: Adult supervision is required at all times during use.
• Pre-Ride Check: Before each use, ensure all components are securely fastened and in good working order. Check the wheels, handlebars, and brake.

2. Setup and Assembly

The Smoby Wooden Fun Scooter is designed for easy setup. It may arrive in a folded state for compact transport.

2.1 Unfolding the Scooter

1. Place the scooter on a flat, stable surface.
2. Locate the folding mechanism, typically near the base of the handlebar stem.
3. Release the locking mechanism (refer to specific diagrams if available on packaging).
4. Carefully unfold the handlebar stem until it clicks securely into the upright position. Ensure the locking mechanism is fully engaged.

Figure 2.1: Scooter in folded position.

2.2 Adjusting Handlebar Height

The handlebar height is adjustable to accommodate different user heights.

1. Locate the quick-release clamp on the handlebar stem.
2. Open the clamp to loosen the handlebar.
3. Adjust the handlebar to a comfortable height, typically around the user's waist level when standing on the deck. Ensure the handlebar is aligned straight with the front wheels.
4. Close the quick-release clamp firmly to secure the handlebar in place. Test its stability before riding.

Figure 2.2: Fully assembled scooter with adjustable handlebar.

3. Operating Instructions

The Smoby Wooden Fun Scooter features an intuitive steering system and a reliable foot brake.

3.1 Riding the Scooter

1. Place one foot firmly on the wooden deck, ensuring it is centered and stable. The deck features a non-slip coating for improved grip.
2. Use the other foot to push off the ground, gaining momentum.
3. Once moving, place both feet on the deck, one behind the other, or side-by-side if comfortable.

3.2 Steering

This scooter uses an intuitive lean-to-steer mechanism. To turn, gently lean your body in the desired direction (left or right). The handlebars will follow the direction of your lean, guiding the front wheels.

3.3 Braking

The scooter is equipped with a foot brake located over the rear wheel.

1. To slow down or stop, gently press your heel down on the rear fender, which acts as the foot brake.
2. Apply steady pressure to achieve a controlled stop. Avoid sudden, forceful braking, especially at high speeds, to prevent loss of balance.

Figure 3.1: Demonstrating the rear foot brake.

4. Maintenance

Regular maintenance ensures the longevity and safe operation of your Smoby Wooden Fun Scooter.

• Cleaning: Wipe the scooter clean with a damp cloth. Avoid using harsh chemicals or abrasive cleaners. Dry thoroughly after cleaning.
• Component Check: Periodically inspect all screws, bolts, and fasteners to ensure they are tight. Retighten if necessary.
• Wheel Inspection: Check the wheels for wear and tear. Ensure they spin freely and are not obstructed by debris.
• Brake Functionality: Regularly test the foot brake to ensure it is responsive and effective.
• Storage: Store the scooter in a dry place, away from direct sunlight and extreme temperatures. The scooter can be folded for compact storage.

5. Troubleshooting

If you encounter issues with your scooter, refer to the following common solutions:

• Scooter does not steer easily: This scooter uses a lean-to-steer mechanism. Ensure the user is leaning their body to initiate turns, rather than just turning the handlebars. Practice leaning gently to get accustomed to the steering.
• Handlebar feels loose: Check the quick-release clamp on the handlebar stem. Ensure it is fully closed and tightened. If it still feels loose, inspect for any damage to the clamping mechanism.
• Brake is not effective: Ensure the rear fender brake is clean and free of debris. Check if the brake mechanism is worn or damaged. If the issue persists, discontinue use and contact customer support.
• Unusual noises during operation: Stop using the scooter immediately. Inspect all wheels, bearings, and fasteners for any loose or damaged parts.

6. Specifications

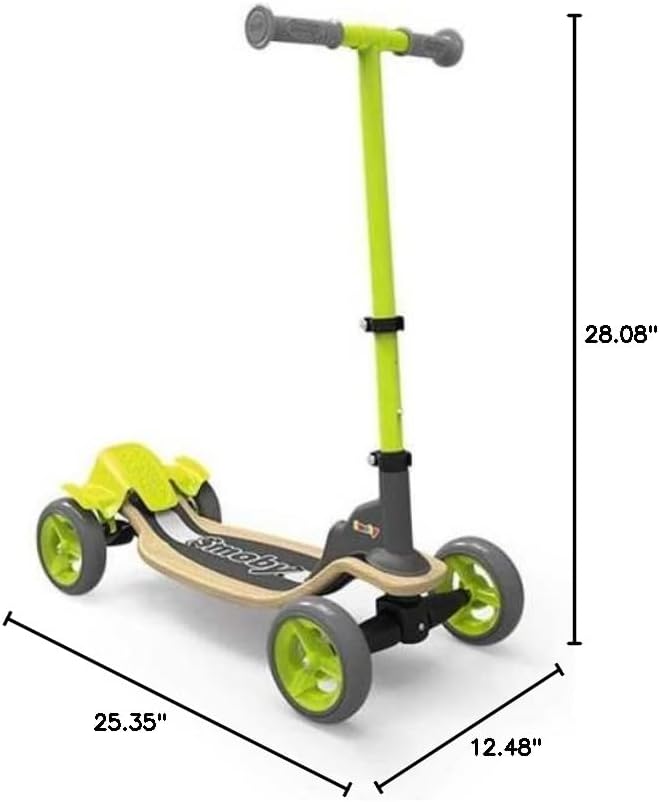

Figure 6.1: Scooter dimensions.

7. Warranty Information

This Smoby product comes with a limited warranty. For specific details regarding warranty coverage, duration, and terms, please refer to the warranty information provided with your purchase or visit the official Smoby website. Keep your proof of purchase for any warranty claims.

8. Customer Support

If you have any questions, require assistance with assembly, or need to report a problem with your Smoby Wooden Fun Scooter, please contact Smoby customer service. Contact information can typically be found on the product packaging or the official Smoby website.

For further assistance, please visit: www.smoby.com
