1. Introduction
Thank you for choosing the E-Simpo G23 5W LED Bulb. This product is designed as an energy-efficient replacement for traditional 9W or 13W CFL PL-S lamps. It features a G23 2-pin base, a 180-degree beam angle, and provides a cold white light (6000K-6500K). Please read this manual carefully before installation and use to ensure proper function and safety.
2. Safety Information
- Always turn off the power supply at the circuit breaker before installing or replacing any light bulb.
- Ensure the bulb is compatible with your fixture's base type (G23 2-pin).
- This LED bulb is designed for indoor use only.
- Do not disassemble or modify the bulb.
- Avoid touching the bulb with wet hands.
- If you are unsure about electrical wiring, consult a qualified electrician.
3. Product Overview
The E-Simpo G23 5W LED bulb offers a bright, energy-saving alternative to older compact fluorescent lamps. Its design ensures a wide light distribution suitable for various applications.
Key Features:
- Energy Efficient: 5W LED replaces 9W or 13W CFL PL-S bulbs.
- Base Type: G23 2-pin parallel, single tab.
- Light Color: Cold White (6000K-6500K).
- Beam Angle: 180 degrees for wide illumination.
- Voltage: Compatible with 110V, 220V, 277V AC.
- Dimensions: Length 165mm (6.5 inches), Diameter 27mm (1.0 inch).
Dimensions and Base Types:
Applications:
4. Setup and Installation
Proper installation is crucial for the performance and longevity of your E-Simpo G23 LED bulb. Please pay close attention to the ballast type in your existing fixture.
Ballast Compatibility:
- This LED bulb is compatible with inductance ballasts (magnetic ballasts) and can be used as a direct plug-and-play replacement.
- This LED bulb is NOT compatible with electronic ballasts. If your fixture has an electronic ballast, it MUST be bypassed before installing the LED bulb. Failure to bypass an electronic ballast will cause the bulb to flicker, smell, or burn out.
Installation Steps:
- Turn off Power: Before any installation, ensure the power to the fixture is completely off at the circuit breaker.
- Remove Old Bulb: Carefully remove the existing CFL PL-S bulb from the fixture.
- Identify Ballast Type: Determine if your fixture uses an inductance (magnetic) or electronic ballast. This may require opening the fixture.
- Installation for Inductance Ballast: If your fixture has an inductance ballast, simply insert the E-Simpo G23 LED bulb into the G23 socket. Ensure it is firmly seated.

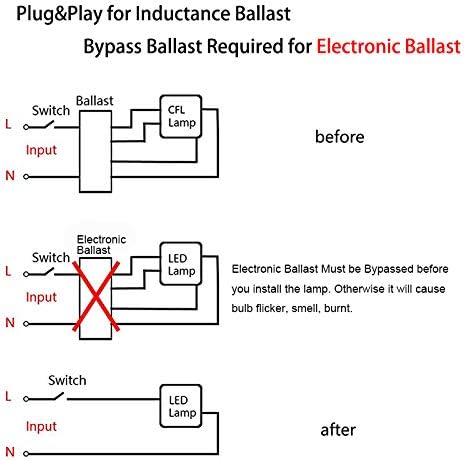

- Installation for Electronic Ballast (Bypass Required):
- Locate the electronic ballast within the fixture.
- Disconnect the wires leading to and from the electronic ballast.
- Connect the two AC input wires (typically Line and Neutral) directly to the G23 lamp holder. This effectively removes the ballast from the circuit.
- Secure all connections with appropriate electrical connectors (e.g., wire nuts).
- Insert the E-Simpo G23 LED bulb into the G23 socket.
- Restore Power: Once the bulb is securely installed and wiring is complete (if ballast bypass was necessary), restore power at the circuit breaker.
- Test: Turn on the light switch to confirm the bulb is functioning correctly.
Warning: Bypassing an electronic ballast involves working with electrical wiring. If you are not comfortable performing this task, please seek assistance from a qualified electrician.
5. Operating Instructions
Operating the E-Simpo G23 LED bulb is straightforward:
- Ensure the bulb is correctly installed as per Section 4.
- Turn on the wall switch or fixture switch to illuminate the bulb.
- Turn off the switch to extinguish the bulb.
This bulb is non-dimmable. Do not use with dimmer switches.
6. Maintenance
The E-Simpo G23 LED bulb requires minimal maintenance:
- Cleaning: Ensure the power is off before cleaning. Gently wipe the bulb with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.
- Replacement: When the bulb reaches the end of its lifespan, turn off the power, allow it to cool, and replace it following the installation steps in Section 4.
- Disposal: Dispose of old LED bulbs according to local regulations for electronic waste.
7. Troubleshooting
If you encounter issues with your E-Simpo G23 LED bulb, refer to the following troubleshooting guide:
| Problem | Possible Cause | Solution |
|---|---|---|
| Bulb does not light up | No power to the fixture Bulb not seated correctly Electronic ballast not bypassed | Check circuit breaker and wall switch Re-insert bulb firmly into the socket Bypass the electronic ballast as per Section 4 |
| Bulb flickers or hums | Incompatible electronic ballast still in circuit Loose connection | Bypass the electronic ballast as per Section 4 Check all wiring connections for tightness |
| Bulb emits smoke or burning smell | Electronic ballast not bypassed (severe) Incorrect voltage | Immediately turn off power at the circuit breaker. Do not use the bulb. Consult a qualified electrician. Ensure fixture voltage matches bulb specifications. |
8. Specifications
| Feature | Specification |
|---|---|
| Brand | E-Simpo |
| Model Name | ES-LED-G23-5W |
| Light Type | LED |
| Wattage | 5 Watts |
| Incandescent Equivalent | 60 Watts (CFL PL-S 9W/13W Replacement) |
| Bulb Base | G23 (2-Pin) |
| Light Color | Cold White |
| Color Temperature | 6000-6500 Kelvin |
| Brightness | 550 Lumens |
| Voltage | 100-240 Volts AC |
| Beam Angle | 180 Degrees |
| Color Rendering Index (CRI) | 80+ |
| Product Dimensions | 1.06"W x 6.5"H (27mm x 165mm) |
| Material | Aluminum |
| Indoor/Outdoor Usage | Indoor |
| Special Feature | Plug and Play for Inductance ballast, Rewiring required for ELECTRONIC Ballast. |
9. Warranty Information
E-Simpo products are manufactured to high-quality standards. This product comes with a standard manufacturer's warranty against defects in materials and workmanship. Please refer to the product packaging or contact E-Simpo customer support for specific warranty terms and conditions.
10. Support
For technical assistance, troubleshooting, or warranty claims, please contact E-Simpo customer support through their official website or the retailer where the product was purchased. Please have your product model number (ES-LED-G23-5W) and purchase date available when contacting support.
