AURLANE CAB181 Shower Cabin Instruction Manual

1. Introduction

This manual provides detailed instructions for the safe installation, operation, and maintenance of your AURLANE CAB181 Shower Cabin. Please read this manual thoroughly before assembly and use to ensure proper function and longevity of your product. Keep this manual for future reference.

2. Safety Information

• Ensure all components are present and undamaged before beginning assembly.
• Always wear appropriate personal protective equipment (e.g., gloves, safety glasses) during installation.
• Handle glass panels with extreme care to prevent breakage and injury.
• Ensure the installation area has a solid, level floor and adequate wall support.
• A minimum installation height of 230 cm is required.
• All plumbing connections must be performed by a qualified professional to prevent leaks and ensure compliance with local regulations.
• Do not use abrasive cleaners or tools that could scratch the surfaces of the shower cabin.
• This product is designed for domestic use only.

3. Product Overview

The AURLANE CAB181 is a modern, square-shaped shower cabin featuring a matte black aluminum structure and tempered glass panels. It is designed for freestanding installation and offers a complete showering experience with integrated features.

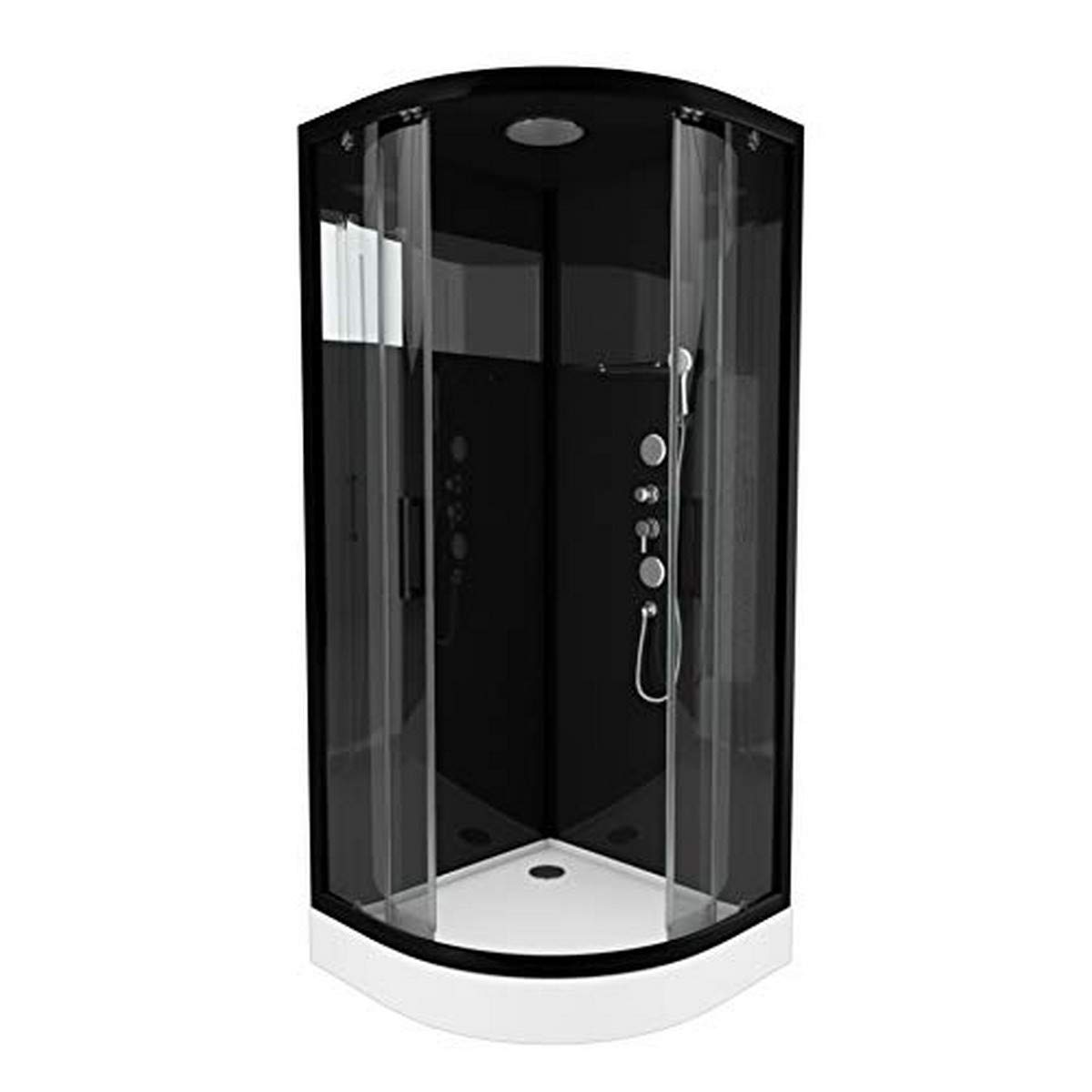

Image 1: AURLANE CAB181 Shower Cabin. This image shows the complete shower cabin installed in a bathroom setting, highlighting its matte black frame, clear sliding doors, and internal features like the rain shower and hand shower.

Key Features:

• Structure: Reversible matte black aluminum frame.
• Doors: 5 mm tempered glass sliding doors (52 cm opening width).
• Back Panels: 5 mm black tempered glass, one with a 40 cm high mirror strip.
• Roof: Black tempered glass.
• Shower Tray: Reinforced white acrylic.
• Closure: Magnetic.
• Assembly: Silicone-free and reversible back panel assembly.
• Equipment: Rain shower head, anti-limescale hand shower, hydromassage system with 2 large chrome nozzles, smoked glass shelf, matte black handles, mechanical mixer.
• Connections: 90mm drain, 40mm connection hose, water inlet hoses supplied.

4. Setup (Installation)

The AURLANE CAB181 Shower Cabin requires assembly. It is recommended that installation be carried out by two people and a qualified plumber for water connections.

Pre-Installation Checks:

1. Verify that the installation area meets the minimum height requirement of 230 cm.
2. Ensure the floor is level and capable of supporting the weight of the shower cabin (110 kg) plus water and user.
3. Unpack all components and check against the packing list for completeness and any damage.

Assembly Steps (General Guide):

Detailed assembly instructions with diagrams are typically included in a separate guide provided with the product packaging. The following is a general overview:

1. Prepare the Shower Tray: Position the reinforced white acrylic shower tray in the desired location. Connect the 90mm drain and 40mm connection hose to the plumbing system. Ensure a watertight seal.
2. Assemble the Frame: Construct the reversible matte black aluminum structure according to the manufacturer's instructions. This product features silicone-free assembly, utilizing gaskets and seals for watertightness.
3. Install Back Panels: Secure the 5 mm black tempered glass back panels to the frame. Note that one panel includes a 40 cm high mirror strip. The back panel assembly is reversible.
4. Install Sliding Doors: Mount the 5 mm tempered glass sliding doors onto the frame. Ensure they slide smoothly and the magnetic closure functions correctly.
5. Attach Roof: Place the black tempered glass roof onto the top of the frame.
6. Connect Plumbing: Install the mechanical mixer, rain shower head, anti-limescale hand shower, and hydromassage system. Connect the supplied water inlet hoses to your water supply. Ensure all connections are tight and leak-free.
7. Install Accessories: Mount the smoked glass shelf and matte black handles.

Important: Perform a leak test before sealing the installation area. Run water through all functions (rain shower, hand shower, hydromassage) and check all connections for drips or leaks.

5. Operating Instructions

Your AURLANE CAB181 Shower Cabin is designed for ease of use. Familiarize yourself with the controls before first use.

Using the Mechanical Mixer:

• The mechanical mixer controls water flow and temperature. Turn the handle to adjust the water temperature (typically left for hot, right for cold).
• Pull or push the handle to turn the water on/off and adjust flow intensity.

Selecting Shower Functions:

A diverter knob or button on the mixer panel allows you to switch between the different shower functions:

• Rain Shower Head: Select this option for a wide, gentle overhead spray.
• Hand Shower: Select this option to use the flexible anti-limescale hand shower for targeted rinsing.
• Hydromassage System: Select this option to activate the 2 large chrome nozzles for a relaxing massage effect.

Always ensure the shower doors are properly closed before operating the shower to prevent water leakage.

6. Maintenance

Regular cleaning and maintenance will ensure the longevity and aesthetic appeal of your shower cabin.

General Cleaning:

• After each use, rinse the interior surfaces with clean water to remove soap residue.
• Wipe down glass panels and chrome fixtures with a soft cloth to prevent water spots and limescale buildup.

Specific Care:

• Glass Panels: Use a non-abrasive glass cleaner and a soft cloth or squeegee. Avoid harsh chemicals that can damage seals or finishes.
• Aluminum Frame: Clean the matte black aluminum frame with a mild soap solution and a soft cloth. Do not use abrasive sponges or cleaners.
• Acrylic Shower Tray: Use non-abrasive liquid cleaners specifically designed for acrylic surfaces. Avoid powdered cleaners or stiff brushes.
• Anti-Limescale Hand Shower: Periodically clean the nozzles of the hand shower by gently rubbing them to dislodge any limescale deposits.
• Drain: Regularly check and clean the 90mm drain to prevent blockages.
• Seals and Gaskets: Inspect seals and gaskets periodically for wear or damage. Replace if necessary to maintain watertightness.

7. Troubleshooting

This section addresses common issues you might encounter with your shower cabin.

Common Issues and Solutions:

• Water Leakage:
  • Check all plumbing connections for tightness.
  • Inspect door seals and gaskets for proper seating or damage. Ensure doors close completely.
  • Verify that the shower tray is level and the drain is properly sealed.
• Poor Drainage:
  • Remove the drain cover and clear any hair or debris from the 90mm drain.
  • Ensure the connection hose is not kinked or blocked.
• Low Water Pressure:
  • Check the main water supply to your home.
  • Inspect water inlet hoses for kinks or blockages.
  • Clean any limescale from the shower heads and nozzles.
• Sliding Doors Sticking:
  • Clean the door tracks and rollers to remove soap scum or debris.
  • Check if the rollers are properly aligned and lubricate with a silicone-based spray if necessary.
• Mixer Not Functioning Correctly:
  • If water temperature or flow is inconsistent, check the hot and cold water supply.
  • For persistent issues, professional plumbing assistance may be required.

If you are unable to resolve an issue using these troubleshooting steps, please contact AURLANE customer support or a qualified technician.

8. Specifications

9. Warranty and Support

For warranty information, terms, and conditions related to your AURLANE CAB181 Shower Cabin, please refer to the documentation provided with your purchase or contact AURLANE customer service directly. Keep your purchase receipt as proof of purchase for any warranty claims.

For technical support, spare parts, or further assistance, please reach out to the manufacturer's customer service department. Contact details can typically be found on the product packaging or the AURLANE official website.
